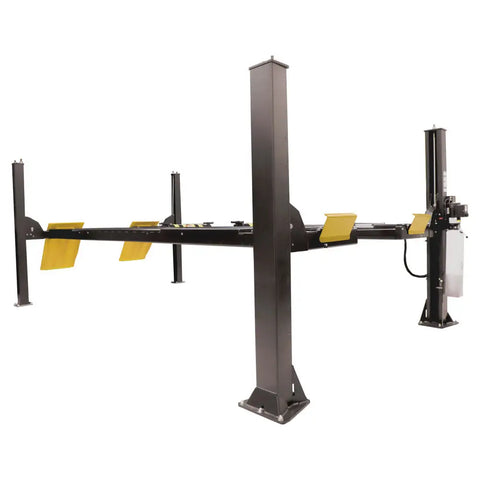

Name: Hofmann 12K 4-Post Alignment Lift, ALI Cert. w/ 2 Rolling Jack, Turntables - EELR728APKG
Brand: Hofmann
SKU: hof-eelr728apkg
Price: 16700 USD
Availability: InStock

Hofmann 12K 4-Post Alignment Lift, ALI Cert. w/ 2 Rolling Jack, Turntables - EELR728APKG

Car

Light Truck

Made in USA

Hofmann 12K 4-Post Alignment Lift, ALI Cert. w/ 2 Rolling Jack, Turntables - EELR728APKG

SKU: HOF-EELR728APKG $16,700.00

Part No: HOF-EELR728APKG

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Related Categories: ALI Certify Lifts Alignment Lifts Alignment Service Automotive Lift Four-Post Lifts Hofmann Shop Equipment

PRODUCT INFO

Versatile 12k 4-post alignment lifts give you 12,000 lbs of heavy-duty lifting capacity in a compact and stable lift design without multiple lifts. Whether a microcar or a heavy-duty pickup, the 12k four-post alignment lift has four-wheel alignment capabilities that cover a full range of vehicle requirements.

Features:

A conveniently packaged alignment lift with 20.5” wide “Pro-Style” runways, two roller jacking systems, premium turn plates, and a rollback kit provides a complete professional-grade alignment system.
Save time when loading vehicles of narrow to wide track widths on an ultra-low-profile, shake-free, and sturdy closed front design.
This unit maintains a steady and shake-free surface for advanced alignment equipment measurements.
81.6” long rear slip plates - no need for repositioning of the front turnplates to accommodate for longer or shorter vehicles
81.6” long rear slip plates mean no need to reposition the front turn plates to accommodate for longer or shorter vehicles.
Hydraulic cylinder mounted underneath runway.
Industry-proven brake-formed front columns and traverse beam design spread critical load forces over lengthier/larger supporting areas to ensure alignment accuracy.
Locking ladders mount through the traverse beams to ensure safety lock engagement.
Filter / Regulator / Lubricator (FRL) provides a clean and lubricated air supply to the lift and jack systems, improving reliability and reducing the need for maintenance.
A slack cable support system keeps cables from hanging when the lift is on the locks.
It has textured approach ramps for positive vehicle traction.

Specs:

Lifting Capacity: 12,000 lbs. (5,450 kg)
Front Accessibility: Closed
Overall width: 134.8in (3,423 mm)
Overall Length: 251.5in (6,386 mm)
Min / Max 4-Wheel Alignment Wheelbase: 88.5in - 158.5in (2,248 mm - 4,026 mm)
Maximum 2-Wheel Alignment Wheelbase: 168.8in (4,288 mm)
General Service Wheel Base: 183in (4,646 mm)
Runway Width: 20.6in (524 mm)
Runway Length: 204.6in (5,196 mm)
Distance Between Runways: 40in / 43in (1,016 / 1,092 mm)
Rasied Height: 78in (1,981 mm)
Lowered Height: 7.2in (182.5 mm)
Lifting Time: 70 Seconds
Column Height: 90.5in (2,298 mm)
Lifting Time: 74 Seconds
Power Requirements: 230V, 1Ph, 60HZ 12.5A
Shipping Weight: 3,307 lbs (1,500 kg)

Rolling Jack
Lifting Capacity: 6,000 lbs (2,722 kg)
Minimum Arm Reach: 33in
Maximum Arm Reach: 50 3/16in
Raised Height: 13.125in (332.5 mm)
Lowered Height w/Lift Pad: 3.125in (78.5 mm)
Air Requirements: 90 - 120 PSI (6-8 BAR)
Shipping Weight: 308 lbs (140 kg)
