Challenger ALI Mobile Column Truck Lift - CLHM-140
- SKU: CHL-CLHM-140-2 From $25,902.08
Estimated Lead Time:
Part No: CHL-CLHM-140-2
SHIPPING INFO
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
${{amount}}
DOWNLOADS
Related Categories:
ALI Certify Lifts
Automotive Lift
Challenger Lifts
Shop Equipment
PRODUCT INFO

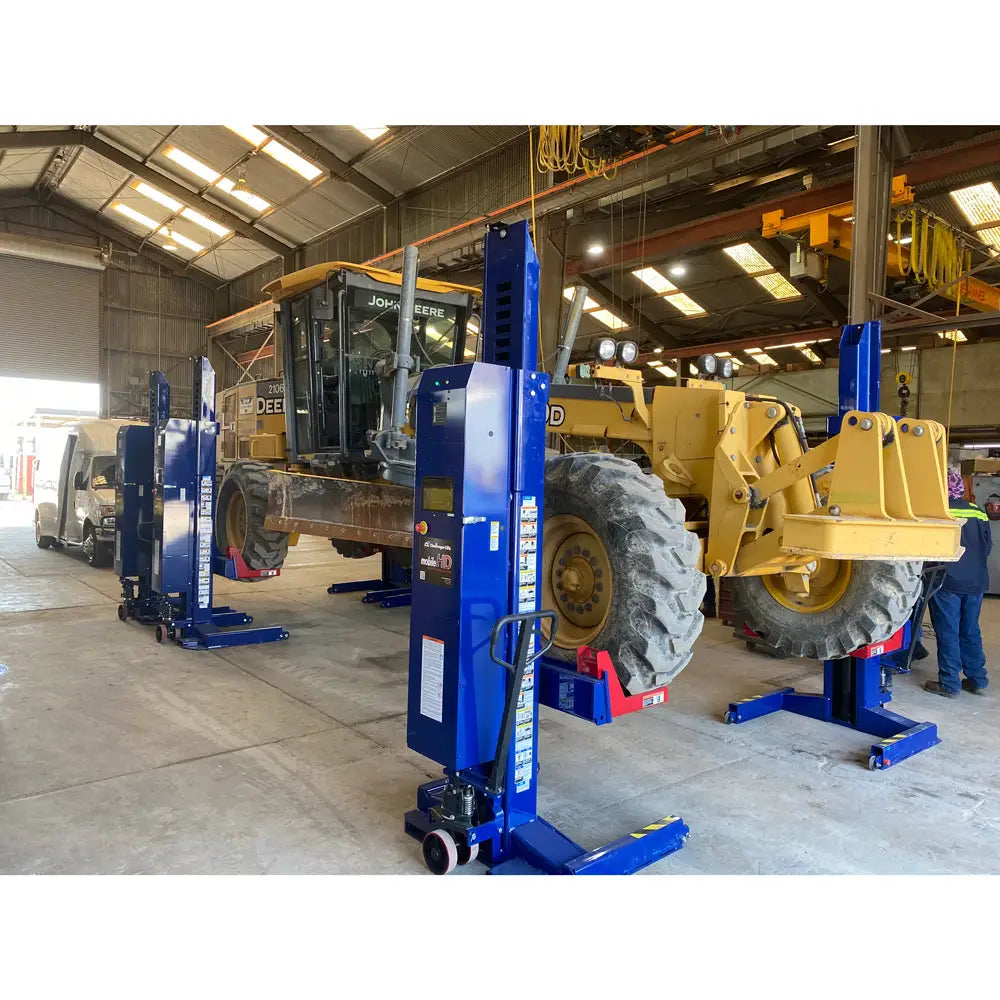

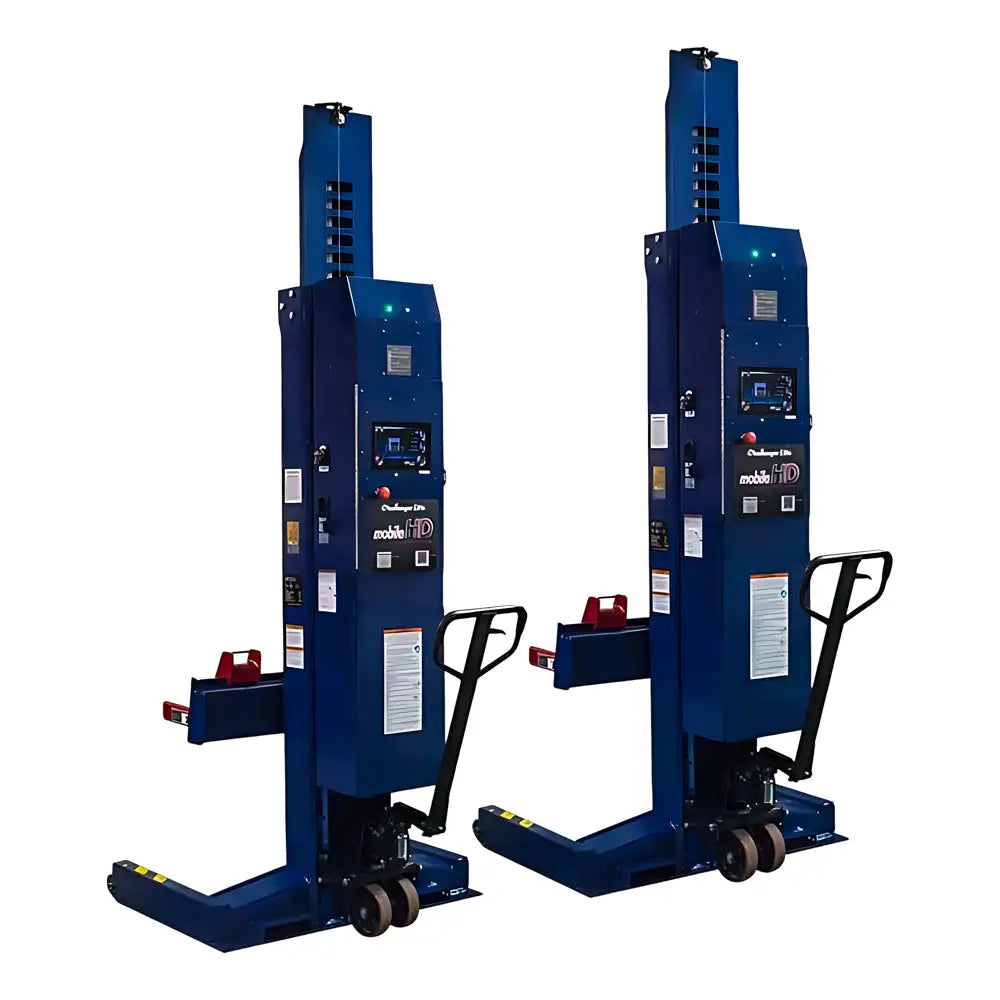

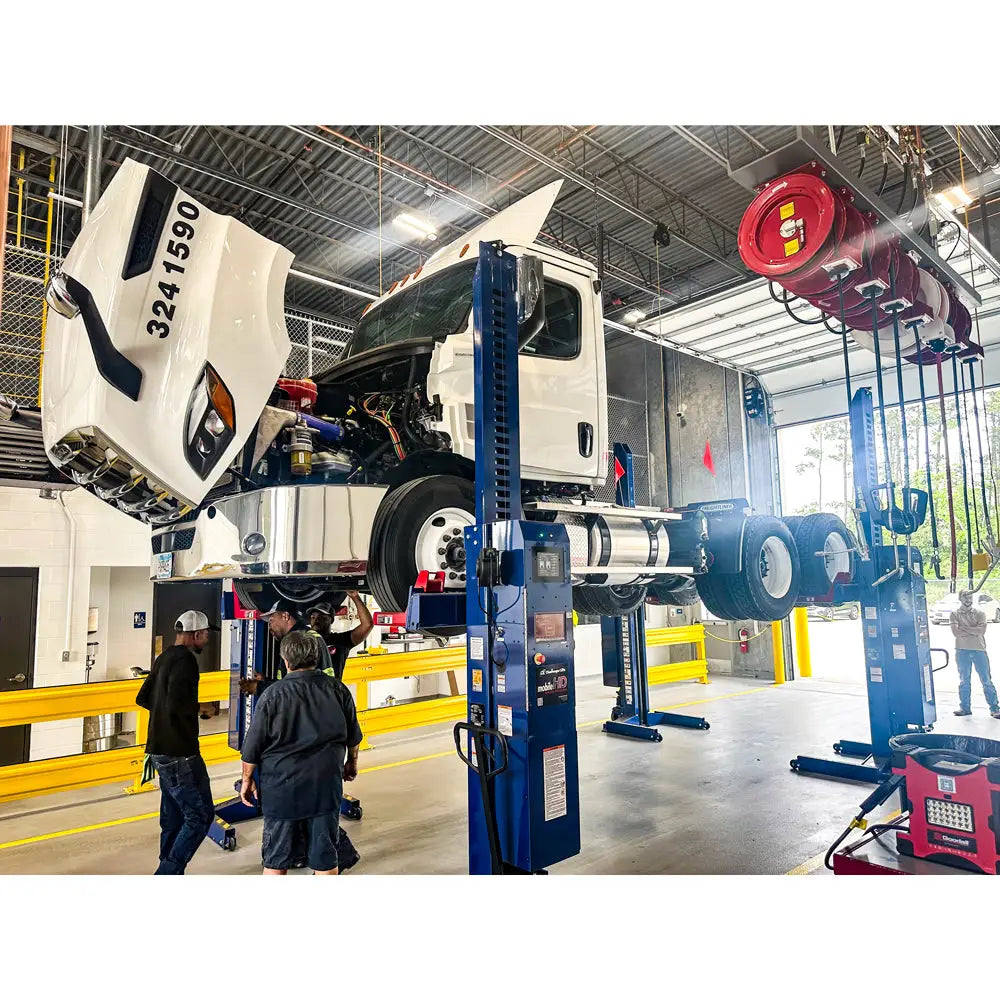

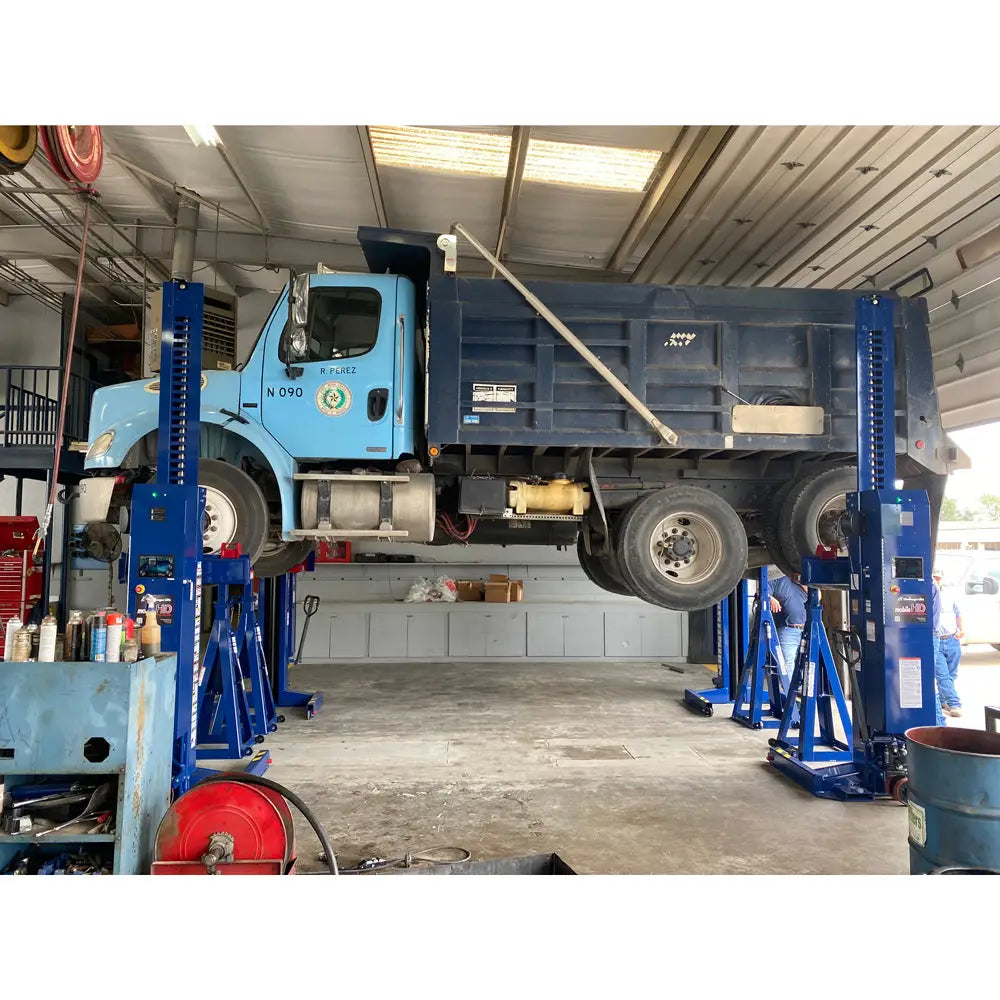

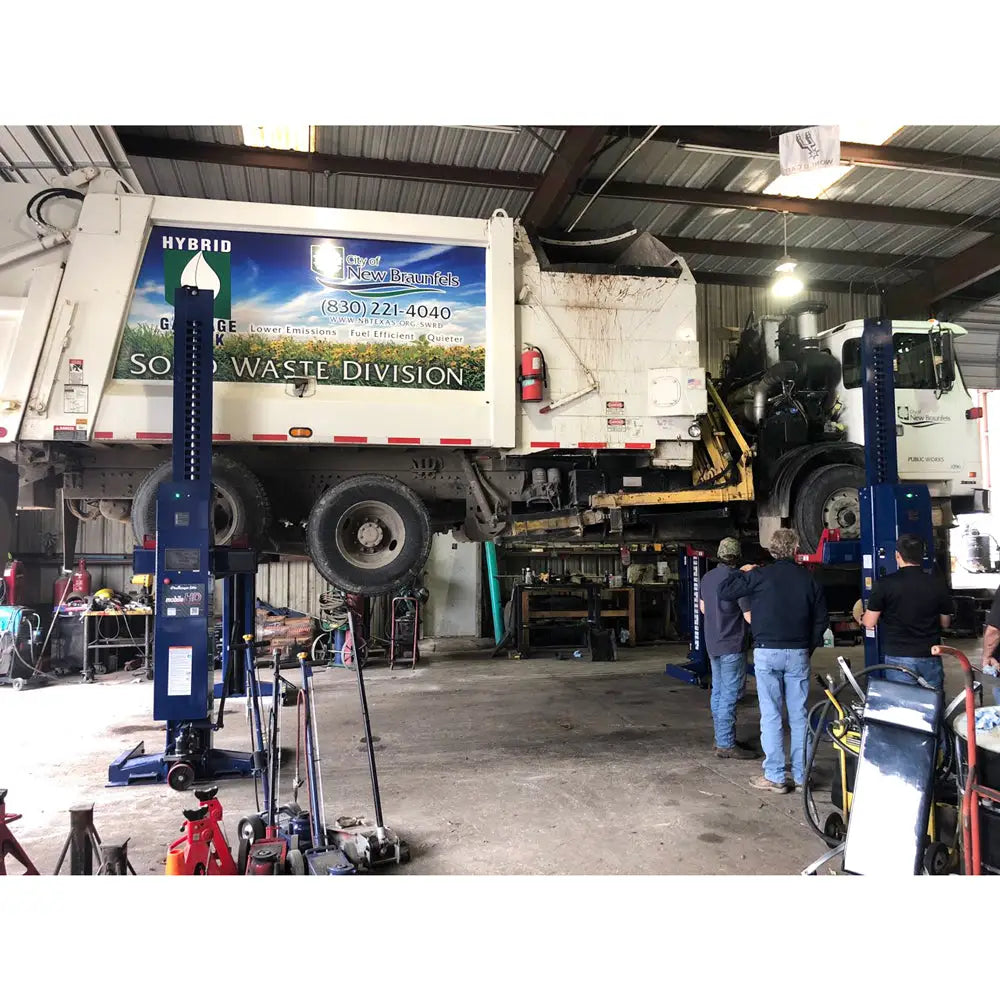

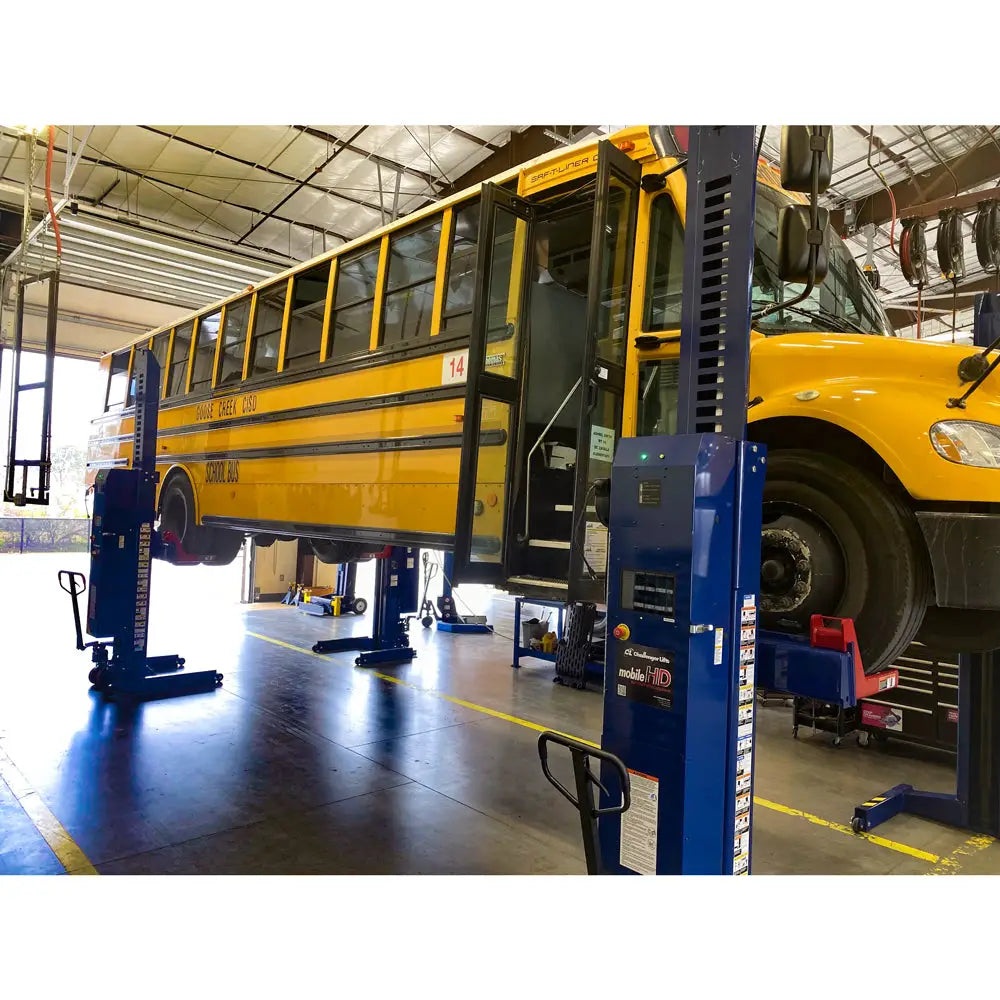

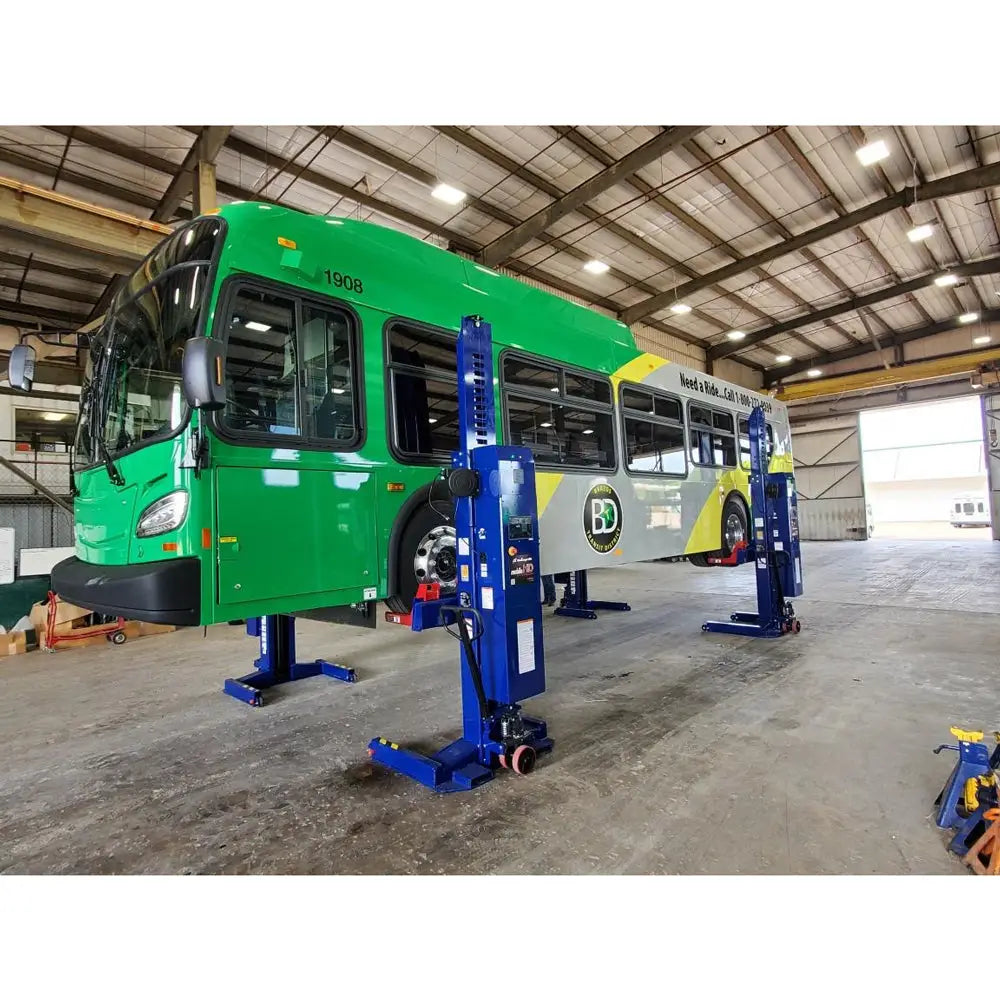

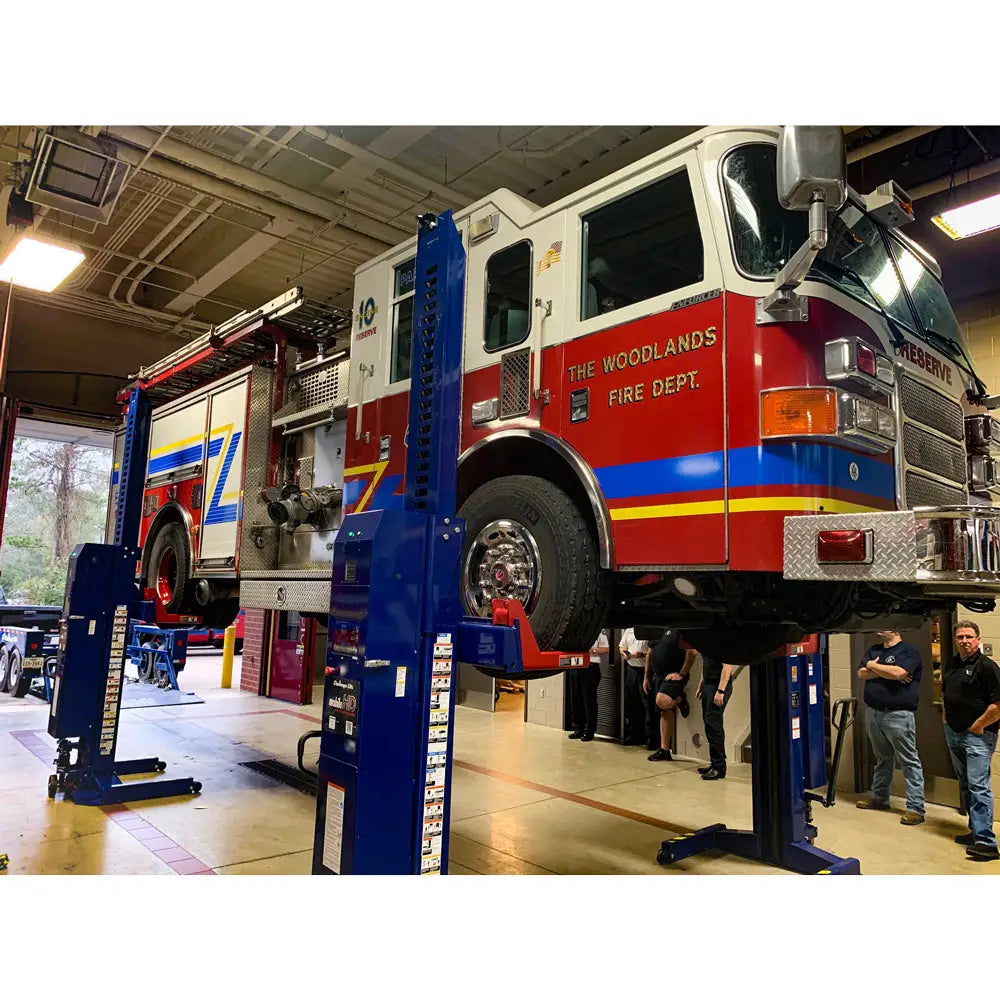

Challenger’s heavy-duty mobile lifting system is robust, yet easily maneuverable and can be operated on almost any solid surface, indoors or out. Mobile lifts provide the flexibility and convenience to lift any rubber-tired vehicle, from small passenger cars to large 2-, 3- or 4-axle vehicles up to 152,000 pounds. Our heavy-duty mobile lifts are also capable of lifting vehicles of any axle length or wheelbase. Models are available in 14,000 lb. or 19,000 lb. capacity columns.
Features:
- 14,000 lb. capacity columns

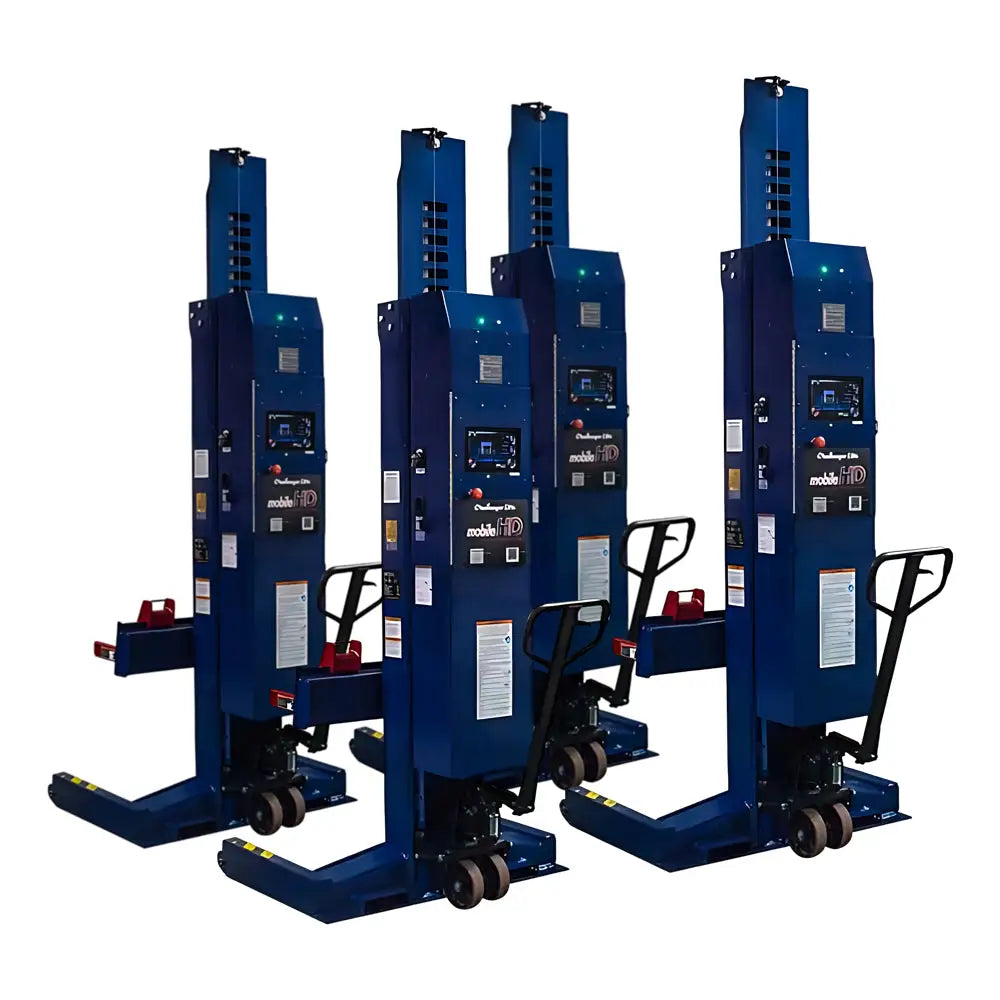

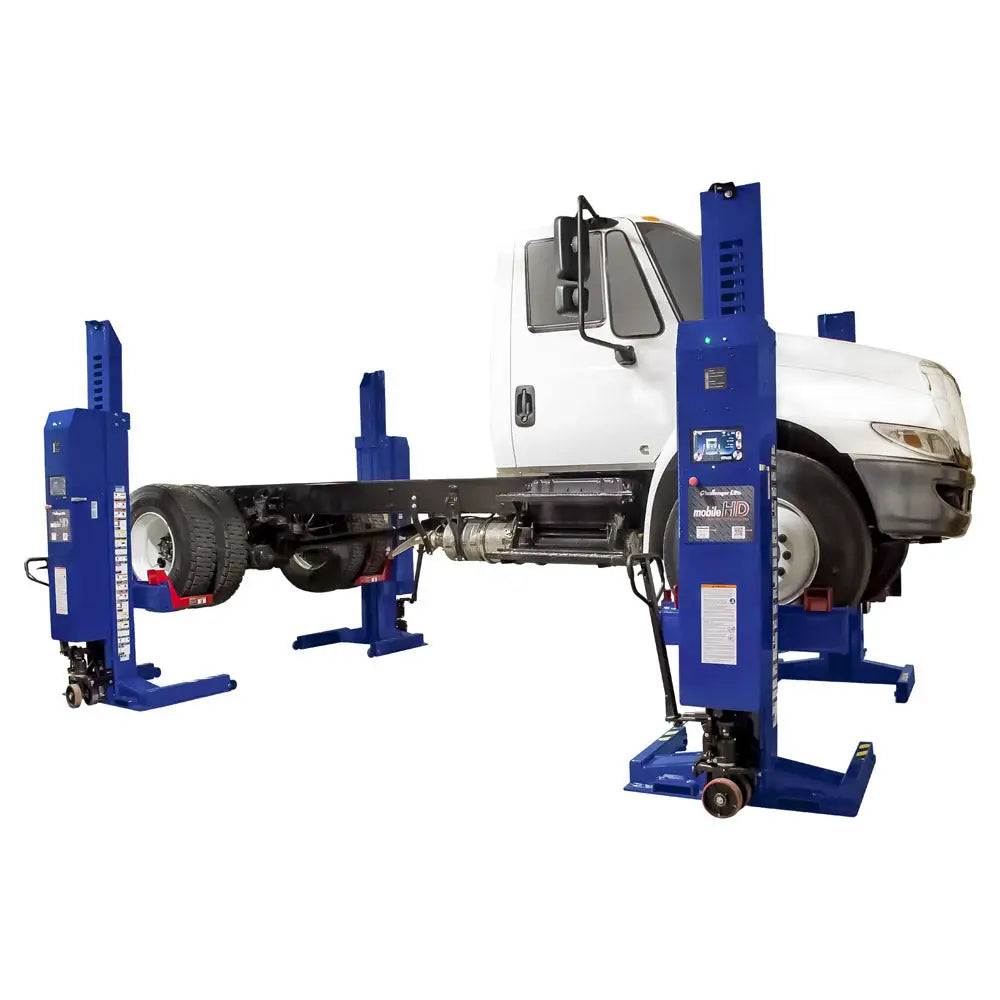

- Hydraulic operated units provide 28,000/38,000 (set of 2) or 112,000/152,000 lbs. (set of 8) lifting capacity

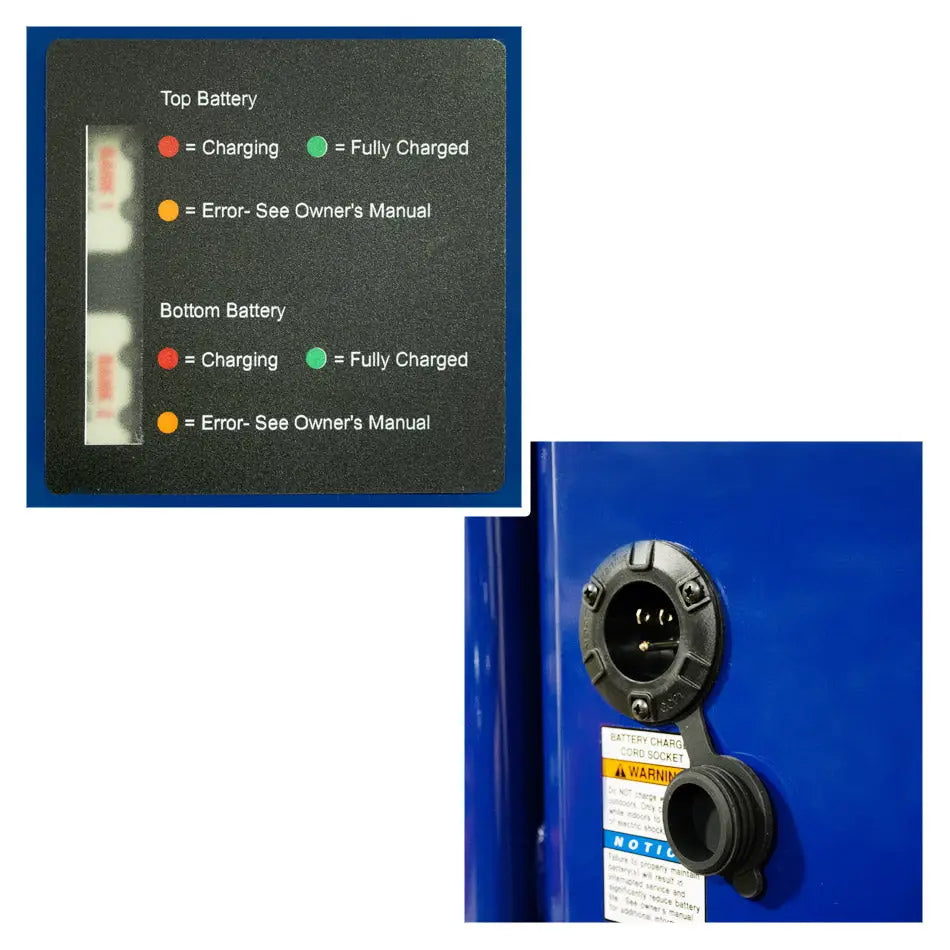

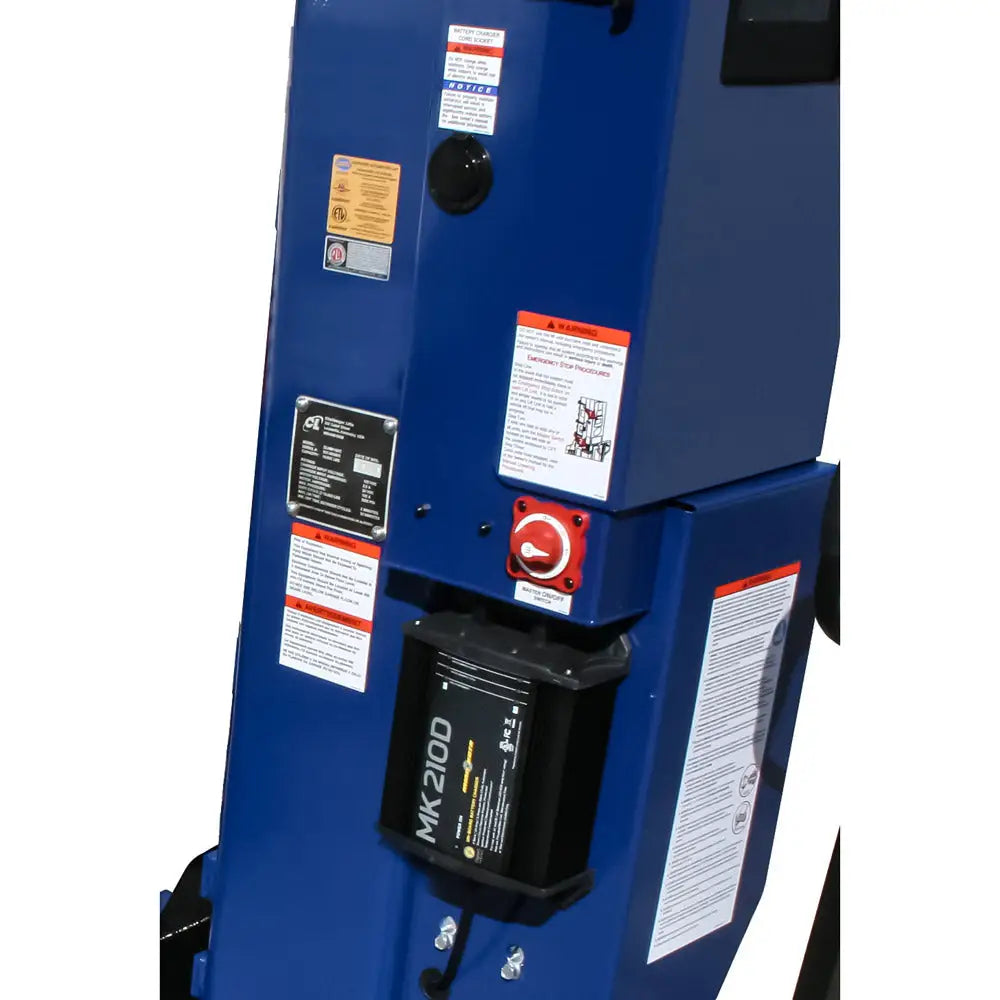

- 110-volt built-in multi-stage charging system

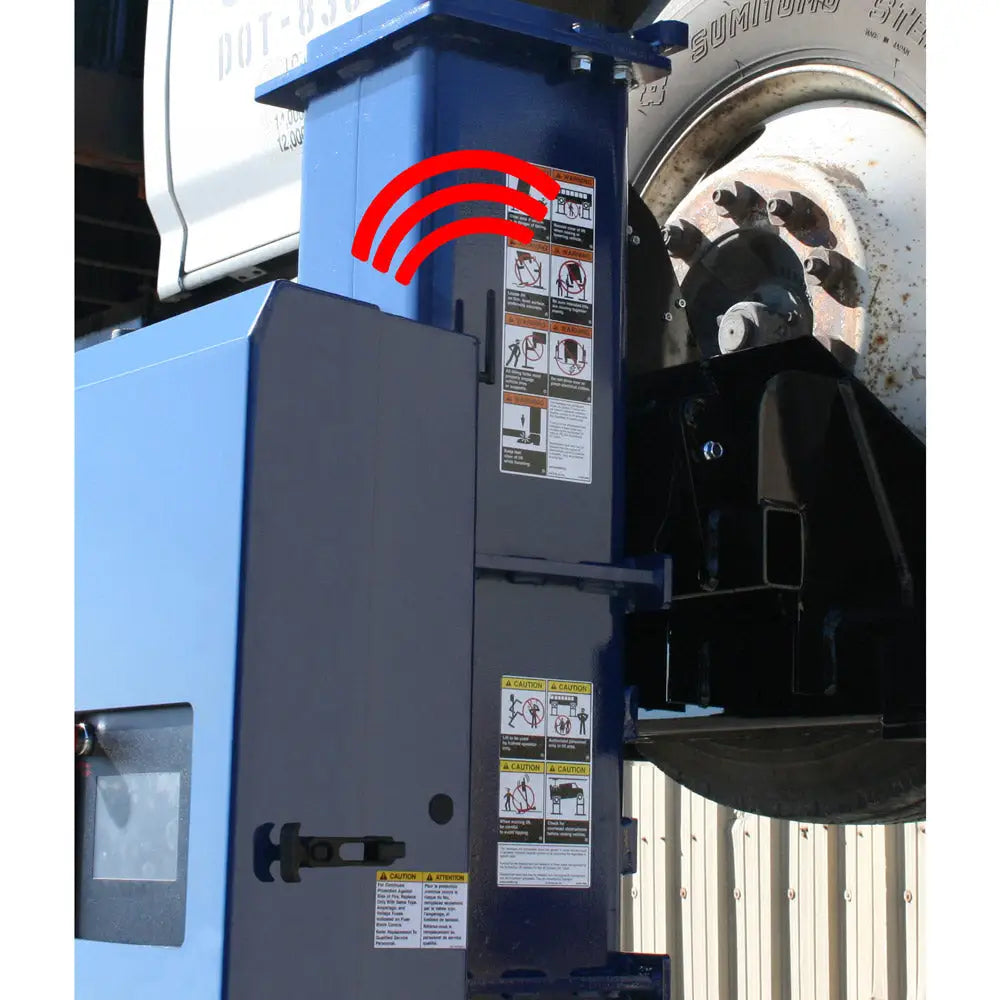

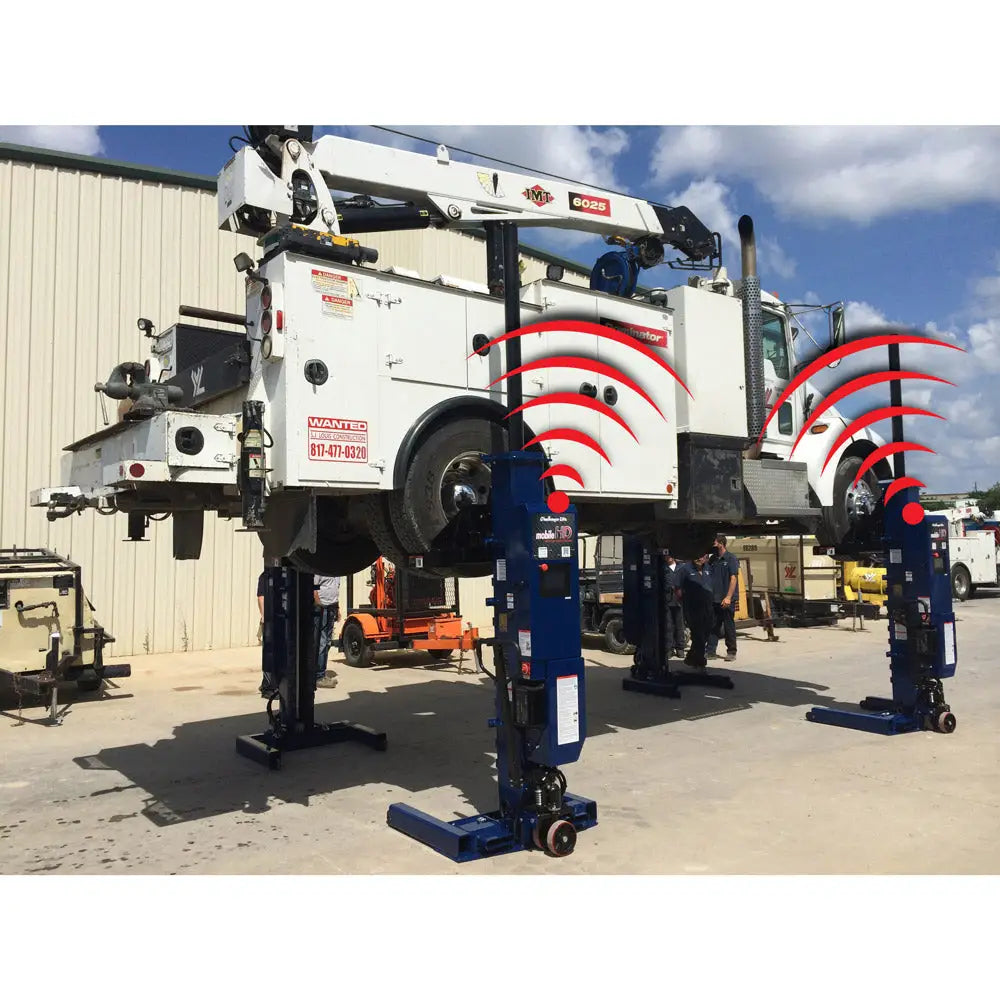

- Wireless system for clutter-free work area without cables to connect, navigate, roll-over, or replace

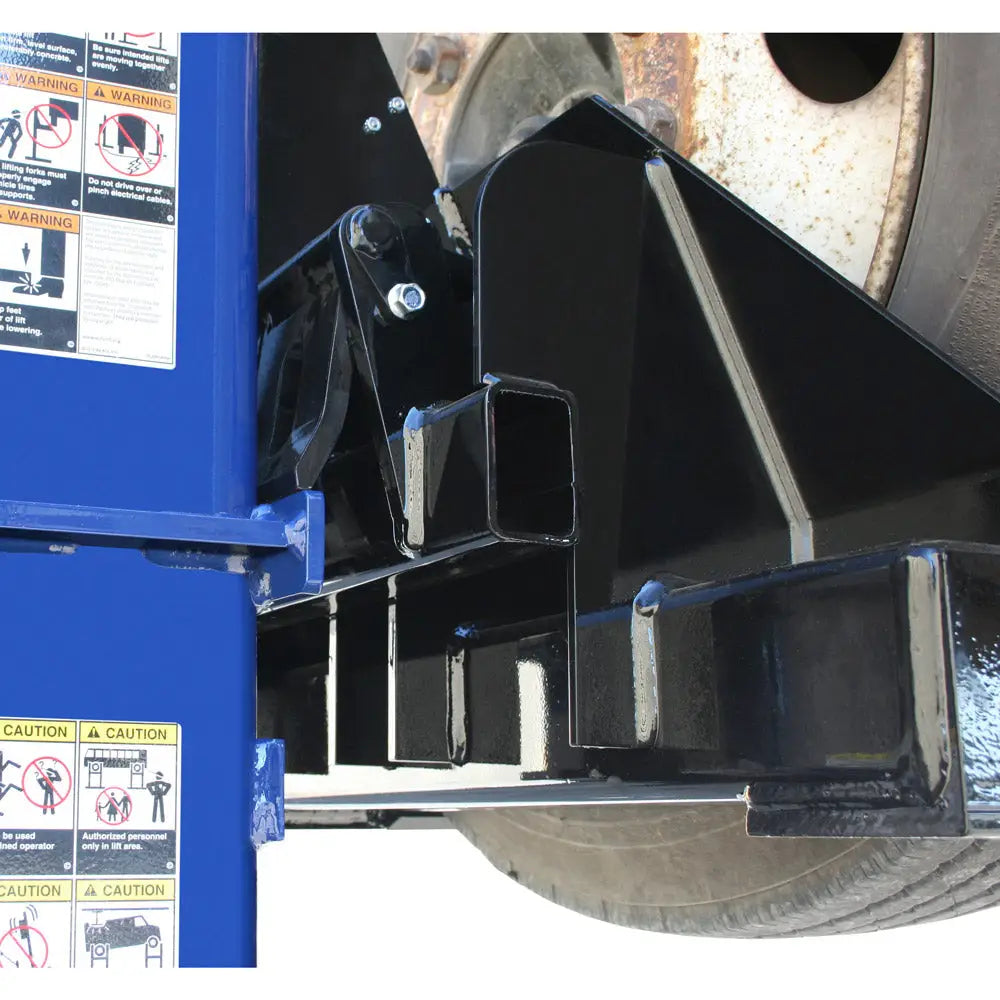

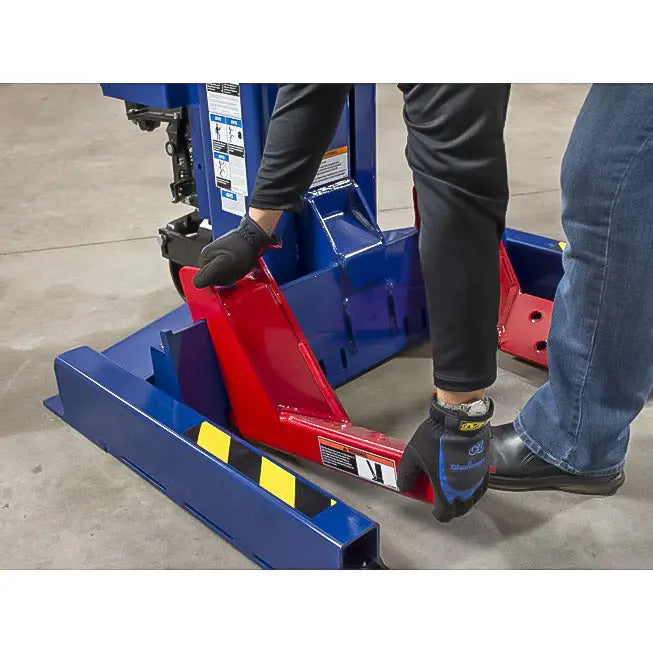

- Adjustable wheel carriage adapts to most tire sizes
- 12 radio frequencies with a wide channel range prevent radio noise from interrupting service
- Linear position transducers maintain system synchronization and ensure maximum reliability

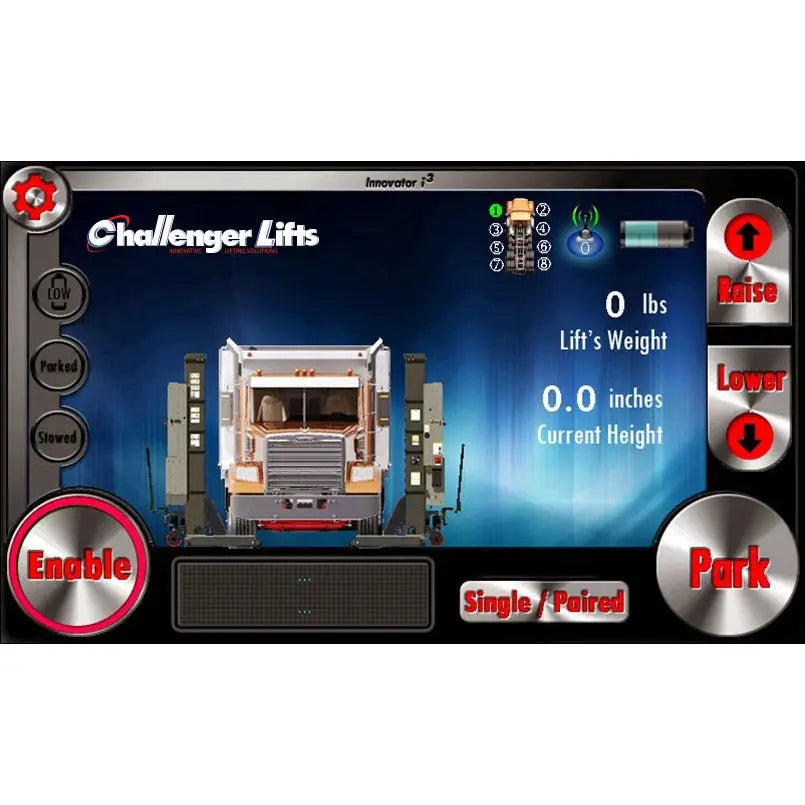

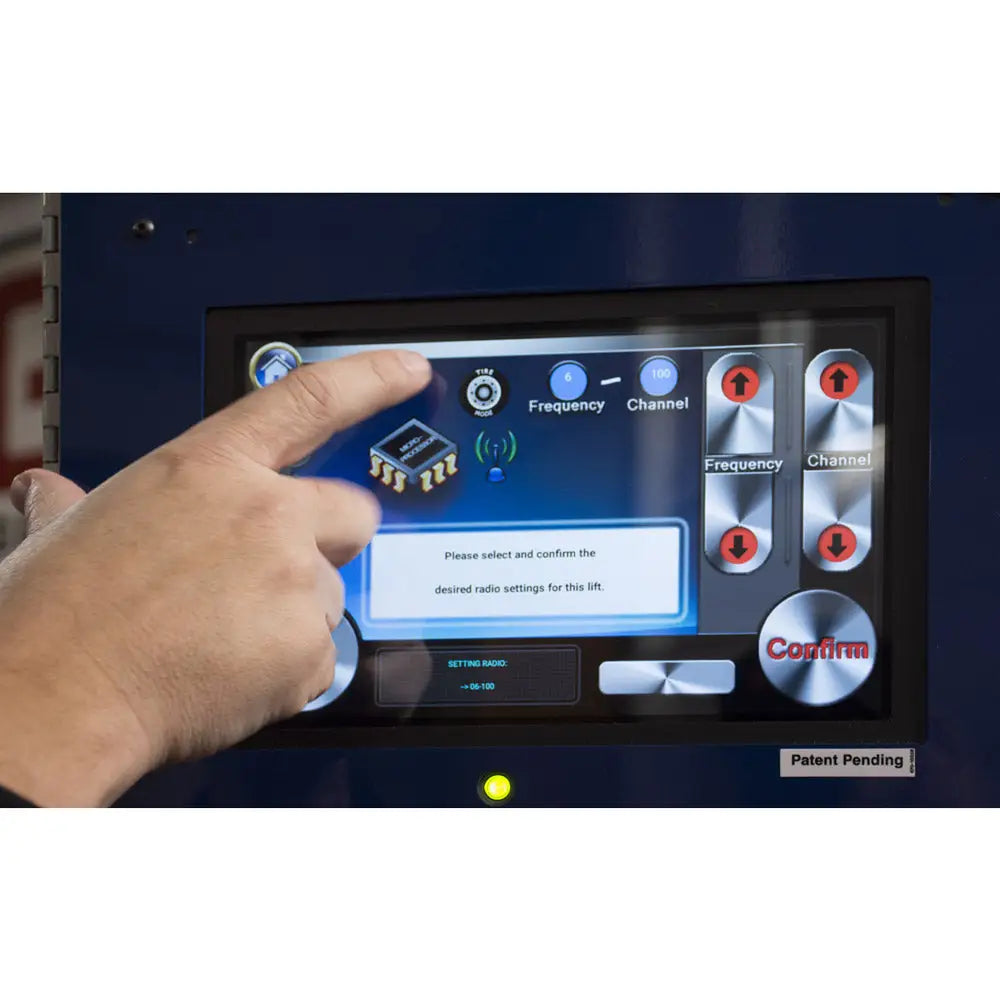

- Integrated touch screen control console at each column allows operation from any unit
- Precisely balanced design, heavy-duty tow handle, and spring-loaded wheels for easy mobility
- Operates with 12-volt deep cycle batteries eliminating the need for power source hookups and providing 24-volt operation
- Integrated weight gauges help prevent column overloading and verify lock engagement

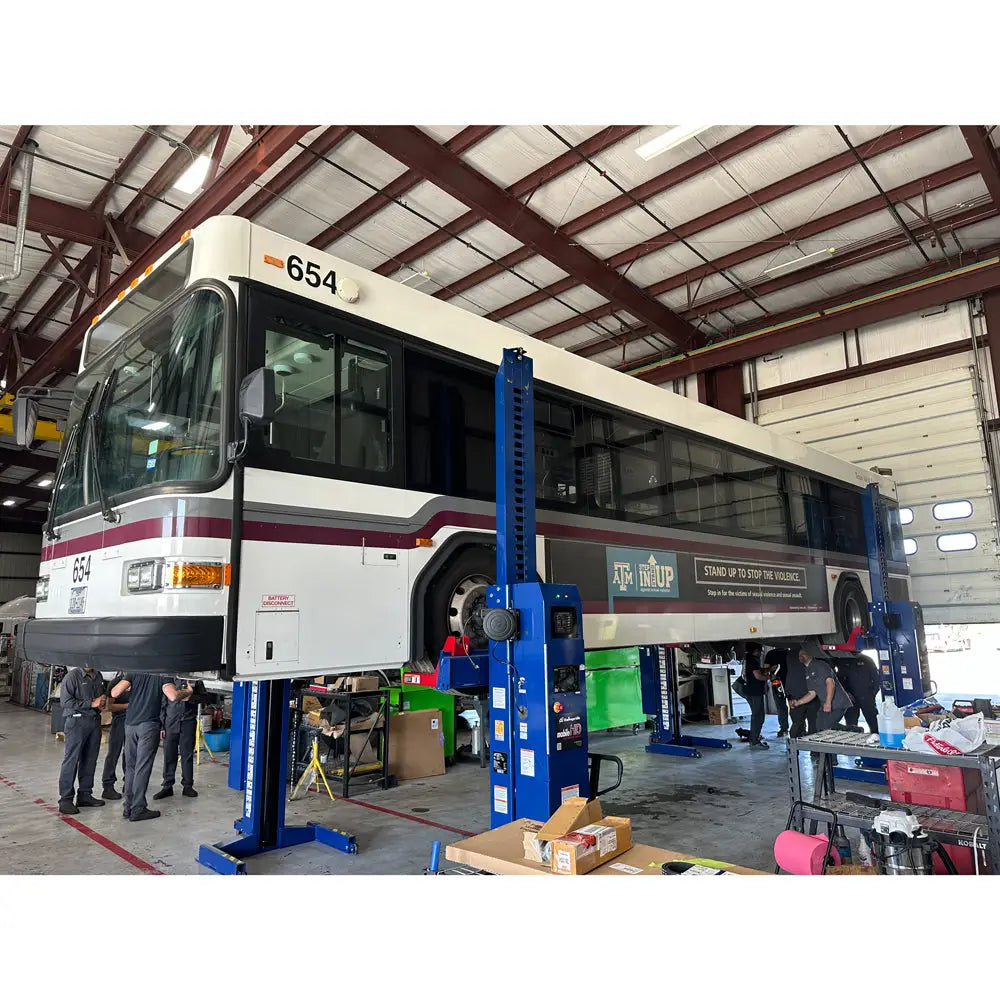

- Wide range of accessories available to further customize your columns to lift specialty heavy-duty trucks, transit, and municipality vehicles, forklifts, cab removal of standard pickup trucks, and more
Specs:

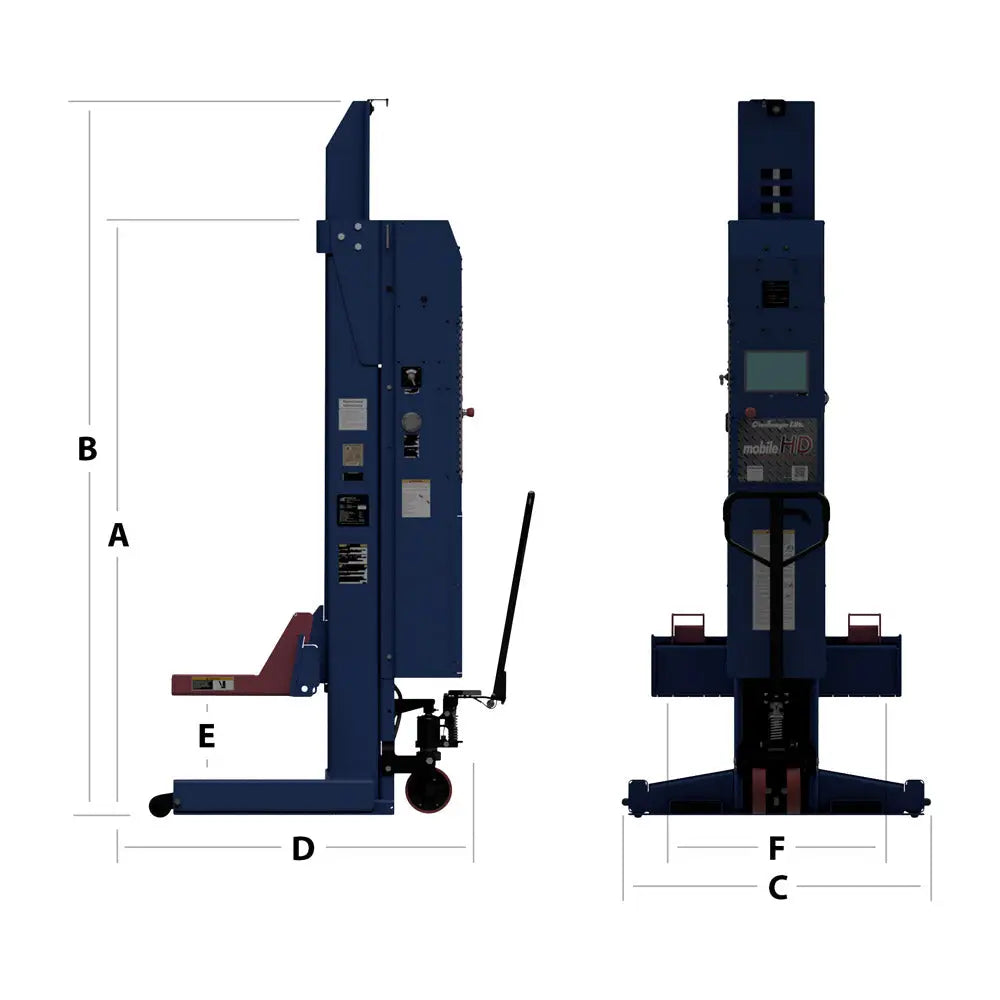

Lifting Capacity Per Column: 14,000 lbs.Height of Lift Unit: 88.5in
Height of Lift Unit at Full Rise: 157.125in
Width of Lift Unit: 44.25in
Length of Lift Unit: 53.625in
Maximum Lift Height (4 or more units): 69in
Maximum Lift Height (2 units - Normal Mode): 32in
Min-Max Wheel Diameter: 5in - 24.5in
Max. Hydraulic System Operating Pressure: 2,180 psi
Lift Speed (Max Load): 60in per min.
Weight of Lift Unit: 1,485 lbs
The footprint of Lift Unit: 560 sq. in.
Ground Pressure for each Lift (Max. Load): 27.7 psi
Turning Radius of Lift Unit: 47in
Operating Peak Power: 4HP
Operating Voltage: 24 VDC nominal
Charger Voltage Required: 120 VAC @ 60 Hz
Charger Amps Required: 1.3 Amps
ALI/ETL Certified: Yes
Colors Available: Blue
