Forward DP15 15K Heavy-Duty Two-Post Lift for Shops

Forward DP15 15K Heavy-Duty Two-Post Lift

Forward DP15 15K Heavy-Duty Two-Post Lift - Two Post Lift

Forward DP15 15K Heavy-Duty Two-Post Lift - Extended (199) /

Forward DP15 15K Heavy-Duty Two-Post Lift

SKU: FLT-DP15-155BL From $13,385.00
Save $2,020.00

Estimated Lead Time:

Part No: FLT-DP15-155BL

Low Ceiling (155")

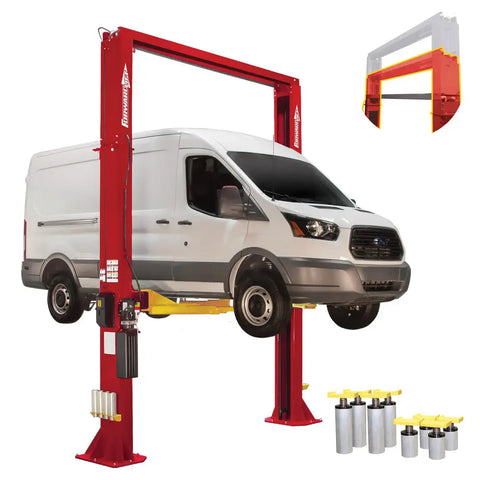

Standard (175")

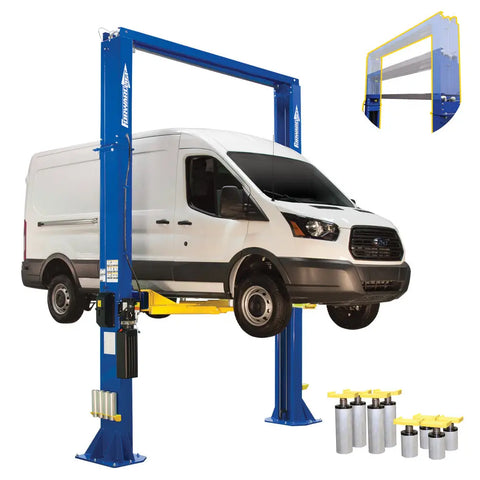

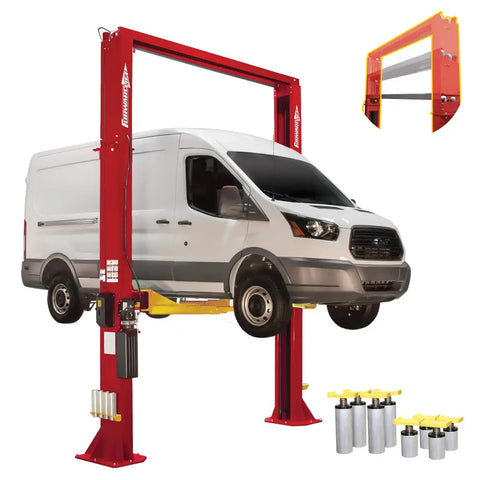

Extended (199")

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

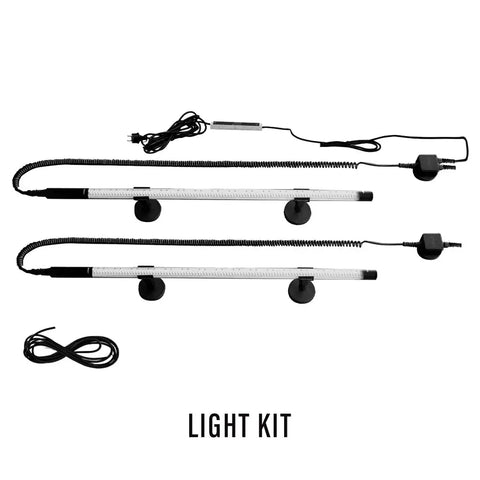

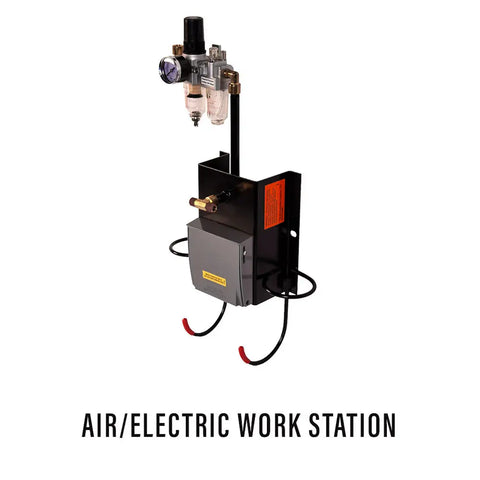

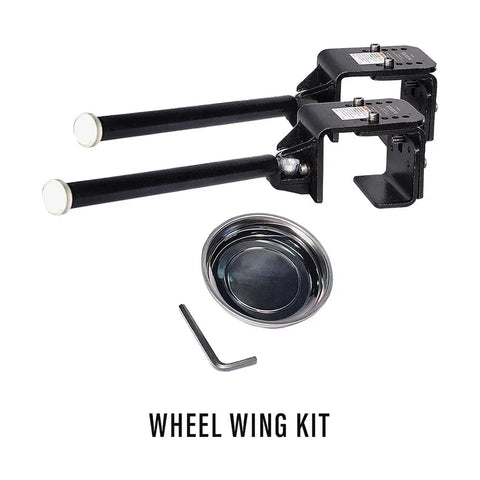

ACCESSORIES

DOWNLOADS

Related Categories: ALI Certify Lifts Automotive Lift Forward Lift Shop Equipment Two Post Lifts

PRODUCT INFO

DP15 Sale Sheet

The DP15 Heavy-Duty Two-Post Lift is perfect for your shop. With a capacity of 15,000 pounds, it can handle work trucks, vans, small buses, and everything else that comes through the door. The DP15 is constructed of high-strength heavy gauge steel columns and has eight aircraft-grade aluminum truck adapter extensions. Four 5" and four 10" adapters allow you to lift a wide range of vehicles. The arms are two-stage and can easily be extended and retracted while spotting a vehicle on the floor.

Features:

15,000 lbs. capacity for raising most trucks and vans.
Features symmetrical column design
Direct-Pull Lifting - high efficiency, low maintenance technology
Closed-loop hydraulic system - protects against hydraulic contamination
Powder coat paint is more durable than conventional coatings
Third-party tested and certified by ALI
Padded shut-off bar
Low-profile arms and truck adapters
Single point release lock at the operations center

Low-Profile Arm Design

Arms feature a low, 5 1/2" minimum adapter engagement height
Two-stage with heavy-duty reinforced gusseting
Easily extended and retracted / from 61" to 38".

Specs:

Arm Type: 2 Stage
Total Capacity: 15,000 lbs. (8164kg)
Rise*: 83-1/4in (2114mm)
Overall Floor Width: 154-3/8in (3921mm)
Inside Column Width: 119-5/8in (3038mm)
Drive Through: 108-1/4in (2749mm)
Arm Reach: 38in (965mm) 61in (1549mm)
Minimum Adapter Height: 5-1/2in (139mm)
Stackable Adapter Height (Low Extension): 10-1/2in (266mm)
Stackable Adapter Height (High Extension): 15-1/2in (393mm)
Voltage*: 208/230v, 20 amps
Amps: 20
Motor: 2 HP/1Ø
Color: Red/Blue

DP15-155BL/RD
Model: Low Ceiling
Column Extensions: No Extensions
Overall Height: 154-3/4in (3930mm)
Height to Shut-Off: 147-1/4in (3735mm)
Minimum Ceiling Height: 155-3/4in (3956mm)
Ref No: DP15N000, DP15N000BL, DP15N000RD

DP15-175BL/RD
Model: Standard
Column Extensions: Standard Height
Overall Height: 175in (4445mm)
Height to Shut-Off: 167-1/4in (4250mm)
Minimum Ceiling Height: 176in (4470mm)
Ref No: DP15N001, DP15N001BL, DP15N001RD

DP15-199BL/RD
Model: Extended
Column Extensions: Extended Height
Overall Height: 199in (5054mm)
Height to Shut-Off: 191-1/4in (4860mm)
Minimum Ceiling Height: 200in (5080mm)
Ref No: DP15N002, DP15N002BL, DP15N002RD

* Specifications are subject to change without notice or liability. *Maximum lifting height within 10in adapters
* 1Ø, 3Ø, and 3Ø 600V available via special order - restrictions apply
