BendPak EV Battery Pack And Powertrain Portable Lifter - EV4000SL
BendPak EV Battery Pack And Powertrain Portable Lifter - EV4000SL
Part No: BP-EV4000SL
Alaska, Hawaii, & any/all US territories & international orders are excluded.

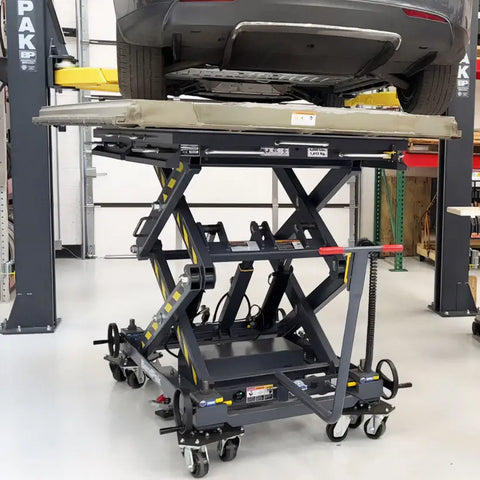

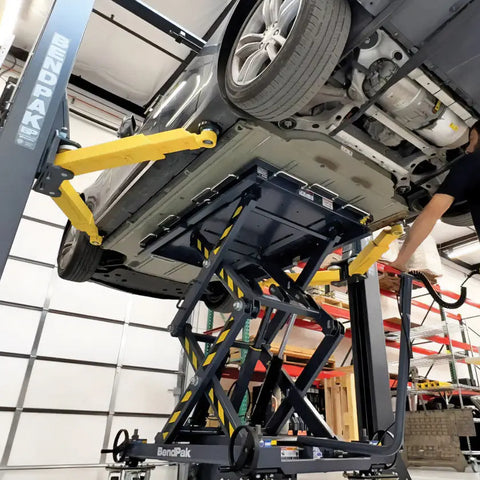

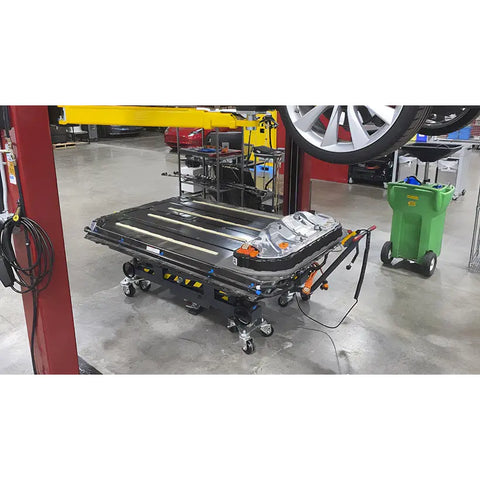

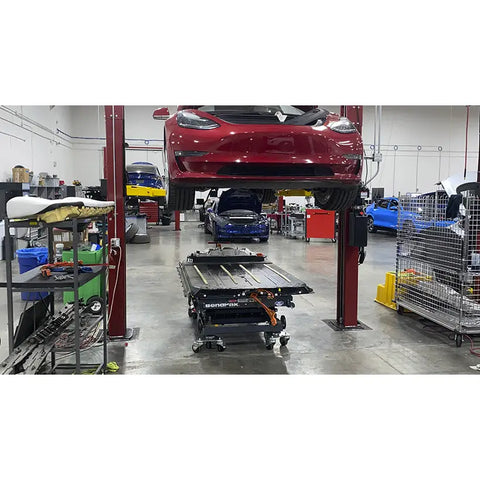

BendPak's revolutionary Mobi-EVS is the perfect battery-powered mobile scissor lift table for Electric Vehicle Service and EV Battery Pack replacement. With its compact design, this space-saving scissor lift can be easily transported anywhere in the workplace, making it ideal for multi-bay facilities or workplaces with confined areas. The Mobi-EVS features state-of-the-art engineering and technology within an elegant design that sets a new industry benchmark for performance and versatility. The Mobi-EVS lift table is a multi-functional scissor lift that features multiple recessed anchoring locations for accommodating a variety of modular fixtures, adapters, and accessories. Each can be repositioned or removed as applications dictate.

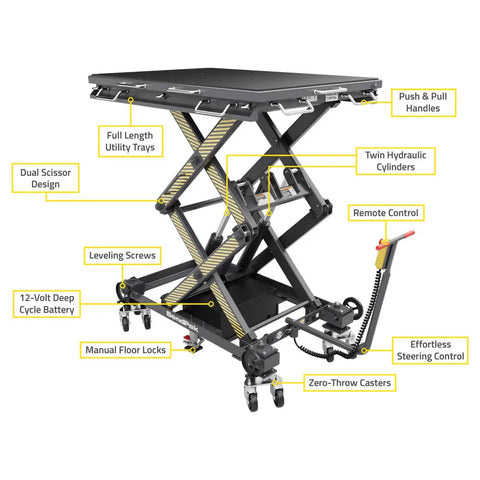

Features:
- Built Smart, Built Tough, Built To Last.
- Full-Length Utility Trays.
- Stowable Tow Bar.
- DC Electric Power System With Onboard Charging.
- Sized For Optimum Versatility.
- Manual Floor Locks.
- Zero-Throw Casters for Extreme Maneuverability.
- Powder Coat Paint Finish.
- Side-To-Side Adjustments Made Easy.
- Impact Resistant Protection.

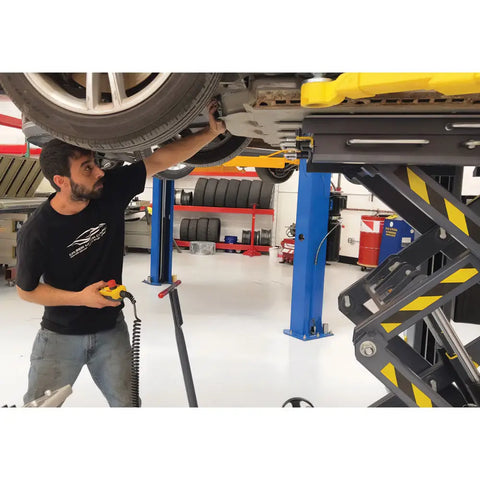

- Remote Control Operation.
- Adjustable Screw Jacks.
- Hydraulic Fail-Safe Circuit.
- Multi-Postion Mechanical Safety Lock.
- Satisfaction Guarantee.
- Twin Hydraulic Cylinders.
Specs:
Lifting Height: 75.75in (1,924 mm)Platform Capacity: 4,000 lbs. (1,814 kg)
Overall Length: 90in (2,286 mm)
Overall Length (Handle Stowed): 65in (1,651 mm)
Overall Width: 46in (1,168 mm)
Platform Size: 40in x 60in (1,016 mm x 1,524 mm)
Stowed Height: 21.5in (546 mm)
Raise / Lower Time (Max. Rise): 18 seconds
Power Source: 12V deep cycle DC battery
Weight: 1,076 lbs. (489 kg)
Ref No.:
EV2400SL (2,400 lbs model, Discontinued)
Similar Equipment
Challenger - BT3300
Application:

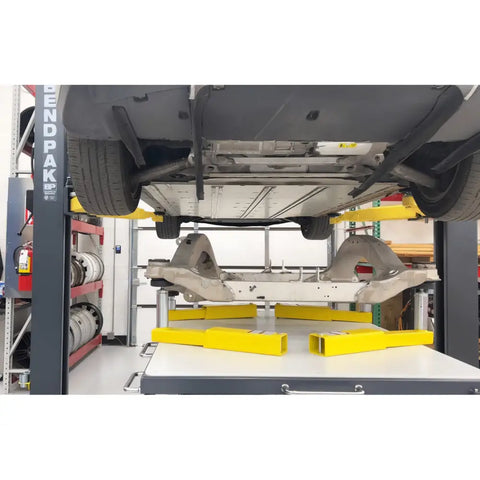

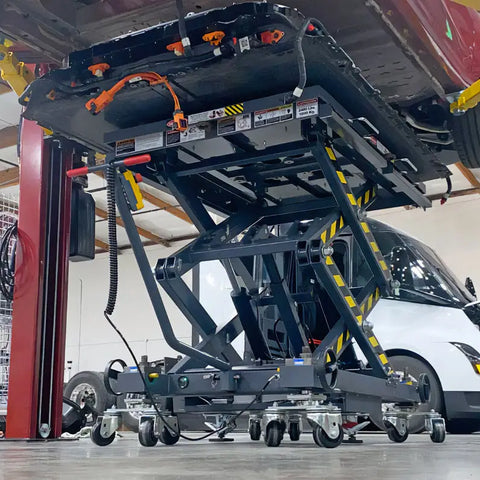

Removing/InstallingBatteries
Transmissions
Gearboxes
Clutches
Engines
Bend-Pak Warranty:
5 Years Lift structure2 Years Hydraulic cylinder(s) and power unit
1 Year Operating components
1 Year Electrical components (excluding power unit)
1 Year Labor Warranty on site or at factory*
1 Year Free‐Shipping** on ground‐freight charges related to warranty performance
