Name: Champion 3HP R-Series Vert. Air Compressor, 60Gal, R10 Pump - VR3F-6
Brand: Champion
SKU: vr3f-6
Price: 3319.32 USD
Availability: InStock

Champion 3HP R-Series Vert. Air Compressor, 60Gal, R10 Pump - VR3F-6

Champion 3HP R-Series Vert. Air Compressor, 60Gal, R10 Pump - VR3F-6

SKU: VR3F-6 $3,319.32
Save $2,866.68

Part No: VR3F-6

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Related Categories: Air Compressor Champion Shop Equipment

PRODUCT INFO

R-Series Sale Sheet

NEMA Rating Chart

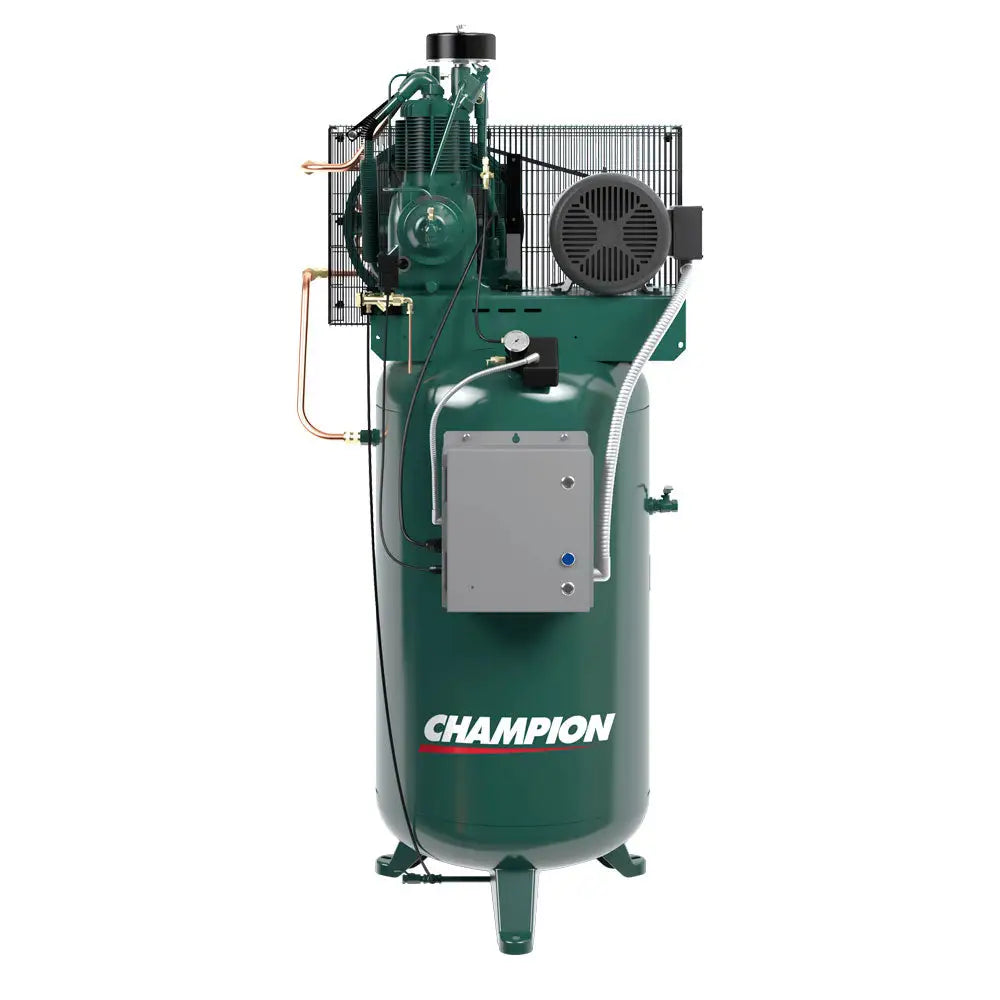

Looking for a reliable air compressor that will last for years? Look no further than the Champion VR3F-6. This high-performance unit is perfect for a variety of applications and environments. This compressor is built to last with a 3hp motor and a 60-gallon air receiver.

Features:

Load-less starting / via centrifugal unloader for lower energy costs and less wear on the drive motor
Mounted Control Panel with Magnetic Starter
ASME inter-stage pressure relief valve for protection
ODP NEMA 1760 RPM electric motor
10 Micron industrial grade intake filter
ASME / NB certified receivers
0-300 PSIG air pressure gauge on the tank

Specs:

Model Number: VR3F-6

Prod. Configuration: Simplex
Tank Configuration: Vertical
Pump Model: R10
Pump RPM @ 175 PSI: 780
Tank Size: Gallons: 60
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 9.4 (16.0)
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 9.0 (15.3)
ACFM @ 175 PSIG (m3/hr @ 12 BAR): 8.0 (13.6)
Voltage:
- 1 Phase: 115 / 208 / 230V
- 3 Phase: 208 / 230 / 460 / 575V
Est. Ship Weight: Lbs.: 509
Control Panel Level1 - NEMA 1: Standard
Panel Mounting: Included
California Code: Standard
