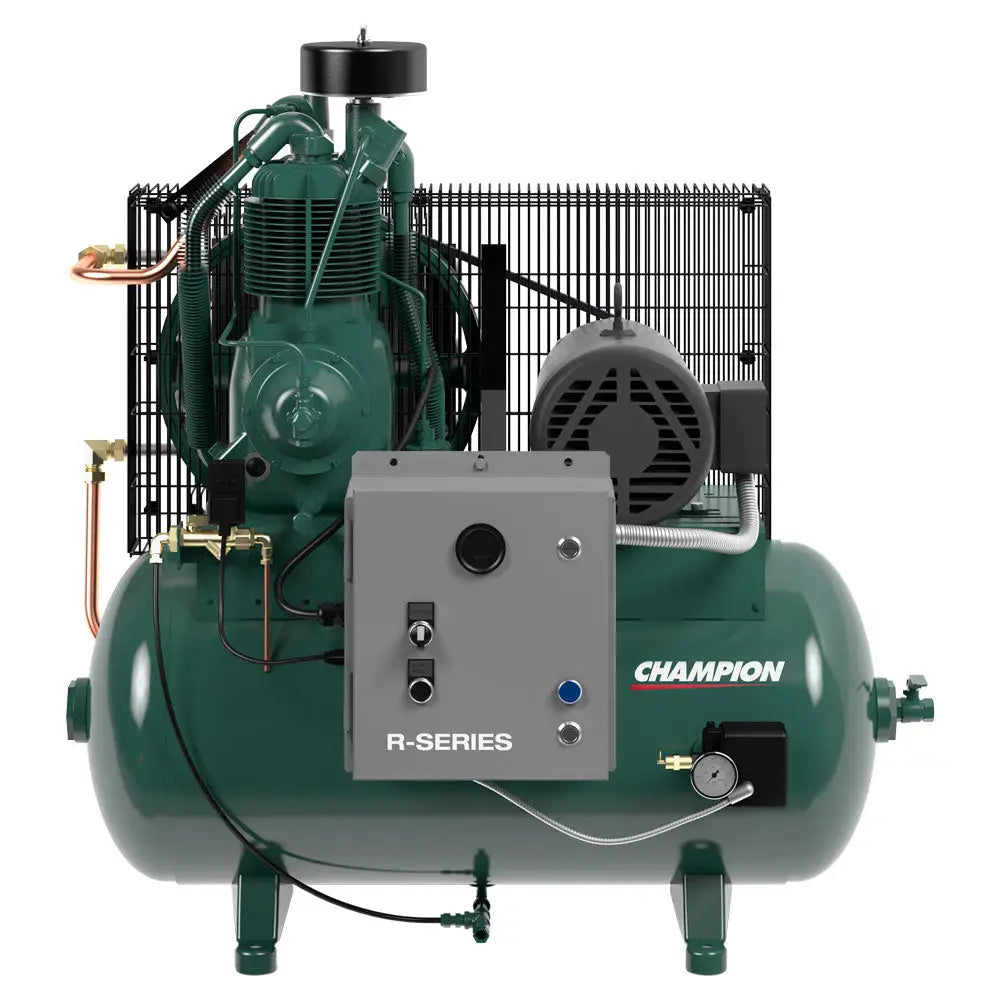

Name: Champion HR2-3 R-Series 2HP Horz Air Compressor, R10 Pump (30 Gal)
Brand: Champion
SKU: hr2-3
Price: 3157 USD
Availability: InStock

PRODUCT INFO

R-Series Sale Sheet

NEMA Rating Chart

Looking for a reliable air compressor that's perfect for your business needs? Look no further than the Champion HR2-3 R-Series Air Compressor. With 2 HP and a 30-gallon tank, this compressor is built for performance. The R10 Pump is durable and high-performing, while the head unloaders in the R70 Pumps make for efficient operation. Plus, the mounted NEMA 1 Control Panel and electric key start switch offer easy access and convenience. Keep the workspace clean with the Intake Filter/Silencer, and protect yourself with the Enclosed Belt Guard and Vibration Isolators. Loadless starting without bleeding off the receiver is possible, and a control voltage transformer and California Code Compliant Receivers are included for added safety.

Features:

Mounted NEMA 1 Control Panel for easy access
Electric key start switch included for convenience
High-performance and durable R-Series compressor pump
Reduced noise with Intake Filter/Silencer
Vibration Isolators for noise reduction and compressor protection
Includes control voltage transformer
Tank-mounted Simplex is start/stop pressure switch control
1800 RPM Motors for efficient operation
Enclosed Belt Guard for added safety and protection
Loadless Starting for easy operation
California Code Compliant Receivers
ASME-coded receiver for safe and reliable operation

Specs:

Product Configuration: Simplex
Tank Configuration: Horiz
Pump Model: R10
Pump RPM @ 175 PSI: 461
Tank Size: Gallons/(liters): 30/114
ACFM @ 80 PSIG/(m3/hr @ 5.5 BAR): 5.6/9.5
ACFM @ 125 PSIG/(m3/hr @ 8.6 BAR): 5.5/9.3
ACFM @ 175 PSIG/(m3/hr @ 12 BAR): 4.1/7
Est. Ship Weight: Lbs./(kg): 406/184
Model Number: HR2-3
