Forward DP18 18K Heavy-Duty Two-Post Lift
Forward DP18 18K Heavy-Duty Two-Post Lift
Part No: FLT-DP18-155BL
Alaska, Hawaii, & any/all US territories & international orders are excluded.

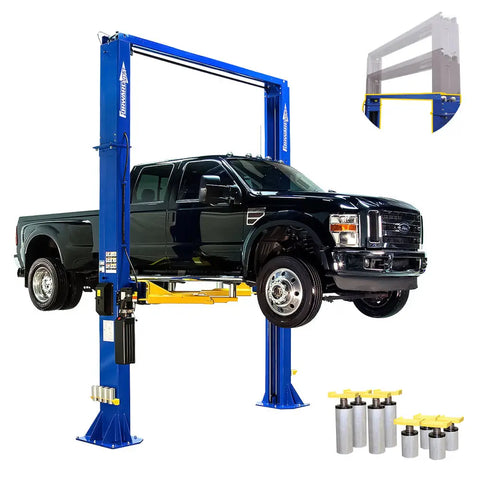

Looking for a heavy-duty two-post lift that can handle 18,000 pounds? Look no further than the DP18 from Forward. This lift is constructed of high-strength heavy gauge steel columns with large gusseting on substantial base plate foundations, providing stability and support you need for a heavy truck lift. The DP18 comes with eight high-strength aircraft-grade aluminum truck adapter extensions, four 5” and four 10”, so you can lift a wide range of vehicles. These heavy-duty adapters are made of aluminum, making them easy to place and maneuver without strain. They also have a convenient column bracket for storage. Plus, the DP18 has two-stage arms that can easily be extended and retracted while lying on the floor, making it easy to spot a vehicle.
Choose the DP18 that fits your shop's ceiling height. DP18-155 is for the lowest ceiling option of 155 3/4" (12' - 11-3/4"). DP18-175 is for the standard height of 176" (14' - 8"), and DP18-199 is for the extended height of 200” (16' - 8").
Features:
- 18,000 lbs. capacity for lifting most trucks and vans.
- Features symmetrical column design
- Direct-Pull Lifting – high efficiency, low maintenance technology
- Closed loop hydraulic system – protect against hydraulic contamination
- Powder coat paint is more durable than conventional coatings
- Third-party tested and certified by ALI
- Padded shut-off bar
- Low-profile arms and truck adapters
- Single point release lock at the operations center
Specs:
Arm Type: 2 StageTotal Capacity: 18,000 lbs.
Rise*: 83-1/4in
Max Rise With 10in Adapter Ext*: 83-1/4in
Overall Floor Width: 154-3/8in
Inside Column Width: 119-5/8in
Drive Through: 108-1/4in
Arm Reach: 38in/61in
Minimum Adapter Height: 5-1/2in (139mm)
Stackable Adapter Height (Low Extension): 10-1/2in (266mm)
Stackable Adapter Height (High Extension): 15-1/2in (393mm)
Voltage/Amps: 208/230v, 20 amps
Amps: 20
Motor: 2 HP/1Ø
Color: Red/Blue
DP18-155BL/RD
Model: Low Ceiling
Column Extensions: No Extensions
Overall Height: 154-3/4in (3930mm)
Height to Shut-Off: 147-1/4in (3735mm)
Minimum Ceiling Height: 155-3/4in (3956mm)
Ref No: DP18N000, DP18N000BL, DP18N000RD
DP18-175BL/RD
Model: Standard
Column Extensions: Standard Height
Overall Height: 175in (4445mm)
Height to Shut-Off: 167-1/4in (4250mm)
Minimum Ceiling Height: 176in (4470mm)
Ref No: DP18N001, DP18N001BL, DP18N001RD
DP18-199BL/RD
Model: Extended
Column Extensions: Extended Height
Overall Height: 199in (5054mm)
Height to Shut-Off: 191-1/4in (4860mm)
Minimum Ceiling Height: 200in (5080mm)
Ref No: DP18N002, DP18N002BL, DP18N002RD
* Specifications are subject to change without notice or liability. *Maximum lifting height within 10in adapters
* 1Ø, 3Ø, and 3Ø 600V available via special order - restrictions apply
