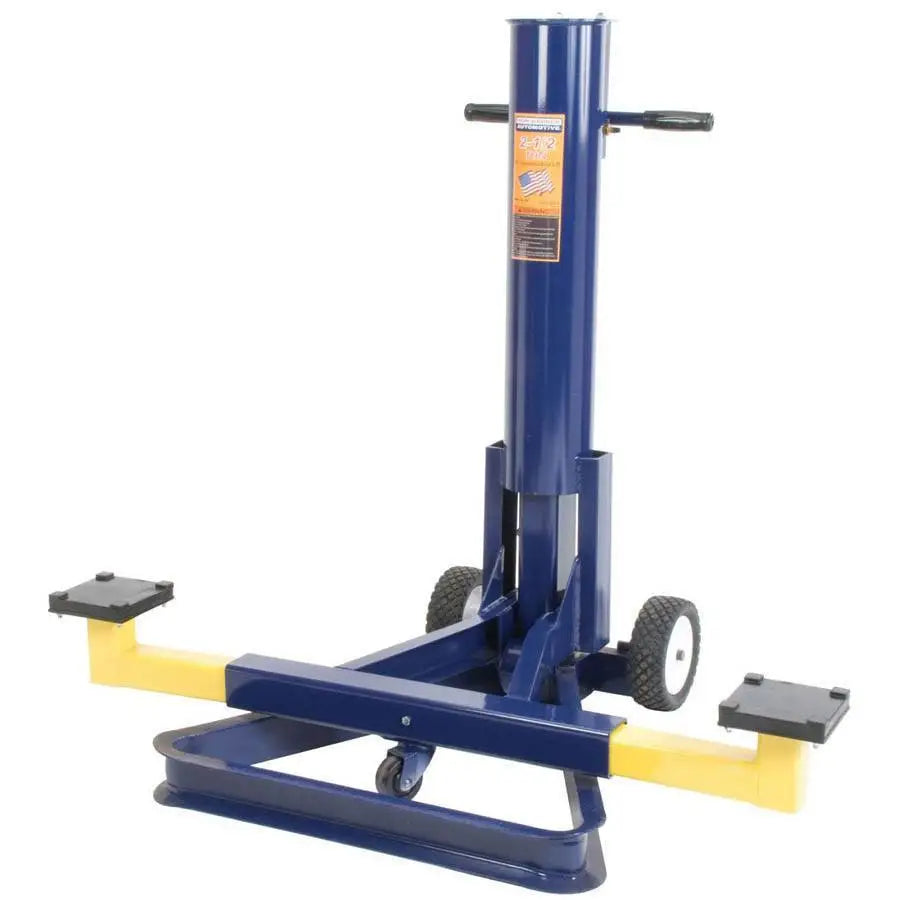

Hein-Werner 2-1/2 Ton End Lift - HW93696A
Made in USA
Hein-Werner 2-1/2 Ton End Lift - HW93696A
Part No: HW-93696A
SHIPPING INFO
ACCESSORIES
DOWNLOADS
Related Categories:
Automotive Lift
Hein-Werner
Shop Equipment
PRODUCT INFO
Hein-Werner 2-1/2 Ton Air Operated End Lift
Features:
- Lifting the front or rear end of cars, vans, and light trucks by the bumper
- Air operation with two-stage air valve
- Hydraulic damper and safety locks
- Four-point lifting saddle with ribbed rubber pads and slotted bumper fingers
- Saddle height and width location adjustment for ease of pick up
- A quick yet effortless lift saves time and reduces mechanic fatigue
- Three-way heavy-duty brass air valve provides fine control when lifting and lowering a vehicle
- Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of the load
- Front swivel caster wheel and two 8in diameter rear tires provide easy maneuvering
- Adjustable lifting arm can be extended to the desired position
- Made in the USA
Specs:
- Capacity: 2-1/2 in Ton
- Minimum Height: 10-1/4 in
- Maximum Height: 35-3/8 in
- Power Raise: 24-1/2 in
- Saddle Spread: 23-1/4 in - 41-1/4 in
- Min. Air Pressure for Rated Load: 200 PSI
- Distance (Lifting to Front of Saddle): 19 in
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
