Coats 1600 3D Direct Drive Wheel Balancer
Car
Light TruckMade in USA
Coats 1600 3D Direct Drive Wheel Balancer
Notes: Call For Better Price!
Part No: CTS-1600
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Balancers Machine
Coats
Shop Equipment
Tire Balancers
PRODUCT INFO

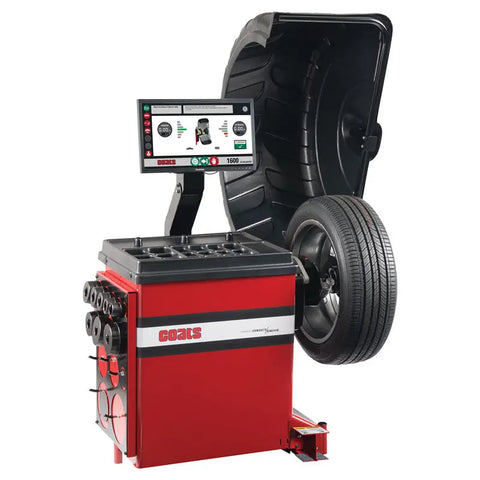

Model 1600 3D Laser-Guided Direct Drive wheel balancer with Pro balance and Speed Thread Technology.
Features:

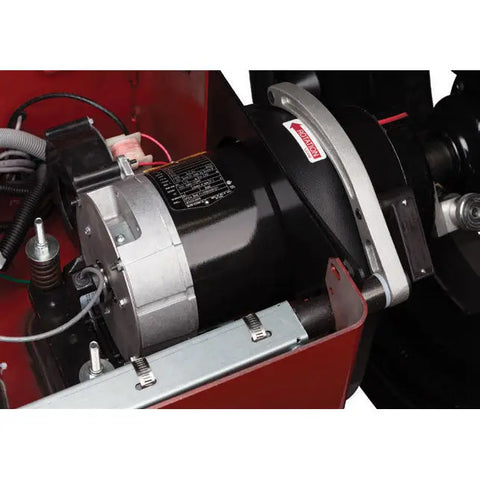

- Powered by Direct Drive: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

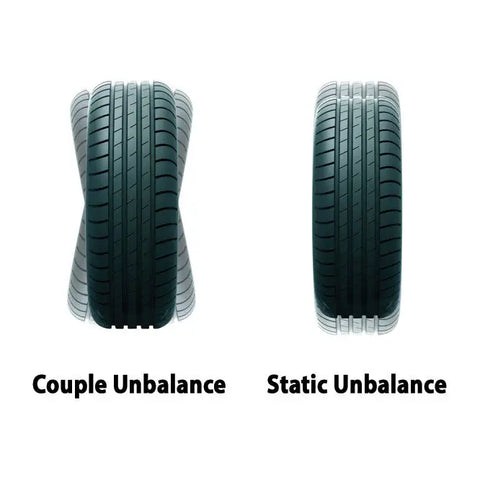

- ProBalance Technology: A unique balancing algorithm and unbalance correction methodology that minimizes both static and couple unbalance
- Touchscreen: The weight location recognition system offers a touch-free operation for ≈85% of wheel balances. The touchscreen system is built to last and can be used while wearing gloves.

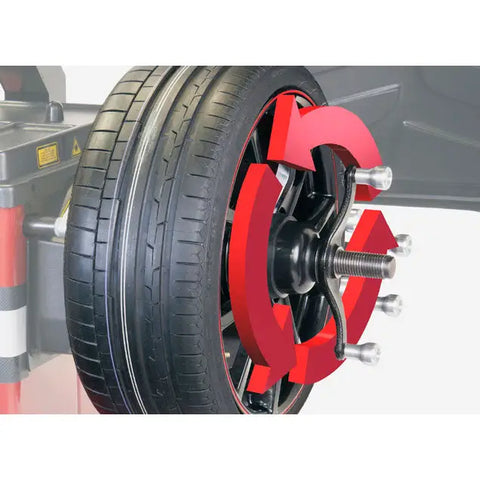

- Stop, Lock & Index: Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.
- 3-Dimension Automatic Data Entry: 1600 offers automatic data entry of the distance, diameter, and width. This eliminates the chance of technician error and speeds up the balancing process.
- Laser-Guided Operation: Pinpoints the exact weight location, both radially and axially, and eliminates trial and error.
Specs:
Balancing Modes: 8Wheel Diameter Range: 8in to 30in
Wheel Width Range: 2in - 20in
Maximum Tire Diameter: Up to 44in
Maximum Tire Weight: 160 lbs.
Shaft Diameter: 40 mm
Interface: Touchscreen
Automatic Data Entry: Distance/Diameter/Width
Electrical Requirements: 220v, 1ph or 220v, 3ph
Warranty: 3 Year Parts, 6 Months Labor

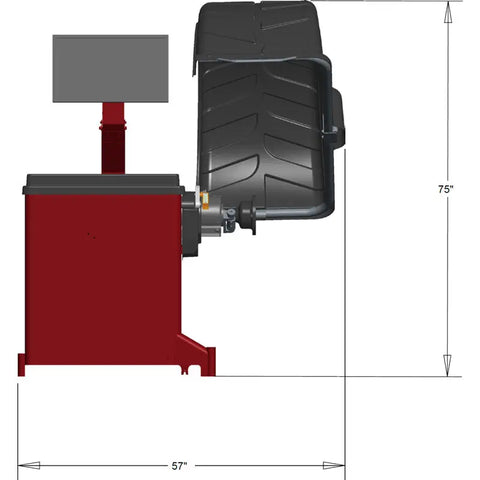

Footprint: 75in H x 57in W x 55in D
Shipping Weight: 650 lbs.
Part Number: 80016003D - 1ph
