Coats RC-55A Air Rim Clamp Tire Changer w/ RC Robo-Arm
Car
Light TruckMade in USA
Coats RC-55A Air Rim Clamp Tire Changer w/ RC Robo-Arm
Notes: Call For Better Price!
Part No: CTS-RC-55A
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Coats
Shop Equipment
Tire Changer
Tire Changing Machine
PRODUCT INFO
Updated for today's high-speed, general service repair shop. Dependability and reliability were proven through decades of testing. RC-55's Robo-Arm power-assist provides needed assistance on low profile and runflat tire applications. The RC-55 has 21in external clamping capability, up to 10.5in rim width, and up to 50in overall wheel diameter range. This unit is available with either an air or electric tabletop motor.
Features:

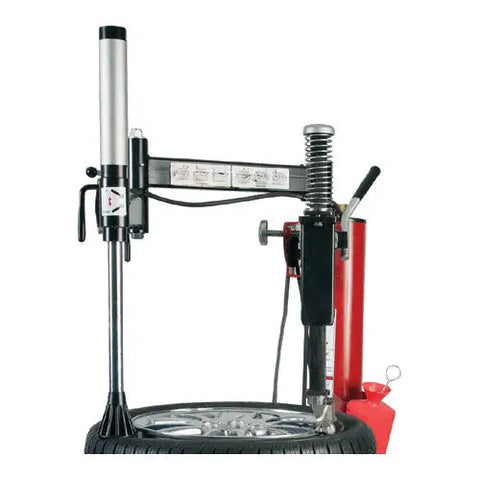

- RC Robo-Arm: Effortlessly keeps the top bead in the drop center during mounting, allowing technicians to efficiently change difficult wheel applications, such as low-profile wheels and run-flat tires, commonly found on many OE vehicles.
- Built-in Bead Sealing Jets: Quickly seal beads while tabletop inflation provides a faster workflow.

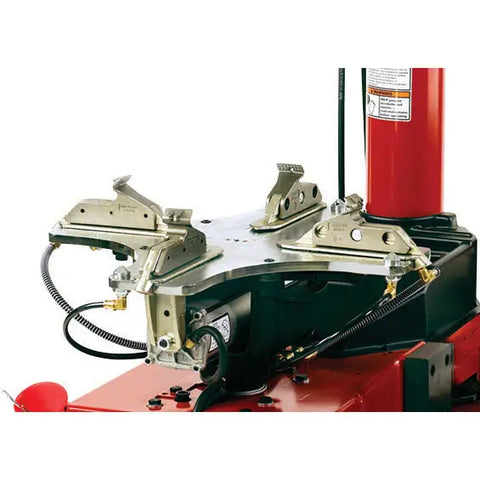

- High Torque, X-Shaped Turntable: Designed for rigid perimeter support of the wheel. Pedal controls make tire mounting and dismounting easier for technicians, especially when working in high volumes.
- Manual Swing Arm: Easily adjusted so that the Coats Duckhead Mount/Demount Tool is properly fitted to the tire rim. This will reduce the risk of damage when mounting and demounting the tire.

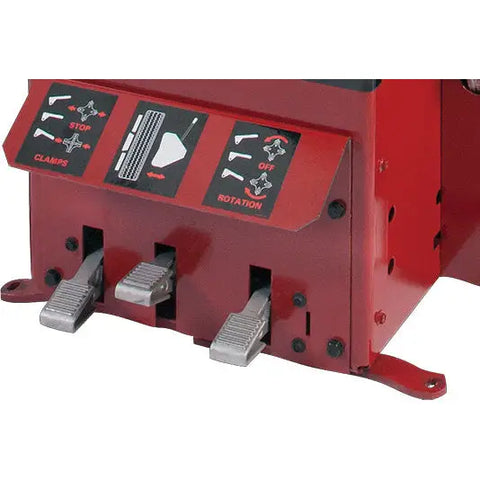

- Conveniently Placed Foot Pedals: Provide precise control over every step of the changing process. The pedals are ideally placed for fluid technician movements while mounting and demounting tires.
- Inflation Gauge: Easily and accurately inflate from 0 to 60 PSI. With a pressure limiter and easy-to-read gauge, the built-in tire inflation system ensures technician safety and prevents TPMS related comebacks.
- Wheel Protection: Available options include Bead loosener socks, clamp booties, and lift tool protection to prevent metal-to-metal contact that causes scratching or marring.
Specs:
Drive System: 1.5HP Air Motor 110-175psi, 15scfmRotation Speed: Variable
Operation: 1st Loosen Bead, 2nd Mount/Demount
Wheel Handled: Alloy & Steel, Car & Light Truck
Mount / Demount: Swing Arm
Tool Head Offset: Manual
Table Shape: X-Shaped
Wheel Clamping Method: Four Clamps, Air Cylinder Operated
Height of Table to Floor: 28.5in (724 mm)
Bead Loosening System: Foot-Controlled Air Cylinder (up to 10.5in wide)
Bead Lifting System: Tire Bar
Inflation Pressure Control: Limiter
Assist Arms/Tools: RC-Robo Arm
Clamps: Fixed (2 Position)
Bead Seating Reservoir: Vertical 3.4 Gal. in Tower
Inflation Gauge: 60 psi
Air Supply Gauge: 0-300 psi
Water Filter/Lubricator: Filter / Lube
Min / Max Rim External Dia.: 6in-24in
Min / Max Rim Internal Dia.: 10in-27in
Max Rim Width: 10.5in (267mm)
Max Tire Diameter: 50in (1270mm)

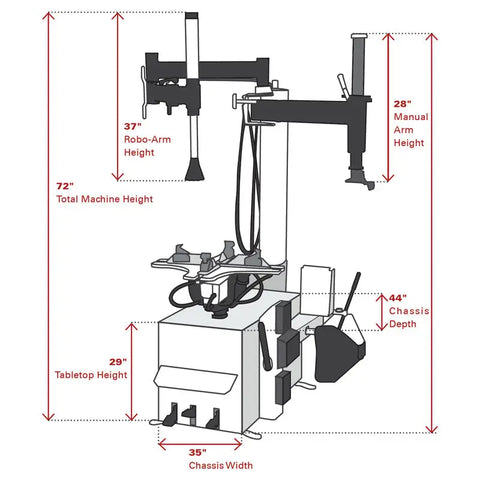

Chassis Footprint: 35inw x 44ind x 75inh
Weight: 620 lbs.
