Name: Hofmann Monty 1625 Swing-Arm Tire Changer
Brand: Hofmann
SKU: hof-1625
Price: 6795 USD
Availability: InStock

Hofmann Monty 1625 Swing-Arm Tire Changer

Car

Light Truck

Hofmann Monty 1625 Swing-Arm Tire Changer

SKU: HOF-1625 $6,795.00

As low as $150 for 60 months

Part No: HOF-1625

Lift Gate

No I can get it off the truck.

Yes I need it lift gated(+ $150.00)

Motorcycle Acc

Motorcycle Bead Breaker Blade(+ $169.95)

Slip-On Shoe (Fix Gap - Blade/Pad)(+ $395.00)

2” ATV/Motorcycle Adapter Set(+ $747.00)

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Related Categories: Hofmann Shop Equipment Tire Changer Tire Changing Machine

PRODUCT INFO

Monty 1625 Sale Sheet

Monty 1625 User Manual

Monty 1625 Parts List

Introducing the Hofmann Monty 1625 Series Tire Changers, designed for high-volume tire shops, multi-bay repair shops, and car dealerships. With patented EasyMont Pro Bead Assist and dual pneumatic clamping cylinders, these high-performance tire changers make one-operator tire changes possible on low-profile, high-performance, and run-flat tires. Accommodating large wheel and tire assemblies up to 50" diameter and 24" outer-wheel diameter, the Monty 1625 Series also features a self-centering four-jaw clamping chuck, multi-position bead breaker, and powerful tire inflation system for efficient and precise operation. Built to last with heavy, solid steel construction and rust-proof components, the Monty 1625 Series is the ultimate tire changer for your business.

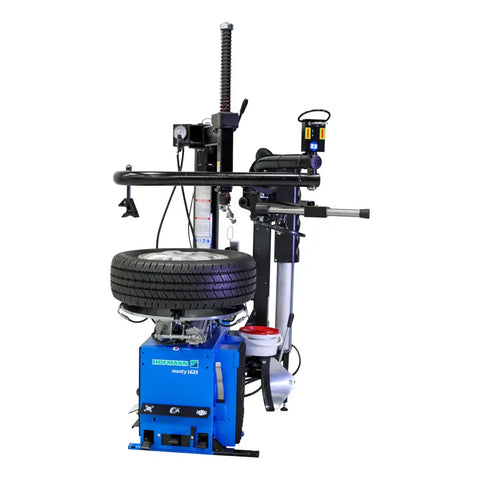

Note: Shown with optional bead assist (EAA0329G36B)

Features:

Fit up to 50" wheels with ease - accommodates 24" outer-wheel diameter too!
Dual pneumatic clamping cylinders eliminate damage from slippage
Self-centering four-jaw clamping chuck fits 26" inner or 24" outer diameter wheels
Multi-position bead breaker with 6,000 lbs of power and up to 18" wide range
Powerful tire inflation system with precise positioning and foot pedal operation
Get durability with solid steel, rust-proof parts, and an onboard lubricator/regulator.
Two-speed capability for faster throughput and increased efficiency

Specs:

Outer-Clamping Diameter: 10in-24in (250 - 609.6 mm)
Inner-Clamping Diameter: 12in-24in (304.8 - 609.6 mm)
Maximum Wheel Width: 15in (380 mm)
Maximum Tire Diameter: 53in (1,346 mm)
Compressed Air Supply: 110-170 PSI (7.6-11.7 BAR)
Adjustable Four Claw Clamp: Included
Integrated Bead-Seating Jets: Included
Pressure Timer: Included
Twin Cylinder Turntable Clamping: Included
Rotation Speed: 6.5 RPM
Bead Breaker Power: 2,700 lbs (12 kN)
Bead Breaker Range: 1.7in - 16.3in (43-414 mm)
Recommended Floor Space (W x D x H): 53.3in x 46.1in x 80.75in (1.4 x 1.2 x 2m)
Shipping Weight: 750 lbs (340 Kg)
Power Requirements: 115V 1Ph 50/60Hz 12A
