Rotary R146 Swing Arm Tire Changer w/ Helper Arm, 19.5" Tires
Part No: RTY-R146RP
Alaska, Hawaii, & any/all US territories & international orders are excluded.

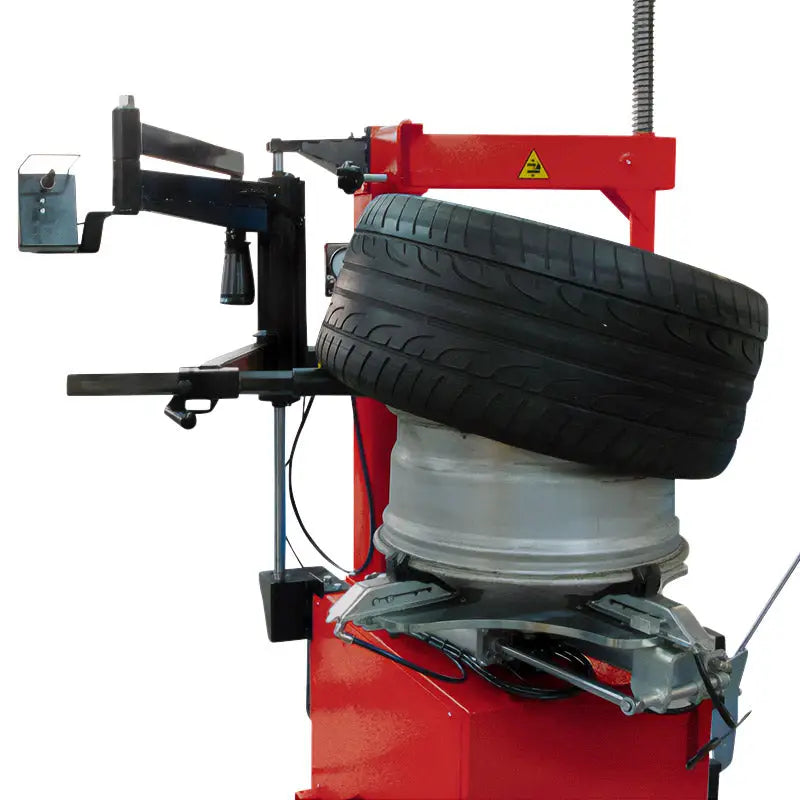

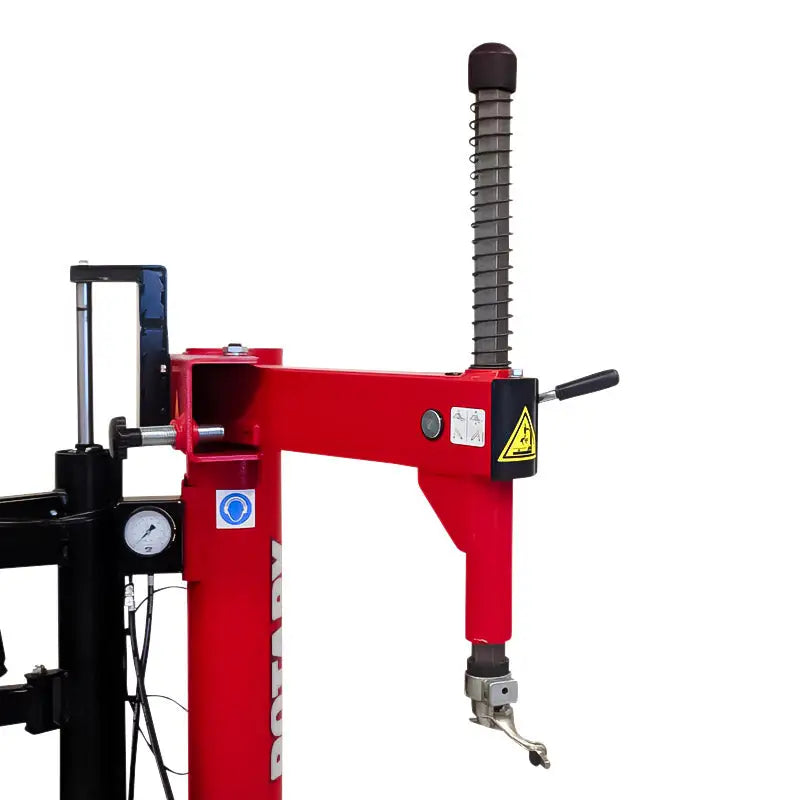

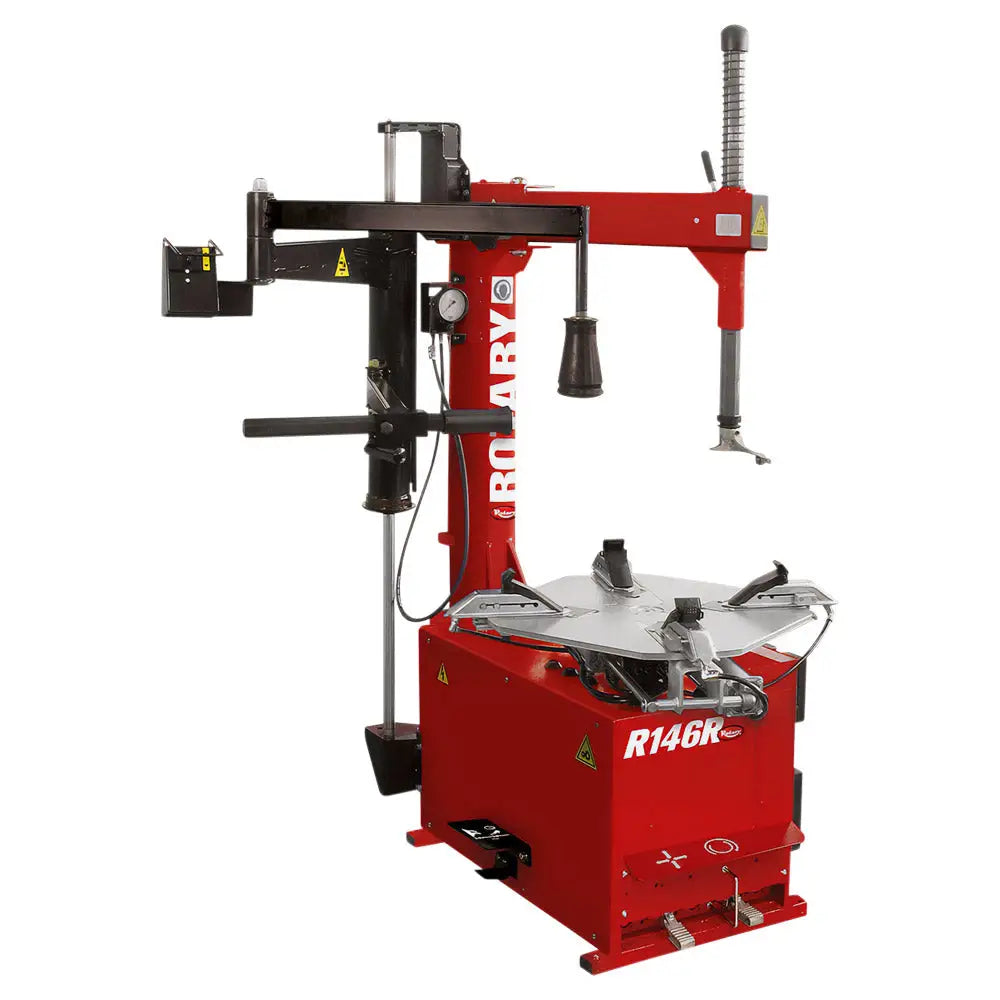

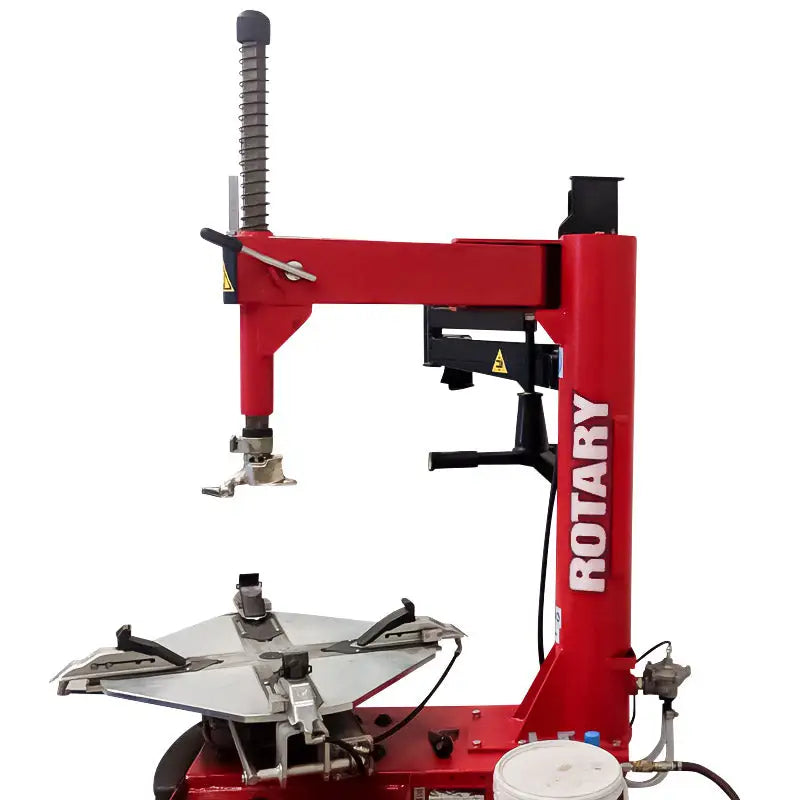

Looking for a high-performance swing arm tire changer that can handle even the most challenging tires? Look no further than the Rotary R146RP(Electric) or R146RAP (Air). These tire changers feature a helper arm for high-volume tire centers and can accommodate tires up to 19.5" in width. The large, reinforced frame adds greater rigidity to the structure and chucking table, while the gearbox is installed between two steel plates to avoid flex during operation. The extra height of the vertical post and tool shaft allows for easy operation on tires up to 15” (381 mm) in width.
NOTE: PLUS91SA (Helper Arm) IS NOT INSTALLED BEFORE DELIVERY. The extra height of the vertical post and tool shaft allows operation on tires to a maximum 15” (381 mm) tire width.
Features:
- Integrated Wheel Lift Attachment

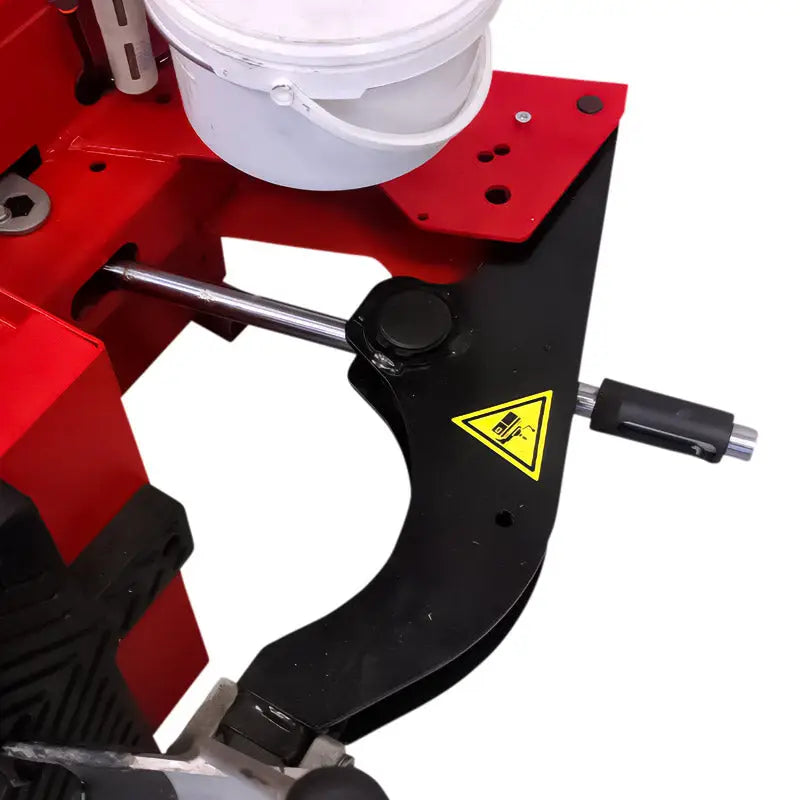

- Hand-controlled, double-acting bead breaker
- Bead Pushing Roller
- Storage Tray
- Extra-large 46” frame
- 110v drive motor supplies needed torque
- The air tank is located in the column
- Steel plates support the gearbox to avoid flex

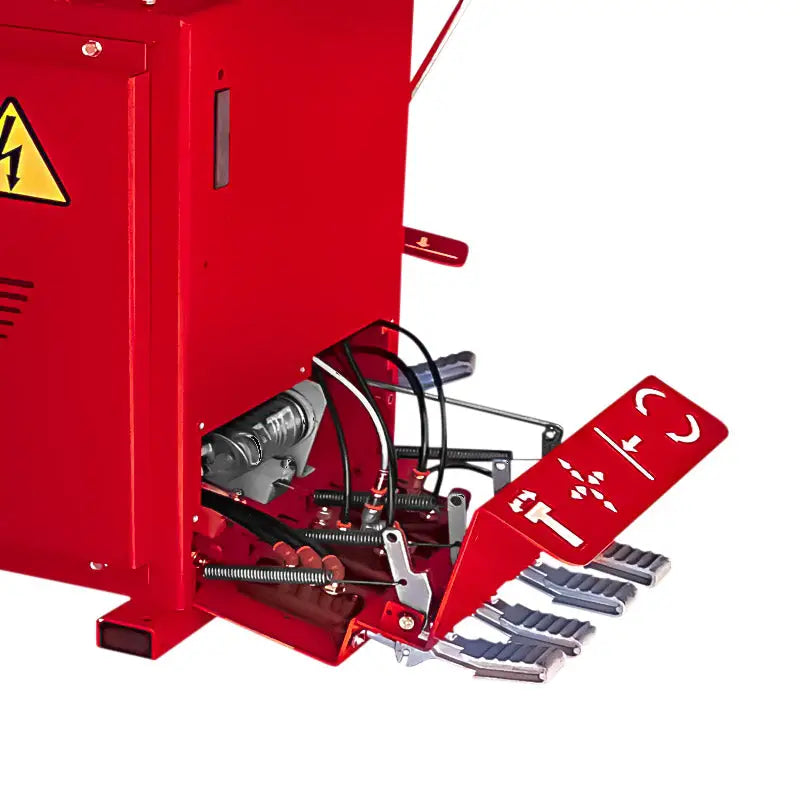

- Removable pedal assembly for easy maintenance
- Tire paste lubricant and brush
Specs:
External Clamping: 10in - 26inMaximum Torque to Chuck: 885 ft/lbs (1200 Nm)
Internal Clamping: 12in - 28.5in
Maximum Tire Diameter: 46in (1200 mm)
Maximum Rim Width: 15in (380 mm)
Maximum Bead Breaker Opening: 15in (380 mm)
Bead Breaker Cylinder Power at 145 psi: 6,745 ft/lbs
Power Supply (Electric Motor): 110 V / 60 Hz / 1 Ph
Power Supply (Air Motor): 100 psi
Warranty: 3 years on parts, 1 year on labor
Site Requirement
R146R Electric Model
- Power Supply: 110 V / 60 Hz / 1 Ph
R146RA Air Model
- Power Supply: 115-145 psi
Ref No.
R146R/R146RA (Base)
R146RP/R146RAP (Base + Helper Arm)
R146RAPS (Base + Helper Arm, Wheel Lift)
PLUS91SA (Helper Arm)
Application:
CarLight Truck
Truck
Tire Type
Passenger Veh. Tires
19.5" Tire
Includes:
1 x VSG800A60 - Plastic Duckhead with support2 x VSG800A117 - Tool protection kit for metal mount/demount head
4 x VSG800A6 - Clamp Protectors / 24in - 26in
1 x Bead Lever
1 x Valve Tray
1 x Tire paste lubricant and brush
Bead breaker protection
1 x VSG800A11
5 x VSG800A11K
Optional
VSG800A107: Fast Fit Motorcycle Adapters + 5in from outside
VSG800A111KIT*: Small Wheel Adapter, Reduces clamping capacity to 8in for ATVs and lawn equipment tires.
*requires VSG800A107 wheel clamps
Warranty:
3 Years Functional*1 Year Labor*
For more info Here
* Ex of Structure parts: carriage, columns, yokes, arms, runways, plungers
** Ex of Functional Parts: power units, cylinders, latches, adapters, controls
