Esco 10221 OTR 3-piece Maxi Wheel Bead Breaker Kit w/ Pump, Hose, Air Reducer
Earth MoverTruck
Esco 10221 OTR 3-piece Maxi Wheel Bead Breaker Kit w/ Pump, Hose, Air Reducer
Part No: ESC-10221
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Bead Service
Esco
Hydraulic Bead Breaker
Hydraulic Tire Tools
OTR & Minning
Shop Tools
Tire Tools
PRODUCT INFO
Need to service a wide range of OTR tires in the industry? The Esco Maxi Bead Breaker Kit tackles tough jobs with ease. It works on ALL 3-piece wheels with extended flange, a common replacement for older 5-piece wheels, and on both the front or back of the wheel without any extra parts. This kit includes a "Maxi" Bead Breaker Tool, a powerful 1/2 Gallon Hydraulic Air Pump requiring only standard 80 PSI air for operation, an 8-foot Hose Assembly, and a 6-inch Whip-Hose, Air Reducer. Plus, it's covered by a 3 Year Warranty for peace of mind.
Maxi Features:
- Fits ALL New 3-Piece Flange Wheels
- Works Front & Back (Rims)
- Easy Clamp, No Extra Parts
- Long Legs & Deep Claw Grip
- Fast Setup, Saves Time
Pump Features:
- Works on ALL OTR 3-piece wheels
- Powerful 1/2 Gallon Hydraulic Pump
- Quiet Pumping with Air Exhaust Muffler
- Clean Air & Oil with Inlet Filters
- Durable & Lightweight for Portability
- Foot Pedal for Hands-Free Operation
- Extended Life with Corrosion Resistant Build
- Mountable Feet for Various Applications
- Fluid Level Dip Stick for Easy Checking
- 10,000 PSI for Hydraulic Equipment
Specs:
Bead BreakerRam Tonnage: 13.8 Tons
Stroke: 4in (102 mm)
Maximum Pressure: 10,000 PSI
Length: 18in (457 mm)
Height: 12in (305 mm)
Weight: 38 lbs (17 kg)
Pump
Hydraulic Pressure: 10,000 PSI
Usable Oil Capacity: 135 cu. in.
Output Flow Rate (No Load): 80.5 cu. in. per minute
Output Flow Rate (Load): 12.8 cu. in. per minute
Air Pressure Range: 40-170 psi
Air Consumption: 24 scfm
Valve Function: Increase Hydraulic Fluid Pressure / Release Hydraulic Fluid Pressure
Sound Level: 85 dbBa
Reservoir Material: Aluminum
Air Inlet Thread Size: 1/4in-18 NPT
Hydraulic Hose Inlet Thread Size: 3/8in-18 NPTF
Product Dimensions (LxWxH): 12.5in x 5.75in x 8in
Packaging Dimensions (LxWxH): 15in x 7in x 8.5in
Bottom Plate Screw Hole Size: 3/8in
Bottom Plate Length (from hole center): 11.73in
Bottom Plate Width (from hole center): 4.33in
Weight: 22 lbs
Warranty: 3 Year
Hose Kit
Length: 8ft (8ft Hose with 3/8in 18 Male Ends)
Weight: 5 lbs. (2.2 kg)
Air reducer
Diameter: 15/16in (24 mm)
Working Air Pressure: 110 PSI
Air Inlet Size: 1/4in NPT
Weight: 1 lb (0.5 kg)
Similar Kits
10233 (10592 pump)
10826 (10875 pump)
10841 (10877 pump)
Ref Name
Maxi Bead Breaker Kit
OTR Bead Breaker Kit
Application:
3 Pieces Rim w/ Extended FlangeOTR Tires

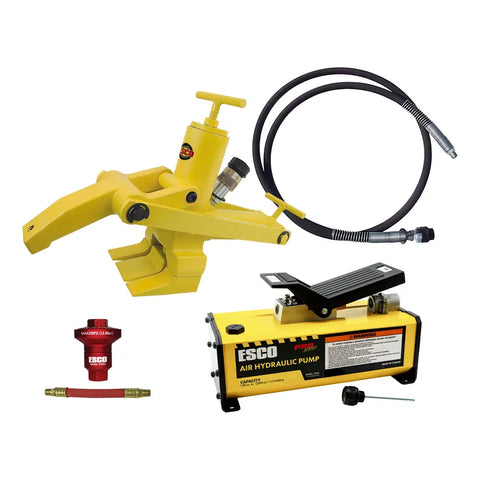

Includes:
1 x 10102 - “Maxi" Bread Breaker Tool1 x 10518 - 1/2 Gallon Hydraulic Air Pump
1 x 10604 - 8 ft Hose assembly with Hose Coupler
1 x 10601K - 6 in Whip-Hose, Air Reducer
