Challenger 4115XFX Ex-Long Flat Deck 4-Post Lift, Closed-End, 15,000 lbs
Car
Light Truck
Challenger 4115XFX Ex-Long Flat Deck 4-Post Lift, Closed-End, 15,000 lbs
Part No: CHL-4115XFX-1PR
Alaska, Hawaii, & any/all US territories & international orders are excluded.
*Note: Superceed 4015XFX Model

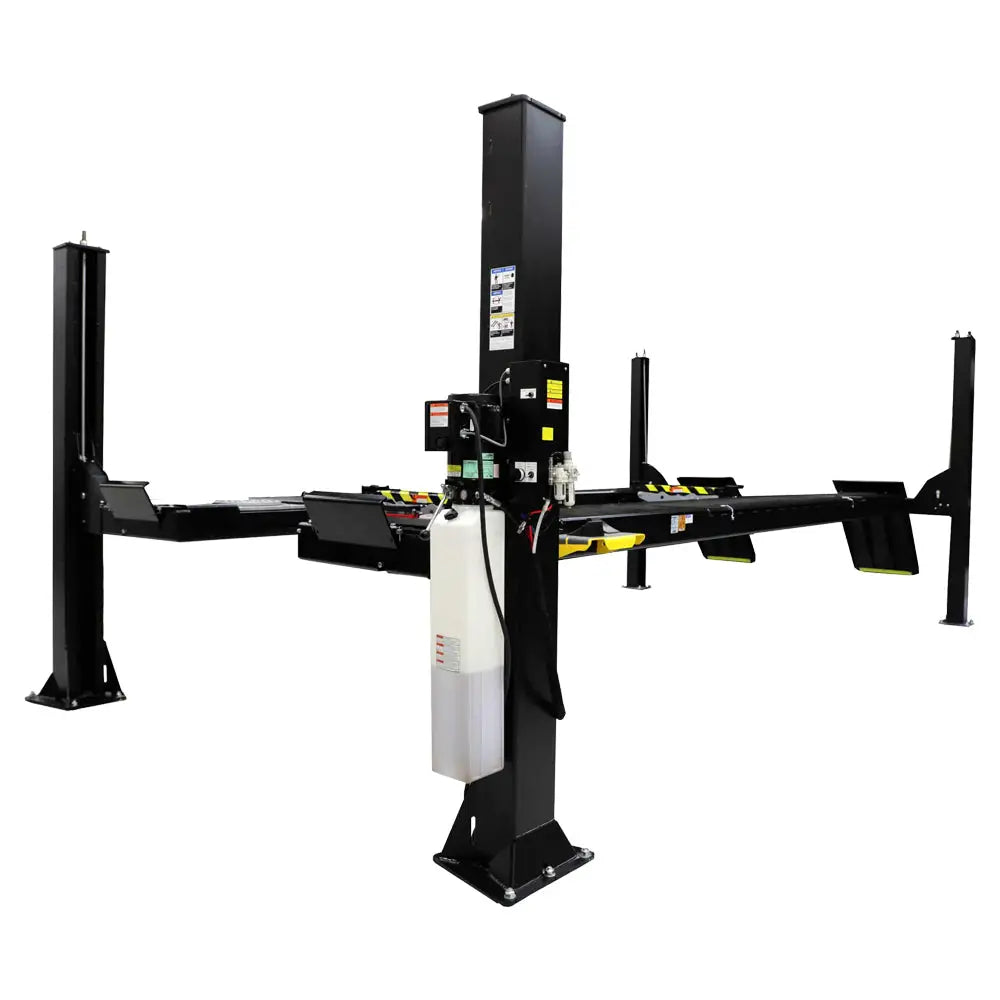

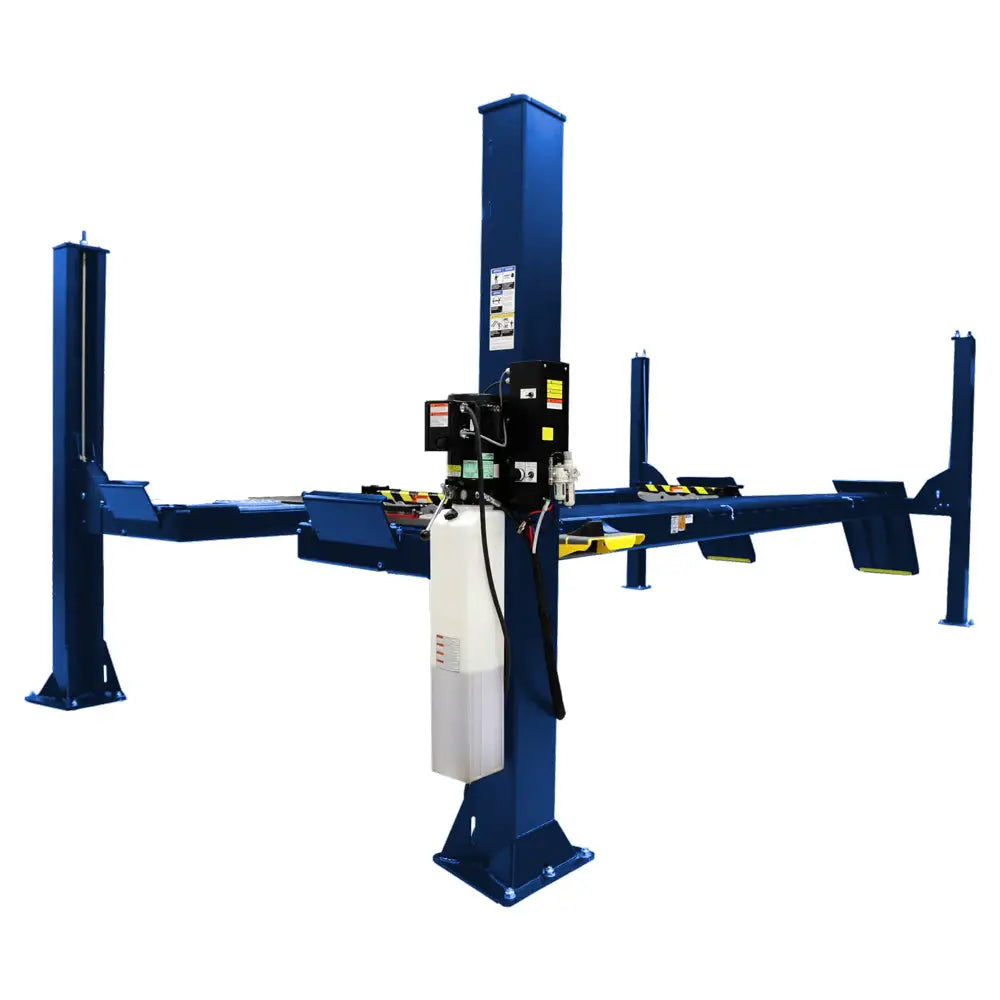

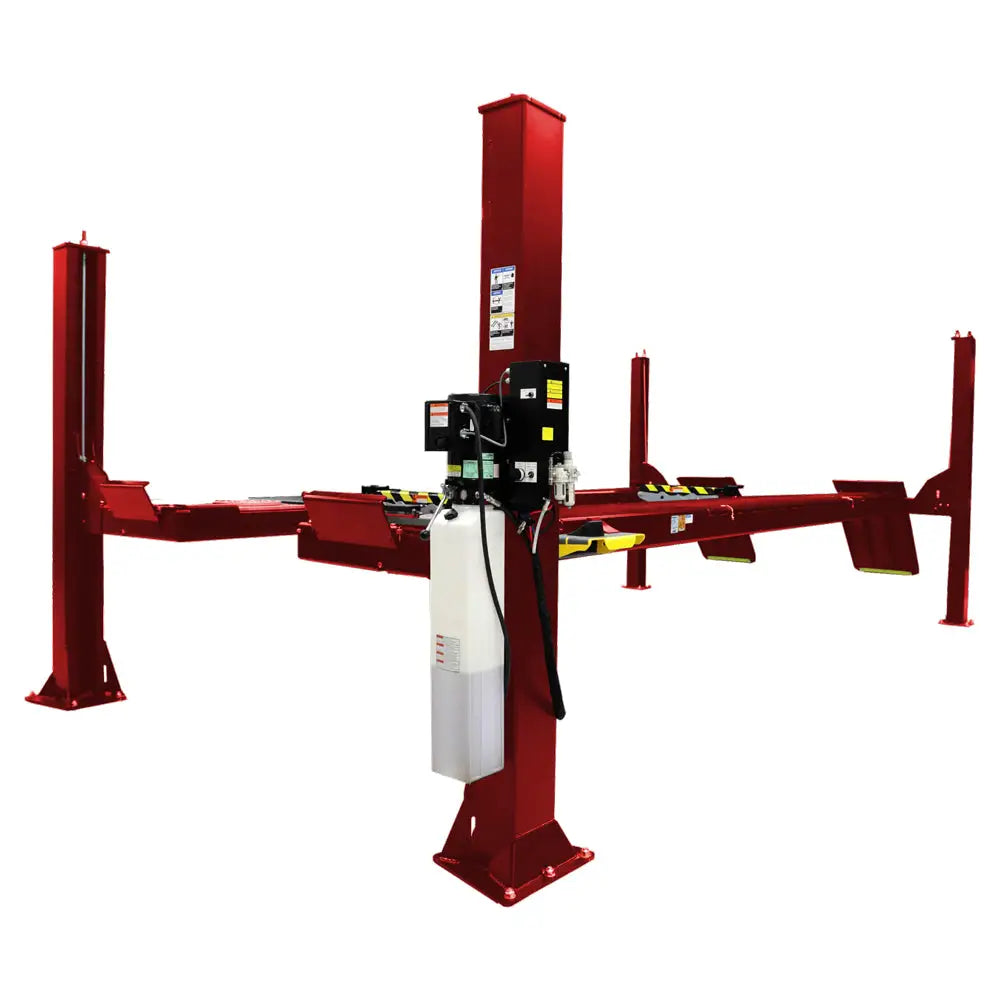

Challenger 4115XFX is an extra length, Closed Front, Flat Deck, ALI Certified 15,000 lbs Four-Post Lift. This model does not come with rolling jacks, an internal airline system, & stainless steel turn plates. (Model AR4115XAX came with the Alignment Accessories Kit)
Designed with productivity and safety in mind, our newly improved 15,000 lb 4-Post Lift would be a great addition to any shop floor. With several configurations available, you’re sure to find the lift to meet your needs.
Increase your customer base with this lift as it can accommodate and service a wide range of vehicles. Anything from a small passenger car to a medium-duty truck and even medium-sized vans. This 4115 Series lift features an improved design with all-new and broader 22” runways, open and closed front design for better ergonomics, easy access to adjustment points, and an enhanced 4-wheel alignment wheelbase for extended alignment capabilities, louvered approach ramps, and an all enclosed front column and crossbeam design.
Features:
- All-new and broader 22” runways.
- Open and closed front design for better ergonomics allows easy access to adjustment points on standard or extended length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
- Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a more extended and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry’s latest imaging alignment systems.
- Seventeen locking positions with improved lock design.
- Optional Alignment kit available (kit includes: rolling jacks, internal airline system, & stainless steel turn plates)
Specs:
Model: 4115XFXLifting Capacity: 15,000 lbs.
Open or Closed Front: Closed
Overall Length: 275.5in
Overall Width: 142in
Inside Columns: 125.5in
Between Columns: 223.375in
Height of Columns: 98in
Height of Runways: 7in
Width of Runways: 22.375in
Width Between Runways: 40.625in
Max. Wheelbase: 210.5in
Rise Height: 78in
Max. 2 Wheel Alignment: -
Max. 4 Wheel Alignment: -
Air Supply Required: 90-120 psi
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Rise Time: 85 s
Min. Recomm. Bay Size: 14ft x 26ft
ALI/ETL Certified: Yes
Colors Available: Red, Blue, Black
