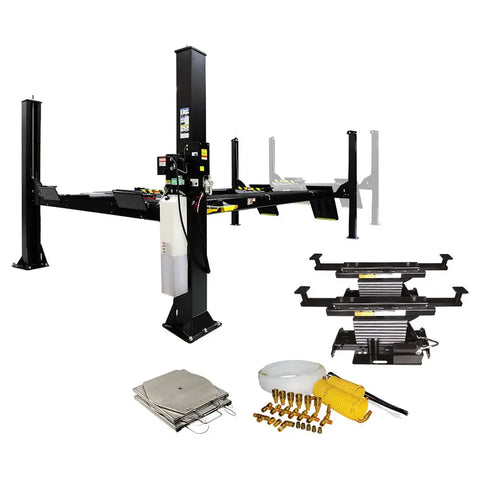

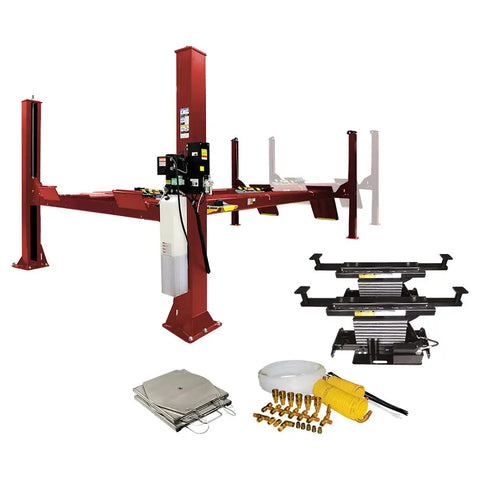

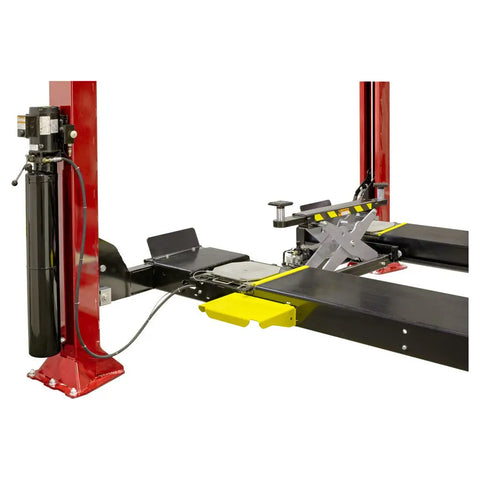

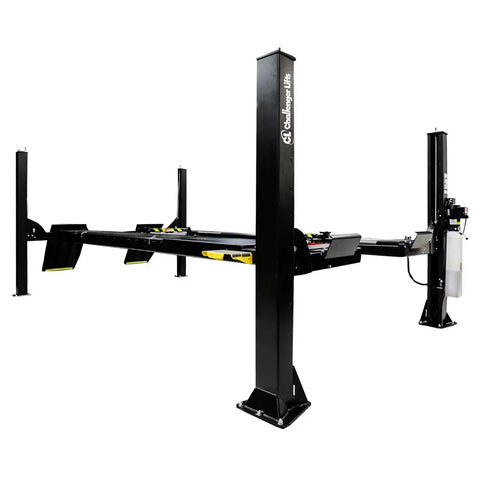

Challenger AR4115XAX Closed Front 4-Post Alignment Lift (15,000 Lbs)
Estimated Lead Time:15 Days
Part No: CHL-AR4115XAX-1PBLK
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
ALI Certify Lifts
Alignment Lifts
Alignment Service
Automotive Lift
Challenger Lifts
Four-Post Lifts
Shop Equipment
PRODUCT INFO
Designed with productivity and safety in mind, our newly improved 15,000 lb 4-Post Lift would be a great addition to any shop floor.
Increase your customer base with this lift as it can accommodate and service a wide range of vehicles. Anything from a small passenger car to a medium-duty truck, and even medium-sized vans. All while boosting workplace safety with our open front design, assisting technicians moving around a vehicle's frame.
Note:
- Superceed Model AR4015XAX
- Image is shown with an open front.
Features:
- All-new and wider 22-inches runways.
- Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
- Louvered approach ramps prevent wheelspin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry's latest imaging alignment systems.
- 17 locking positions with improved lock design.
- Optional Alignment kit includes: rolling jacks, internal airline system, & stainless steel turn plates

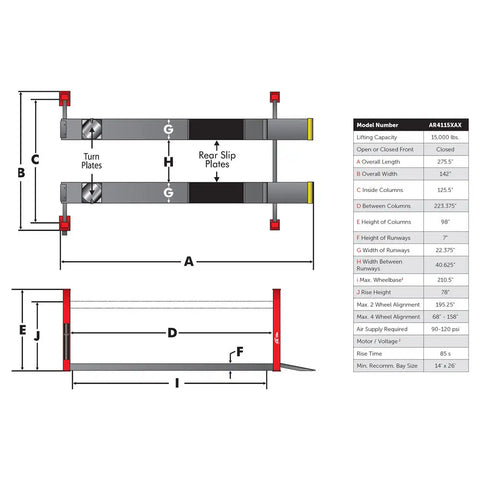

Specs:
Model No.: AR4115XAXLifting Capacity: 15,000 lbs.
Open or Closed Front: Closed
Overall Length: 275.5in
Overall Width: 142in
Inside Columns: 125.5in
Between Columns: 223.375in
Height of Columns: 98in
Height of Runways: 7in
Width of Runways: 22.375in
Width Between Runways: 40.625in
Max. Wheelbase: 210.5in
Rise Height: 78in
Max. 2 Wheel Alignment: 195.25in
Max. 4 Wheel Alignment: 68in - 158in
Air Supply Required: 90-120 psi
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Rise Time: 85 sec
Min. Recomm. Bay Size: 14ft x 26ft
ALI/ETL Certified: Yes
Colors Available: Red, Blue, Black
Includes:
2 x 9,000lb Rolling Jack1 x Flush Mount SS Turning Radius Gauges
1 x Internal Airline Kit
1 x Rear Slip Plates
1 x Multi-Position Work-Steps
1 x Automatic Wheel Stops
