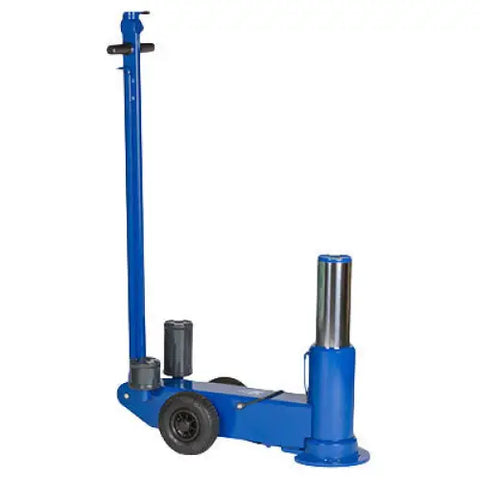

AC Hydraulic 65 Ton HD Jack With High Clearance
AC Hydraulic 65 Ton HD Jack With High Clearance
Part No: AC-65-1H
SHIPPING INFO
ACCESSORIES
DOWNLOADS
Related Categories:
AC Hydraulic
Automotive Lifting Tools
Floor Jacks
Shop Equipment
PRODUCT INFO
Air hydraulic jack for heavy duty applications with high clearance
Features:
- Minimum height of 425 mm
- Maximum height of 725 mm and with extensions up to 1025 mm
- Designed for heavy-duty, intensive commercial use
- Hard chromium plated piston rod for long life
- Built-in safety overload valve
- Hand-operated dead-man’s control for optimum safety whilst lifting and lowering
- 65-1HTH model with telescopic handle increasing the reach under the vehicle to 2340 mm ensuring safe and easy operation

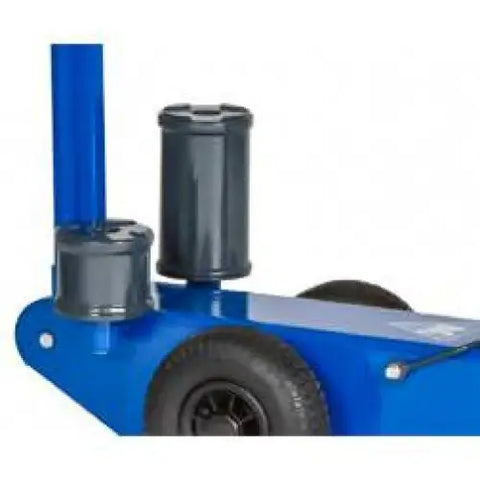

- With 2 extensions 100/200 mm

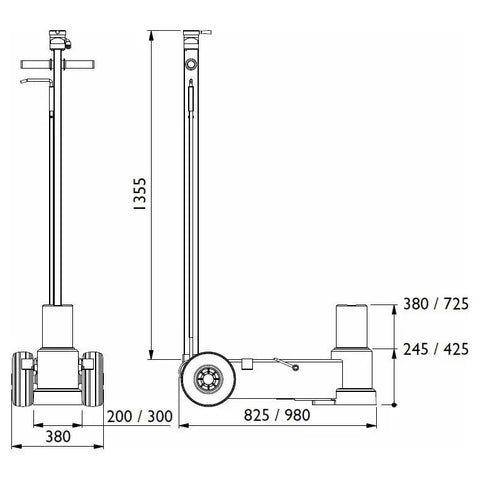

Specs:
Capacity: 143000 lbsMin. height: 16.65 in
Max. height: 28.50 in
Frame length: 38.66 in
Handle length: 53.35 in
Width: 11.81 in
Width with wheels: 14.96 in
Air supply: 130 - 174 psi
Air consumption: 350 l/min
Weight: 304 lbs
