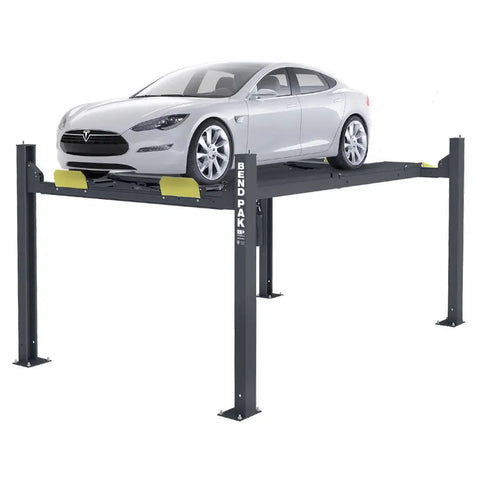

BendPak HD-9AE 9K lbs Alignment Four-Post Lift
Part No: BP-HD-9AE-220V
Alaska, Hawaii, & any/all US territories & international orders are excluded.
The HD-9AE alignment lift features adjustable multi-position leveling, integrated front radius plates, and rear slip plates. This makes it compatible with all leading alignment instrumentation, including 3D and camera wheel alignment systems. Multi-caster slip plates in the back and radius plates up front allow for extremely precise, free-floating alignment. Wheel service is where many shops make the big bucks, so we’re conscious of the fact that these lifts need to be dependable and efficient to keep you satisfied.

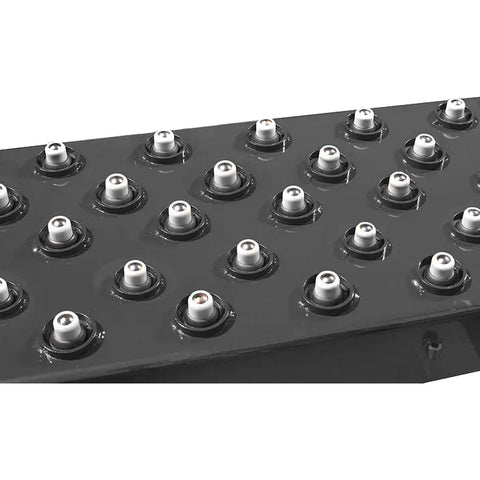

Slip plates
Free-floating alignments are made easy-to-handle to help you get to work without delay and generate a faster turnaround. Multi-caster slip plates are positioned in the rear, with turn plates established in the front. This allows for the most precise alignments in the business.

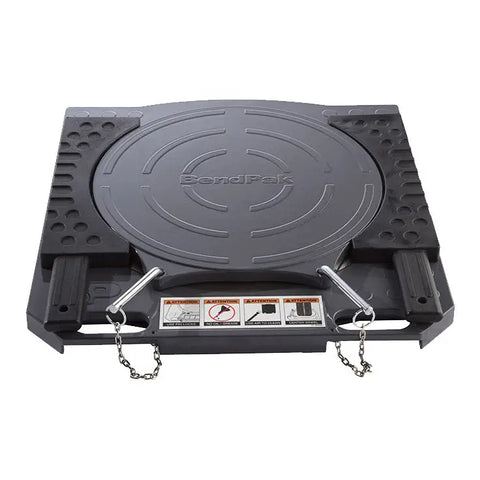

Deluxe Turnplates
Aluminum-alloy construction turn plates are easily positioned using BendPak’s turn plate pockets. Larger and more robust than our previous slip-plate design, they’re also lighter in construction and feature dual “popsicle gap stops” for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift.

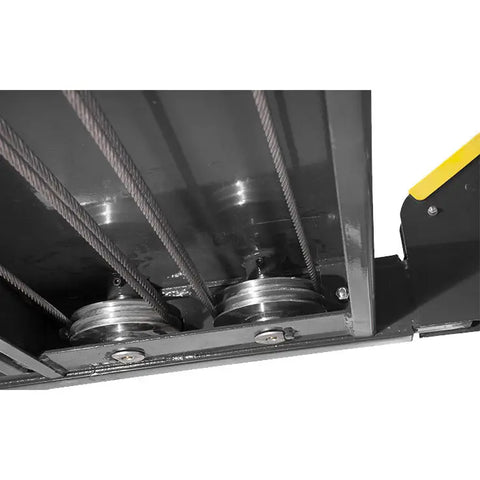

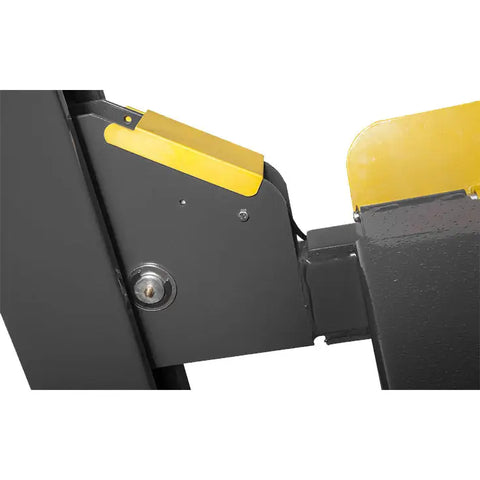

Dual-hub cable sheaves
BendPak alignment lifts feature oversized cable sheaves within the runway and cross tubes sheave axles. This is essentially the same cable-routing system found on our full-size car lifts, which means our exceptionally over-engineered alignment lifts are prepared to service your shop with hardly any maintenance for years to come.
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Features:
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Multi-caster slip plates
- Dual radius plate positions

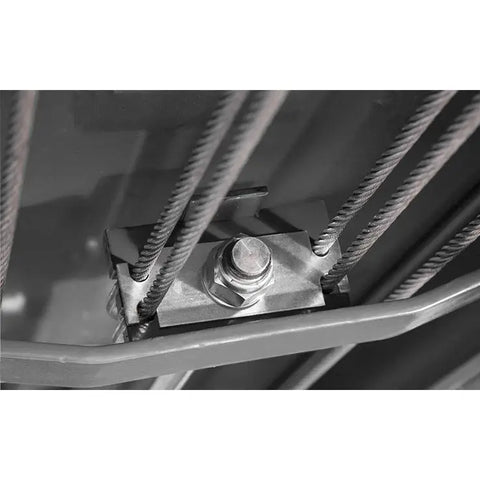

- Heavy-duty stainless steel lifting cables
- Dual-hub cable sheaves
- Grease nipples on every sheave and sheave axle

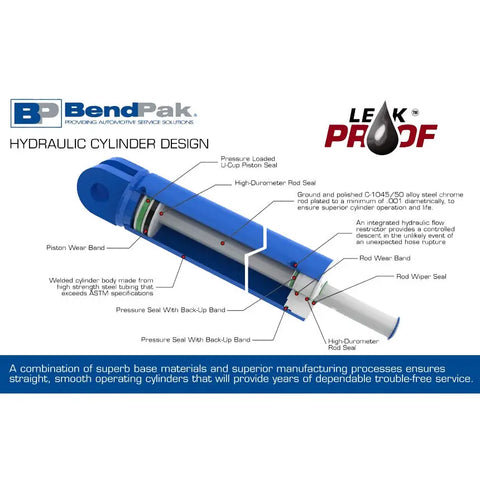

- Single hydraulic cylinder
- Integrated hydraulic flow restrictor
- Durable powder-coat finish

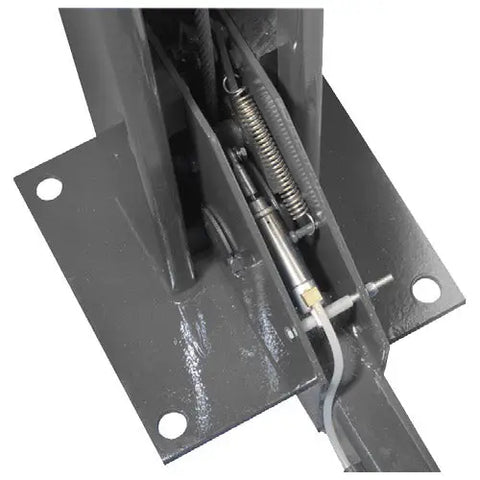

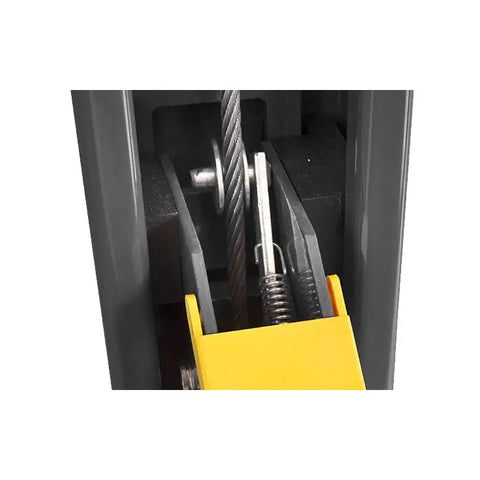

- Spring-loaded safety locks
- Simple push-button lock release
- Aircraft-quality stainless steel and aluminum pneumatic cylinders
- Secondary lock system
- Fully enclosed cables, airlines, safety latches, and sheaves
- Multiple adjustable height locking positions
- Maintenance-free power system
- Easy-to-reach operator controls
Specs:
CapacityLifting Capacity*: 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)

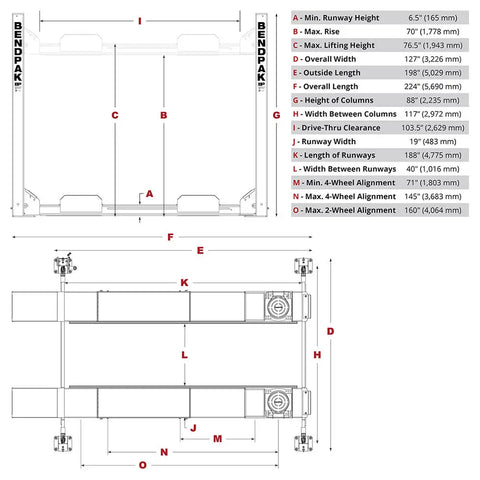

Rise
A - Min. Runway Height: 6.5in (165 mm)
B - Max. Rise: 70in (1,778 mm)
C - Max. Lifting Height: 76.5in (1,943 mm)
Time to Full Rise: 60 seconds
Outside Dimensions
D - Overall Width: 127in (3,226 mm)
E - Outside Length: 198in (5,029 mm)
F - Overall Length: 224in (5,690 mm)
G - Height of Columns: 88in (2,235 mm)
Inside Dimensions
H - Width Between Columns: 117in (2,972 mm)
I - Drive-Thru Clearance: 103.5in (2,629 mm)
Runways
J - Runway Width: 19in (483 mm)
K - Length of Runways: 188in (4,775 mm)
L - Width Between Runways: 40in (1,016 mm)
Alignment
M - Min. 4-Wheel Alignment: 71in (1,803 mm)
N - Max. 4-Wheel Alignment: 145in (3,683 mm)
O - Max. 2-Wheel Alignment: 160in (4,064 mm)
Minimum Wheelbase
Rated Capacity: 135in (3,429 mm)
- 75% Capacity: 115in (2,921 mm)
- 50% Capacity: 95in (2,413 mm)
- 25% Capacity: 80in (2,032 mm)
Locking
Locking Positions: 12
Lock Spacing: 4

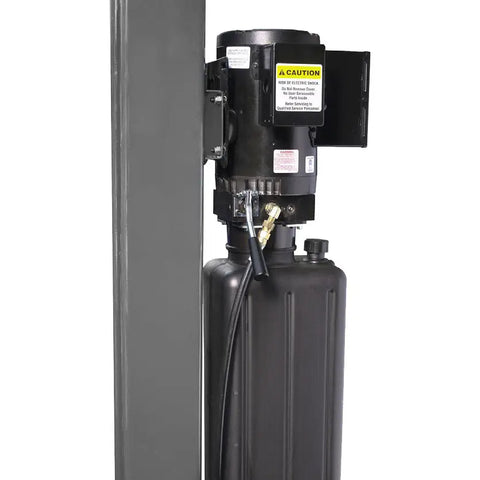

Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB
Shipping
Weight: 2,270-lbs. (1,029 kg)
Dimensions: 190in x 22in x 42in (4,826 mm x 558 mm x 1,066 mm)
Includes:
1 x Turn Plate1 x Slip Plate
Bend-Pak Warranty:
5 Years Lift structure2 Years Hydraulic cylinder(s) and power unit
1 Year Operating components
1 Year Electrical components (excluding power unit)
1 Year Labor Warranty on site or at factory*
1 Year Free‐Shipping** on ground‐freight charges related to warranty performance
