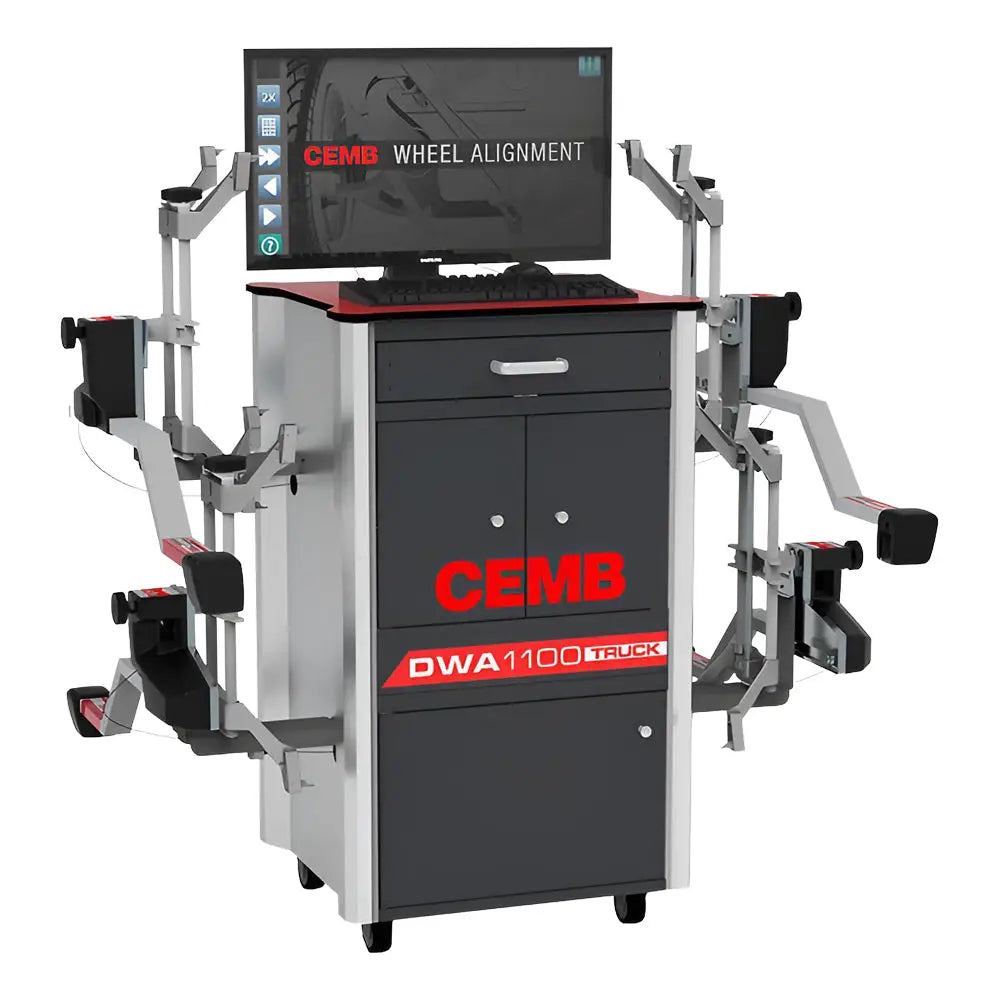

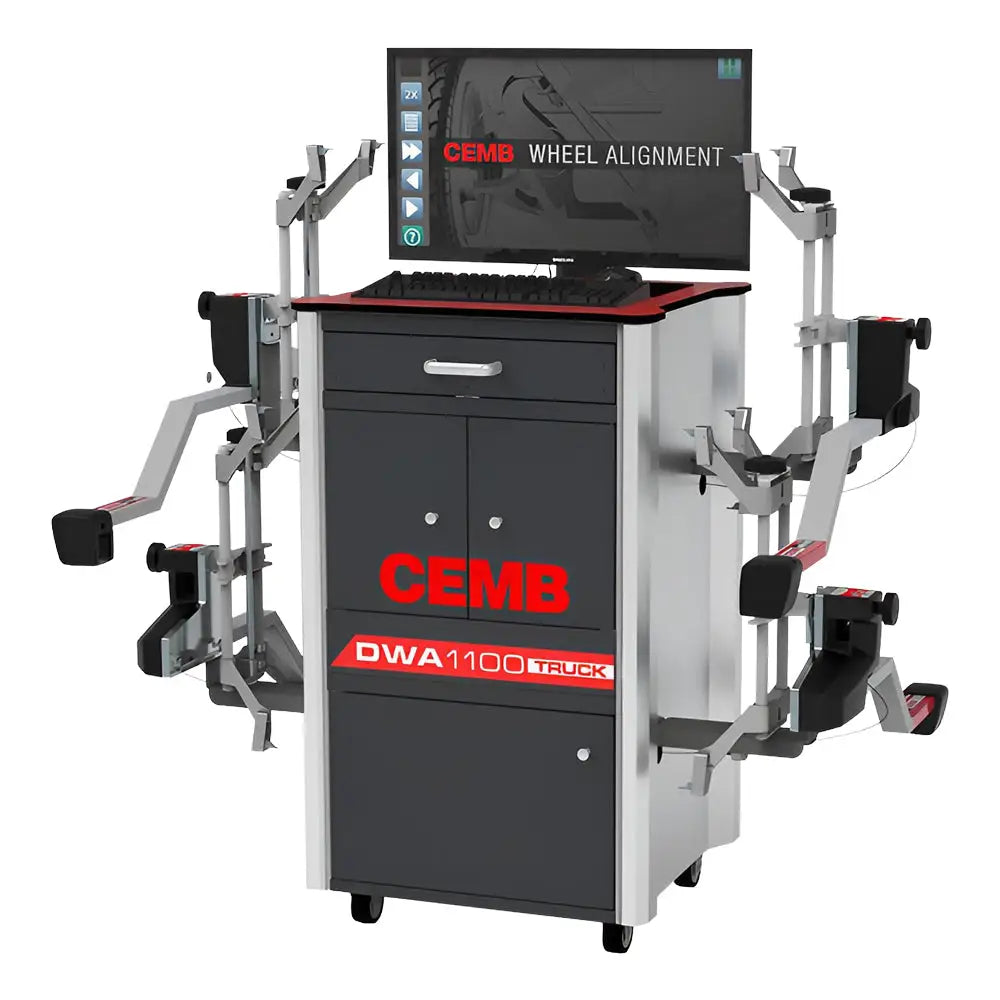

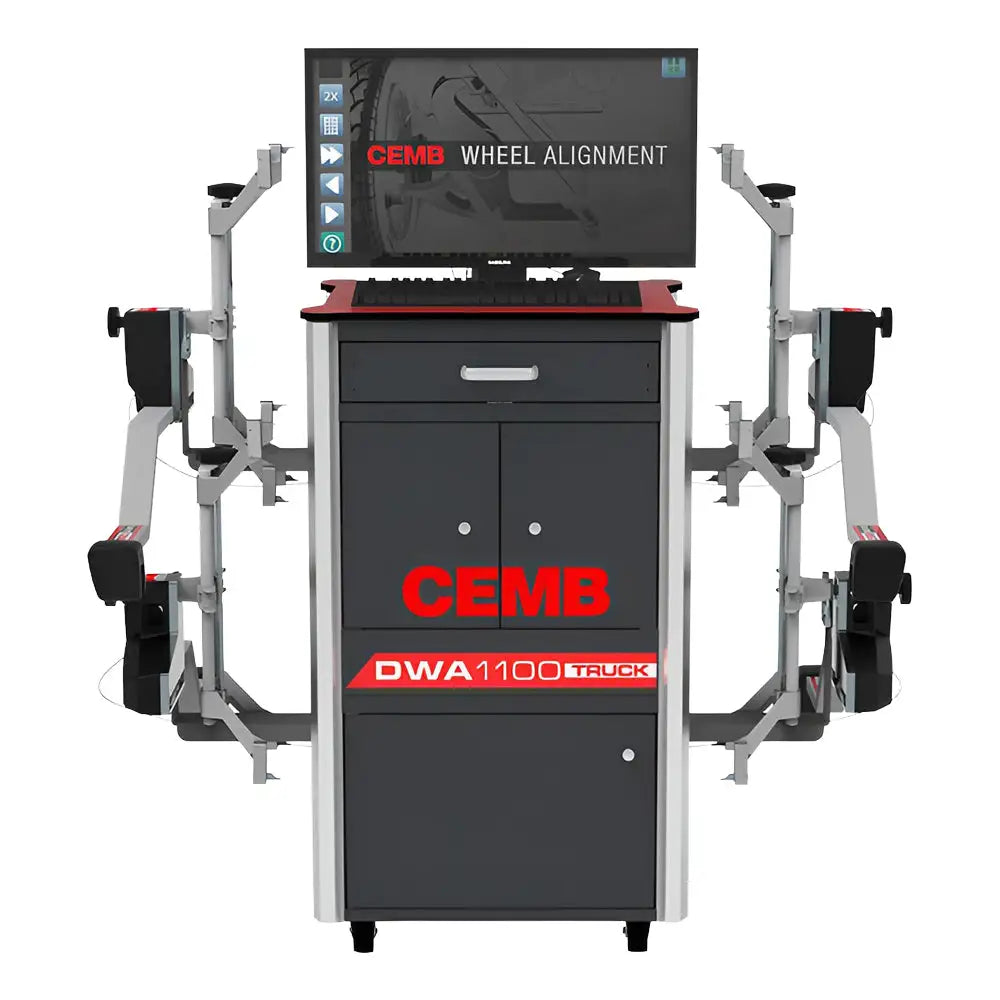

Cemb DWA1100TRUCK Truck Wheel Alignment System
Part No: CMB-DWA1100TRUCK
Alaska, Hawaii, & any/all US territories & international orders are excluded.
The CEMB DWA1100 Truck Wheel Alignment System is the most advanced and accurate truck wheel alignment system on the market. It features state-of-the-art CCD sensor technology, a comprehensive vehicle database, and user-friendly software.
The DWA1100 system uses CCD sensors to quickly and accurately measure all alignment parameters. The sensors are mounted on lightweight wheel clamps and are easy to install. The system also features a comprehensive vehicle database that contains more than 50,000 vehicles. This database makes it easy to select the correct alignment parameters for your truck.
The DWA1100 system also has user-friendly software that guides the user through the alignment process step-by-step. The software includes a clear and intuitive graphical interface that makes it easy to see the alignment results.
The CEMB DWA1100 Truck Wheel Alignment System is the perfect solution for any truck owner who wants to ensure that their truck is aligned properly. The system is accurate, easy to use, and affordable.
Features:
- Service Both Truck and Bus
- State-of-the-art CCD sensor technology
- A comprehensive database of more than 55,000 vehicles
- Clear and intuitive user interface
- Step-by-step alignment instructions
- Built-in audit function
- Reliable and accurate
- Easy to use
Benefits:
- Improved customer satisfaction
- Reduced customer comebacks
- Increased productivity
- Increased profitability
Specs:
Power supply: 230 VAC single-phase 50/60 Hz | 115 VAC single-phasePackage dimensions: 113x113x113
Net weight: 155 Kg (342 lbs)
Ref No.
DWA1000 (Older Standard Model)
DWA1000XLT (Older Model)
DWA1100 (Standard)
DWA1100ADSA (ADSA Model)
Includes:
PC- 27in TFT monitor
- Colour printer
- Windows 10 OS
- Keyboard
- Mouse
1 x DWA cabinet
2 x Grease Pads
4 x 4-point clamps
1 x Brake Pedal
1 x Steering Wheel Holder
Software
Software and Database for:
- Car/LT.
- Truck
Optional:
Car upgrade kit: 2 car turnplates, 2 car sensors, software, and database for cars and light vehicles.
Clamp extensions up to 30": Extensions to increase the operating diameter up to 30in.
Grips for steel rims: Set of 4 metal grips for clamping on steel rims from the inside (also useable as adapters for other tips and grips).
50″ Supporting arms extension: Extended clamp supporting arms for truck and bus tires up to 50”
Calibration kit: Calibration kit complete with a spirit level to calibrate measuring heads
Backup cables: Set of 4 feeding cables for recharging batteries when measuring heads are mounted on the vehicle (13m length)
Adaptor rod for semitrailers’ kingpin: Aligner rod for semi-trailers
Ramps for Truck turnplates: Ramps for truck turnplates
KIT ADAS CCD: The CEMB KIT ADAS CCD allows the positioning of the CCD sensors on any ADAS/ACC calibration structure by means of universal adapters and, through a very quick and simple software included in the alignment program, enables to facilitate the positioning.
Webcam: Camera support for the positioning of the vehicle on the lift
Wireless Stick: USB WiFi Adapter for the software and database automatic update and for the Wheel Alignment App use.
3-point clamps: Set of four 3-point self-centering wheel clamps for rims 10″-25″.
Truck turnplates: Two truck turnplates, capacity 4500Kg, diameter 40cm, height 5.5cm, nylon spheres
Wheel alignment app: Wheel alignment App is the App that enables the replication on your smartphone or tablet of the wheel alignment monitor, acting as a remote control to operate on the machine software.
Router: Router is necessary to use the App for remote control (Wheel Alignment App).
