Challenger 12.5K Wireless Mobile Column Lift CLHM-125-XF

Hydraulic vehicle lift with blue frame and red support arms.

Mobile column lifts for heavy vehicle maintenance.

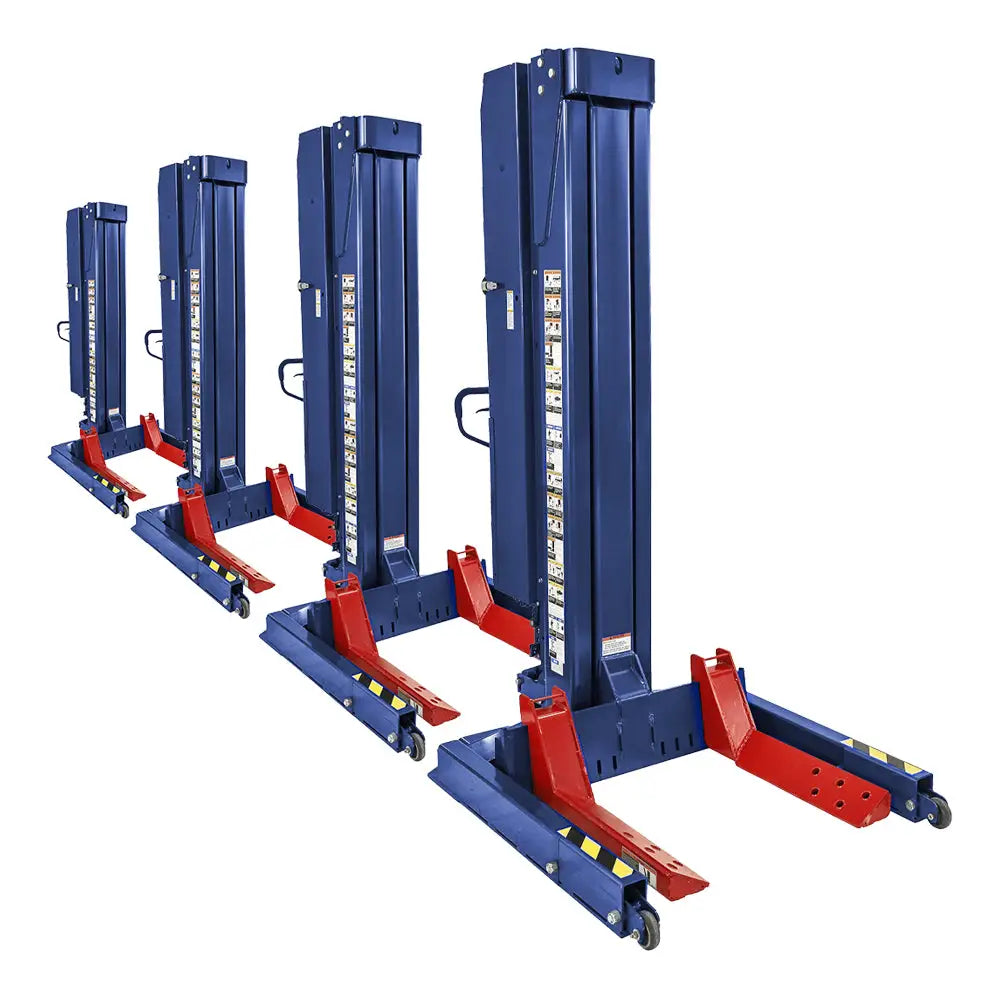

Set of four heavy-duty vehicle lifts in blue and red colors.

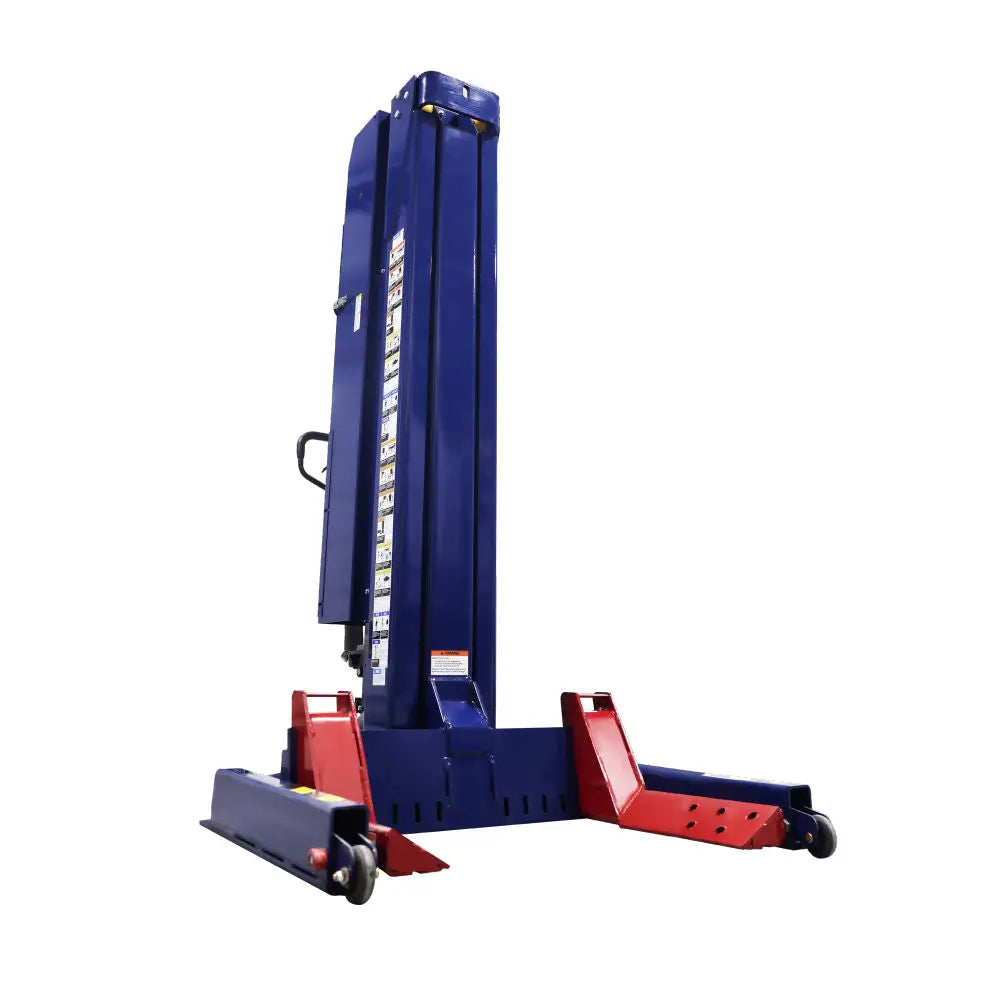

Mobile vehicle lift with a tall blue vertical column and red support arms.

Challenger 12.5K Wireless Control ALI Mobile Column Lift - CLHM-125-XF

Challenger 12.5K Wireless Control ALI Mobile Column Lift - CLHM-125-XF

SKU: CHL-CLHM125XF $13,528.72
Save $3,571.28

As low as $298 for 60 months

Estimated Lead Time:

Part No: CHL-CLHM125XF

Delivery Options

I have a forklift to unload

Please drop off at freight terminal.

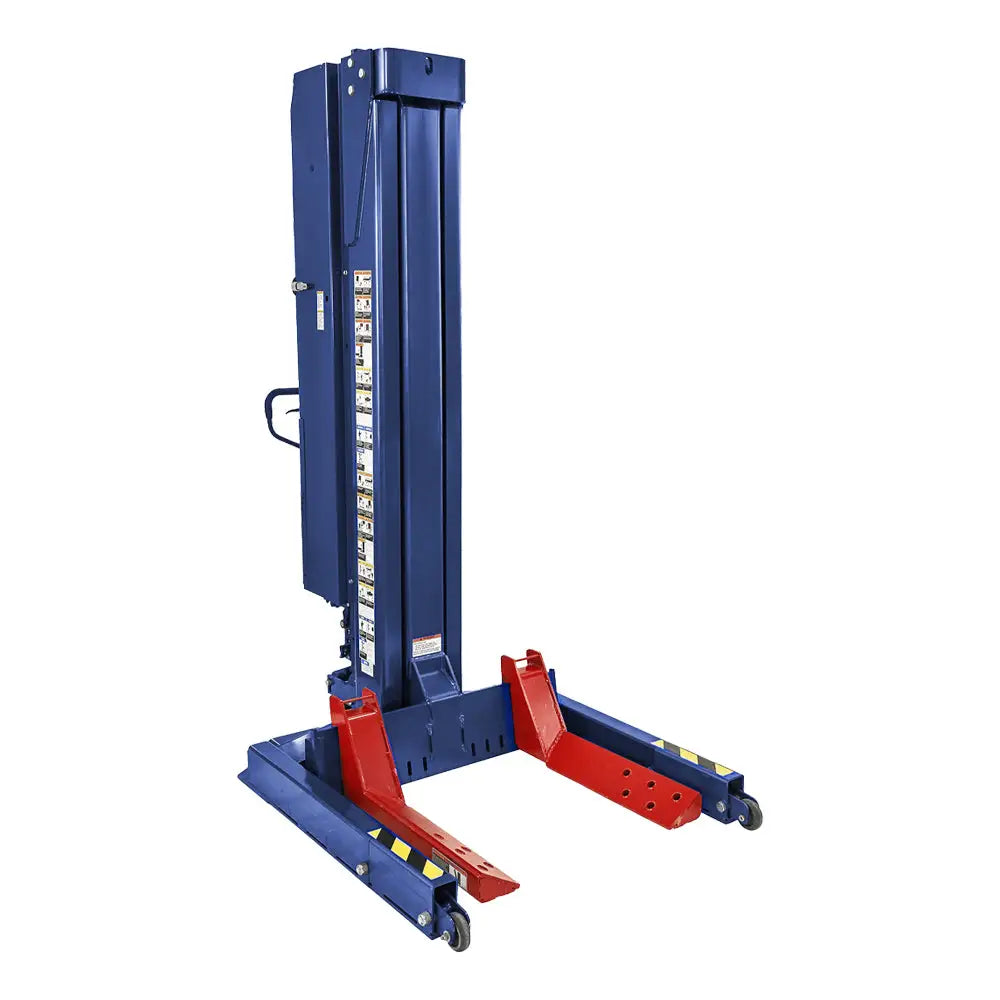

Single

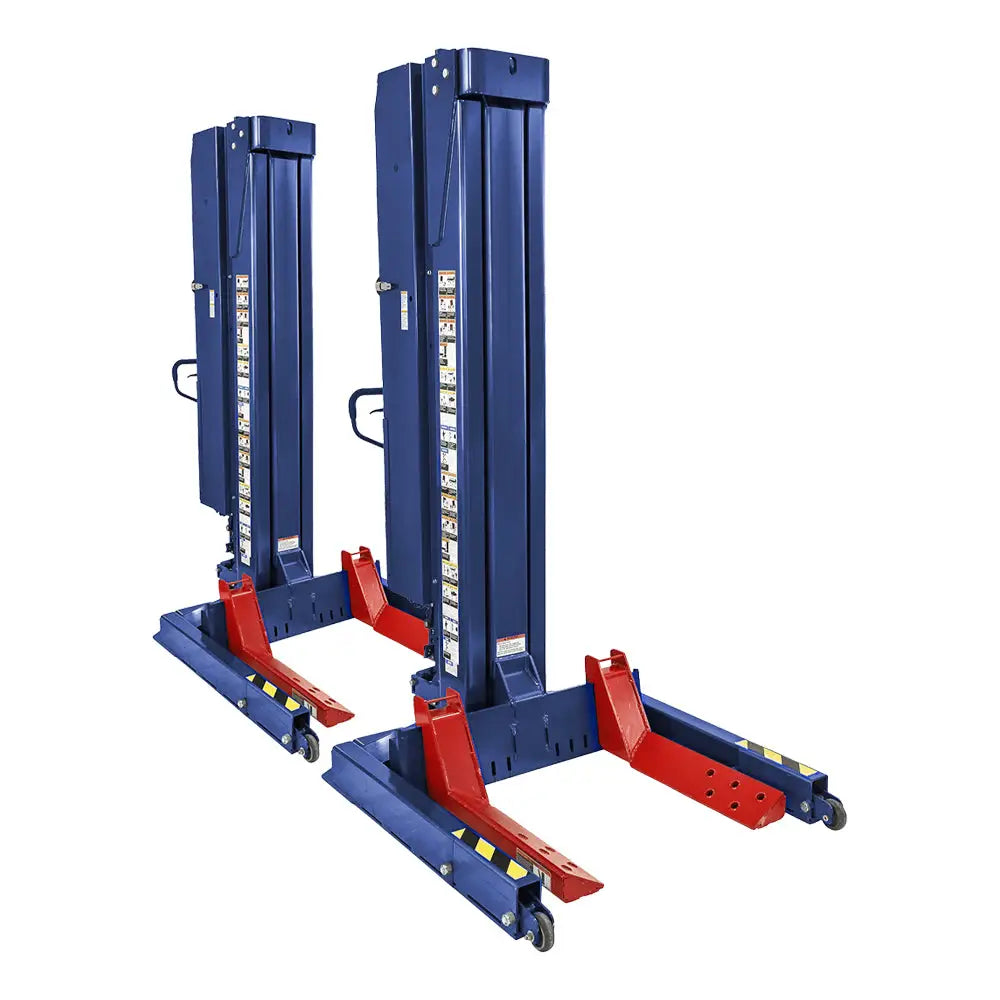

Set of 2

Set of 4

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Related Categories: ALI Certify Lifts Automotive Lift Challenger Lifts Mobile Column Lifts Shop Equipment

PRODUCT INFO

CLHM125 Sale Sheet

Challenger Mobile Column Lifts

CLHM125 User Manual

The 12.5K Mobile Column Lift (Model # CLHM-125-XF) by Challenger is designed for maximum versatility and ease of use in heavy-duty vehicle maintenance. With extended 22in forks, it easily handles vehicles with recessed or dually tires. Powered by a 24v rechargeable battery system, the lift is fully mobile and can be wirelessly controlled from any column. It accommodates wheel diameters from 5 to 24.5-inches, making it ideal for a wide range of vehicles within its rated capacity. Perfect for shops needing flexible, efficient lifting solutions.

Features:

12,500 lbs. capacity per column for heavy-duty vehicles.
22in extended forks for full tire engagement.
Accommodates wheel diameters from 5in to 24.5in.
Rechargeable battery-powered with a 110v charging system.
No air is required for operation, simplifying setup.
Wireless control from any column for clutter-free operation.
Expandable system supports up to eight columns.
Compatible with 14K/19K models for tailored lifting.
Versatile, scalable lifting solution for automotive shops.
ALI Certified for safety and reliability.

Specs:

Lifting Capacity: 12,500 lbs.
Height of Lift Unit: 881⁄2in
Overall Height at Full Rise: 13ft 11⁄8in
Width of Lift Unit: 441⁄4in
Length of Lift Unit: 65.3in
Max. Lift Height 4+ Units: 69in
Max. Lift Height (with 2 units): 32in
Wheel Diameter Min. 5in - Max.: 241⁄2in
Max. Hydraulic System Operating Pressure: 2,100 psi
Lift Speed (Max. Load): 56.7in per minute
Weight of Lift Unit: 1,557 lbs.
Footprint of Lift Unit: 719 sq. in.
Ground Pressure/Lift (Max. Load): 19.6 psi
Turning Radius of Lift Unit: 54in
Operating Peak Power: 4HP
Operating Voltage: 24 VDC Nominal
Charger Voltage Required: 120-240 VAC @ 50-60 Hz
Charger Amps Required: 2.8 amps
ALI Certified: Yes

Similar Products
CLHM-140, CLHM140 (14K Models)
CLHM-190, CLHM190 (19K Models)

Ref Name
Heavy-Duty Vehicle Lift
Wireless Mobile Lift System

Application:

Trucks
Buses
Commercial Vans
Heavy Equipment
Fire Trucks

For Businesses
Fleet Maintenance
Truck Repair
Bus Service
Heavy Equipment Lifting
Commercial Vehicle Shops
