Challenger ALI Mobile HD Column Lifts - CLHM-190
Challenger ALI Mobile HD Column Lifts - CLHM-190
Part No: CHL-CLHM-190-2
Alaska, Hawaii, & any/all US territories & international orders are excluded.

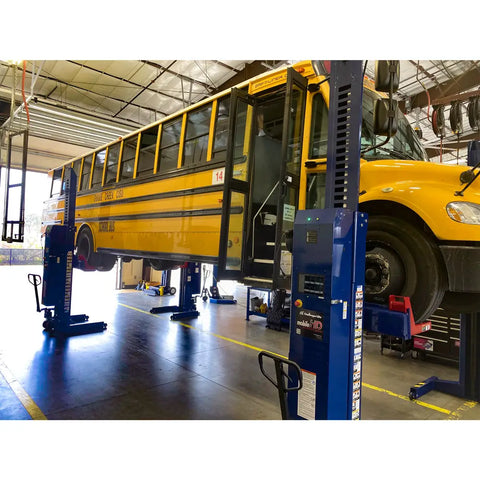

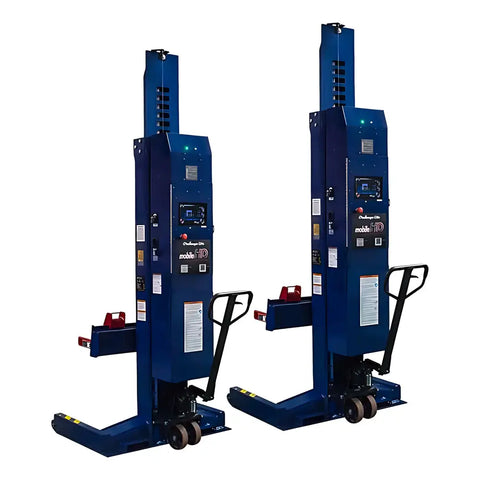

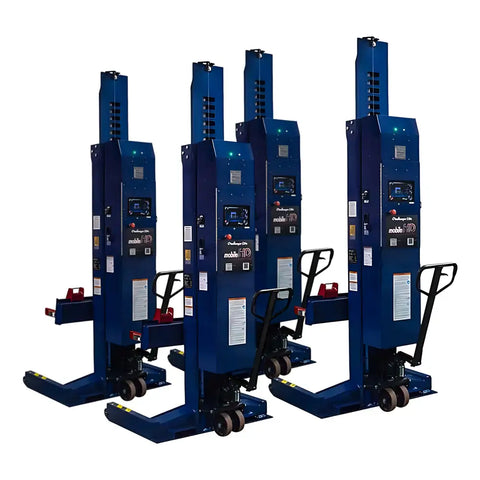

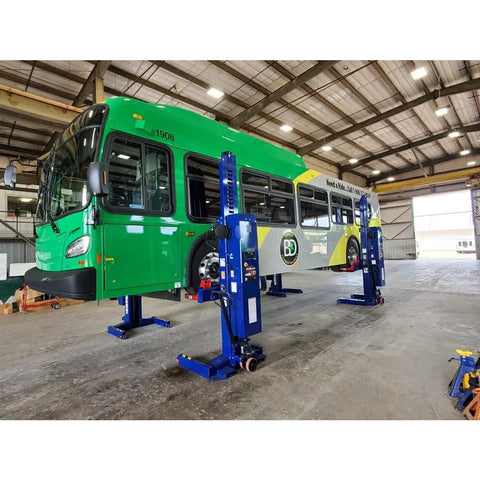

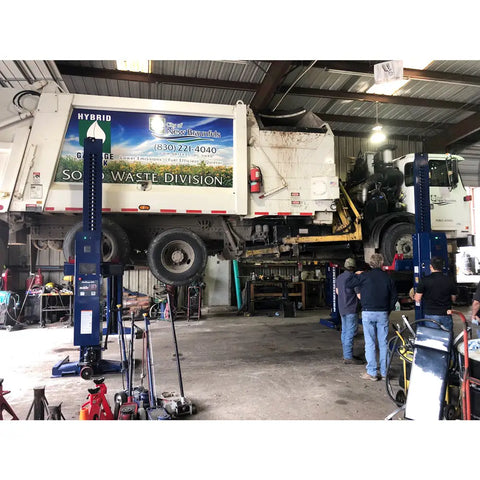

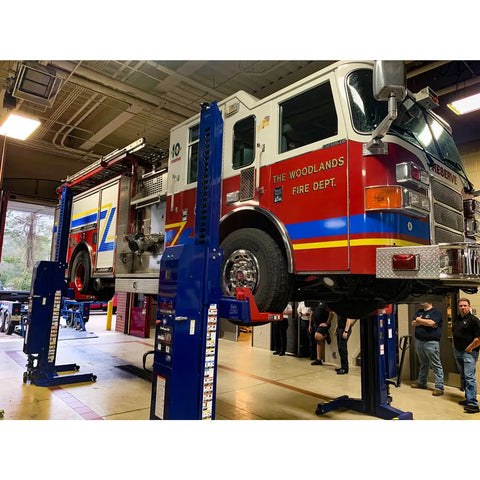

Challenger's 19,000 lb. capacity mobile column lifts provide the flexibility and convenience to lift any rubber-tired vehicle, from small passenger cars to the largest two, three, or four-axle vehicles from 28,000 lbs. 152,000 lbs. without taking up an entire bay. Our heavy-duty mobile lifts are also capable of lifting vehicles of any axle length or wheelbase.

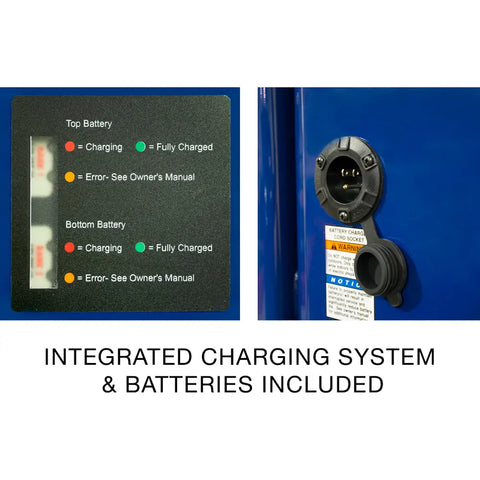

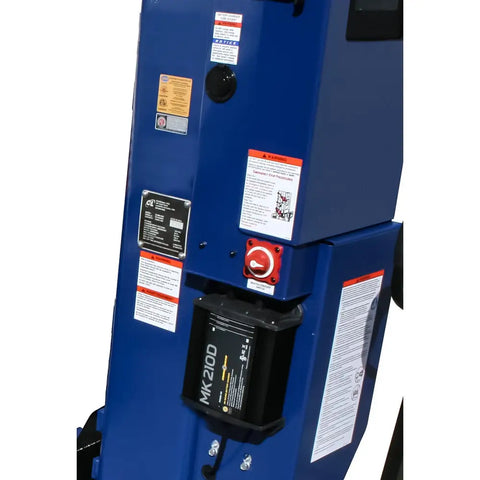

Integrated Charging System
110V built-in multi-stage charging system for the battery, wireless operation. The charging status light provides real-time battery updates to assist with job planning and management

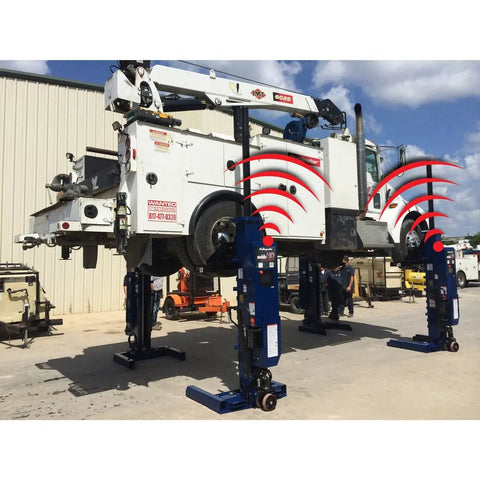

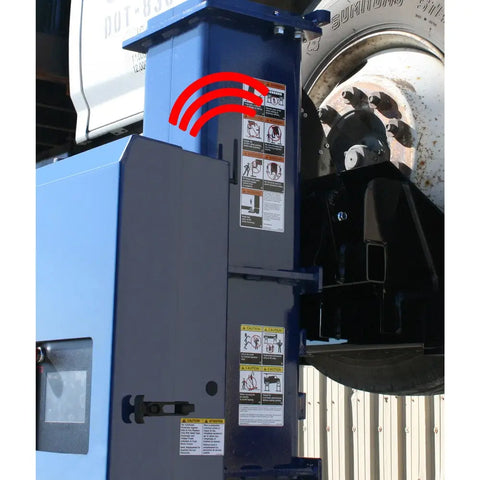

Wireless Operation
Wireless operation system allows for a clutter-free work area without cables to connect, navigate around, roll over or replace. 12 radio frequencies with a wide channel range / 100 to 120 for each frequency prevents radio noise from interrupting service.

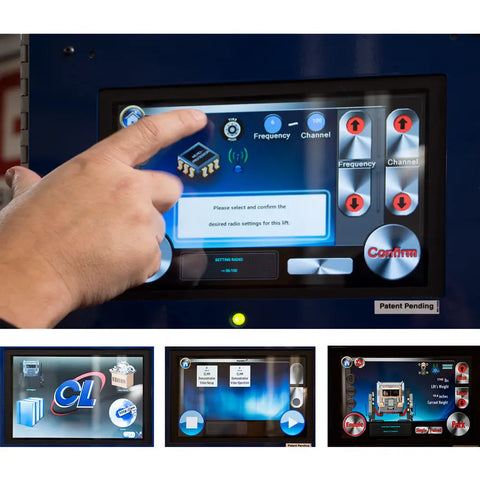

NEW 10in Touch Screen Control Console
Android-based integrated touch screen control console provides easy-to-use control and precise measurements of lifting height and lifting weight per column.
- Internal CPU and fully functional web browser
- On-board training videos and manuals
Safety Features
- Linear position transducers maintain system synchronization and ensure maximum reliability

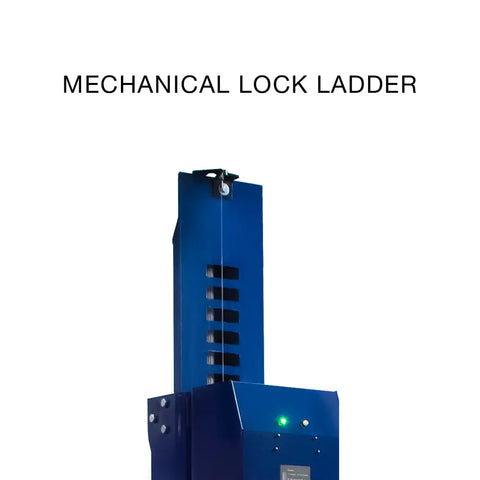

- Integrated weight gauges help prevent column overloading and verify lock engagement
- Wireless system for clutter-free work area without cables to connect, navigate around, roll-over or replace
Features:
- Hydraulic operated units provide heavy-duty lifting capacity from 28,000/38,000 lbs. / set of 2 to 112,000/152,000 lbs. / set of 8 enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.
- 110-volt built-in multi-stage charging system

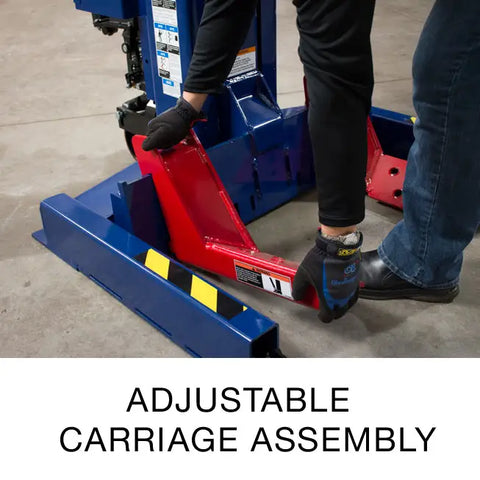

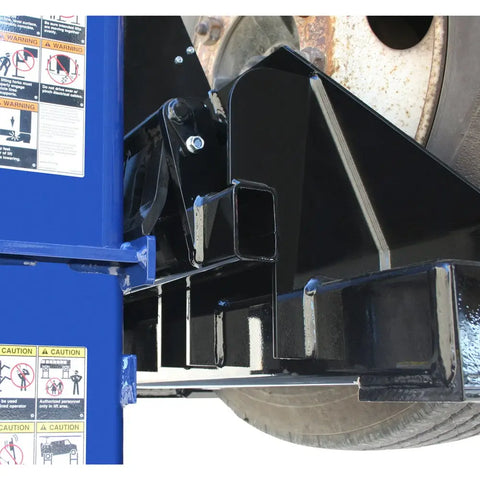

- Adjustable wheel carriages fit a range of wheels
- An integrated touch screen control console provides easy-to-use and precise operating.

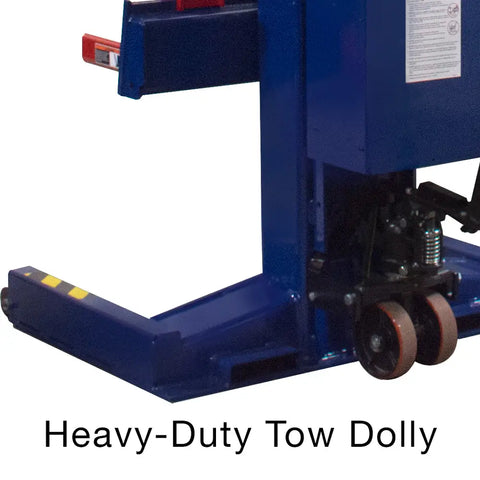

- Precisely balanced design, heavy-duty tow handle, and spring-loaded wheels make moving and aligning individual lift units simple and easy with little effort.
- Operates with 12-volt deep cycle batteries to eliminate the need for power source hookups and provide 24-volt operation
- Meets stringent ALI Gold Label standards

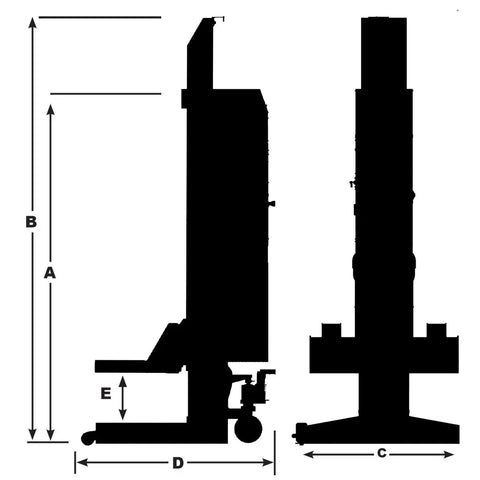

Specs:
Model: CLHM-190Lifting Capacity Per Column: 19,000 lbs.
Height of Lift Unit: 88.5in
Height of Lift Unit at Full Rise: 157.125in
Width of Lift Unit: 44.25in
Length of Lift Unit: 53.625in
Maximum Lift Height (4 or more units): 69in
Maximum Lift Height (2 units - Normal Mode): 32in
Min-Max Wheel Diameter: 5in - 24.5in
Max. Hydraulic System Operating Pressure: 2,600 psi
Lift Speed (Max Load): 60in per min.
Weight of Lift Unit: 1,510 lbs
The footprint of Lift Unit: 560 sq. in.
Ground Pressure for each Lift (Max. Load): 36.6 psi
Turning Radius of Lift Unit: 47in
Operating Peak Power: 4HP
Operating Voltage: 25 VDC nominal
Charger Voltage Required: 120 VAC @ 60 Hz
Charger Amps Required: 1.3 Amps
ALI/ETL Certified: Yes
Colors Available: Blue
