Challenger ALI Wide Mobile HD Column Lifts, 19,000 lbs/Column - CLHM-190W
Challenger ALI Wide Mobile HD Column Lifts, 19,000 lbs/Column - CLHM-190W
Part No: CHL-CLHM-190W-2
Alaska, Hawaii, & any/all US territories & international orders are excluded.

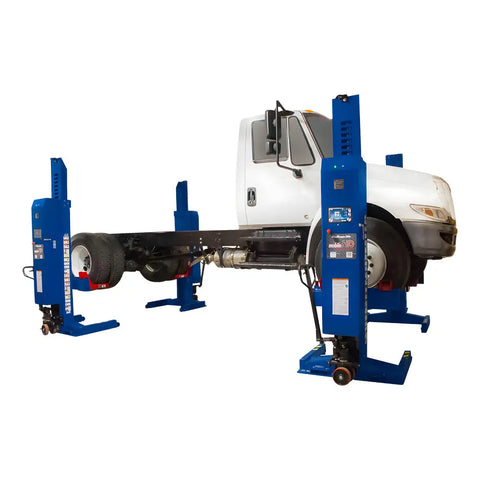

Introducing the Challenger CLHM-190W, the perfect solution for lifting heavy vehicles with ease. This mobile lifting system has a 19,000 lbs capacity and is 49 inches wider compared to the standard model, making it ideal for rubber-tired vehicles of any axle length or wheelbase.

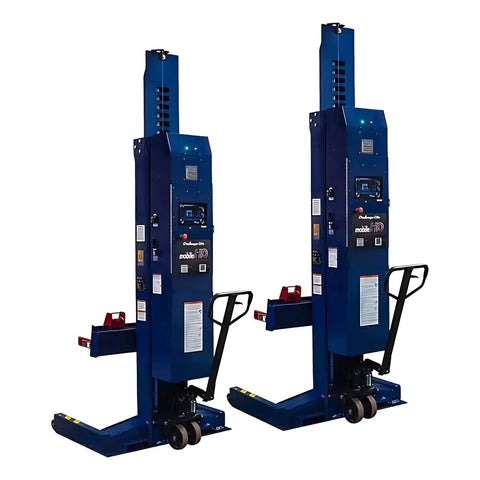

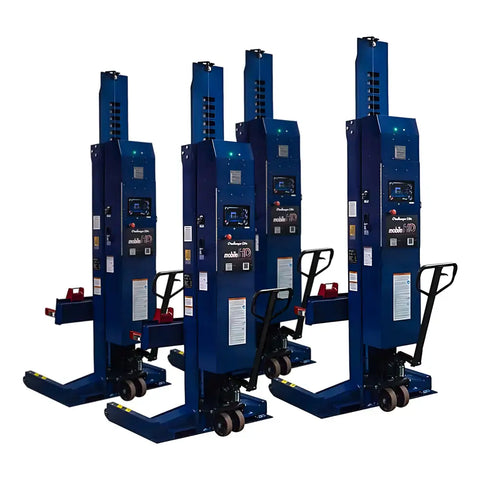

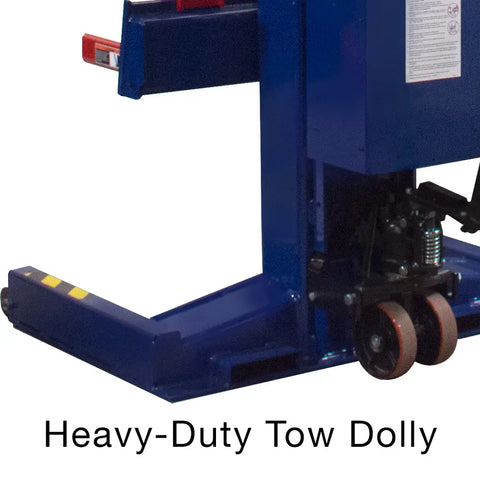

With hydraulic operated units providing 38,000 (Pair) or 152,000 lbs (4 Units) lifting capacity, this robust system can be operated on any solid surface, indoors or out. Its adjustable wheel carriage adapts to most tire sizes, and the precisely balanced design, heavy-duty tow handle, and spring-loaded wheels make it easily maneuverable.

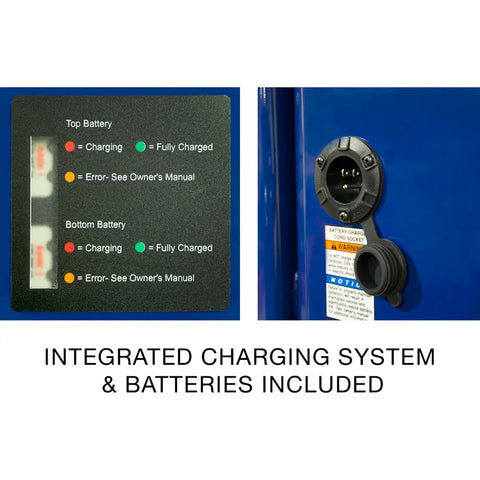

The CLHM-190W comes with an integrated charging system that provides real-time battery updates to assist with job planning and management. Its wireless operation system allows for a clutter-free work area without cables to connect, navigate around, roll over or replace. The 10-inches touch screen control console is Android-based, providing easy-to-use control and precise measurements of lifting height and lifting weight per column. On-board training videos and manuals are also available.

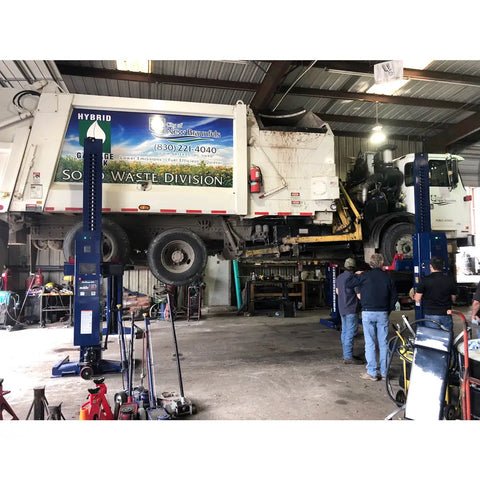

Safety features include linear position transducers that maintain system synchronization and ensure maximum reliability, integrated weight gauges that help prevent column overloading and verify lock engagement, and a wide range of accessories available to customize your columns further to lift specialty heavy-duty trucks, transit, and municipality vehicles, forklifts, cab removal of standard pickup trucks, and more.
Choose the Challenger CLHM-190W for a robust yet easily maneuverable mobile lifting system that provides flexibility and convenience and can lift any rubber-tired vehicle up to 152,000 lbs.
Features:
- 19,000 lb. capacity hydraulic columns

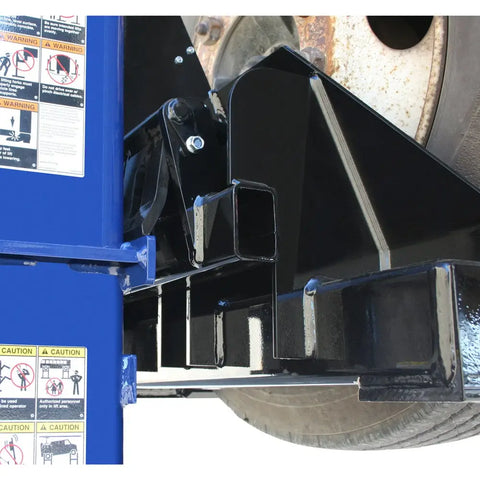

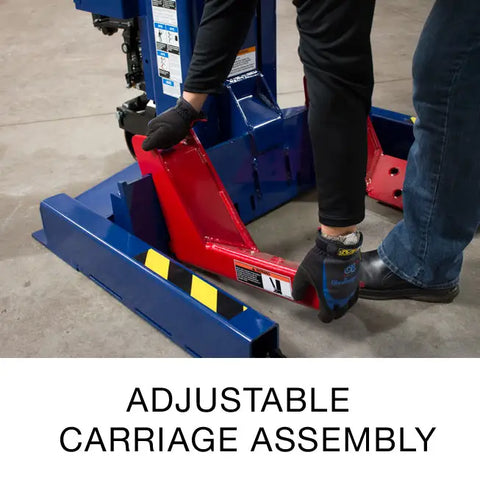

- Adjustable wheel carriage for most tires

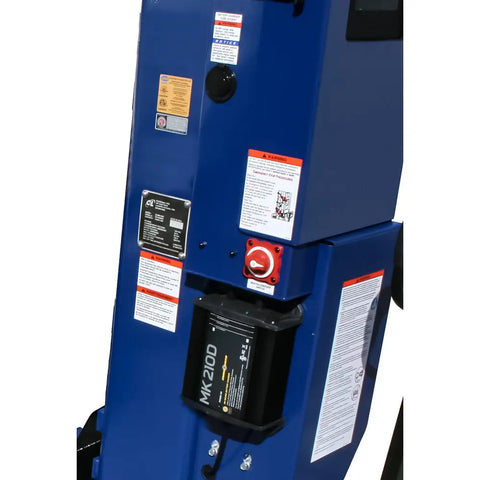

- 110V built-in multi-stage charging system

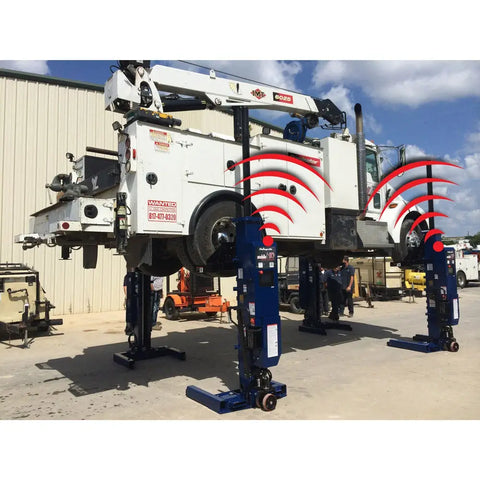

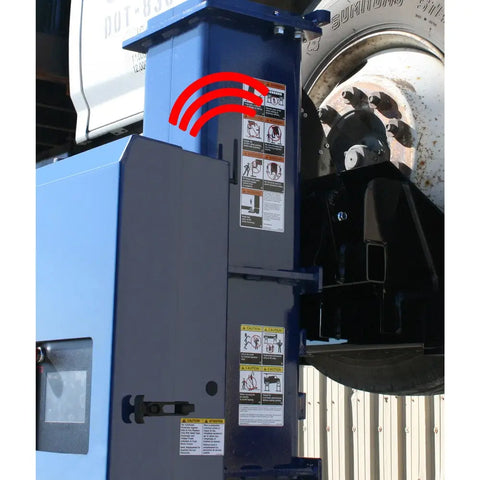

- Wireless operation with 12 radio frequencies

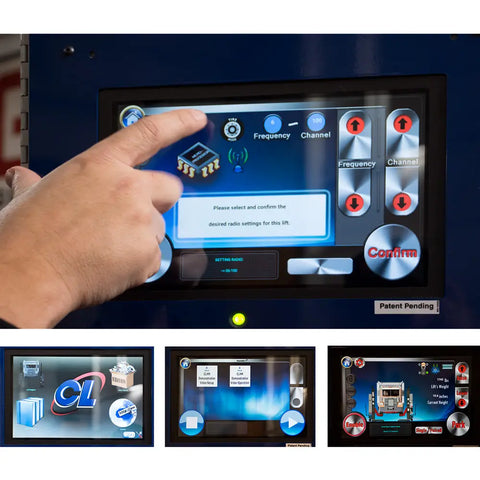

- 10in touch screen control console
- Internal CPU and on-board training
- Linear position transducers ensure synchronization
- Integrated weight gauges prevent overloading
- Precisely balanced design with easy mobility
- 12V deep cycle batteries for 24V operation
- Wide range of accessories available
Specs:

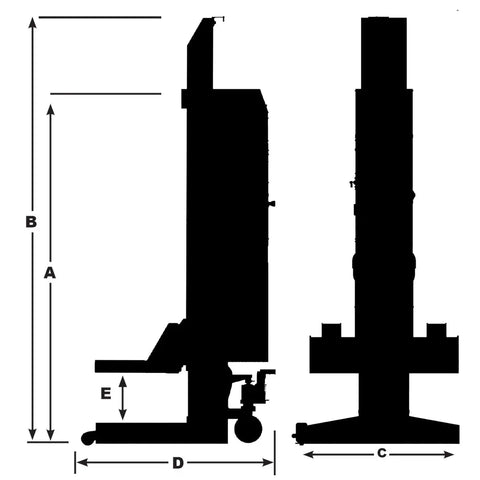

Lifting Capacity Per Column: 19,000 lbs.Height of Lift Unit: 88.5in
Height of Lift Unit at Full Rise: 157.125in
Width of Lift Unit: 49in (C)
Length of Lift Unit: 53.625in
Maximum Lift Height (4 or more units): 69in
Maximum Lift Height (2 units - Normal Mode): 32in
Min-Max Wheel Diameter: 4in - (Max determine by tire diameter)
Max. Hydraulic System Operating Pressure: 2,600 psi
Lift Speed (Max Load): 60in per min.
Weight of Lift Unit: 1,575 lbs
The footprint of the Lift Unit: 600 sq. in.
Ground Pressure for each Lift (Max. Load): 34.3 psi
Turning Radius of Lift Unit: 47in
Operating Peak Power: 4HP
Operating Voltage: 25 VDC nominal
Charger Voltage Required: 120 VAC @ 60 Hz
Charger Amps Required: 1.3 Amps
ALI/ETL Certified: Yes
Colors Available: Blue
Ref No.:
CLHM-190 (Standard Model)
CLHM-190W
Application:
AutomotiveIndustrial
Construction
