Challenger CL16 16K Heavy Duty Symmetric Two-Post Adjustable Lift

Challenger CL20 20K Heavy Duty Symmetric Two post lift - Red

Challenger CL20 20K Heavy Duty Symmetric Two post lift -

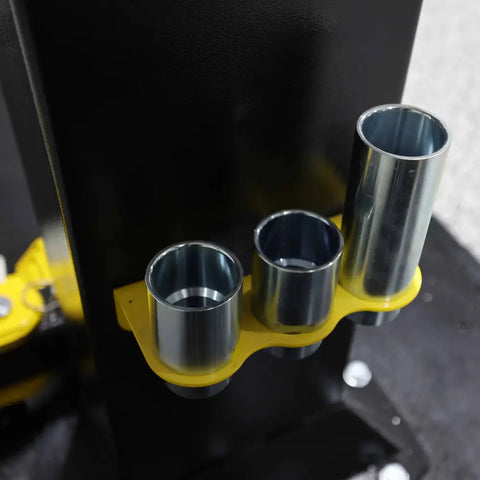

Yellow plastic holder with three metal socket attachments for Challenger CL16 two-post lift

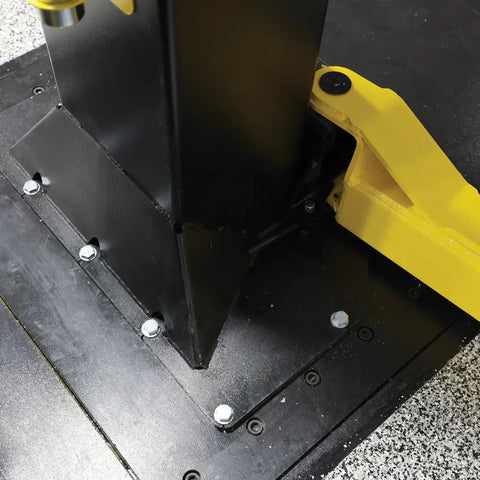

Black metal plate with silver bolts and yellow brackets on Challenger CL16 heavy-duty two-post lift

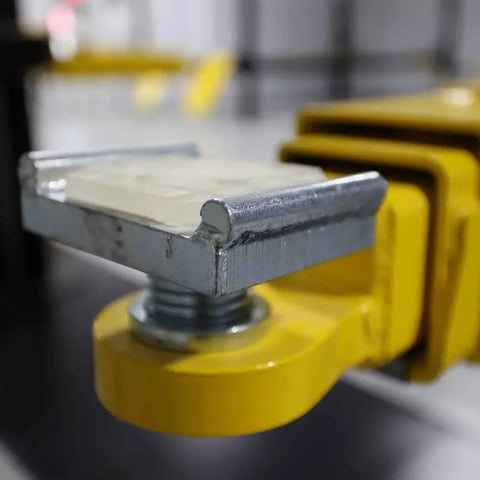

Metal clamp with yellow bracket for Challenger CL16 heavy-duty two-post lift

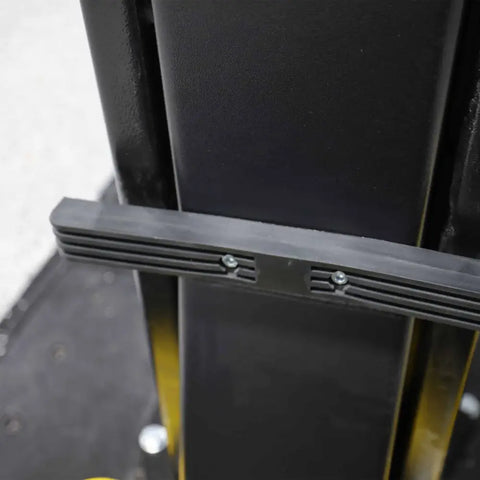

Black metal bracket and screws for Challenger CL16 heavy-duty two-post lift

Challenger CL16 16K Heavy Duty Symmetric Two-Post Adjustable Lift, Standard

Made in USA

Challenger CL16 16K Heavy Duty Symmetric Two-Post Adjustable Lift, Standard

SKU: CHL-CL16-0-3SR $23,284.88
Save $7,965.12

Estimated Lead Time:15 Days

Part No: CHL-CL16-0-3SR

Delivery Options

I have a forklift to unload

Please drop off at freight terminal.

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Related Categories: ALI Certify Lifts Automotive Lift Challenger Lifts Shop Equipment Two Post Lifts

PRODUCT INFO

CL16 Sale Sheet

CL16 User Manual

Challenger Lifts Warranty Information

Challenger Foot Pad Assembly Sheet

Looking for a versatile and reliable two-post lift for cargo vans and commercial vehicles? Challenger Lift’s CL16-0-3S 16K Heavy-Duty Two-Post Lift offers adjustable installation options for height, width, and depth, ensuring compatibility with a wide range of vehicles, including cargo vans. Featuring 3-stage front and rear arms, it provides superior vehicle access and safety for demanding fleet maintenance. ALI® Certified, this lift is built to last, saving you time and money while enhancing shop efficiency. Ideal for automotive shops and fleet service centers, it’s the ultimate solution for handling heavy-duty vehicles with ease.

Features:

16,000 lbs. capacity for heavy-duty vehicles and cargo vans
Adjustable installation for height, width, and depth options
3-stage front and rear arms for easy vehicle access
ALI® Certified for top industry safety and quality standards
Built to last, reducing downtime and maintenance costs
Ideal for fleet maintenance and commercial service centers
Low-profile pickup pads for various vehicle types
Perfect for automotive shops and demanding vehicle servicing

Specs:

Description: 16K Standard
Lifting Capacity: 16,000 lbs.
Lift Configuration: Symmetric
Arm Configuration: 3-Stage Front/Rear
Maximum Load Per Arm: 4,000 lbs.
Rise Height (Maximum with Stack Adapters): Min. 75.5in Max. 81.5in
Overall Height Options: 162in, 168in, 174in
Overall Width Options: 166.75in, 160.75in, 154.75in
Drive-Thru Clearance: 104.25in, 110.25in, 116.25in
Floor to Overhead Switch: 155in, 161in, 167in
Arm Reach: Min. 36.625in Max. 75in
Screw Pad Height: Min. 5in Max. 6.5in
Between Columns: 120in, 126in, 132in
Motor/Voltage: 3HP, 1Ph, 60Hz, 208/230v
Air Supply Required: 90-120 psi
Rise Time: 62s
Min. Ceiling Height Required: 13ft 8in, 14ft 2in, 14ft 8in

Ref No.
CL16-3S

Similar Products
CL16-2-3S (Extended)

Ref Name
Heavy-Duty Two-Post Lift
16K Automotive Lift
Adjustable Two-Post Lift
Cargo Van Lift

Application:

Automotive Shops
Fleet Maintenance
Cargo Van Servicing
Commercial Service Centers
Vehicle Repair

For Vehicles:
Cargo Vans
Pickup Trucks
SUVs
Light Trucks
