Challenger CL4P9 4-Post Storage/Service Lift, ALI Cert., 9,000 lbs
Part No: CHL-CL4P9S-110V
Alaska, Hawaii, & any/all US territories & international orders are excluded.

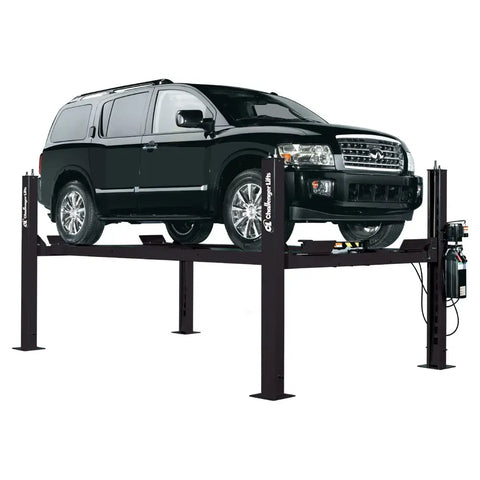

Challenger CL4P9S, CL4P9X, and CL4P9W 4-post home car lifts are perfect for light-duty commercial service or storage applications. Challenger Lifts 9,000 lbs. 4 post lift and commercial service lift units give you unlimited options for your shop's layout.
Another great feature of the CL4P9 series free-standing four-post lift is its portability. You can choose between bolting it down and leaving it free-standing so you can relocate it anywhere. The free-standing four-post lift is an excellent option if convenience is important to you.
With optional rolling jacks, ramp upgrades, oil drain pan, etc., you'll be able to accommodate just about anything that comes in the garage and afford room to grow with its reasonable cost.
Service Application: Professional grade quality with 80in high rise and multiple lock positions is perfect for light-duty service up to 9,000 lb. capacity. Optional rolling jacks and jack trays provide quick tire and brake work access.

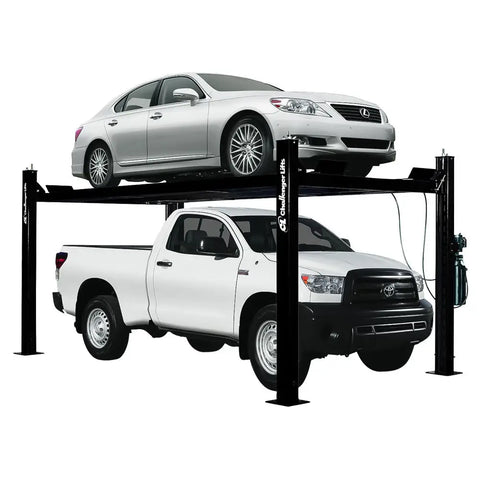

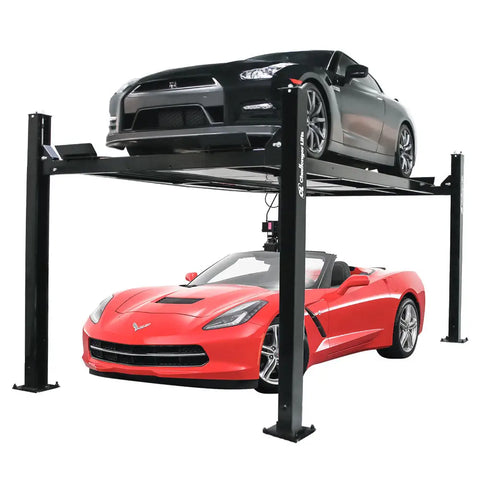

Storage Application: Service your vehicles or store them up top. With 80in rise height, most full-size vehicles are easily parked underneath for everyday use. An optional drip tray set completes the storage application, keeping any fluids from contacting the vehicle beneath.
Multiple Power Unit Locations: The power unit can be placed either on the front column of the driver's side or the back column of the passenger side of the lift. This provides convenient power control accessibility and versatility for any garage layout.
Features:
- 9,000 lb. lifting capacity models available
- Up to 85.5in service rise height in top locked position
- Up to 80in clearance in top locked position for storage application
- Multiple heights, lengths, and widths are available
- Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
- Commercial-grade formed runways ensure a robust and stable unit
- Single-point manual lock release disengages column locks simultaneously
- Air not required for operation
- Anchoring is not necessary to maintain ALI/ETL certification
- Larger columns and base plates add stability
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drip trays / sold separately
- Powder coat finish provides long-lasting durability

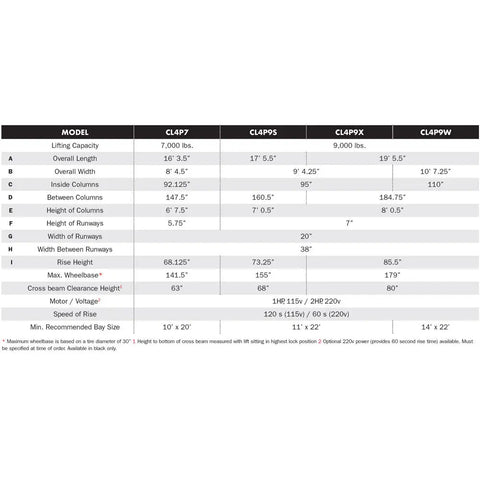

Specs:
Lifting Capacity: 9,000 lbs.Height of Runways (Floor to top of Runway): 7in
Width of Runways: 20in
Width Between Runways: 38in
Motor: 1HP/2HP
Voltage (1 Phase Std): 110v/220v
Speed of Rising (110v/220v): 120/60 s
Certification: ALI/ETL
Colors: Black
CL4P9S
Model Type: Standard
Length Overall: 209.5in
Width Overall: 112.25in
Inside Columns: 95in
Between Columns: 160.5in
Height of Columns: 7ft .5in
Rise Height (Top of Runway at top position): 73.25in
Clearance Height (Storage): 67.75in
Max. Wheelbase*: 155in
Crossbeam Clearance Height: 68in
Min. Recommended Bay Size: 11ft x 22ft
CL4P9X
Model Type: Extra Length
Length Overall: 233.5in
Width Overall: 112.25in
Inside Columns: 95in
Between Columns: 184.75in
Height of Columns: 8ft .5in
Rise Height (Top of Runway at top position): 85.5in
Clearance Height (Storage): 80in
Max. Wheelbase*: 179in
Crossbeam Clearance Height: 80in
Min. Recommended Bay Size: 11ft x 22ft
CL4P9W
Model Type: Extra Length & Width
Length Overall: 233.5in
Width Overall: 127.25in
Inside Columns: 110in
Between Columns: 185.75in
Height of Columns: 8ft .5in
Rise Height (Top of Runway at top position): 85.5in
Clearance Height (Storage): 80in
Max. Wheelbase*: 179in
Crossbeam Clearance Height: 80in
Min. Recommended Bay Size: 14ft x 22ft
