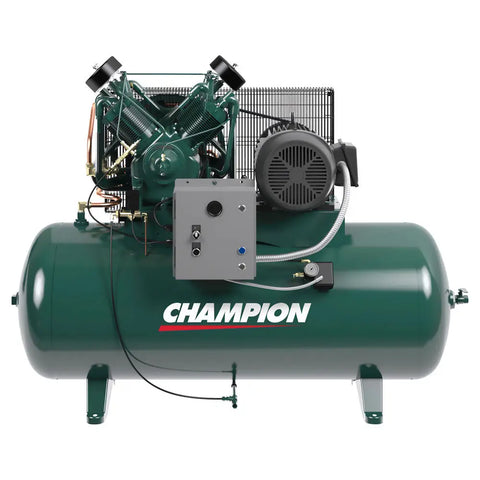

Champion 7.5HP R-Series Horiz. Air Compressor, 120Gal, R30 Pump - HR7-12
Champion 7.5HP R-Series Horiz. Air Compressor, 120Gal, R30 Pump - HR7-12
Part No: HR7-12
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Air Compressor
Champion
Shop Equipment
PRODUCT INFO
Looking for a reliable air compressor that will last for years? Look no further than the Champion HR7-12. This high-performance unit is perfect for a variety of applications and environments. This compressor is built to last with a 7.5hp motor, R30 Pump, and a 120-gallon air tank.
Features:
- Load-less starting / via centrifugal unloader for lower energy costs and less wear on the drive motor
- Mounted Control Panel with Magnetic Starter
- ASME inter-stage pressure relief valve for protection
- ODP NEMA 1760 RPM electric motor
- 10 Micron industrial grade intake filter
- ASME / NB certified receivers
- 0-300 PSIG air pressure gauge on the tank
- Dryer Option Available, Model XCNC32
Specs:
Model Number: HR7-12Prod. Configuration: Simplex
Tank Configuration: Horizontal
Pump Model: R30
Pump RPM @ 175 PSI: 570
Tank Size: Gallons: 120
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 31.9 (54.2)
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 28 (48.8)
ACFM @ 175 PSIG (m3/hr @ 12 BAR): 25.6 (43.5)
Voltage:
- 1 Phase: 208 / 230V
- 3 Phase: 208 / 230 / 460 / 575V
Est. Ship Weight: Lbs.: 882
Control Panel Level1 - NEMA 1: Standard
Panel Mounting: Included
California Code: Standard
Tank Configuration: Horizontal
Pump Model: R30
Pump RPM @ 175 PSI: 570
Tank Size: Gallons: 120
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 31.9 (54.2)
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 28 (48.8)
ACFM @ 175 PSIG (m3/hr @ 12 BAR): 25.6 (43.5)
Voltage:
- 1 Phase: 208 / 230V
- 3 Phase: 208 / 230 / 460 / 575V
Est. Ship Weight: Lbs.: 882
Control Panel Level1 - NEMA 1: Standard
Panel Mounting: Included
California Code: Standard
XCNC32 (Optional Mounted Dryer)
Inlet Flow (scfm / Nm³/h): 32 / 54
Pressure Drop (psi): C/F
Voltage: 115/1/60
In/out Connections: 1/2" FNPT
Power Consump- Tion KW: 0.49
Refrig- Erant: R-134A
Dimensions H × W × D Inches (mm): 18 × 16 × 18 (457 × 406 × 457)
Weight Lbs (kg): 62 (28)
Inlet Flow (scfm / Nm³/h): 32 / 54
Pressure Drop (psi): C/F
Voltage: 115/1/60
In/out Connections: 1/2" FNPT
Power Consump- Tion KW: 0.49
Refrig- Erant: R-134A
Dimensions H × W × D Inches (mm): 18 × 16 × 18 (457 × 406 × 457)
Weight Lbs (kg): 62 (28)
Standard Warranty:
1 year parts1 year labor
3 years Compressor Pump (Defect in material and workmanship)
Premium Ext. Warranty Kit
2 years parts2 years labor
6 years Compressor Pump (Defect in material and workmanship)
