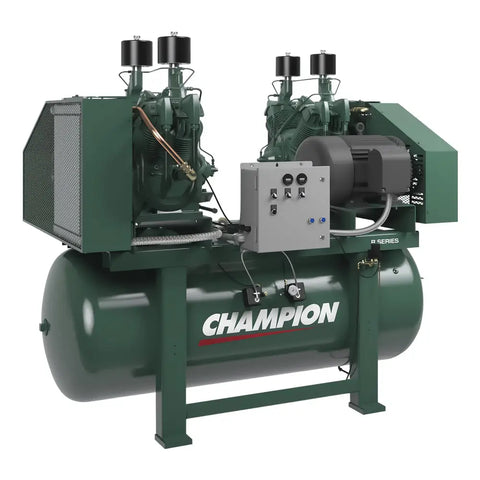

Champion HR30D-24 R-Series 30HP Duplex Air Compressor, R70 Pumps (240 Gal)
Champion HR30D-24 R-Series 30HP Duplex Air Compressor, R70 Pumps (240 Gal)
Part No: HR30D-24
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Air Compressor
Champion
Shop Equipment
PRODUCT INFO
Get the Champion HR30D-24 R-Series Duplex Air compressor for efficient, durable performance. With 30 HP and 240-gallon tank, this compressor is easy to access and control. Reduce noise and ensure a clean working environment with 2 x Intake Filter/Silencer. Safety features include 2 x Enclosed Belt Guards and ASME-coded receivers. The HR30D-24 is California Code Compliant and has 2 x 1800 RPM Motors.
Features:
- 30 horsepower and 240 gallons tank
- Two R70 pumps for high-performance and durability
- Mounted NEMA 1 Control Panel for easy access
- Electric key start switch for added convenience
- Head unloaders are included in R70 pumps for efficient operation
- Two intake filter/silencers for reduced noise and clean working environment
- 2 x enclosed belt guards for added safety and protection
- Vibration isolators for noise reduction and prevention of compressor damage
- Loadless starting without bleeding off the receiver
- Control voltage transformer included
- Duplex units are start/stop control with alternation
- ASME coded receiver
- 2 x 1800 RPM Motors
- California Code Compliant Receivers
Specs:
Product Configuration: DuplexTank Configuration: Horiz
Pump Model: R70
Pump RPM @ 175 PSI: 907
Tank Size: Gallons/(liters): 240/908
ACFM @ 80 PSIG/(m3/hr @ 5.5 BAR): 210.4/357.5
ACFM @ 125 PSIG/(m3/hr @ 8.6 BAR): 205.8/349.7
ACFM @ 175 PSIG/(m3/hr @ 12 BAR): 203.6/345.9
Est. Ship Weight: Lbs./(kg): 3018/1369
Model Number: HR30D-24
Application:
Automotive repair shopsIndustrial manufacturing facilities
Woodworking shops
Construction sites
Paint shops
Metalworking shops
Tire shops
Large-scale farming operations
Mining sites
Oil and gas facilities
Standard Warranty:
1 year parts1 year labor
3 years Compressor Pump (Defect in material and workmanship)
Premium Ext. Warranty Kit
2 years parts2 years labor
6 years Compressor Pump (Defect in material and workmanship)
