Name: Champion HR30-24 R-Series 30HP Horz Air Compressor, R70 Pump (240 Gal)
Brand: Champion
SKU: hr30-24
Price: 13230 USD
Availability: InStock

PRODUCT INFO

R-Series Sale Sheet

NEMA Rating Chart

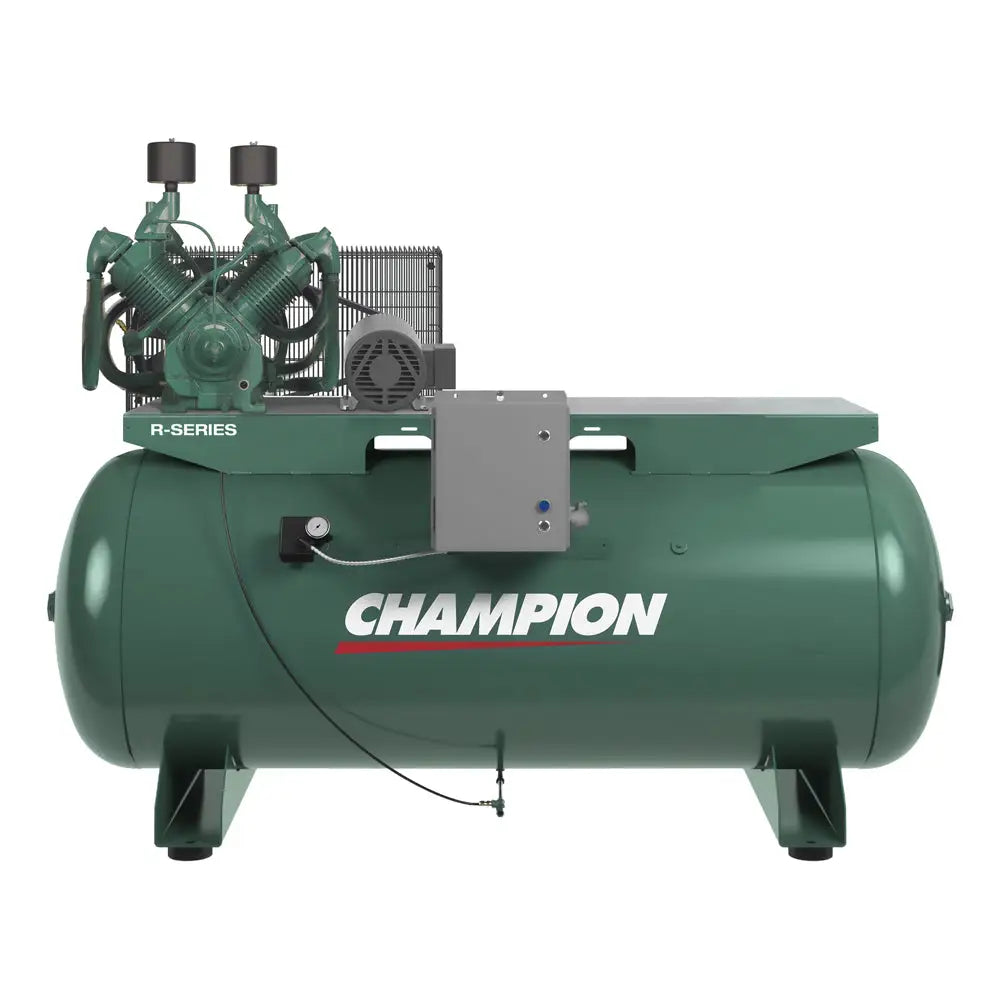

Introducing the Champion HR30-24 R-Series Simplex air compressor. With 30HP and a 240-gallon tank, this compressor delivers high performance and durability with its R70 pump. The NEMA 1 Control Panel provides easy access, while the Electric key start switch ensures convenience. Enjoy efficient operation with head unloaders included in the R70 Pumps and a clean working environment with the Intake Filter/Silencer. Safety is a top priority with the Enclosed Belt Guard, Vibration Isolators, and loadless starting without bleeding off the receiver. Plus, the compressor is equipped with a control voltage transformer, and tank mounted Simplex is start/stop pressure switch control. With ASME-coded receivers and 1800 RPM Motors, it is California Code Compliant.

Features:

Mounted NEMA 1 Control Panel for easy access
Electric key start switch included for convenience
High-performance and durable R-Series compressor pump
Reduced noise with Intake Filter/Silencer
Vibration Isolators for noise reduction and compressor protection
Includes control voltage transformer
Tank-mounted Simplex is start/stop pressure switch control
1800 RPM Motors for efficient operation
Enclosed Belt Guard for added safety and protection
Loadless Starting for easy operation
California Code Compliant Receivers
ASME-coded receiver for safe and reliable operation

Specs:

Product Configuration: Simplex
Tank Configuration: Horiz
Pump Model: R70
Pump RPM @ 175 PSI: 907
Tank Size: Gallons/(liters): 240/908
ACFM @ 80 PSIG/(m3/hr @ 5.5 BAR): 105.2/178.7
ACFM @ 125 PSIG/(m3/hr @ 8.6 BAR): 102.9/174.8
ACFM @ 175 PSIG/(m3/hr @ 12 BAR): 101.8/173
Est. Ship Weight: Lbs./(kg): 1951/885
Model Number: HR30-24
