Coats 80C Air Center Clamp Tire Changer
Notes: Call For Better Price!
Part No: CTS-80080CAH3
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Coats
Shop Equipment
Tire Changer
Tire Changing Machine
PRODUCT INFO

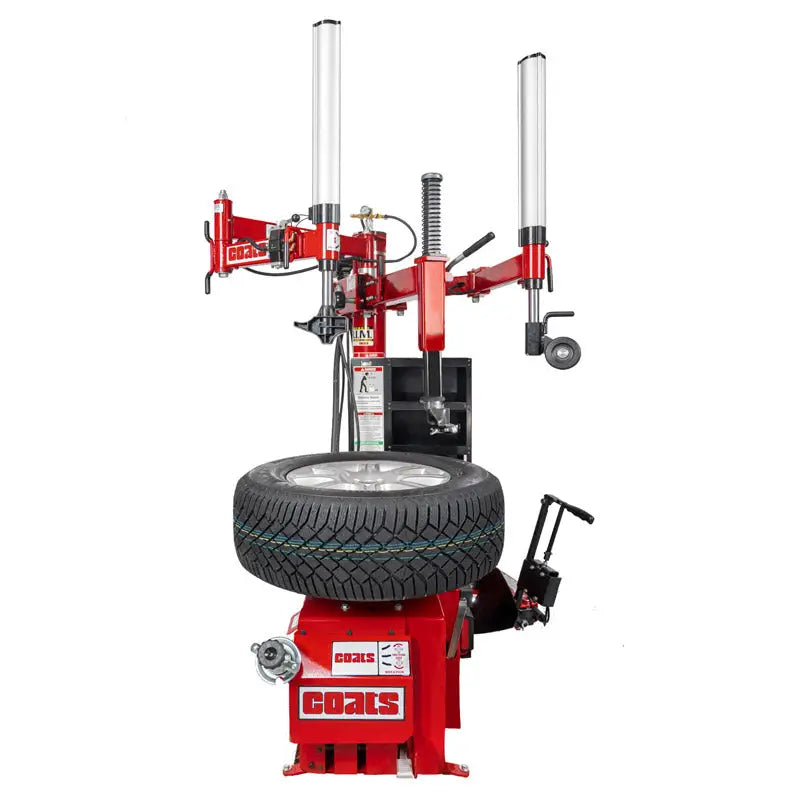

The Coats 80C Center Clamp Tire Changer is the newest member of the Coats tire changer family, and builds on its legacy of durability, reliability, and upgradability. The 80C is an extension of the Coats swingarm tire changer you have always known and trusted with new features such as a robust center lock mechanism with only two moving parts, a rugged 220V, 2 horsepower motor, and completely redesigned convenience features. These operator-focused features all come together to give you the best tire changer platform in the business. Operate your shop with confidence, and the speed you expect from a swing arm tire changer, but with the added peace of mind of a center clamp.
Features:

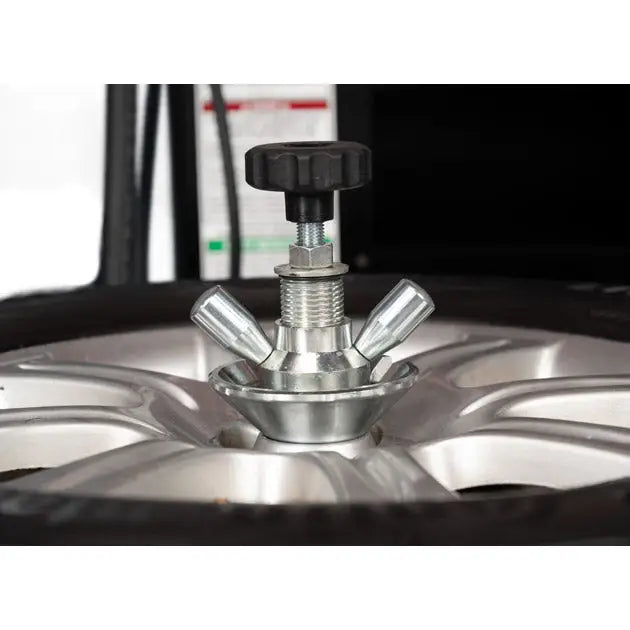

- Center Locking Clamp Design: Easy to use center locking mechanism is fast, robust and helps prevent metal to metal contact with custom wheels.

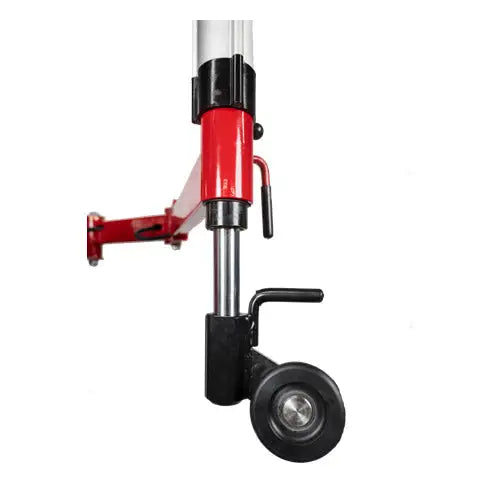

- RoboRoller Arm: Air-powered, articulating roller arm provides direct pressure on the bead to prevent it from rolling back over the mounting tool.
- Upgraded Chassis Design: Wheel and tire service is a hard business. Get a tire changer that can take the abuse. 80C features a brand new chassis designed especially for high-volume, high-duty cycle tire shops that need to go the extra mile.

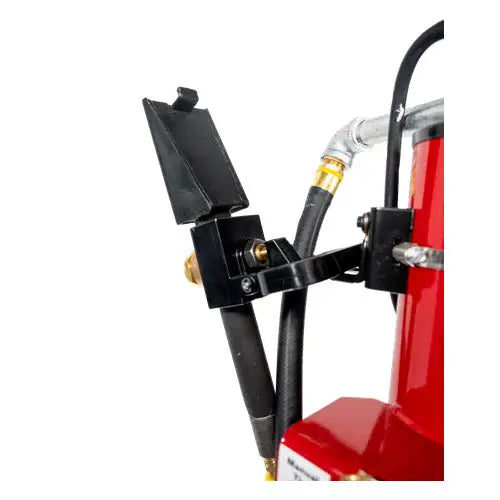

- Auxiliary Bead Sealer: Concentrates airflow wherever it is needed on the assembly to seal beads more efficiently and eliminates excessive maintenance
Specs:
Wheel Handled: Alloy and Steel for Car and Light TruckRim Diameter: 10in - 30in External
Max Tire Diameter: 50in
Max Rim Width: 15in
Bead Loosening System: Hand Control, Up to 14in Wide
Wheel Clamping Method: Center Clamp with Manual Lock
Mount/Demount Mechanism: Swings Away for Better Access & Durability
Mount/Demount Mechanism: Robo-Arm® (18in of Automated Vertical Stroke) RoboRoller®
Bead Seating Air Volume: 5.4 Gallons in Tower
Inflation Gauge: 0 - 60 psi
Air Supply Gauge: 0 - 300 psi
Air Drive System: 1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only)

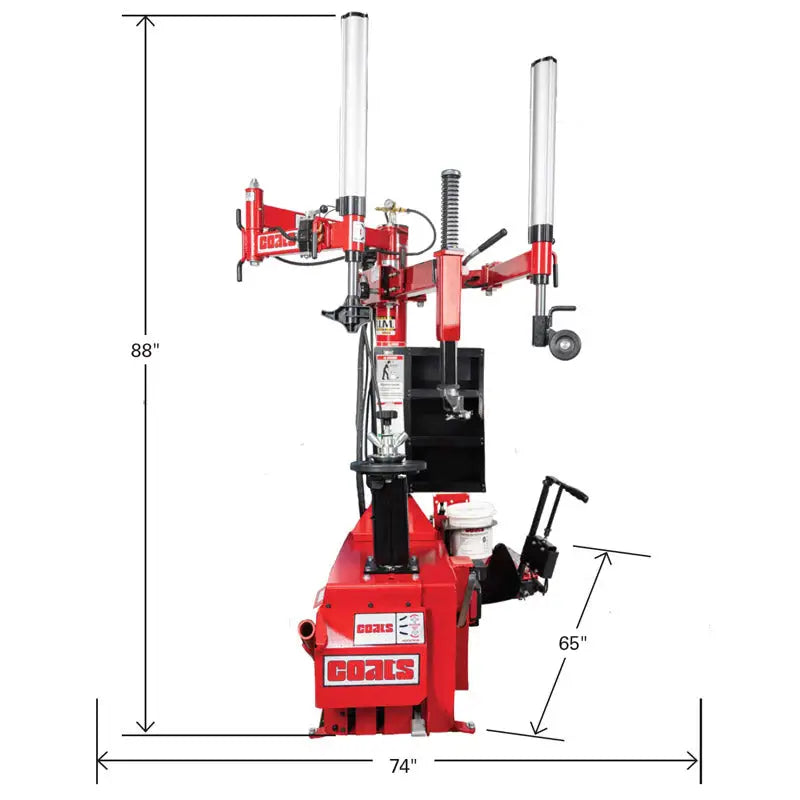

Footprint: 74in W x 65in D x 88inH
Ship Weight: 700 lbs
Includes:
1 x 85606545: Auxiliary Bead Sealer (ABS)2 x 8183606: Bead Loosener Shoe Socks
1 x 85009048: Paste Lube Bracket & Brush
2 x 83019057: Protection Cone for Center Lock
1 x 8184432: Plastic Grey High-Spoke Duckhead® Mount/Demount Tool
2 x 8182961: Steel Duckhead® Mount/Demount Tool Inserts
1 x 85000783: Nylon Duckhead® Mount/Demount Tool
2 x 8182961: Duckhead® Mount/Demount Tool Inserts
10 x 85000783: Lift Tool Socks
1 x 83031335: Anti-Rotation Extension Pin
1 x 83032475: Light Truck Cone Kit - 5.86in Center Bore
2 x 89231517: Rubber Protection Pad
1 x 85610105: Premium Storage Cabinet
