Name: Coats RC-55 Electric Motorcycle Tire Changer w/ RoBo Arm - RC55EMC
Brand: Coats
SKU: cts-rc55e-mc
Price: 7895 USD
Availability: InStock

PRODUCT INFO

RC45 RC55 Part List

RC45 RC55 Sale Sheet

RC45 RC55 User Manual

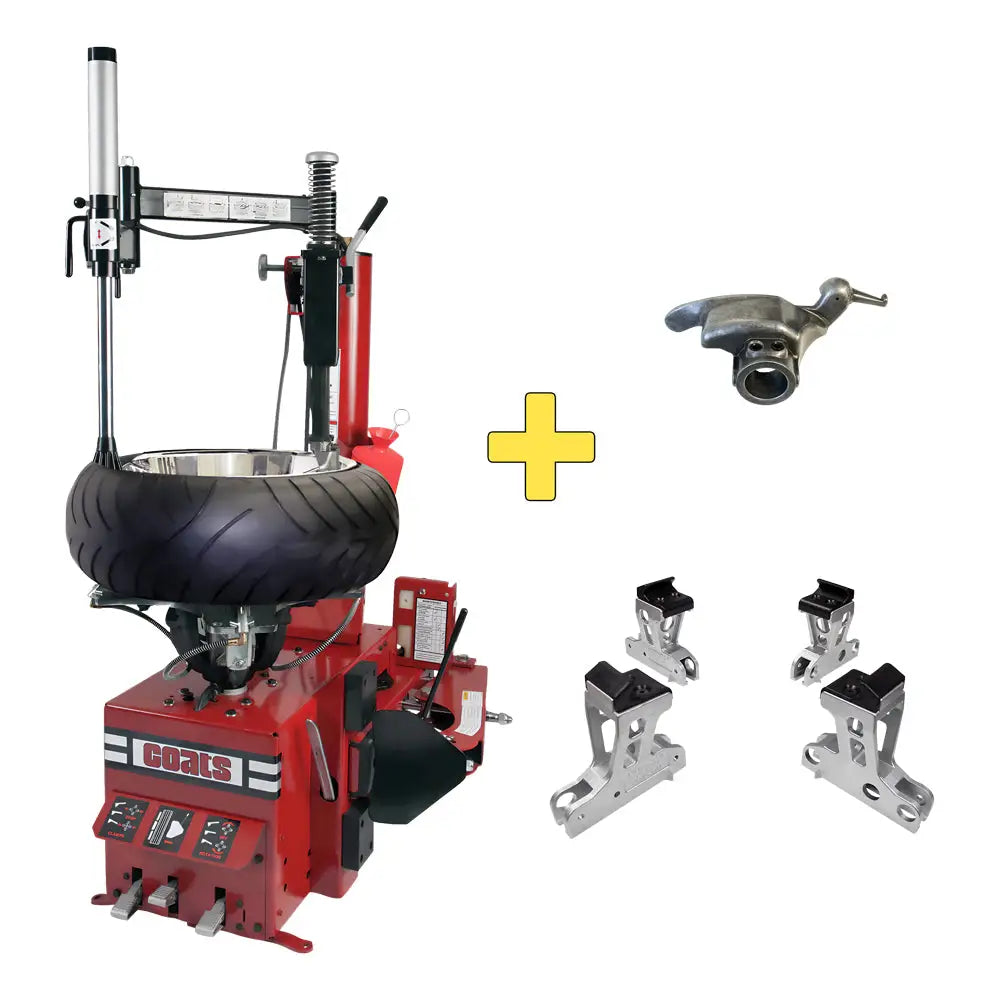

Introducing the RC-55 Electric Powered Motorcycle Tire Changer with RoBo Arm. This versatile solution is perfect for motorcycles, ATVs, UTVs, autos, and trucks. The specially designed three-position clamps with premium nylon protectors ensure complete wheel protection while the extended vertical channel streamlines the process. The RoBo Arm assists with mounting and de-mounting stiff sidewall and low-profile tires. Convenient foot pedals offer precise control and lift tool protection to prevent scratching or marring. Upgrade your tire-changing game with the RC-55 Motorcycle Tire Changer.

Features:

Robo Arm system for mounting stiff sidewall/low-profile tires
Three-position Motorcycle/ATV clamps with nylon wheel protectors
Accommodates 6" ATV to 24" motorcycle wheels with the same clamps
The vertical channel keeps sprockets, pulleys, etc., on wheels during servicing
Specially designed Motorcycle/ATV Mount Demount Head with Nylon Insert
Includes three-position Automotive Clamps and Automotive Style Mount Demount Head
Foot pedals provide precise control for efficient tire changing
Bead loosener, clamp booties, and lift tool protection prevent damage
Efficient, safe, damage-free tire changing

Specs:

Rim diameters
- Motorcycle/ATV: 6in-24in
- Car/LT: 28in w/optional Auto Clamps
Rim width

- Motorcycle/ATV: max 8.5in
- Car/LT: 10.5in w/optional Auto Clamps

Drive System: 1HP Electric Motor, 110v, 60hz, 15amp
Rotation Speed: 1 Speed
Operation: 1st Loosen Bead, 2nd Mount/Demount
Wheel Handled: Alloy & Steel, Motorcycle, ATV, UTV, Auto, Truck
Mount / Demount: Swing Arm
Tool Head Offset: Manual
Table Shape: X-Shaped
Wheel Clamping Method: Four Clamps, Air Cylinder Operated
Height of Table to Floor: 28.5in (724 mm)
Bead Loosening System: Foot-Controlled Air Cylinder (up to 10.5in wide)
Bead Lifting System: Tire Bar
Inflation Pressure Control: Limiter
Assist Arms/Tools: RC-Robo Arm
Bead Seating Reservoir: Vertical 3.4 Gal. in Tower
Inflation Gauge: 60 psi
Air Supply Gauge: 0-300 psi
Water Filter/Lubricator: Filter / Lube
Max Rim Width: 10.5in (267mm)
Max Tire Diameter: 50in (1270mm)
Chassis Footprint: 35inw x 44ind x 75inh
Weight: 620 lbs.

Ref No.:
RC-55 (Standard Version)
RC-55MC
RC55MC
CTS-RC55MC

Application:

Motorcycle
ATV
UTV
Auto
Truck

Includes:

1 x Three Position Motorcycle/ATV Clamps (6in to 24in range)
1 x Robo-Arm system for stiff sidewall/low-profile tires
1 x Motorcycle/ATV Mount-Demount Head
2 x Nylon Insert Protectors for Head
2 x Bead Loosener Shoe Socks
1 x Plastic Grippers for clamps
1 x Tire Iron/Bead Lifting Tool
1 x Automatic System Oiler
1 x Oversized Air Inflation Gauge
