Dannmar DB-70 Automatic Wheel Balancer (10" - 28")
Part No: DNM-DB-70
Alaska, Hawaii, & any/all US territories & international orders are excluded.

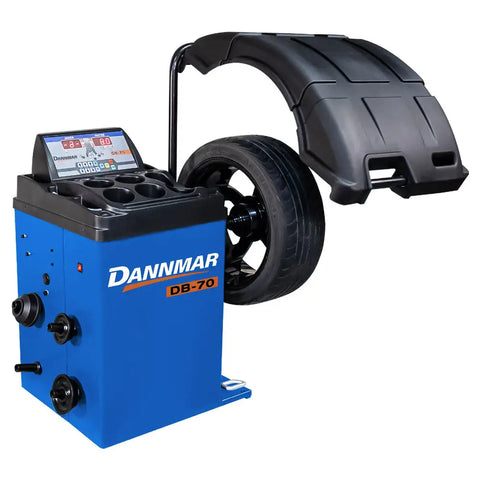

Dannmar’s DB-70 wheel balancer handles wheels up to 28” diameter. The DB-70 is a highly accurate and dependable balancer that features Dannmar’s Digital Sensor Technology providing excellent reliability.
Most wheels can be quickly mounted to the balancer with the DB-70’s multi-size center cones. The full rubber perimeter no-mar “Quick-Nut” bell adapter carefully and tightly secures the tire and wheel.

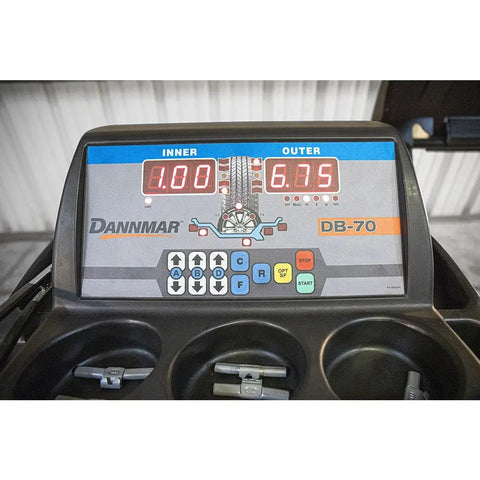

An easy touch-pad panel displays tire and wheel assembly graphics. This helps simplify entry of wheel data and supports technicians through balancing procedures.
With the wheel setup on the balancer, the DB-70 automatically calculates the precise weight required to achieve an optimal balance. The brightly displayed LEDs indicate the exact amount and location of weight in just seven seconds. A full menu of time-saving features, including Dynamic and Static settings, allows you to balance most wheels with minimal effort and quick speed.
Dannmar’s DB-70 wheel balancer is ruggedly built and provides perfectly balanced wheels every time. With a proven dynamic and static wheel balancer to ensure smooth-spinning results, Dannmar provides a machine your technicians can use to keep the workflow moving and your busy customers happy.
Features:
- Six dynamic balancing modes and one static balancing mode

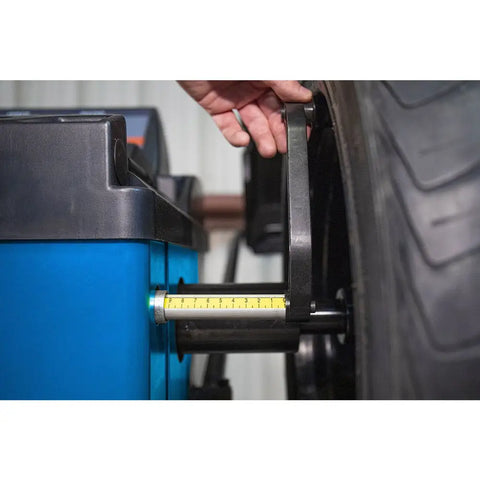

- Manual wheel offset distance setting
- Auto-start when hood is lowered

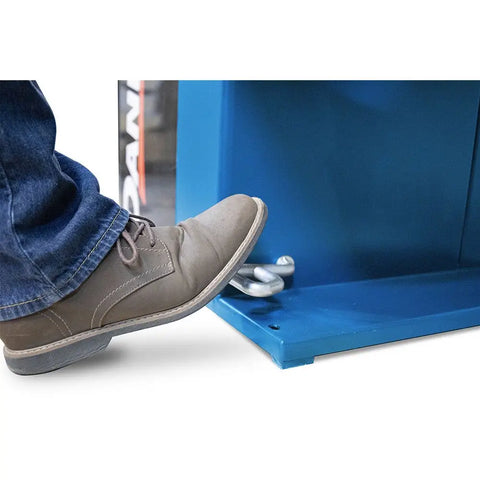

- Wheel holding manual brake pedal
- Truck cone/spacer ring adapter set
- No-mar rear cone mount pressure cup
- Quick-release and mount hub nut
- LED rolling wheel weight displays
- Easy-to-use controls
Specs:
Motor: 110-230 VAC, 50-60 Hz, 1-PhCycle Time: 7 seconds
Balancing Modes: 6 Dynamic / 1 Static
Drive System: Serpentine Poly-V Belt
Wheel Braking: Lever Caliper Brake / Foot Pedal
Cones Included: 4
Max. Tire Diameter: 49in (1,247 mm)
Max. Tire Weight: 150 lbs. (68 kg)
Wheel Diameter Capacity: 10in - 28in (254 mm - 711 mm)
Wheel Width Capacity: 1.5in - 20in (38 mm - 508 mm)
Balancing Increments: 0.25 or 0.01 ounce
Balancing Speed: 260 RPM
Accuracy: +- 1 Gram (.035 oz)
Noise: <70 dB
Warranty:
1 Year Warranty on Equipment Structure1 Year Warranty on Operating Component
1 Year Free‐Shipping** on ground‐freight charges related to warranty performance
