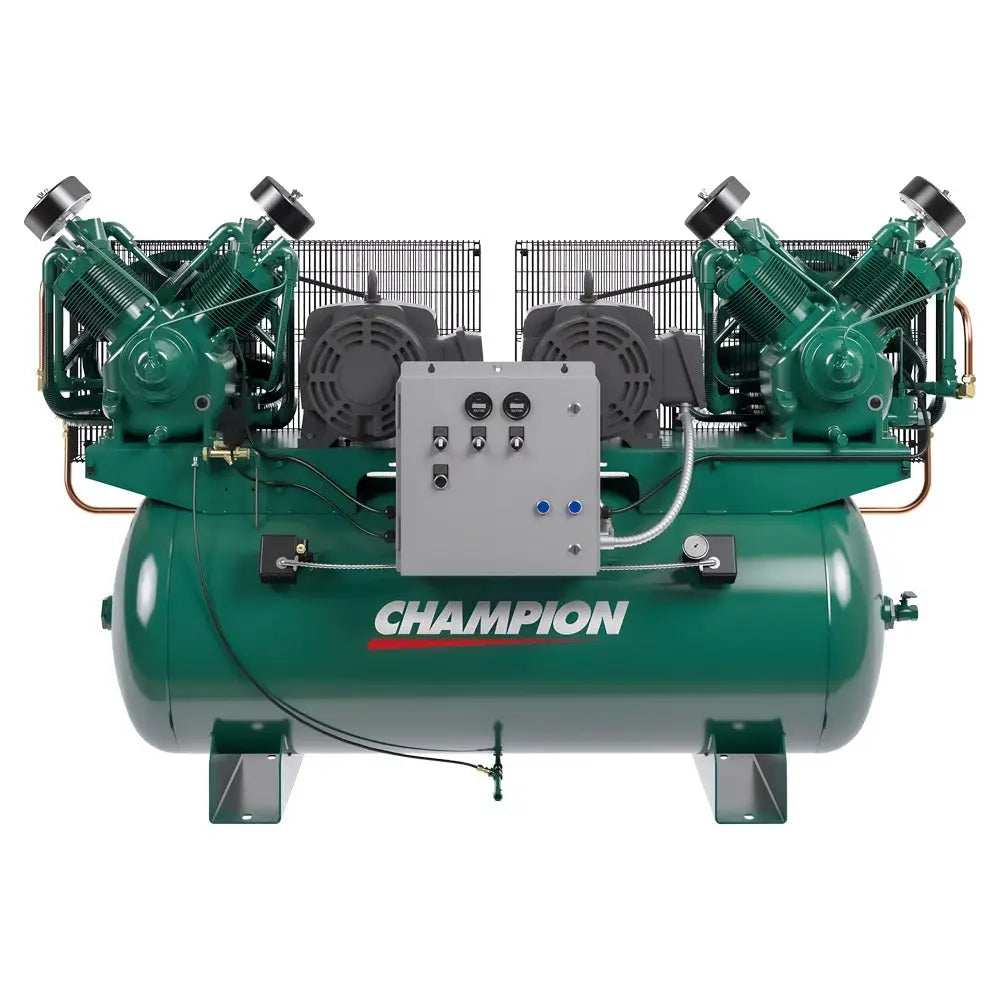

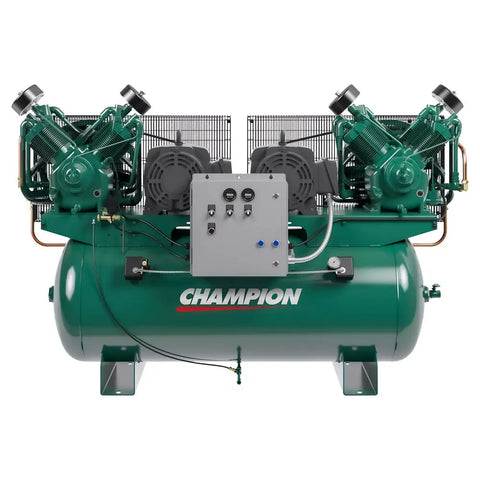

Champion 7.5HP Duplex R-Series Air Compressor, 240 Gal - HR7D-24
Champion 7.5HP Duplex R-Series Air Compressor, 240 Gal - HR7D-24
Part No: HR7D-24
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Air Compressor
Champion
Shop Equipment
PRODUCT INFO
Splash Lubricated, R-Series 7.5HP Duplex, 240 Gallons Model HR7D-24
Champion R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value.
Features:
- Mounted NEMA 1 Control Panel
- Includes control voltage transformer
Controls:
- Start/stop control with alternation
- ASME coded receiver
- 1800 RPM Motors
- Intake Filter / Silencer
- Enclosed Belt Guard
- Loadless Starting
- California Code Compliant Receivers
Specs:
Model: HR7D-24Motor HP: 7.5 (2)
Tank Cap Gal.: 240
Pump Comp Model: R-30
Pump RPM: 570
Approx. Ship Wt. lbs.: 1675
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 63.8 / 108.4
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 57.4 / 97.5
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 51.2 / 87.0
Approx. Ship Wt. lbs.: 1675
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 63.8 / 108.4
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 57.4 / 97.5
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 51.2 / 87.0
Standard Warranty:
1 year parts1 year labor
3 years Compressor Pump (Defect in material and workmanship)
Premium Ext. Warranty Kit
2 years parts2 years labor
6 years Compressor Pump (Defect in material and workmanship)
