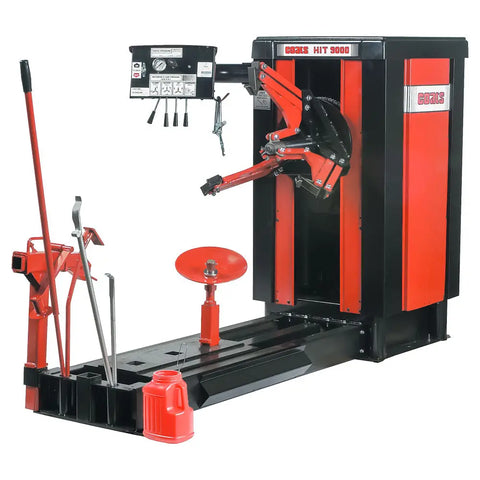

Coats HIT 9000 HD Tire Changer
Grader
Heavy Truck
TractorMade in USA
Coats HIT 9000 HD Tire Changer
Estimated Lead Time:
Notes: Call For Better Price!
Part No: CTS-8092000
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Coats
OTR & Minning
Shop Equipment
Tire Changer
Tire Changing Machine
PRODUCT INFO
Heavy Duty Tire Changer Series 9000
Features:
- Strong rotational torque of 4,400 ft. lbs.
- Continuous rotation of chuck in two directions
- Low pressure hydraulic circuit equipped with a gauge to match clamping pressure to any style wheel.
- High-pressure hydraulic circuit powers all other functions.
- Handles 15'' to 44'' wheels, tube-type and tubeless tires up to 40'' wide.
- Four-jaw, adjustable-pressure chuck clamps at center hole or inside rim diameter.
- Rugged enough to handle off-highway tires
- Sensitive enough to handle delicate steel or aluminum over-the-road wheels.
- Vertical design, low deck and built-in approach ramp for convenient one-man operation.
- Portable remote control operates chuck rotation, vertical positioning, jaw activation, and side movement of carriage.
- Self-centering chuck.
- Pedal-controlled jaw rotation direction.
Product Information
- Power Requirements: 220 V - 3PH / 1PH, 3 HP / 20A
- Hydraulic Pump Motor: 3 HP
- Jaw Rotation Motor: 2-3 HP
- Air Requirements: None
- Min Wheel Diameter: 15 in
- Max Wheel Diameter: 44 in
- Max Tire Diameter: 83 in
- Max Wheel Width: 40 in
- Tire Types: Tubeless, Tube Type
- Rotational Torque: 4,400 ft. lbs
- Dimensions: 89 in W x 70 in L x 34-1/4 in to 60-1/4 in H
Standard:
- 110852 Offset Roller
- 110851 Tractor Tire Combo Tee
- 110842 Portable Ramp
- 110652 Earth Mover Bead Loosener Shaft
- 120334 Bead Lift Tool
- 109342 Tubeless Tire Iron
- 109343 Lock Ring Tool
- 109344 Drop Center Tire Iron
- 109345 Bead Starting Tool
- 109346 Vise Grip Lube Bucket and Swab
- 110853 Budd Adapter Plate for extra protection with aluminum wheels
