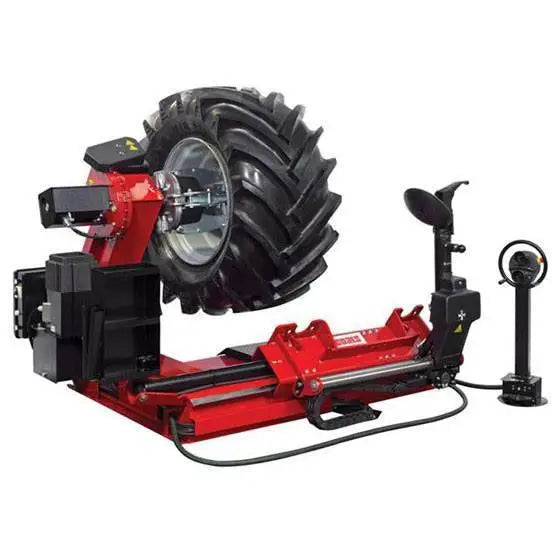

Coats CHD-9551 Truck Tire Changer (14" - 46", 51")
Truck
Made in USA
Coats CHD-9551 Truck Tire Changer (14" - 46", 51")
Notes: Call For Better Price!
Part No: CHD-9551
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Coats
Shop Equipment
Tire Changer
Tire Changing Machine
PRODUCT INFO
Our top-of-the-line changer is designed for high-volume shops. The CHD-9551 makes it easy to handle the toughest super-single, skidder, agricultural, and off-road tires on the market.
Features:
- Offers the most automated features and widest range of fittings in the CHD line
- Remote control rotating tool head/arm for the fastest, easiest tool changes in the business
- Optional wireless remote gives you freedom to move around the machine without cumbersome cables
- Handles rims from 14in to 46in (up to 56in with clamp extensions) and tires up to 95in in diameter and 51in wide
- Free Installation and Training
Specs:
- Max. Tire Diameter: 95 in (2400 mm)
- Max. Tire Width: 51 in (1300 mm)
- Rim Diameter Range: 14 in -46 in (47 in -56 in with clamping extensions)
- Electric Specifications: 208-230VAC, 3ph, 60Hz, 22Amp
- Hydraulic Motor Power: 2.9 HP (2.2 kW)
- Chuck Rotation Motor Power: 3.2-4.4 HP (2.4-3.3 kW)
- Max. Chuck Torque: 7017 ft/lbs(5175 Nm)
- Clamping Power: 10,802 lbs (4900 kg)
- Chuck Rotation Speed: 5-11 rpm
- Max. Wheel Weight: 3970 lbs (1800 kg)
- Acoustic Pressure: lessthan 70dBA
- Single piece frame with solid floor-plate: Yes
- Tool Arm Positioning: Remote operated
- Tool Head Positioning: Remote operated
- Max. Overall Dimension: 112 in (w) x 81 in (d) x 75 in (h)
- Weight with Standard Accessories: 2282 lbs (1035 kg)
Standard:
- Large Double Tool
- Large Tire Bar
- Small Tire Bar
- Single G-clamp (for steel wheels)
Optional:
- Alloy Tubeless Roller
- Bead lifting guide bar for agricultural tires
- Single G-clamp (for alloy wheels
- Pair of G-clamps for bead loosening on tube tires with rim ring
- Set of 4 clamping protectors for alloy wheels
- Set of 4 clamping extensions 47 in -56 in
- Radio Remote Control Set
