IR 1" Drive Air Impact Wrench

Impact Tool - IR 1" Drive Air Impact Wrench
application tractorTractor

IR 1" Drive Air Impact Wrench

  • SKU: IR-271 $659.25

Part No: IR-271

SHIPPING INFO
ACCESSORIES
DOWNLOADS


PRODUCT INFO

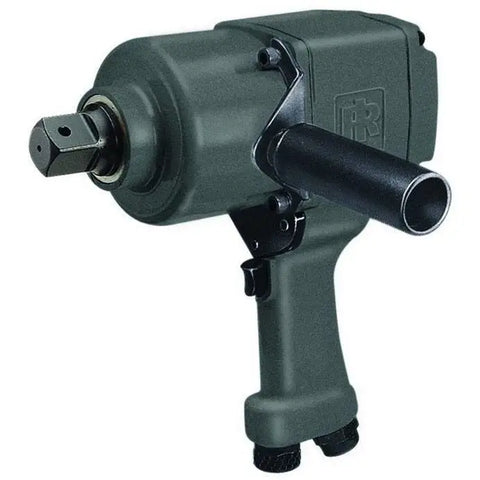

IR 1" Drive Air Impact Wrench:

The shortest 1" drive air impact wrench is also one of the most powerful. It combines a very compact size with high power output, making it ideal for tire changing, spring work, pinion nut and tractor pad removal, and shock work.

Features:

  • 1,200 ft-lb of maximum torque
  • Impressive power-to-size ratio
  • Pressure-feed Lube System for longer service life
  • Dead handle offers improved operator control

Specs

  • Max. Torque in Reverse ft-lb (Nm) 1,200 (1627)
  • Working Torque Range ft-lb (Nm) 200-900 (272-1224)
  • Free Speed rpm 5,500
  • Impacts per minute 1,000
  • Length in (mm) 8.9 (226)
  • Average Air Consumption cfm (L/min) 9.5 (269)
  • Air Consumption @ Load cfm (L/min) 39 (1104)
  • Sound Pressure/Power dBA 98.1/109.1
  • Air Inlet NPTF in (mm) 1/2 (13)
  • Min. Hose Size in (mm) 1/2 (13) 1
