Mastercool R134a/Hybrid Recovery, Recycle, Recharge Machine

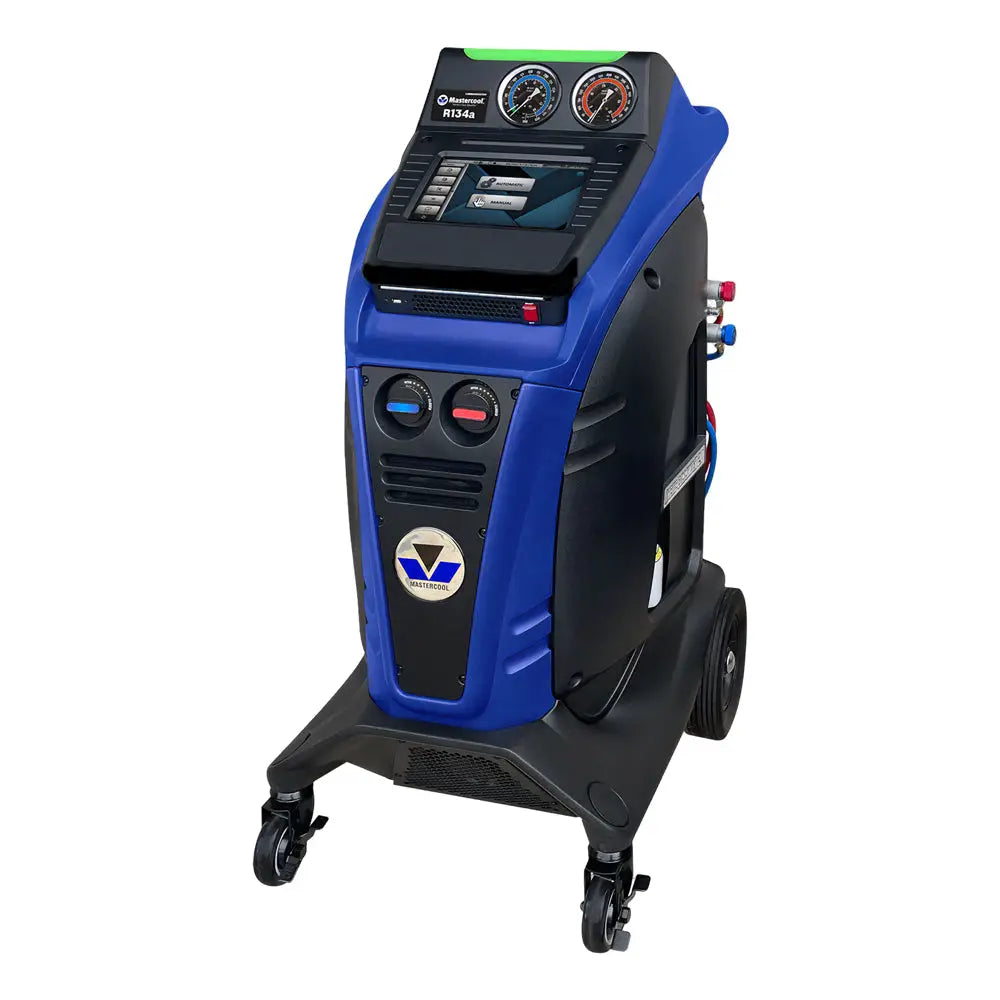

Automotive air conditioning service machine with blue and black casing, gauges, and wheels.

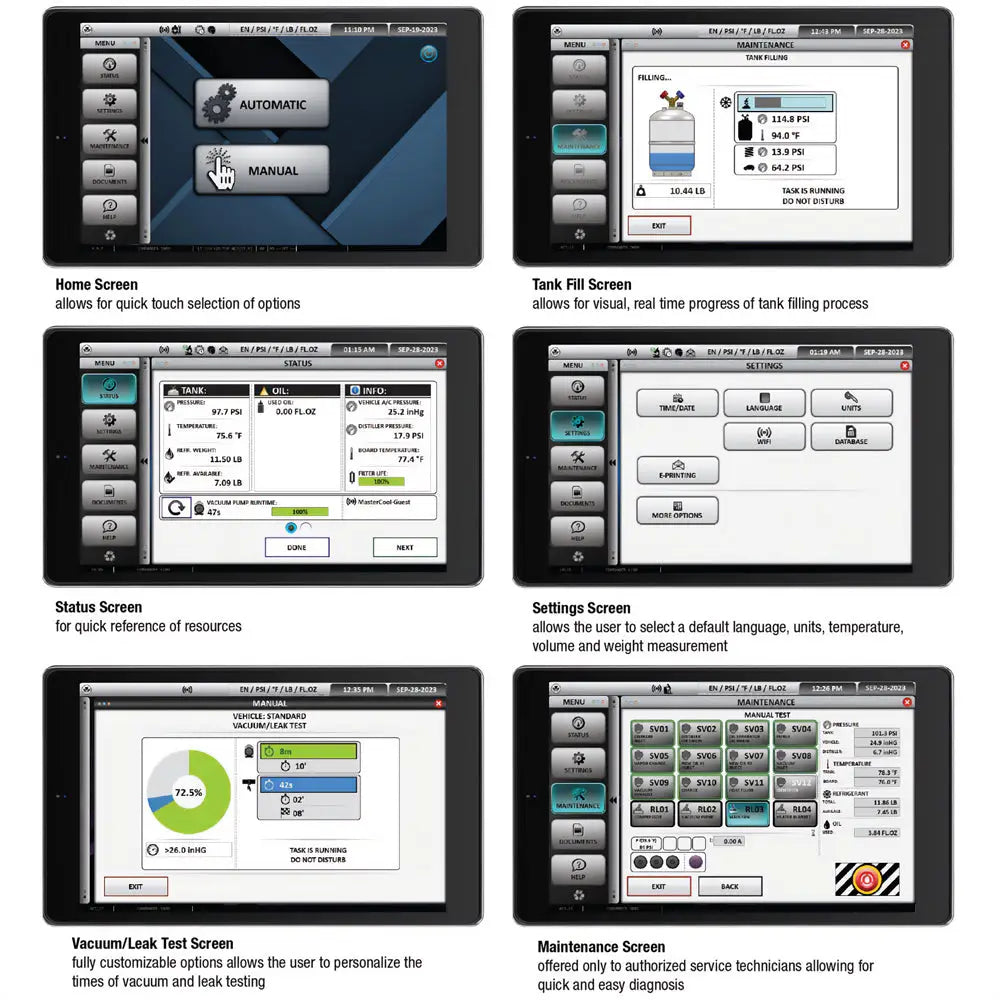

Set of six touchscreen interface displays showing different control screens for an industrial or technical system.

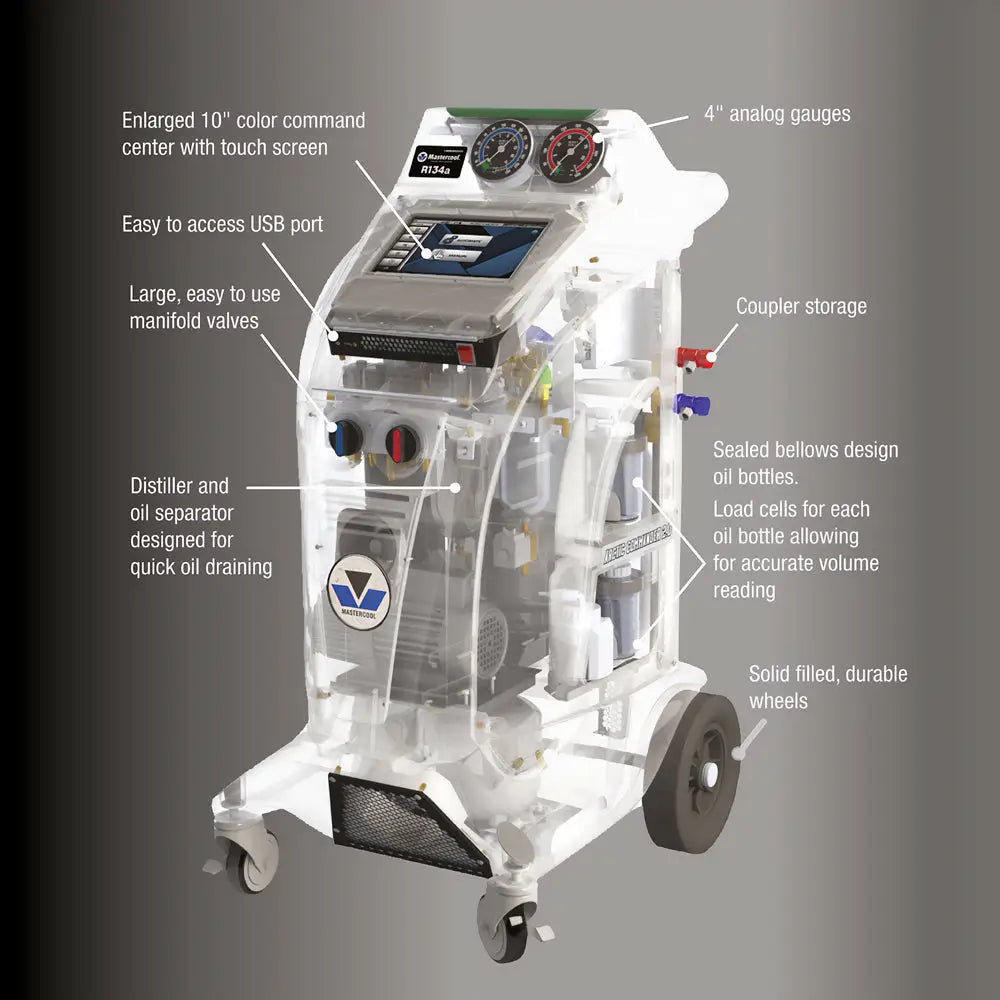

Automotive fluid service machine with labeled components and features.

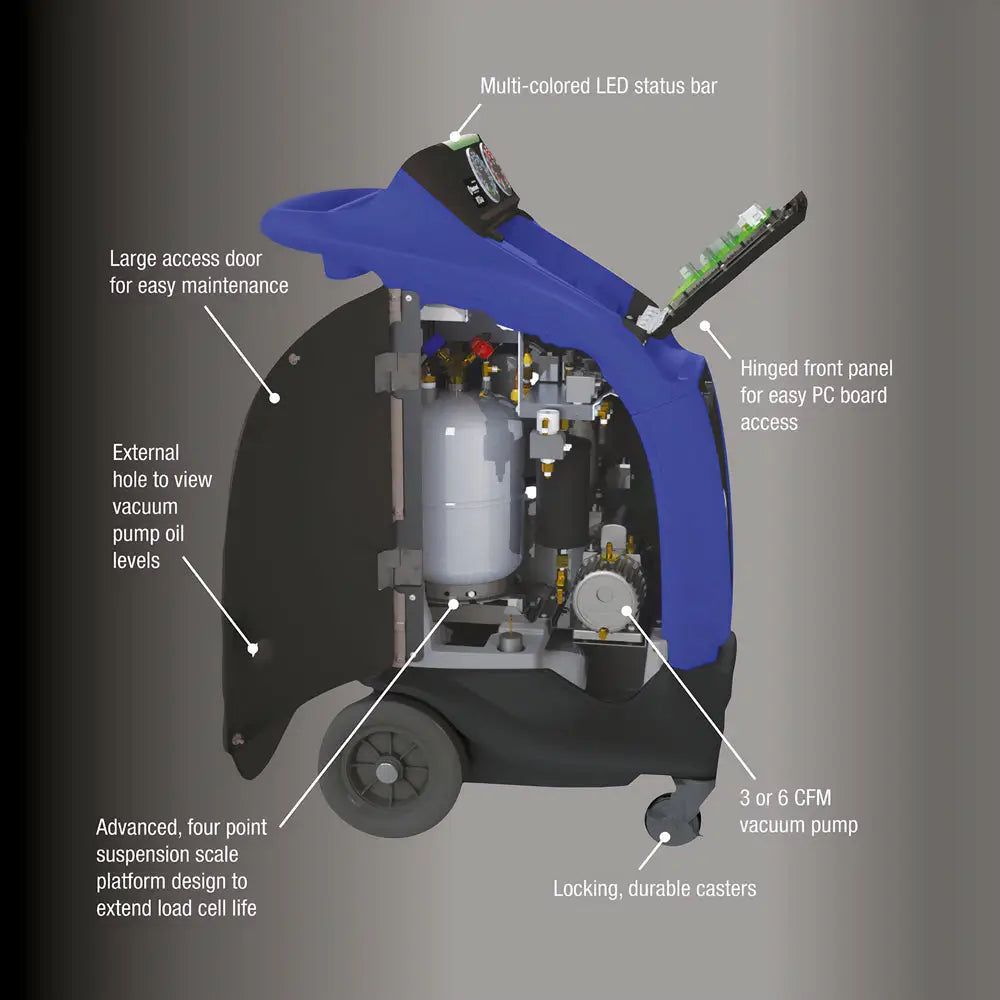

Portable vacuum pump system with blue exterior and labeled components for maintenance and operation.

Mastercool R134a/Hybrid Recovery, Recycle, Recharge Machine - COMMANDER3100

Car

Light Truck

Made in USA

Mastercool R134a/Hybrid Recovery, Recycle, Recharge Machine - COMMANDER3100

SKU: MSC-COMMANDER3100 $4,675.00

As low as $103 for 60 months

Estimated Lead Time:In Stock (Limited Quantities)

Part No: MSC-COMMANDER3100

Lift Gate

No I can get it off the truck.

Yes I need it lift gated(+ $150.00)

Delivery Options

Shipping to a residential/rural address(+ $55.00)

Require a 24-hour notice from the driver(+ $35.00)

My address has limited access(+ $100.00)

Please ship to freight dock(+ $45.00)

110V

220V

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Related Categories: A/C Service Mastercool Shop Equipment

PRODUCT INFO

COMMANDER Sale Sheet

1100-2100-3100 User Manual

Looking for a top-notch refrigerant recovery, recycling, and recharging machine for your shop? The Mastercool COMMANDER3100 is the answer. This Automatic R134a & Hybrid machine offers cutting-edge performance for automotive A/C servicing. With its user-friendly 10in touchscreen, faster recovery times, and impressive 98.5% refrigerant recovery rate, it sets a new industry standard. This is their latest model "Arctic Commander 2.0in replacing COMMANDER3000. Certified to SAE J2788 standards and boasting 1-gram accuracy, it's the perfect upgrade for shops seeking efficiency and precision in their A/C service operations.

Features:

10in Color touchscreen with intuitive interface
Automatic and manual procedures with refrigerant database
Programmable vacuum leak test and auto oil discharge
Auto air purge, filter, and tank alarms
E-printing and Wi-Fi capabilities
Hose and optional A/C system flushing
6 CFM vacuum pump with cylinder heater
Supports 11 languages with unit conversion calculator
Enhanced airflow design with large analog gauges
Durable wheels, hose storage, and hard-wired power cord
Multi-colored LED status bar and self-diagnostic check
Made in USA with Mastercool dust cover
Automatic oil injection (220V models)
Low refrigerant warning system

Specs:

Type of Refrigerant: R134a
Service Procedure: Fully automatic or manual
Voltage: 110 V / 60 Hz or 220 V / 50/50 Hz
Scale Resolution: 0.02 lb (10 g)
Oil Scale Resolution: 0.01 lb (5 g)
Working Temperature Range: 50/120˚F (10/49˚C)
Filter System: 2 filters for cleaning and water removal
Vacuum Pump: 6 CFM (142 liter/min)
Compressor: Hermetically sealed, 12cc, high pressure
Recovery Speed: 98.5% at 70 to 75˚F (21 to 24˚C) <30 minutes
Recovery Cylinder: 30 lb (12.5 liters), refillable
Charge Accuracy: ±0.5 oz. at 70 to 75˚F (±15 g at 21 to 24˚C)
Hoses: 96in (250 cm)
Couplers: R134a Manual
Pressure Gauges: Class 1.0
Cylinder Temperature Sensor: Integrated
Cylinder Heater: Standard Equipment
Shipping Dimensions: 38in (l) x 32in (w) x 53in (h)
Shipping Weight: 238 lbs

Ref No.
MSC-COMMANDER3000, COMMANDER3000, MSC3000, COMMANDER3000-E (220V) (Older Model)

Similar Products
COMMANDER1100, COMMANDER1100-E (R134a Semi Automatic)
COMMANDER2100, COMMANDER2100-E (R134a & Fully Automatic)
COMMANDER4100, COMMANDER4100-E (R1234yf & Hybrid)
Robinair 34788NI-H
CPS Automotive FX3030
CPS Automotive FX3030i
