Ranger R80EX Tilt-Back Tire Changer
Car
Light TruckMade in Europe

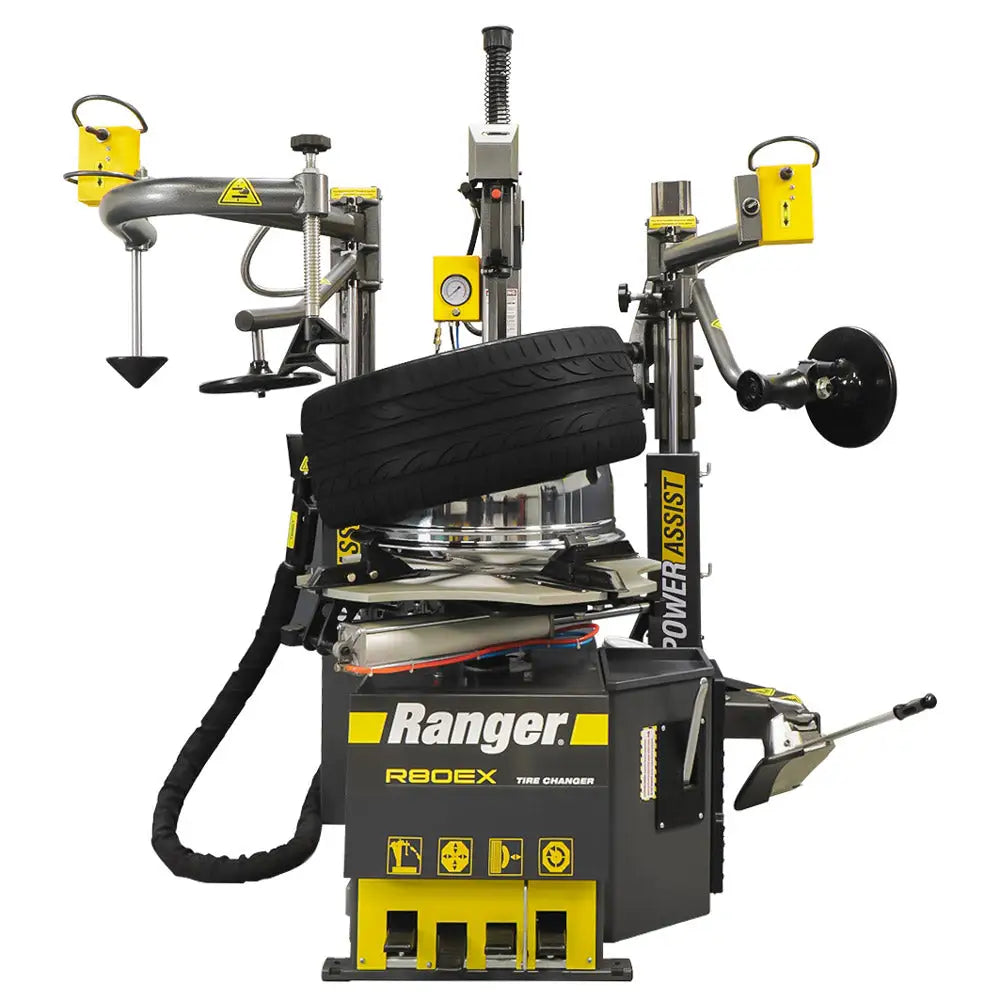

Ranger R80EX Tilt-Back Tire Changer
Part No: RNG-R80EX
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Ranger
Shop Equipment
Tire Changer
Tire Changing Machine
PRODUCT INFO
Looking to save time? An R80EX tire changer is a must-have machine for busy shops that don't have a minute to waste. A multi-profile traveling drop-center tool, top bead assist rollers, dual lower bead lifting discs and a nylon non-marring wheel restraint device are important tire shop tools designed to dramatically reduce effort, increase safety and help minimize operator fatigue. A large 34in capacity turntable with adjustable hardened-steel RimGuard wheel clamps helps broaden the service range, so you can handle virtually any wheel that rolls in your shop. Explore this tire machine if your shop life demands a tool that will generously handle round-the-clock use and abuse.
Features:
- Table Clamping System
- Dual Pneumatic Cylinders
- Wheel Clamping Method
- 4 Wheel Clamps - Internal / External

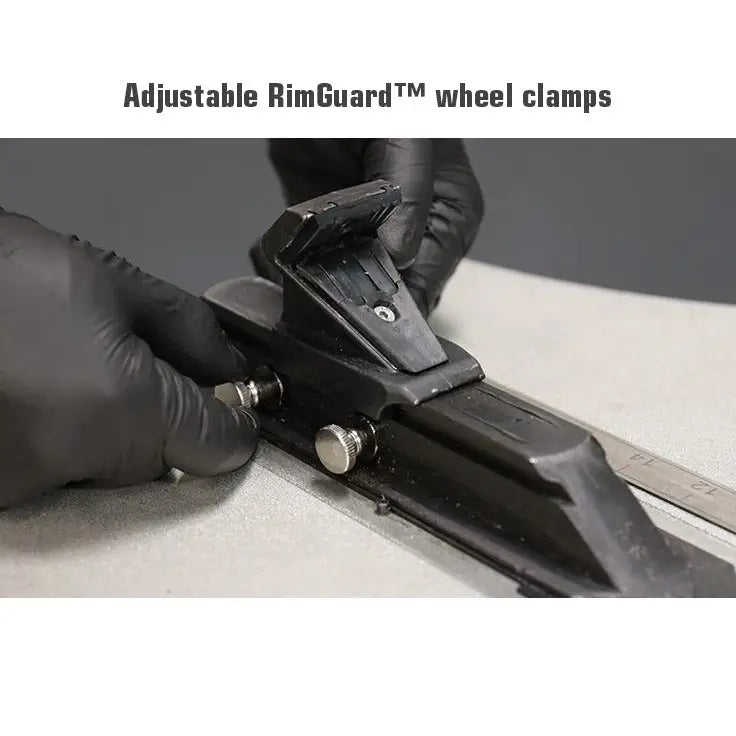

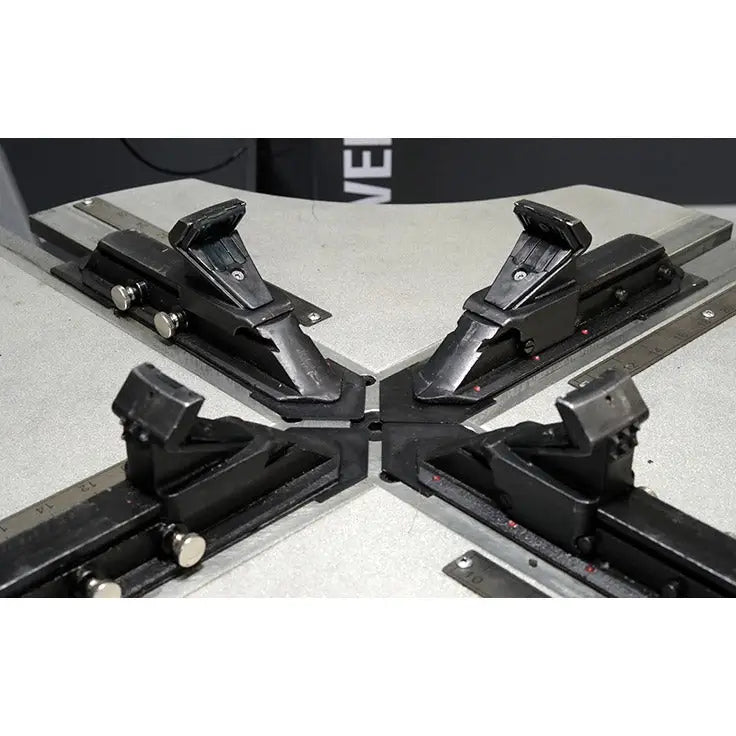

- Adjustable RimGuard Wheel Clamps
- Bead Loosener System&
- Pneumatic Blade

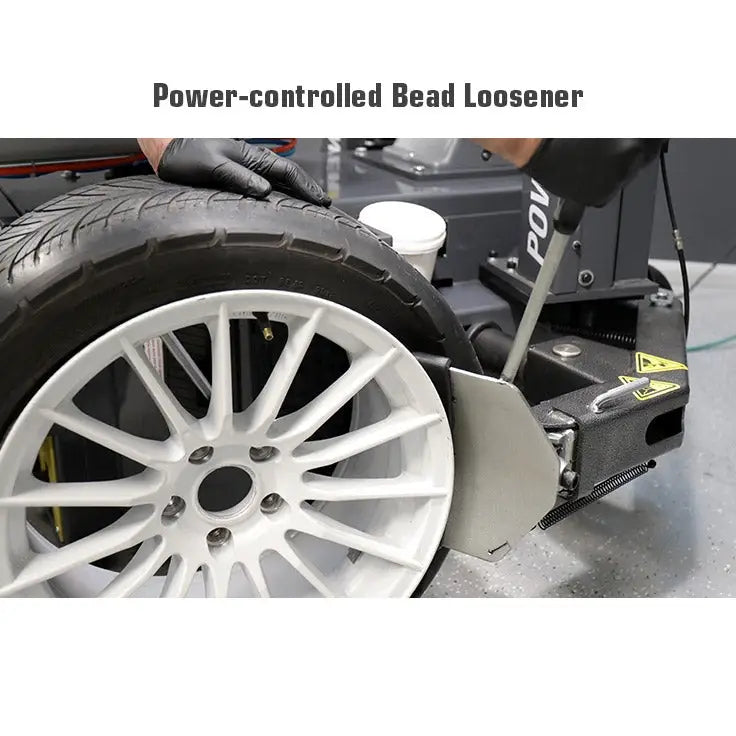

- Bi-lateral Power-Controlled Bead Loosener
- Bead Loosener Control Single-Lever Control on Shovel Handle

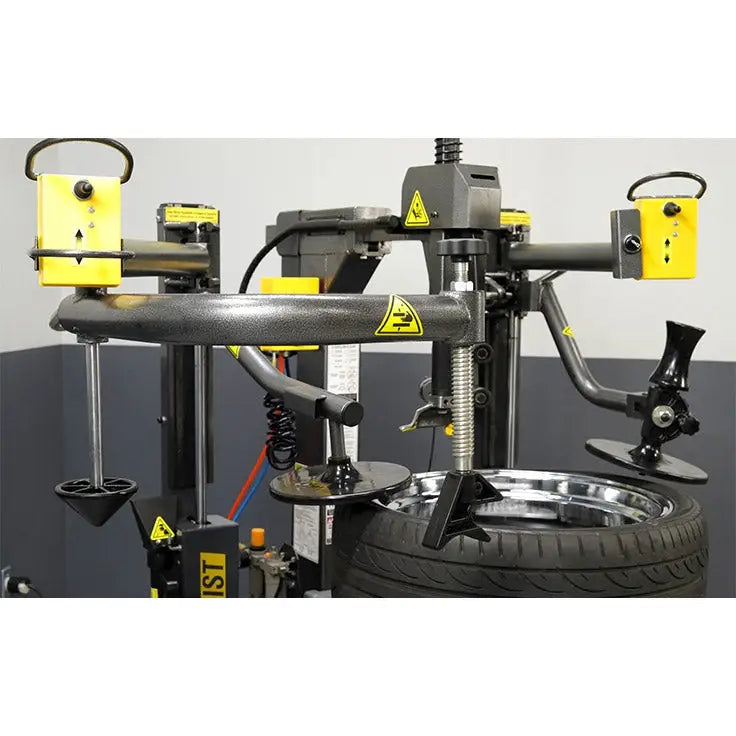

- Power Assist Towers
- Dual / Left & Right
- Upper Bead Assist Roller
- Standard / Dual Power-Drop
- Traveling Drop-Center Hold Down Device
- Wheel Centering Tool / Inflation Restraint Device

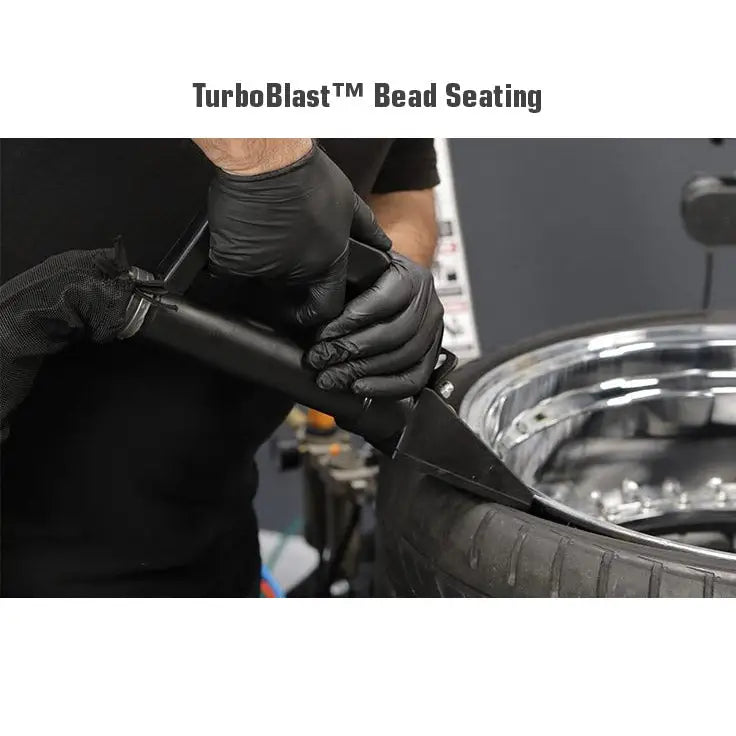

- Turbo-Blast Bead Seating System
- Tool Tray / Bin Storage
- Inflation Gauge With Integrated Air Dump Valve
- Inflation Pressure Regulator/Limiter
- Water Filter / Oiler / Lubricator
- Air Regulator
- Tire Iron / Bead Lever Tool
- Large Soap / Lubricator Bucket
- Brush
- Tower Design Tilt-Back
- Motorcycle Turntable Clamps / Optional
Specs:
Style: Tilt-Back Tower DesignAssist Type: Dual-Tower Assist
Speed: Standard

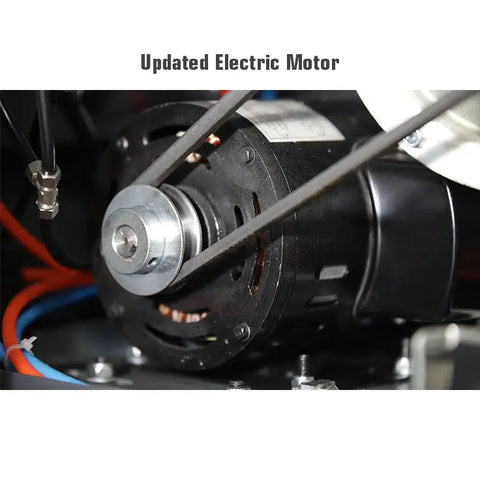

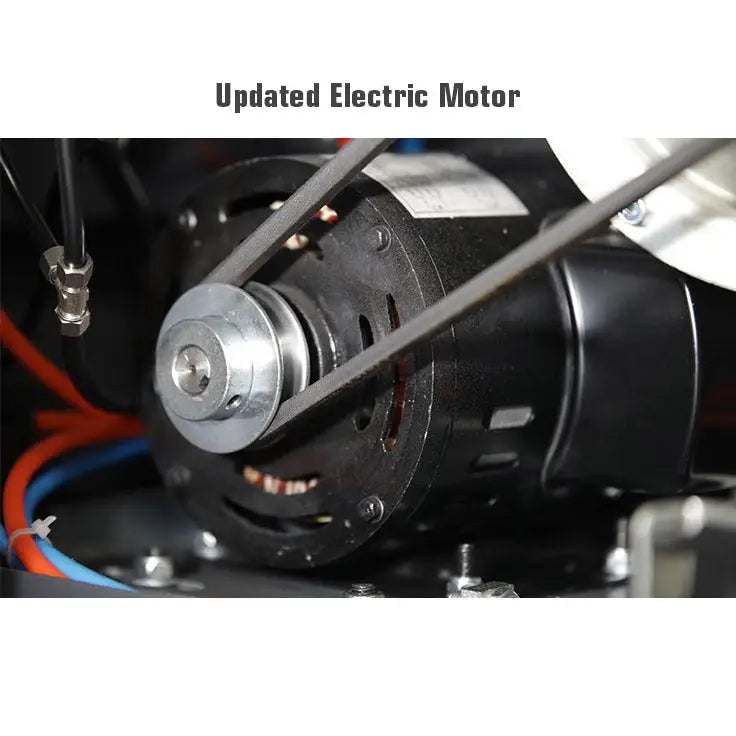

Motor: 3 HP (220 VAC 50-60 HZ)
Drive System Type: Electric / Air
Air Requirement: 110-175 PSI (8-12 BAR)
Wheel Clamping Method: 4 Clamps - Internal / External

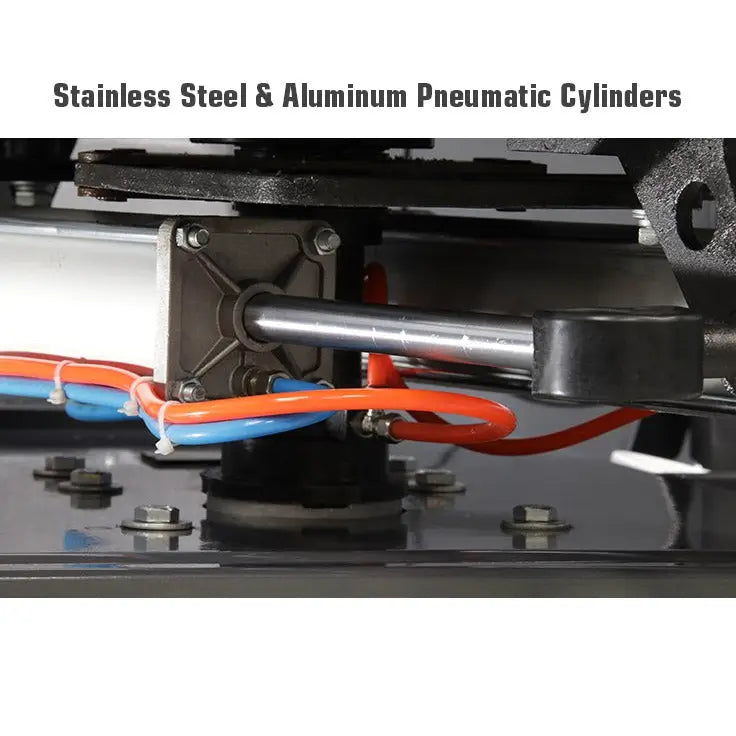

Table Clamping System: Dual Pneumatic Cylinders
Bead Breaking System: Pneumatic Blade
Tower Design: Tilt-Back
Power Assist Towers: Dual / Left & Right
Bead Seating System: Turbo Blast / Bead Seating
Internal Rim Clamping Capacity: 13in - 34in (305 mm - 864 mm)
External Rim Clamping Capacity: 10in - 30in (254 mm - 762 mm)
Bead Breaker Tire Width Capacity (Demounting): 1.5in - 18in (38 mm - 457 mm)
Maximum Rim Width: 18in (457 mm)
Maximum Tire Diameter: 47in (1,194 mm)
Shipping Weight: 1,160 lbs. (526 kg)
Shipping Dimensions: 46in x 53in x 74in (1,168 mm x 1,346 mm x 1,879 mm)
Ranger Warranty:
2 Years Equipment Structure1 Year Operating Components
1 Year Labor
1 Year Free‐Shipping** on ground‐freight charges related to warranty performance
