Rema Auto Float Drain for Expel 30 - 5191641
Rema Auto Float Drain for Expel 30 - 5191641
Part No: RE-5191641
SHIPPING INFO
ACCESSORIES
DOWNLOADS
Related Categories:
Air Tools Parts & Acc
Rema Tip Top
Shop Supplies
PRODUCT INFO

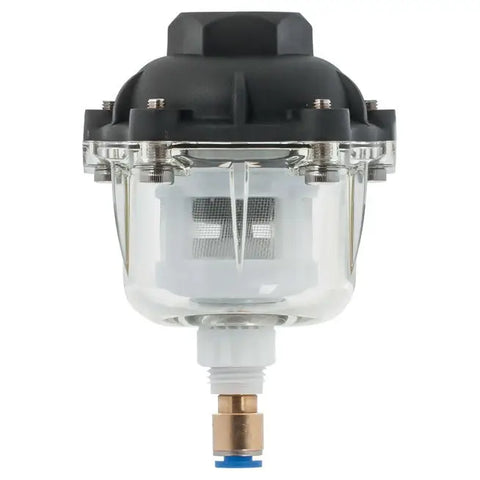

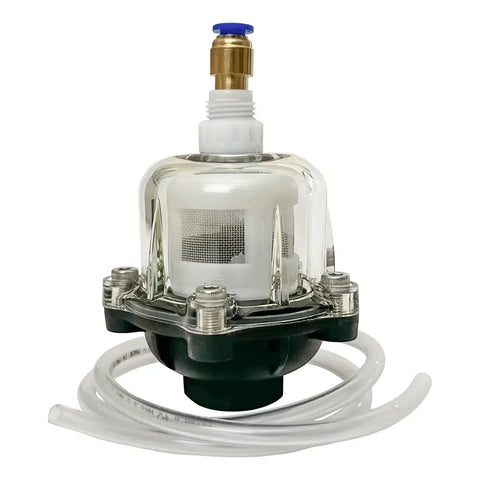

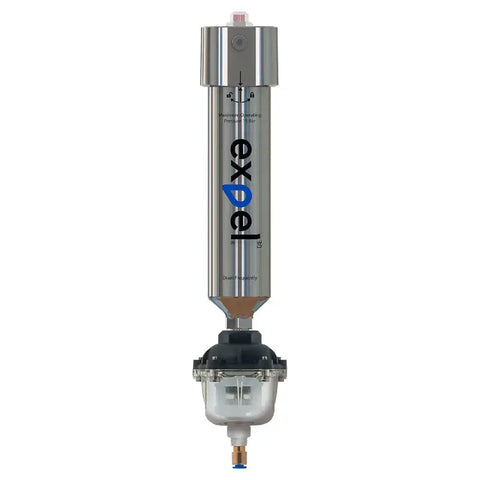

The new EXPEL Automatic Float Drain is designed to discharge liquids and particulates extracted from your compressed air system by the EXPEL range of compressed air filters. This product is perfect for environments where high levels of condensate are frequently experienced, as it is screwed directly to the base of the EXPEL and can be connected to a 6mm diameter plastic tube for easy disposal. With a working pressure of up to 232 psi, the EXPEL Automatic Float Drain is a must-have for any compressed air system.
Features:
- No power source required
- Automatic condensate drain
- Clear bowl enables visibility of drain operation
- Unit can be easily dismantled for servicing and cleaning if required
- Operating pressures up to 232 PSI
- Easily attached to your EXPEL unit drain port
- ½" BSPT Female Thread Inlet connection
- Manual override for immediate condensate discharge
Specs:
Part Type: OEMInlet Thread: 1/2in Female BSPT
Min Working
- Pressure: 21.7 PSI
- Temp: 35deg. F
Max working
- Pressure: 232 PSI
- Temp: 185deg. F
Initial Discharge Value: 0.75 fl. oz.
Maximum Discharge Capacity: 84 L/H
Dimension: 3.23 x 3.25 x 5.75 in
Weight: 8 oz
Ref No.
5191641
6100-023-AA
RAD00336K
Ref Name
EXPEL AUTODRAIN
EXPEL 30 AUTO DRAIN
AUTOMATIC FLOAT DRAIN
Application:
EXPEL 30
