Rotary R1070 Wireless Aligner, PRO CCD Alignment System
Part No: RTY-R1070
Alaska, Hawaii, & any/all US territories & international orders are excluded.

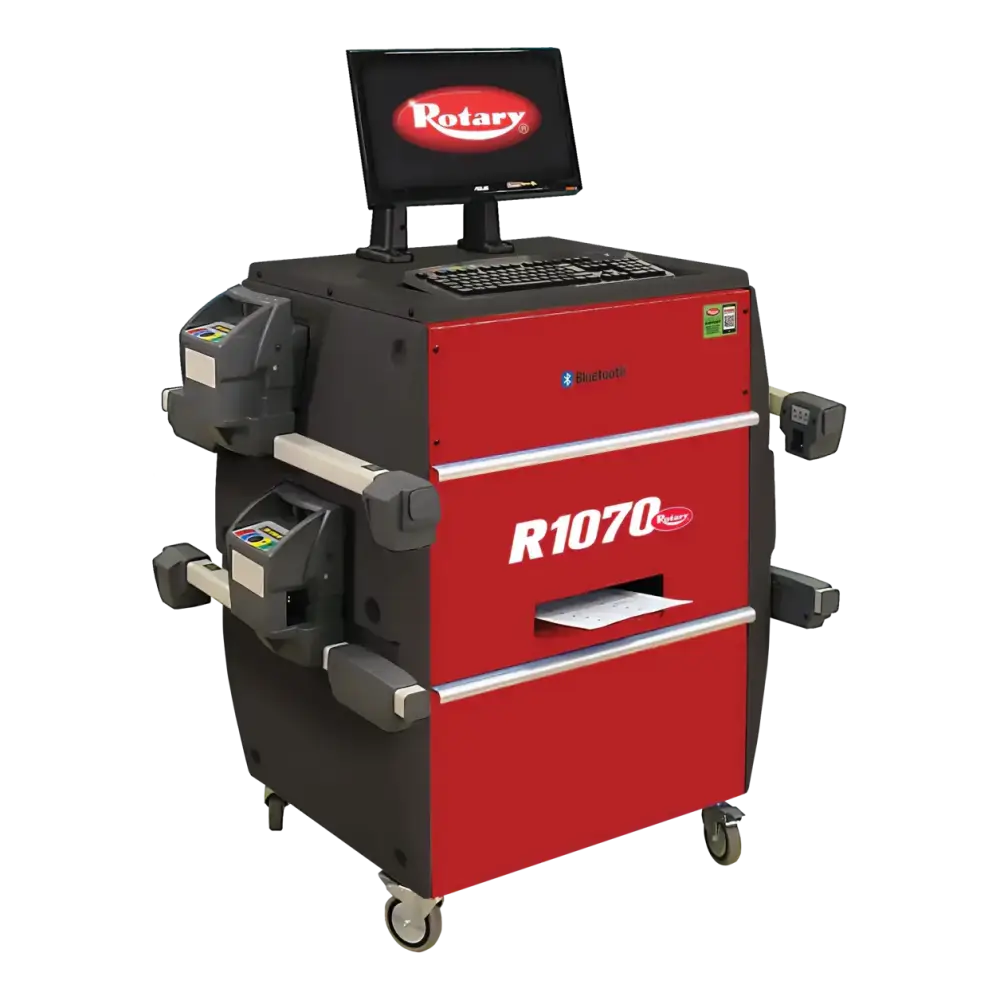

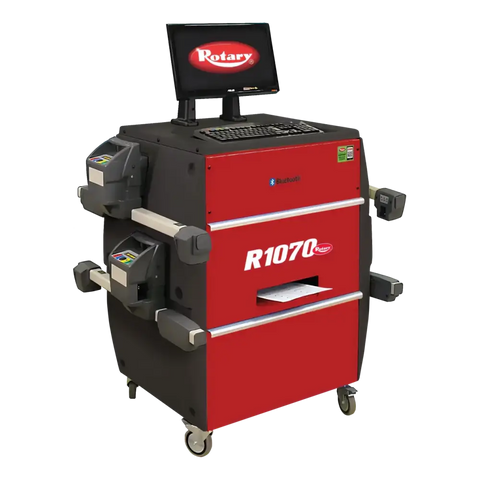

Looking for a complete, mobile alignment solution for your shop? The Rotary R1070 CCD Aligner is designed for busy tire techs and mechanics who need speed, precision, and flexibility. This wireless, tower-free system streamlines 3D alignment with an 8-CCD sensor setup and Bluetooth communication, delivering fast, accurate measurements without cables in the way. The R1070 features a powerful PC, 19in LCD monitor, and intuitive software with animated 3D guidance, making it easy to follow each alignment step. Its quick-locking tire clamps fit up to 36in wheels, ideal for a wide range of vehicles, from everyday cars to tuned sports models.
Enhanced with a 90,000+ vehicle database, quick runout and diagnostic features, and efficient data management for up to 20,000 records, the R1070 is built for high-volume shops that value organization and performance. Its durable, wheeled console keeps the system portable, while the built-in A4 printer provides professional printouts. The R1070 offers everything alignment pros need for efficient, precise work—making it a standout choice among competitors.
Features:
- Wireless 3D alignment for efficient, clutter-free workspace

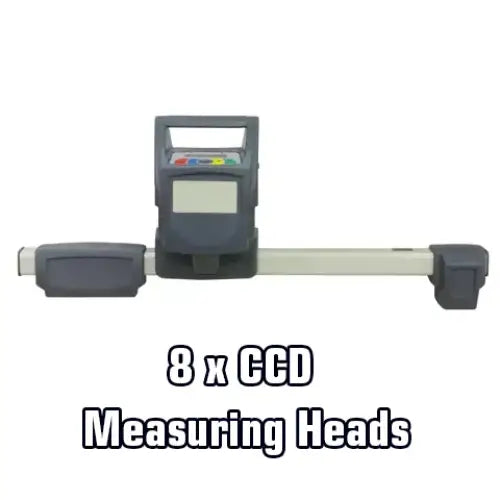

- 8-CCD sensors deliver fast, precise alignment readings
- Bluetooth connectivity enables seamless, real-time data transmission
- Portable, tower-free console maximizes shop floor space

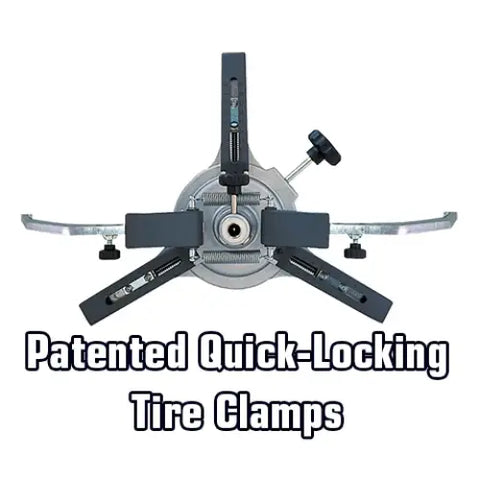

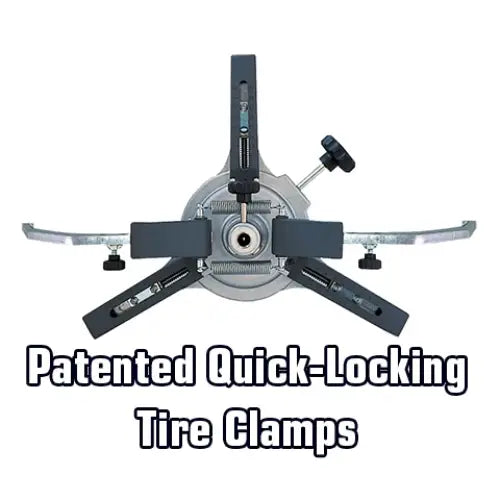

- Quick-lock tire clamps fit wheels up to 36in diameter
- 19in LCD monitor with 3D animated, step-by-step guidance
- Built-in A4 printer for easy, professional documentation
- 90,000+ vehicle database for quick vehicle entry
- Manage 20,000 jobs with searchable customer data bank

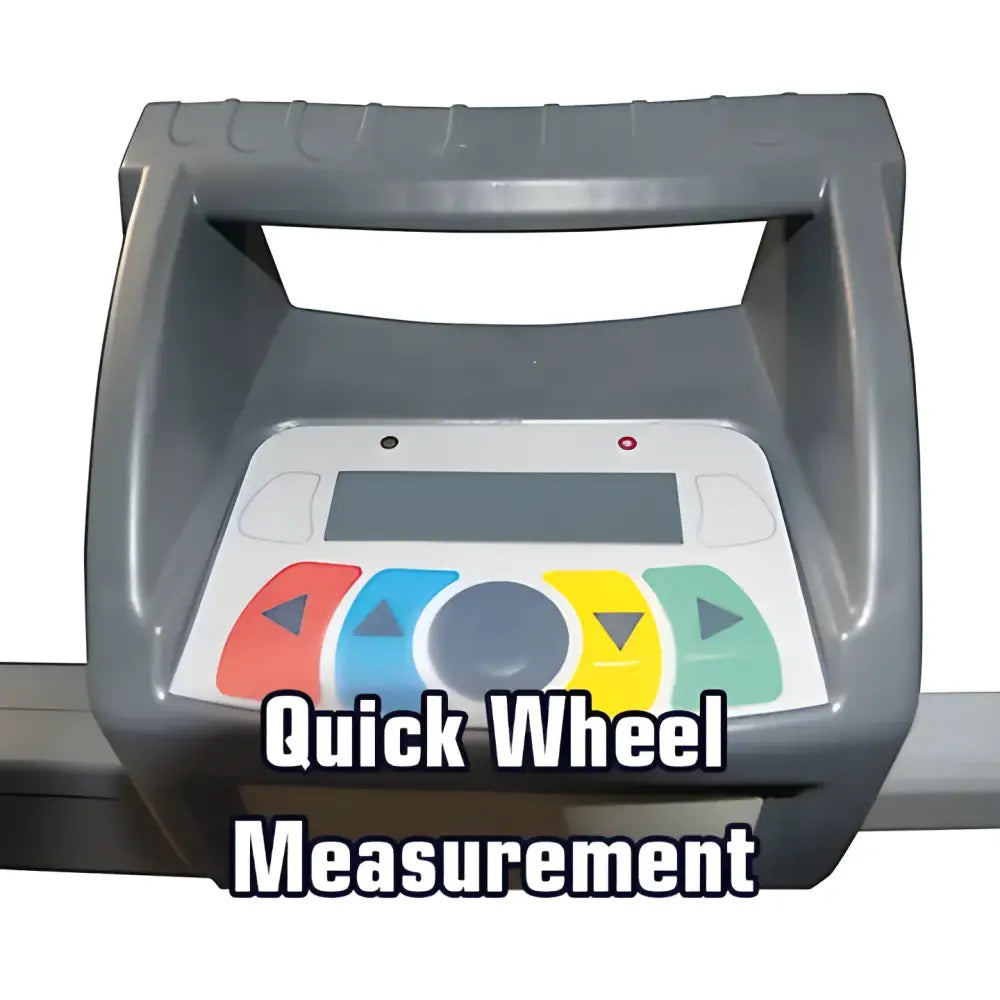

- Quick runout function requires only 30° wheel movement
- Comprehensive diagnostics for axle, wheelbase, track width
- Automatic spoiler program for sport and tuned vehicles
- High-quality PC and mobile cabinet for durability
- LED repeaters and quick-charge hangers for convenience
- Reliable, precise alignment solution for high-volume shops
Specs:
Front Axle- Total Toe Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 20°
- Partial Toe Accuracy: +/- 1ft
- Measuring Range: +/- 1°
- Total Measuring Range: +/- 20°
- Set-back Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 5°
- Camber Accuracy: +/- 2ft
- Measuring Range: +/- 3°
- Total Measuring Range: +/- 10°
- Caster Accuracy: +/- 5ft
- Measuring Range: +/- 10°
- Total Measuring Range: +/- 18°
- King-pin Accuracy: +/- 5ft
- Measuring Range: +/- 10°
- Total Measuring Range: +/- 18°
Rear Axle
- Total Toe Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 20°
- Partial Toe Accuracy: +/- 1ft
- Measuring Range: +/- 1°
- Total Measuring Range: +/- 20°
- Set-back Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 5°
- Camber Accuracy: +/- 2ft
- Measuring Range: +/- 3°
- Total Measuring Range: +/- 10°
- Thrust Angle Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 5°
Power Supply: 110v / 1Ø / 60 Hz
Color: Red
Weight: 310 lbs
Qty: 1 Unit
Ref No.
ROTR1070
Similar Products
R1065 (CCD)
R1085 (3D Aligner)
R1090 (Pro 3D Aligner)
R5000HD (CCD Truck Aligner)
Ref Name
Portable Aligner System
CDD Wheel Alignment System
Tower-Free Aligner
Application:
Wheel Alignment ServiceFor Industries
Auto Dealers
Auto Fleets
Auto Repair
Collision Repair
Commercial Fleets
Includes:
1 x Control Unit with PC, 19in Monitor, Keyboard, Printer, and Battery Charger2 x Front Measuring Head
2 x Rear Measuring Head
4 x STDA35E 3-Point Clamps with Targets
6 x Sets of Extensions for Dually Wheels
1 x Brake Pedal Depressor
1 x Steering Wheel Lock
1 x Instruction Manual on USB Drive
Specification Updates
1 x Year
