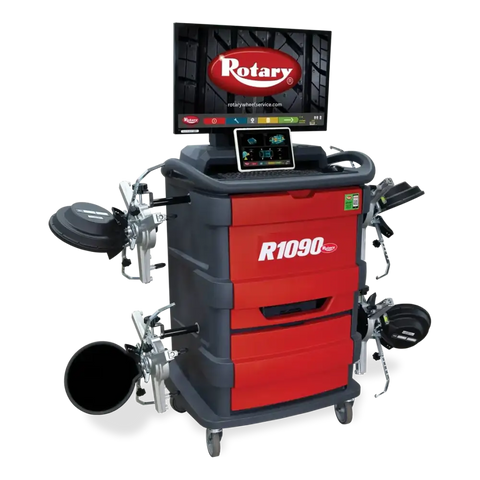

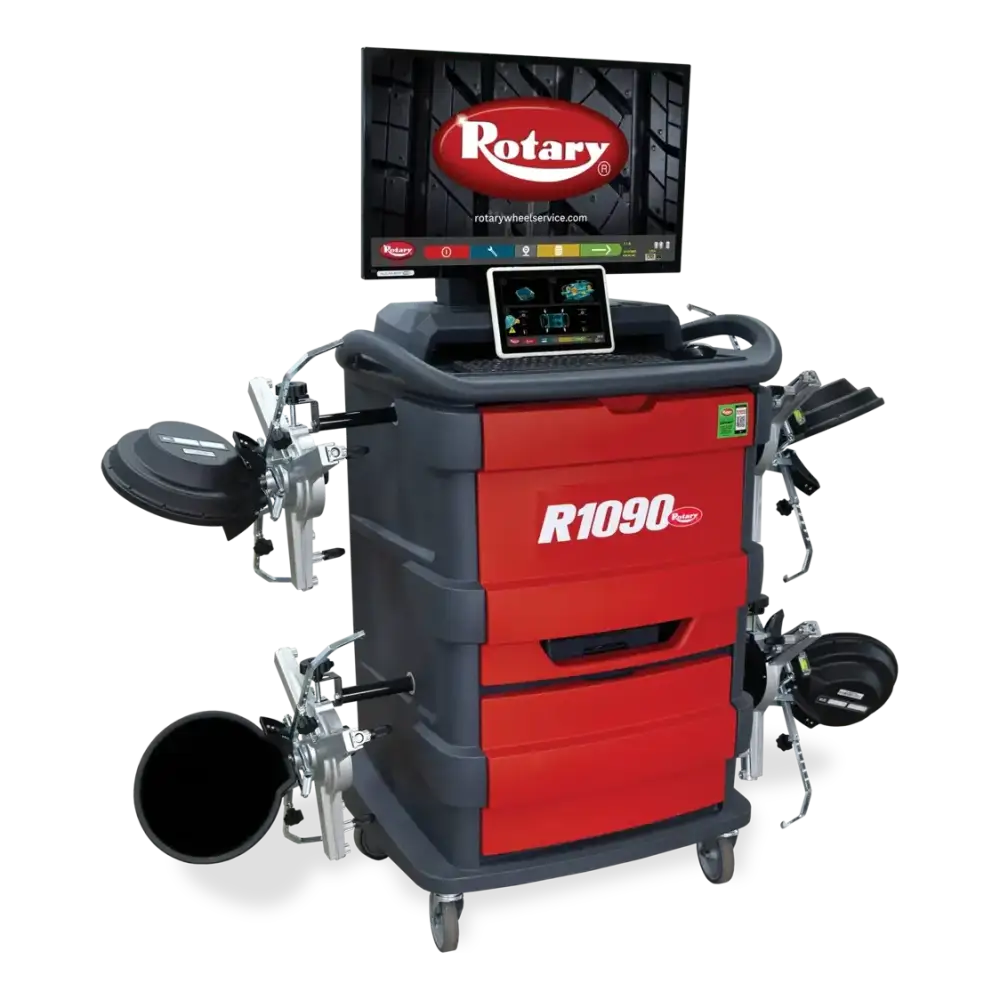

Rotary R1090 High Performance Wheel Aligner, Pro 3D Alignment System
Car
Light Truck
Rotary R1090 High Performance Wheel Aligner, Pro 3D Alignment System
Part No: RTY-R1090
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Are you looking for a top-tier alignment system that can handle a wider range of vehicles, including commercial trucks? The Rotary R1090 Pro 3D Alignment System is designed for busy shops that demand efficiency and precision. Its patented 3D targets and tower-free operation eliminate the need for dedicated bays, allowing technicians to perform alignments anywhere with ease. Featuring a mobile tablet for quick setup and instant readings, the R1090 reduces shop costs by keeping alignments in-house, minimizing liability, and enhancing workflow.
With innovative features like Bluetooth connectivity, easy-to-use software, and superior three-point clamps that protect expensive rims, the R1090 stands out in the market. Its lightweight and portable design means it can be moved effortlessly, making it ideal for big shops with varying alignment needs. Invest in the Rotary R1090 for unmatched performance and reliability in automotive service.
Features:
- High-performance alignment system with Solid Vision Technology

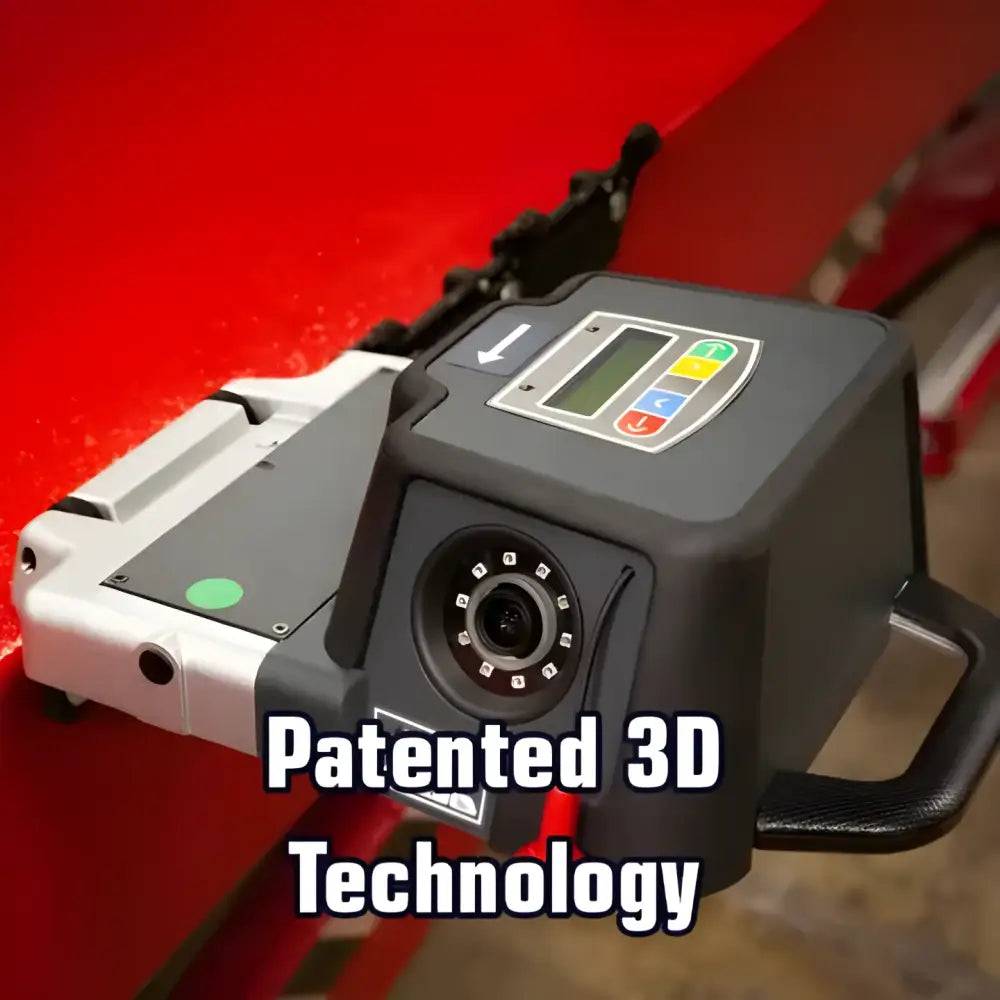

- Exclusive 3DT targets for precise, computer-mapped alignment
- Fixed cameras with automatic positioning for accuracy
- Bluetooth communication for seamless sensor data transfer

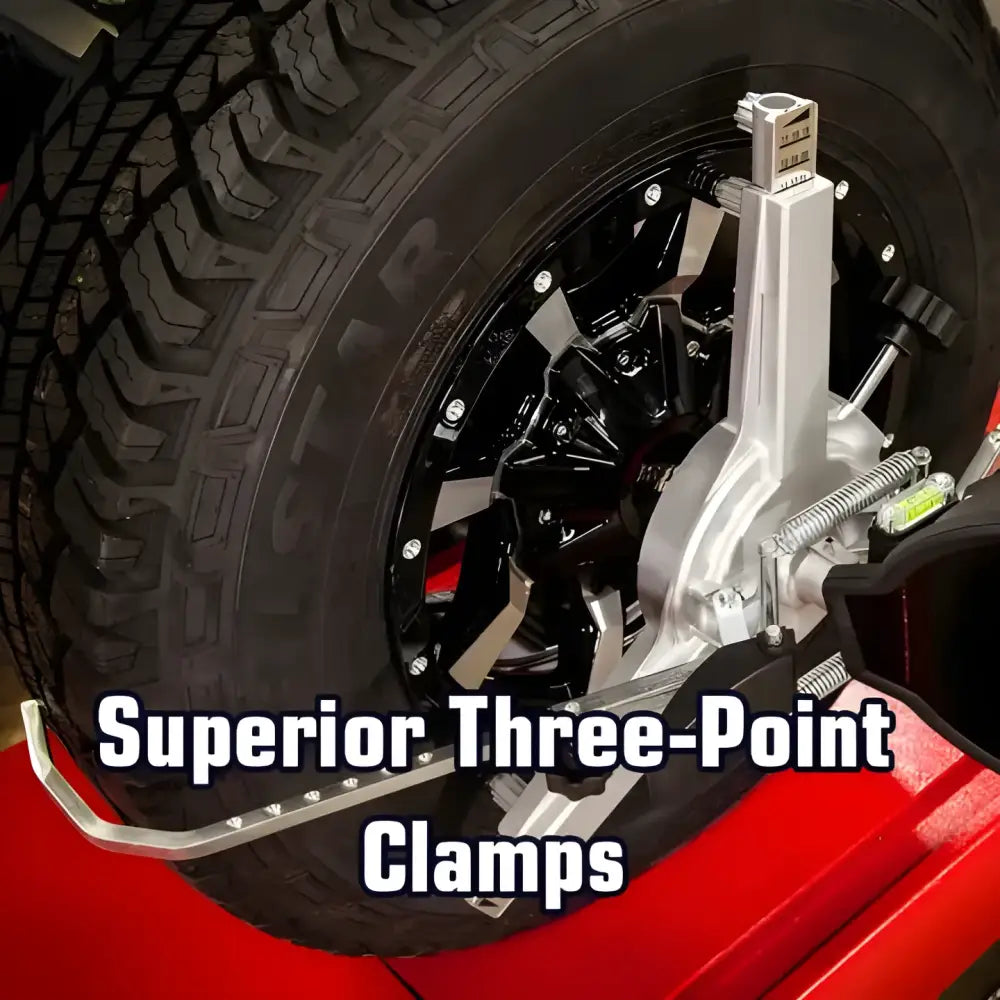

- 3-point, quick-locking tire clamps for secure fit
- Automatic target recognition for fast, easy setup
- ADAS-ready for advanced driver assistance system calibrations

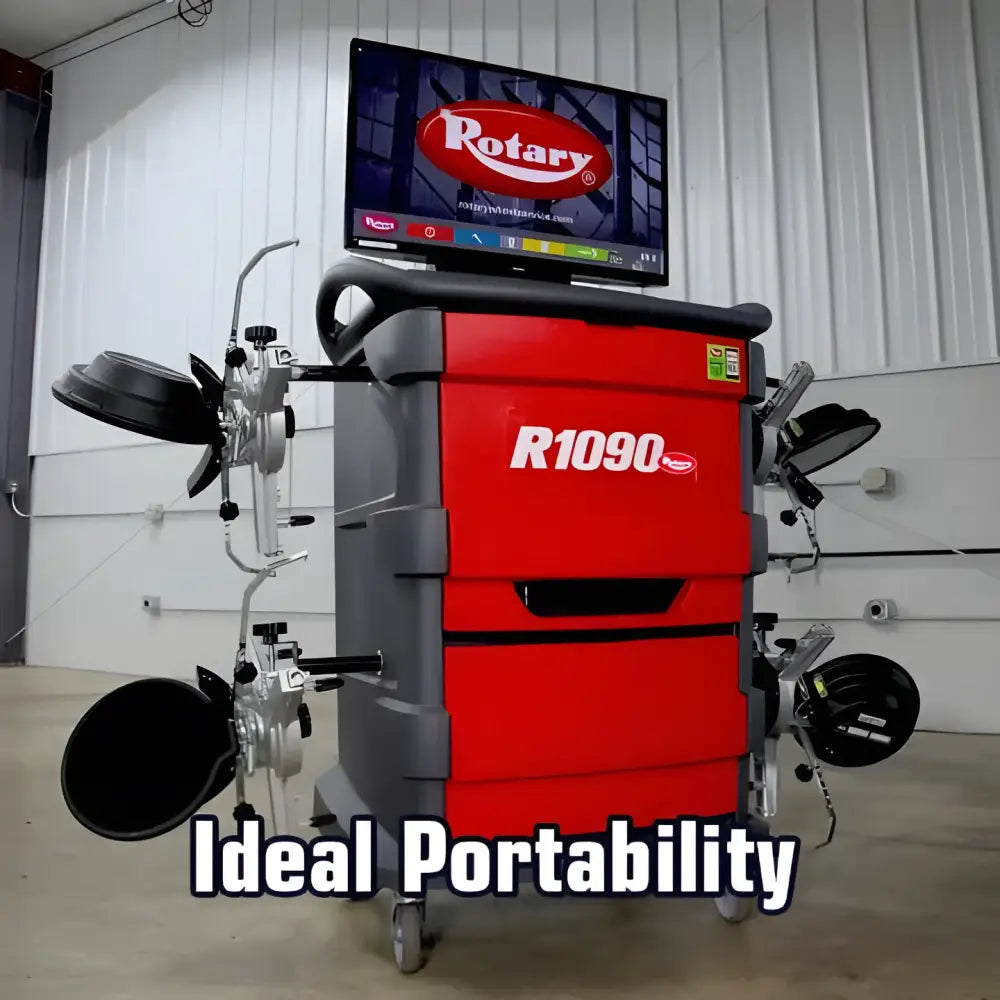

- Portable, no minimum bay size requirements

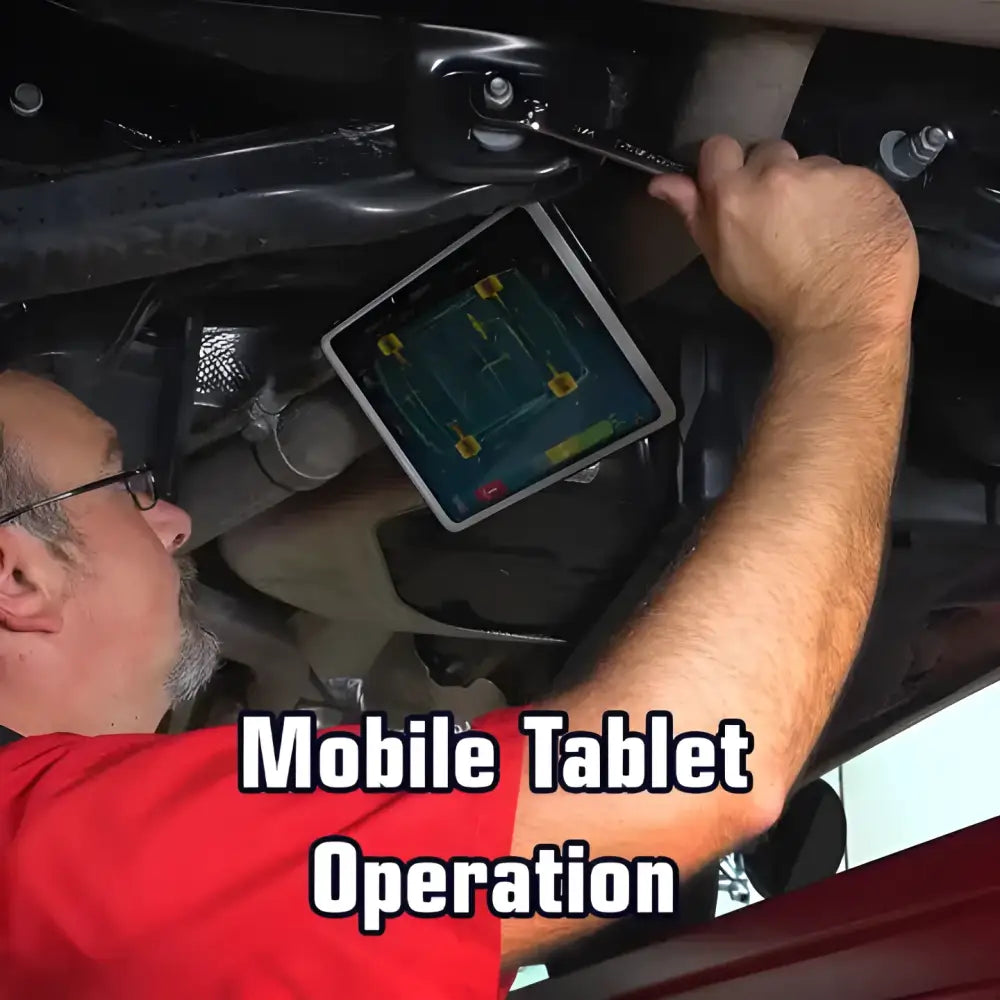

- Android tablet for remote control and live adjustments

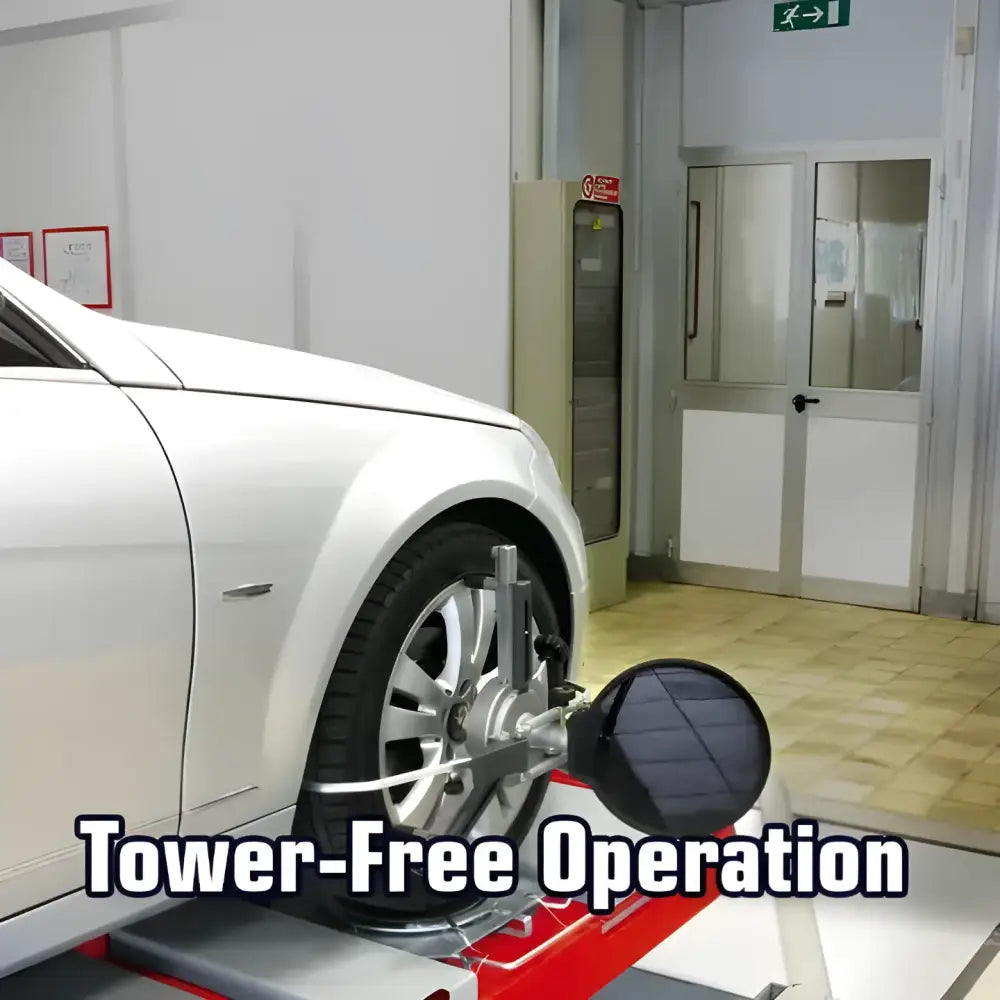

- Tower-free operation for unrestricted workspace

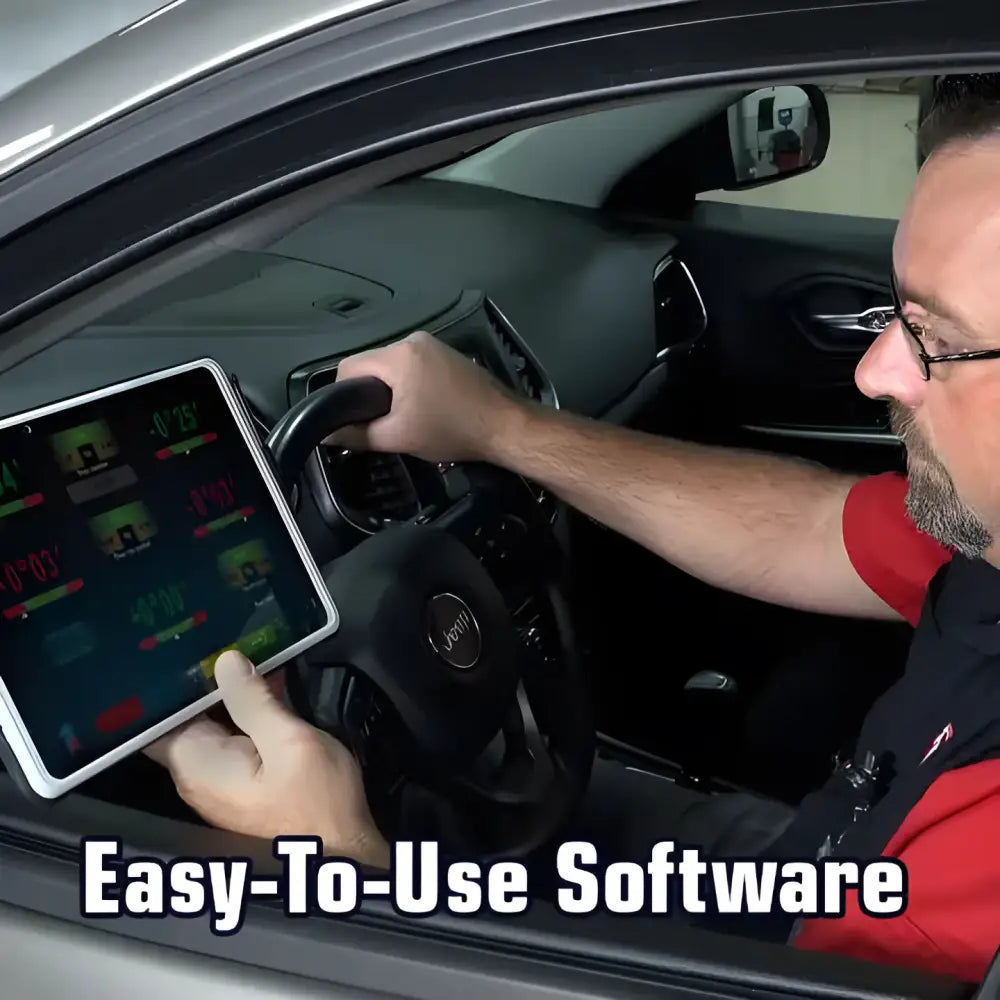

- Easy-to-read results with enhanced graphic interface
- Animated instructions for user-friendly guidance
- Automatic lift level compensation for accurate readings
- Email or print alignment reports for customer documentation
- Single sensor support for flexibility across vehicles
- Quick-release battery change station for minimal downtime
- Portable cabinet with increased storage capacity
- Runs on Windows 10 with two years of updates
- Includes all necessary equipment for immediate use
Specs:
Front Axle- Total Toe Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 20°
- Partial Toe Accuracy: +/- 1ft
- Measuring Range: +/- 1°
- Total Measuring Range: +/- 20ft
- Set-back Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 5°
- Camber Accuracy: +/- 2ft
- Measuring Range: +/- 3°
- Total Measuring Range: +/- 10°
- Caster Accuracy: +/- 5ft
- Measuring Range: +/- 10°
- Total Measuring Range: +/- 18°
- King-pin Accuracy: +/- 5ft
- Measuring Range: +/- 10°
- Total Measuring Range: +/- 18°
Rear Axle
- Total Toe Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 20°
- Partial Toe Accuracy: +/- 1ft
- Measuring Range: +/- 1°
- Total Measuring Range: +/- 20ft
- Set-back Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 5°
- Camber Accuracy: +/- 2ft
- Measuring Range: +/- 3°
- Total Measuring Range: +/- 10°
- Thrust Angle Accuracy: +/- 2ft
- Measuring Range: +/- 2°
- Total Measuring Range: +/- 5°
Power Supply: 110v / 1Ø / 60 Hz
Color: Red
Weight: 310 lbs
Qty: 1 Unit
Ref No.
ROTR1090
RWA3D1090
Similar Products
R1065 (CCD)
R1070 (CCD)
R1085 (3D Aligner)
R5000HD (Truck Aligner)
Ref Name
Advance Alignment System
Portable Aligner System
3D Wheel Alignment System
Tower-Free Aligner
Application:
Wheel Alignment ServiceFor Industries
Auto Dealers
Auto Fleets
Auto Repair
Collision Repair
For Vehicles:
Passenger Vehicles
Commercial Vehicles
Includes:
1 x Control Unit with PC (Windows 10), 32in Monitor, Keyboard, Printer, Mouse and Mouse Pad1 x Android Tablet for Running the Connect APP
1 x Wi-Fi Dongle
1 x Remote Control Located on Each Sensor
2 x Measuring Heads
2 x Sets of Extra Batteries
4 x STDA35E/3D 3-Point Clamps with Targets
6 x Sets of Extensions for Dually Wheels
1 x Brake Pedal Depressor
1 x Steering Wheel Lock
1 x Instruction Manual
Vehicle Data Updates
2 x Years
