Challenger E15 Symmetric 2-Post Lift (15,000 lbs)

In Stock

Challenger E15 Symmetric 2-Post Lift (15,000 lbs)

SKU: CHL-E15R $14,166.66

Estimated Lead Time:7 Days

Part No: CHL-E15R

Delivery Options

I have a forklift to unload

Please drop off at freight terminal.

Power Unit Upgrade Options

1 Phase / 208V - 230V

3Phase / 208V

3Phase / 230V

3Phase / 460V

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Download Brochure

Related Categories: ALI Certify Lifts Automotive Lift Challenger Lifts Deals Shop Equipment Two Post Lifts

PRODUCT INFO

Challenger Lifts Warranty Information

Challenger Foot Pad Assembly Sheet

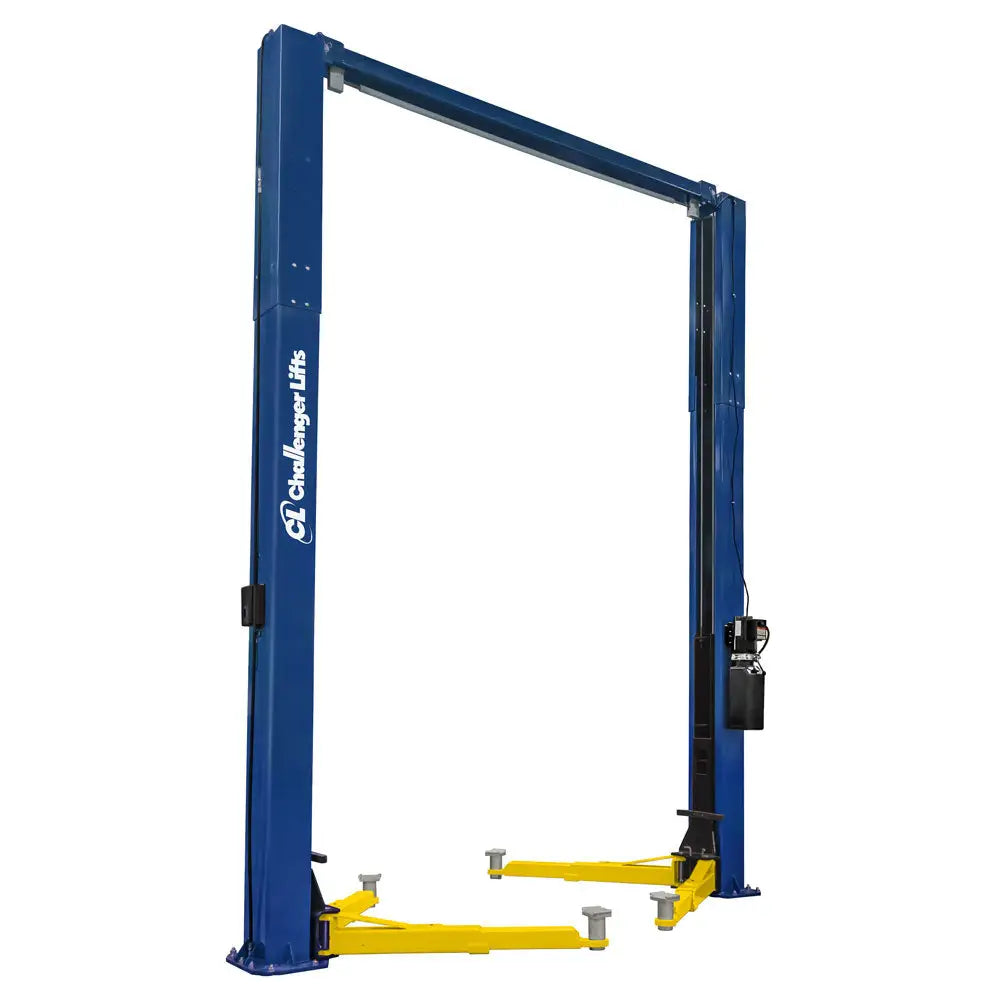

We designed our new E15 2-post lift to be an economic option for servicing vehicles up to 15,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Includes a built-in 2 foot column height extension to accommodate higher profile vehicles. The E15 also comes standards with stack adapters.

This lower cost option doesn't sacrifice the features you've come to expect. The jacketed single-point mechanical lock release system was once exclusive to our CL Series.

Features:

15,000 lb. lift capacity
Heavy-duty 2-stage arms enable heavy-duty symmetric lifting
Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series
Padded overhead shut off system prevents vehicle damage
Powder coat finish provides long-lasting durability
Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

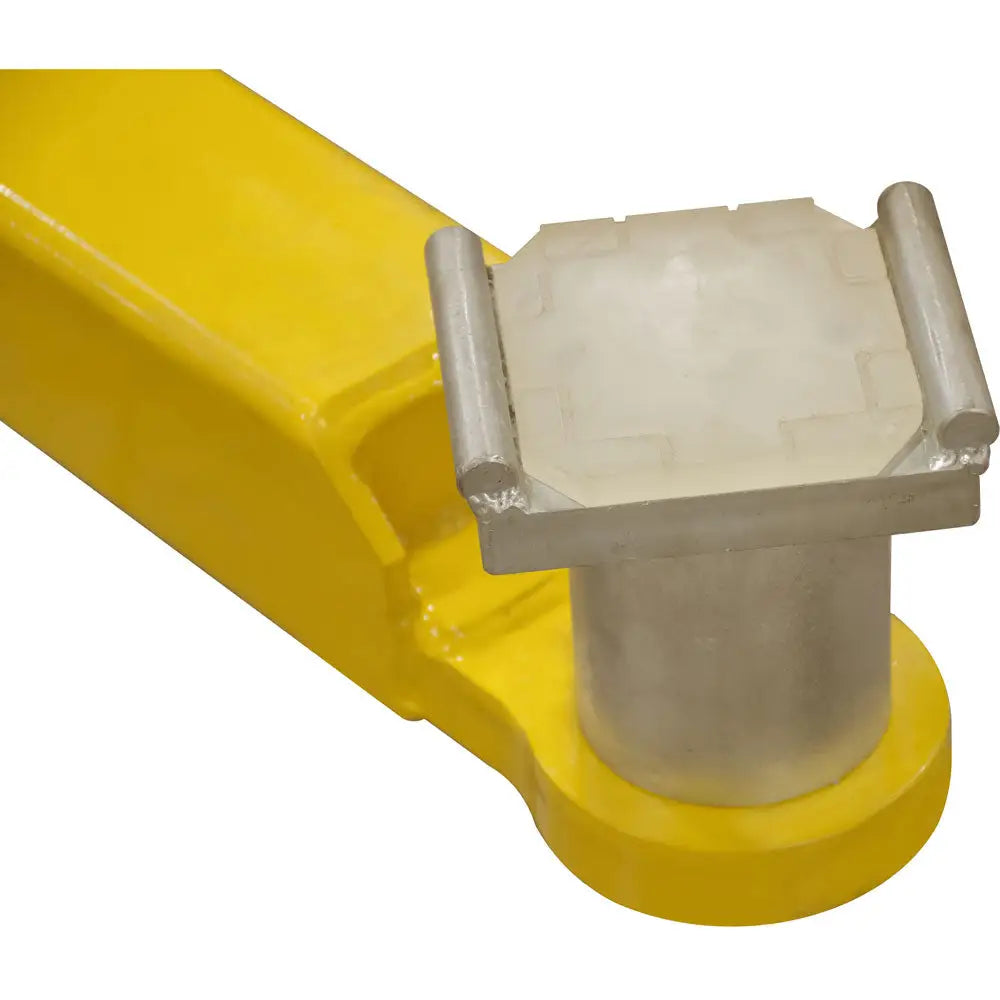

Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

Specs:

Lifting Capacity: 15,000 lbs.
Arms: 2-stage front/2-stage rear
Lifting Configuration: Symmetric
Rise Height: 77.75in
Overall Height: 174in/198in
Overall Width: 147.125in
Drive-Thru Clearance: 109.375in
Floor to Overhead Switch: 166in/190in
Minimum Arm Reach: 36.5in
Maximum Arm Reach: 55in
Screw Pad Height: 5.25in-6.75in
Inside Columns: 122.25in
Ceiling Height Required: 175in/199in
Motor / Voltage: 2HP, 208v - 230v
Speed of Rise: 75 s
ALI/ETL Certified: Yes
Colors Available: Red, Blue
