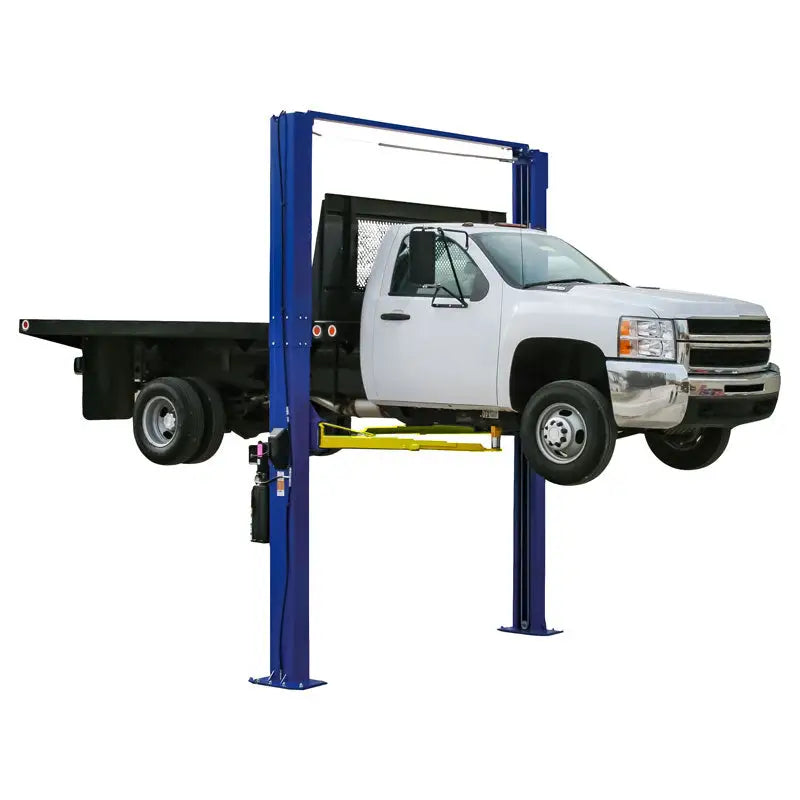

Hofmann 12K 2-Post Symmetric Car Lift - EELR738A
Car
Light Truck
Hofmann 12K 2-Post Symmetric Car Lift - EELR738A
Part No: HOF-EELR738A
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
ALI Certify Lifts
Automotive Lift
Hofmann
Shop Equipment
Two Post Lifts
PRODUCT INFO
Hofmann Model EELR738A is made for high-volume shops. This model is a 12K Two-Post Symmetric Lift, features long-reaching the front and rear arms, adjustable insert screw lifting pads, padded overhead shut off the bar, and enhancing optional accessories.
Features:
- Heavy-duty, two-stage arms enable heavy-duty, symmetric lifting up to 12,000 lbs
- High-quality rubber door guards provide added security against door damage
- Single point, mechanical lock release allow the technician to disengage both columns simultaneously
- Insert adjustable screw lifting pads with a rubber contact surface for quick and easy vehicle set up
- Premium powder coat finish provides a long-lasting, durable finish
- The padded overhead shut off system prevents vehicle damage from being raised too high
- 13' 10in or 14' 7in adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- ANSI/ALI ALCTV:2011 - Independently tested and validated, ALI certified to the current automotive lift standard
Specs:
Lifting Capacity: 12,000 lbs.Overall Height (Adjustable): 166in / 175in (422-445cm)
Overall width: 137.75in (262cm)
Rise Height (Screw Pads Highest Position): 78.125in (198cm)
Floor to Overhead Shut Off: 159.5in / 168.5in (405-428cm)
Drive-thru Width: 103in (262cm)
Arm Reach: 35.75in to 54.5in (91-139cm)
Lowered Pad Height: 5.25 into 7.25in (13-18cm)
Ceiling Height Required: 167in or 176in (424 or 447cm)
Inside Column Width: 115in (280cm)
Rise Time: 66 Seconds
Max Load per Arm: 3000 lb (1360kg)
Power Requirements: 208-230V 1Ph 60Hz
Optional Voltages are Available*:
EAK0299T45A - 208V 3Ph
EAK0299T46A - 230V 3Ph
