BendPak RJ45W 4-Post Rolling Bridge Jacks (4,500 lbs)
Part No: BP-RJ45W
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
Automotive Lift
BendPak
Shop Equipment
Shop Parts & Acc
PRODUCT INFO

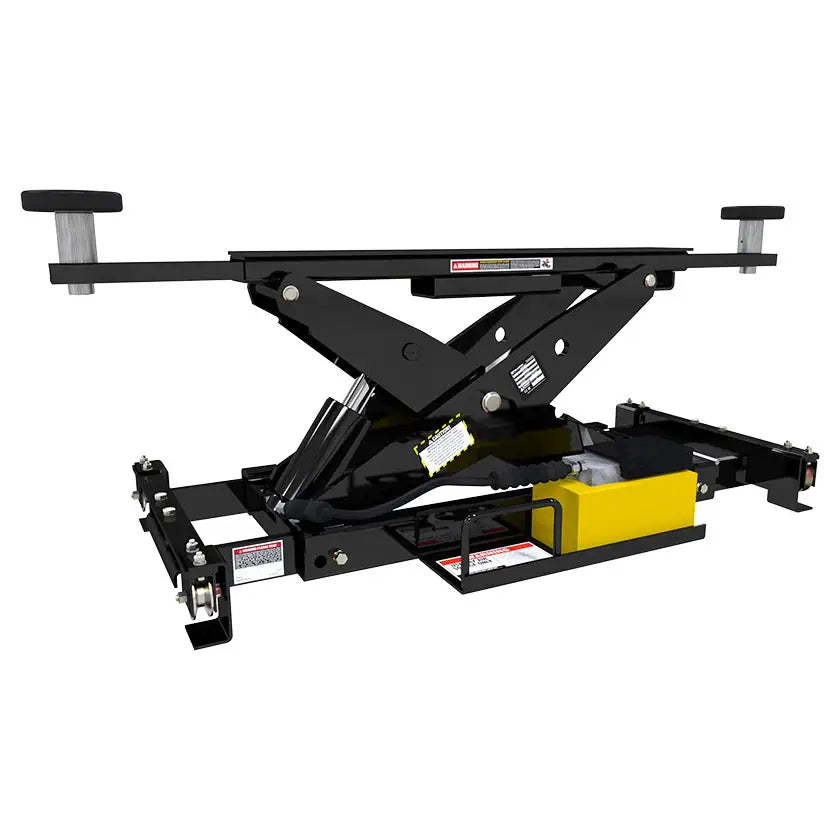

Lift 4,500 lbs. BendPak RJ45W rolling bridge jack is designed to hold up to 4,500 lbs. and features easy-to-roll wheels that make sliding simple between the four-post lift runways. Use this 4-post bridge jack with your BendPak HD-9 series four-post car lift for increased versatility and productivity.
Note: To confirm compatibility, please call with the full model and serial number.
Features:
- 4,500-lb. lifting capacity
- Works with HD-7 series, HD-9 series, and GP-9 series

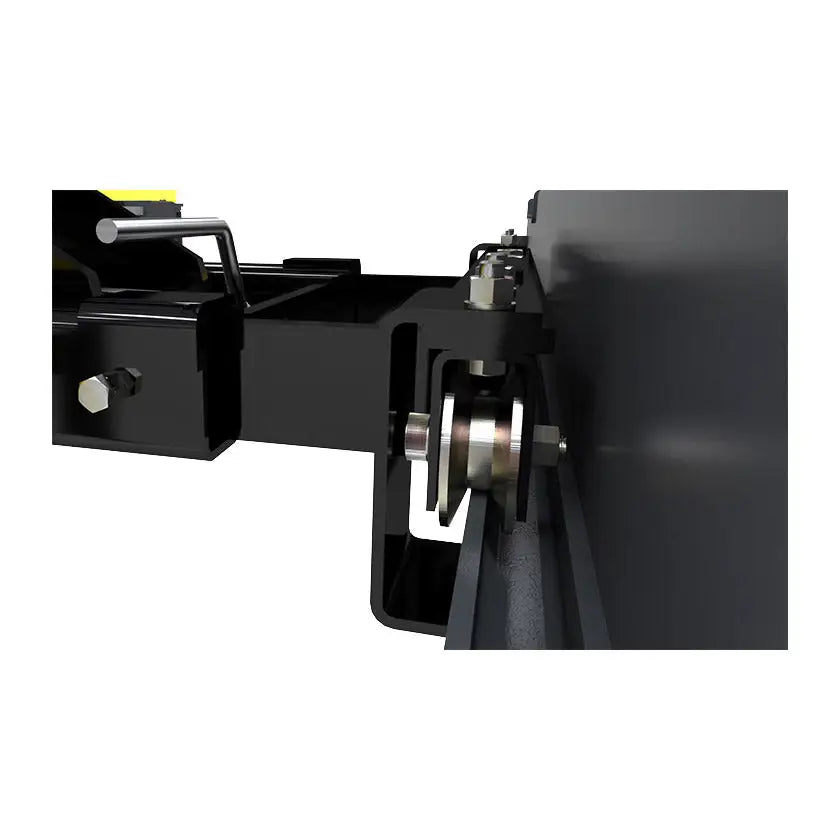

- Easy-roll wheels
- Rubber contact pads
- Stackable adapters
- High-pressure hydraulic power unit
Specs:
Lifting Capacity: 4,500 lbs. (2,041 kg)Suitable Lift Model(s): HD-7 Series, HD-9 Series, GP-9 Series
Min. Drive-Over Height*
Pad Only: 4.5in (114 mm)
Pad + 2.75in Adapter: 7.25in (184 mm)
Pad + 5.5in Adapter: 10in (254 mm)
Max. Lifting Height*
Pad Only: 15.5in (394 mm)
Pad + 2.75in Adapter: 18.25in (464 mm)
Pad + 5.5in Adapter: 21in (533 mm)
Reach
Support Base Width: 35.5in (902 mm) - 46.5in (1,181 mm)
Max. Arm Reach: 57in (1,448 mm)
Min. Arm Reach: 42in (1,067 mm)
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 2,490 PSI
Power Requirement: None
Shipping Weight: 380 lbs. (172 kg)
Shipping Dimensions: 41.25in x 25in x 13in (1,048 mm x 635 mm x 330 mm)
