Challenger SX14 14K Surface Mount Scissor Alignment Lift w/ 2 Rolling Jack
Estimated Lead Time: In Stock
Part No: CHL-SX14
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
ALI Certify Lifts
Alignment Lifts
Alignment Service
Automotive Lift
Challenger Lifts
Deals
Shop Equipment
PRODUCT INFO

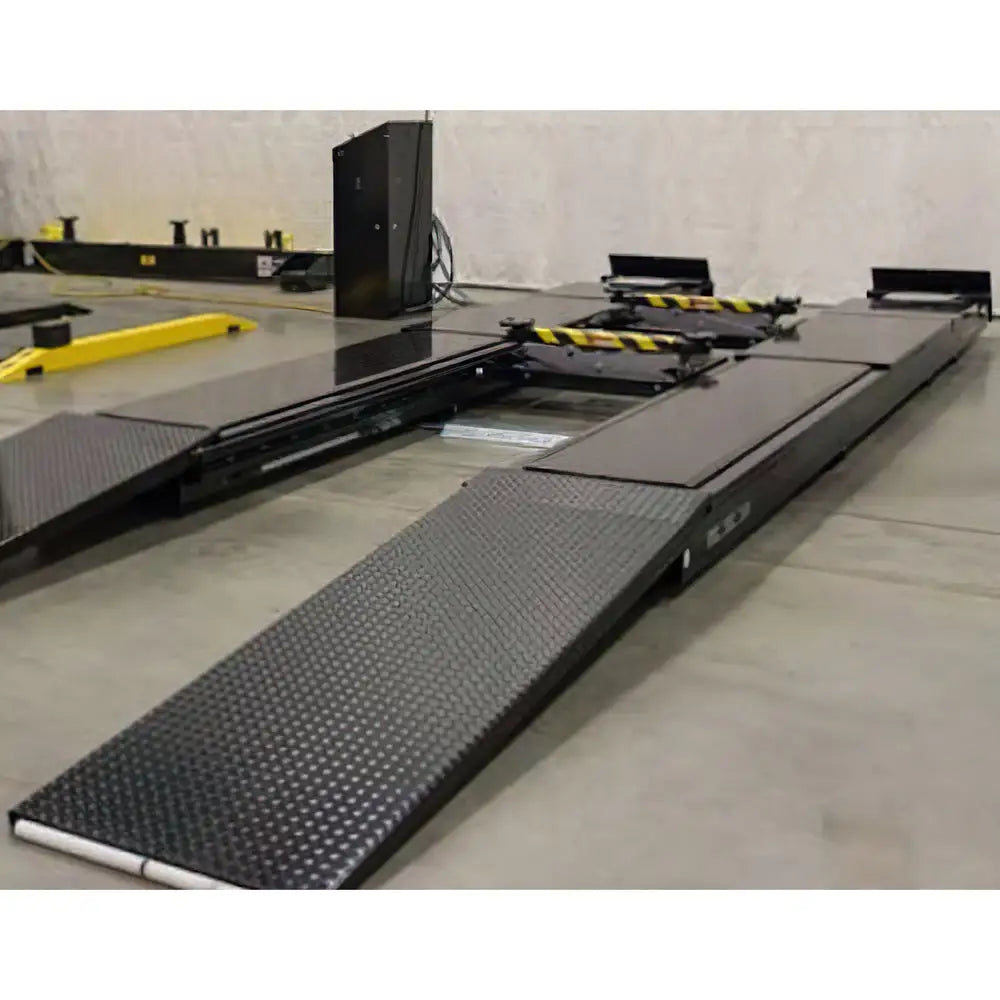

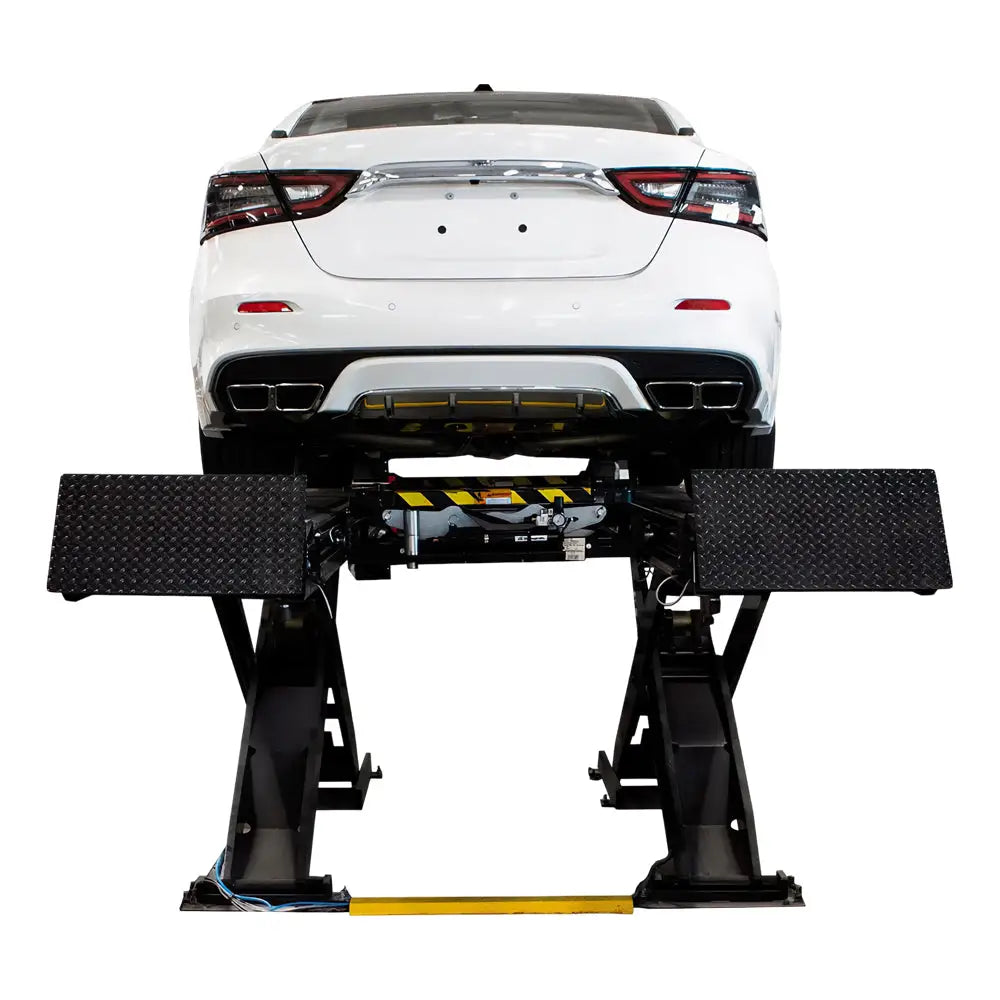

Looking for a reliable and precise scissor alignment lift? Look no further than the Challenger SX14 14K Scissor Alignment Lift. With a 14,000-pound capacity and a sleek single-scissor design, this lift is built to last. The 25.5-inch wide runway is perfect for various vehicles, while automatic LED lighting ensures a well-illuminated workspace. Adjust turn plates and locking alignment plates guarantee spot-on results. This is a surface-mounted model with the option to upgrade to a flush-mounted configuration, all equipped with photocell technology for perfect synchronization. Kit includes rolling jacks, turn plates, and an airline kit for dual jack operation.
Features:
- Versatile Kit: Includes rolling jacks, turn plates, and dual jack operation kit.
- Wide Runway: Accommodates single and dual rear-wheel vehicles easily.
- Precise Sync: Photocell ensures runway synchronization for accuracy.

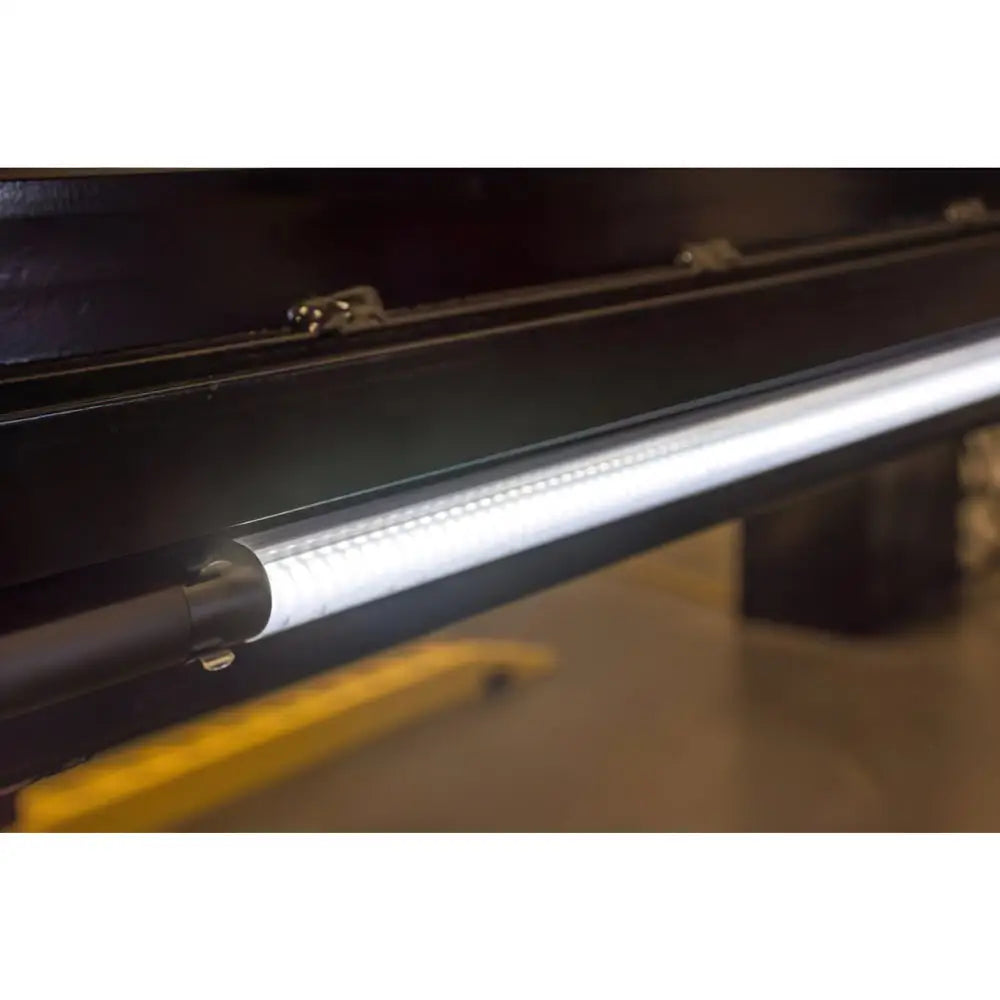

- Auto Lighting: Illuminates the vehicle's underside, saving energy when lowered.
- Low Maintenance: Rear slip plates with oversized bearings protect against debris.

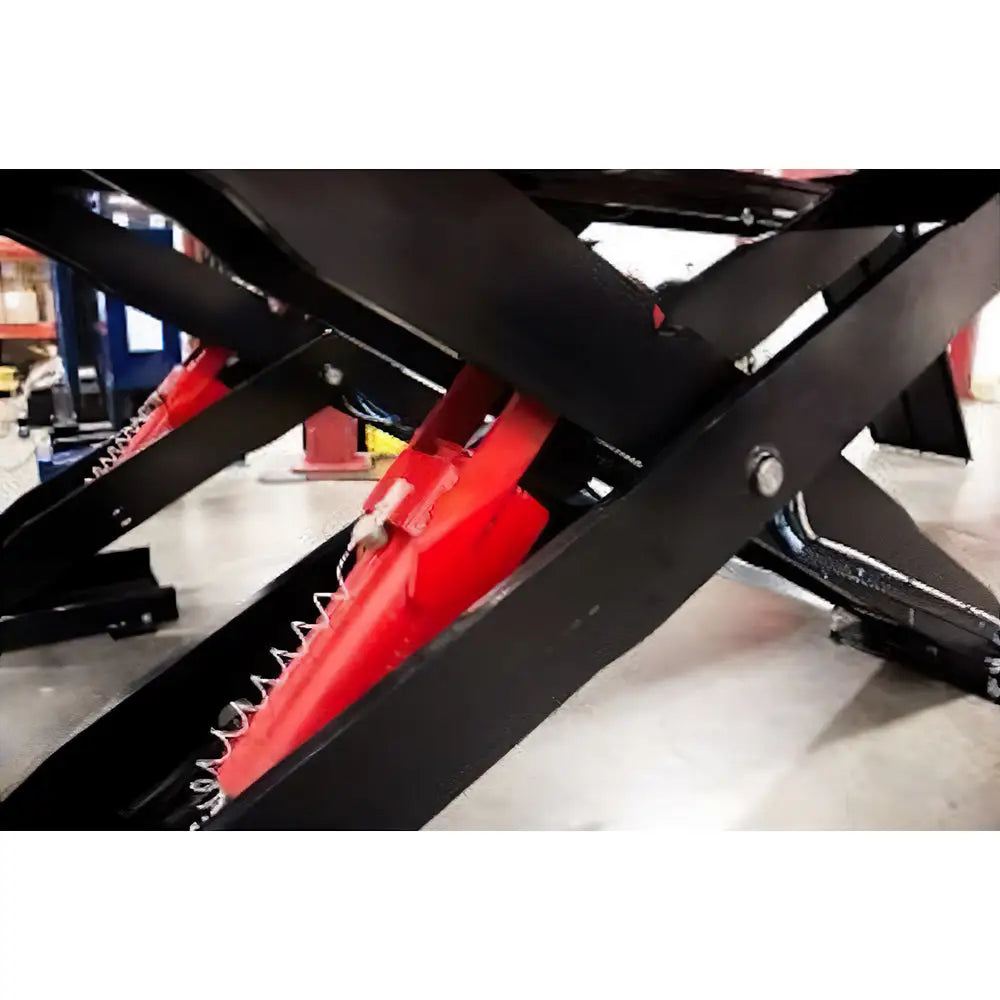

- Smooth Operation: Twin hydraulic cylinders ensure smooth performance.

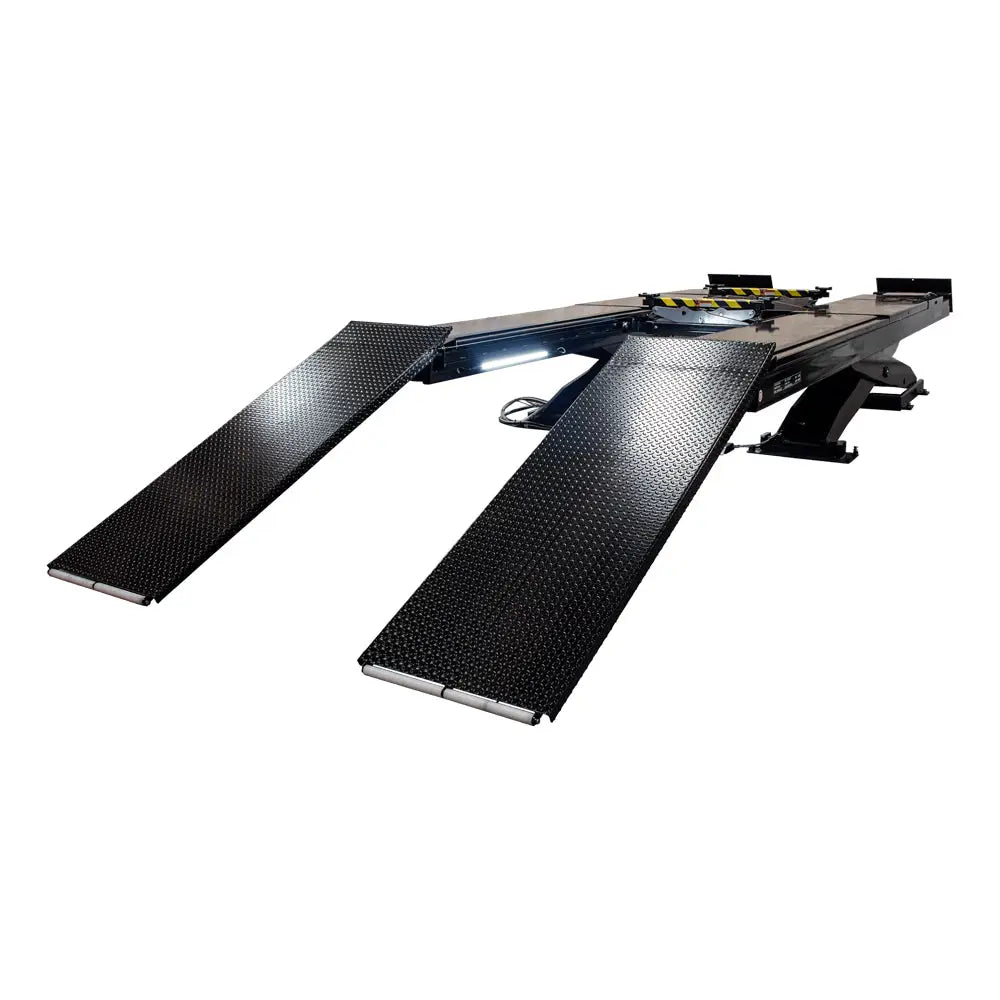

- Noise Reduction: Approach ramps have end rollers, reducing noise and damage.
- Effortless Use: Single-point air lock release for ergonomic operation.
- Durability: Powder coat finish for long-lasting reliability.
- Mounting Options: Choose above-ground or flush mounting.
- Certified Quality: ALI certification guarantees product quality.
Specs:
Model: StandardLifting Capacity*: 14,000 lbs.
Rise Height: 77in
Overall Length: 265in
- Ramp Length: 62.75in
Overall Width: 91.25in
Width of Runways: 25.5in
Between Runways: 40in
Lowered Height: 10.5in
Maximum Wheelbase: 183in
Wheel Alignment (Max.): 176in
Wheel Alignment (Min.): 70.75in
Motor: 3 HP
Voltage (Single Phase Std.): 208-240v (23 FLA)
Speed of rise: 75 s
Air Required (filtered/lubricated): 90 - 120 psi (20CFM)
Min. Recommended Bay Size: 14ft x 28ft
ALI/ETL Certified: Yes
Color Available: Black
Site Requirement
Bay Height: Rise Height + Height of Vehicle
Bay Width: 14ft Recommended
Bay Depth: 28ft Recommended
Electrical Requirements
- Voltage: 208-230V
- Phase: 1PH
- Breaker: 30 Amp
Concrete Specs (Minimum)
- Thickness: 4in (Free from Cracks/Seams)
- Rated @: 3500+ psi
- Cured Time: Minimum 28 Days
Air Requirement: 90-120 psi
Ref No.
SX14-SR
SX14 STANDARD
Similar Product
SX14-ER (Extended Ramp)
SX14-FLUSH, SX14-FM (Flush Mount)
EELR789APKG (Hofmann)
6602 (Ravaglioli)
AULS14ALOR1T (Autel)
Ref Name
Surface Mount Scissor Alignment Lift
Scissor Alignment Lift System
Application:
Auto AlignmentGarage Work
Vehicle Maintenance
Wheel Alignments
For Vehicles
Cars/LT
Trucks
For Businesses
Repair Shops
Alignments Shops
Fleet Maintenance
Includes:
1 x SX14 Lift2 x 7K Rolling Jacks
2 x Stainless Steel Turn Plates
2 x Rear Slip Plates
1 x Dual Jack Airline Kit
