Challenger SX14-ER 14K Extended Scissor Alignment Lift w/ 2 Rolling Jack, Surface Mount
Car
Light Truck
Challenger SX14-ER 14K Extended Scissor Alignment Lift w/ 2 Rolling Jack, Surface Mount
Part No: CHL-SX14-ER
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
DOWNLOADS
Related Categories:
ALI Certify Lifts
Alignment Lifts
Alignment Service
Automotive Lift
Challenger Lifts
Shop Equipment
PRODUCT INFO

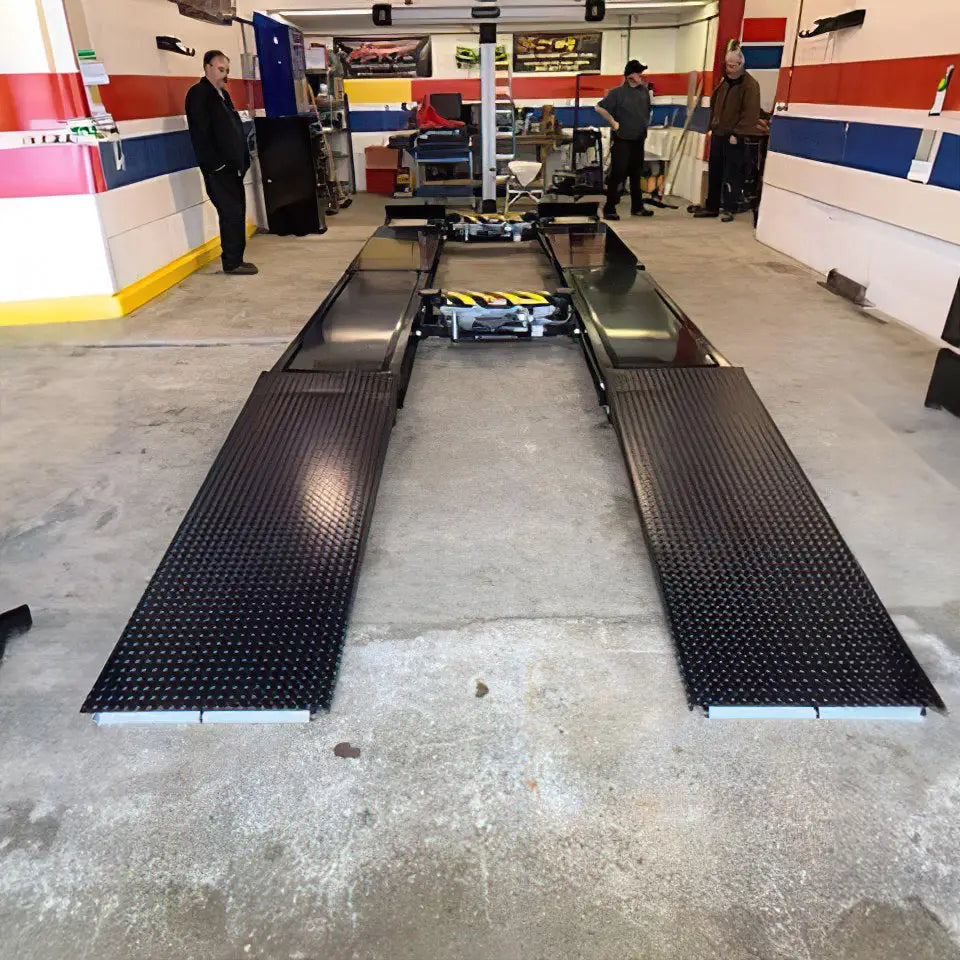

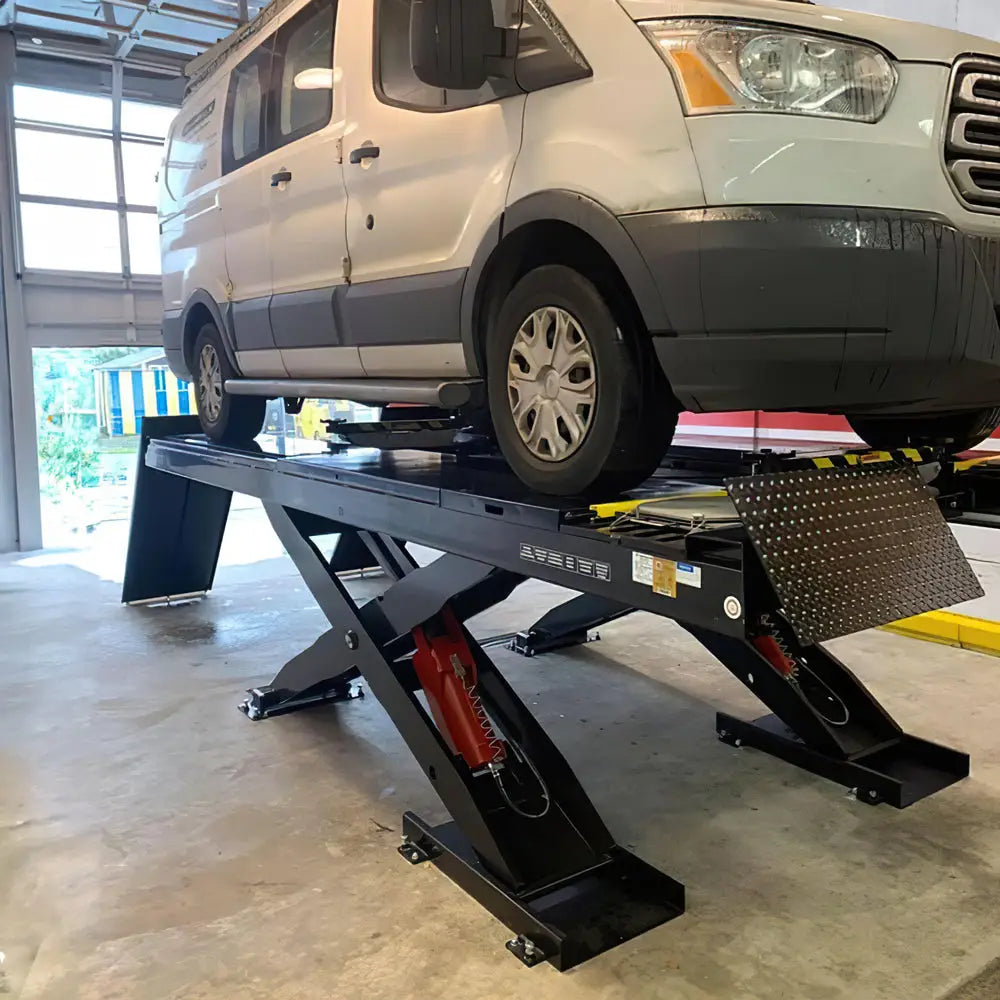

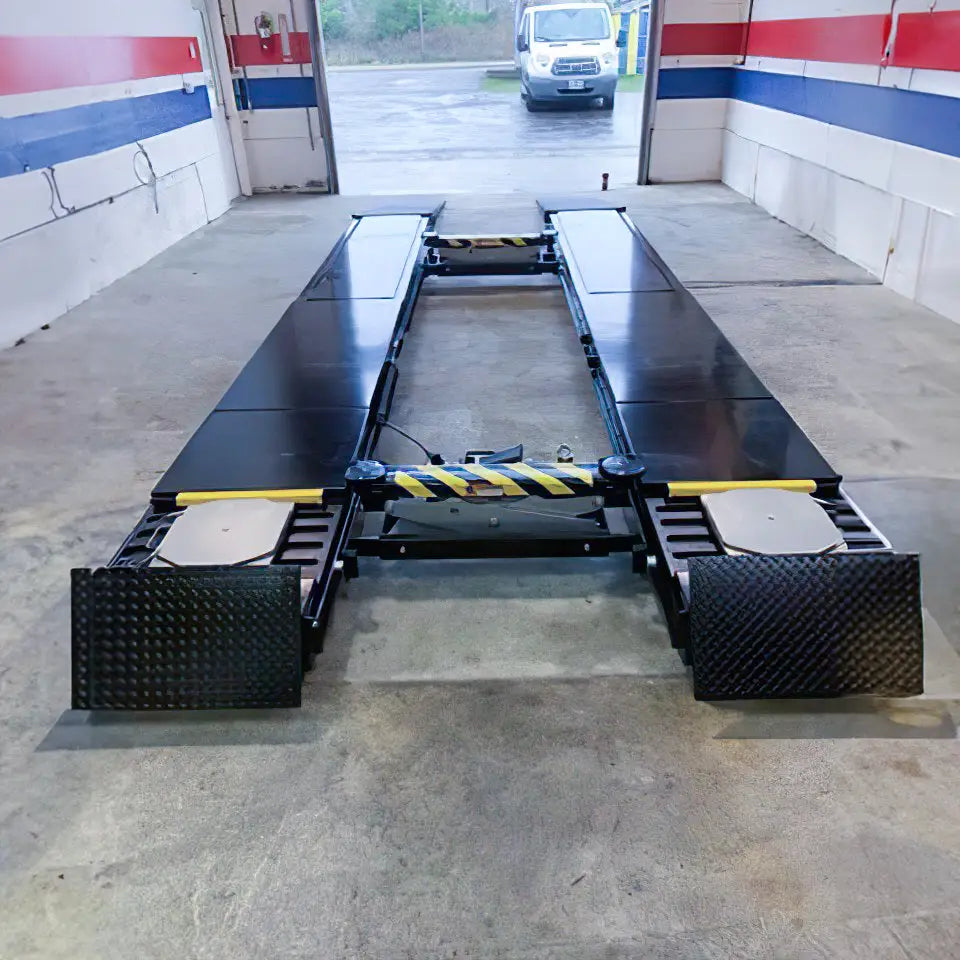

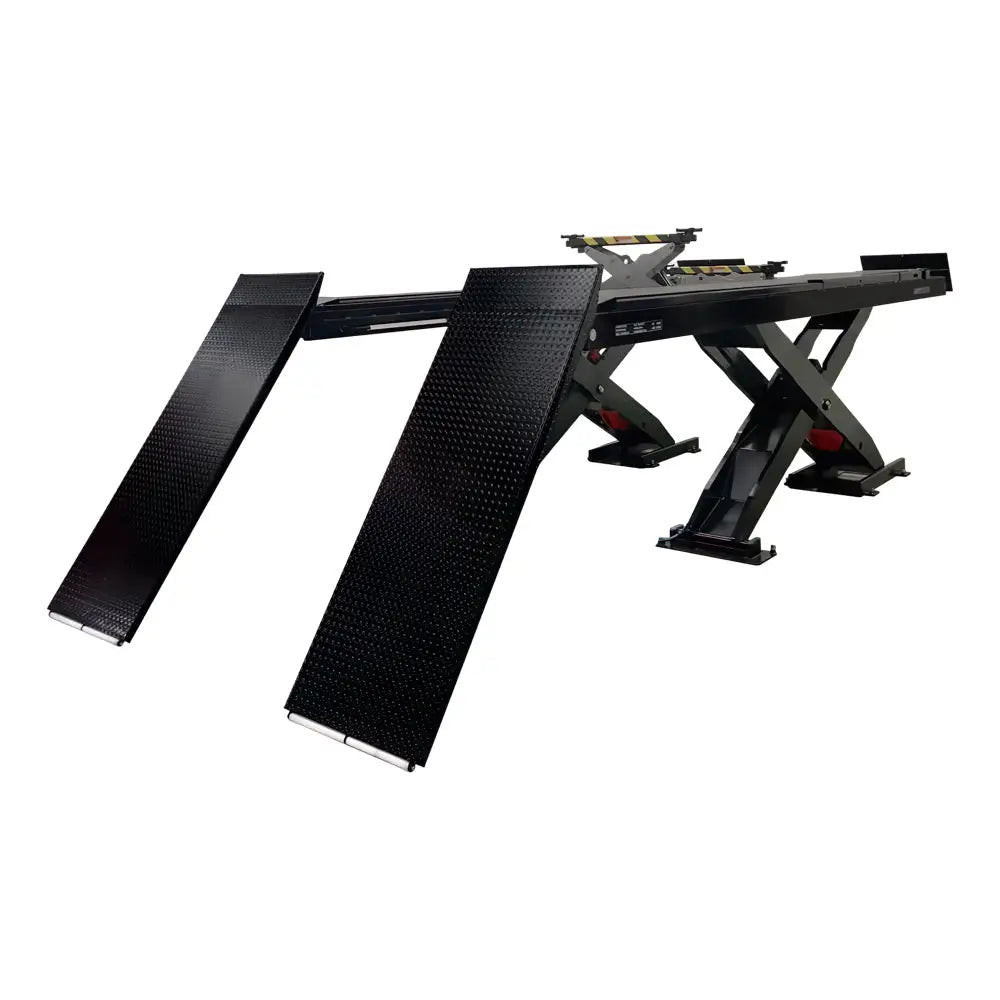

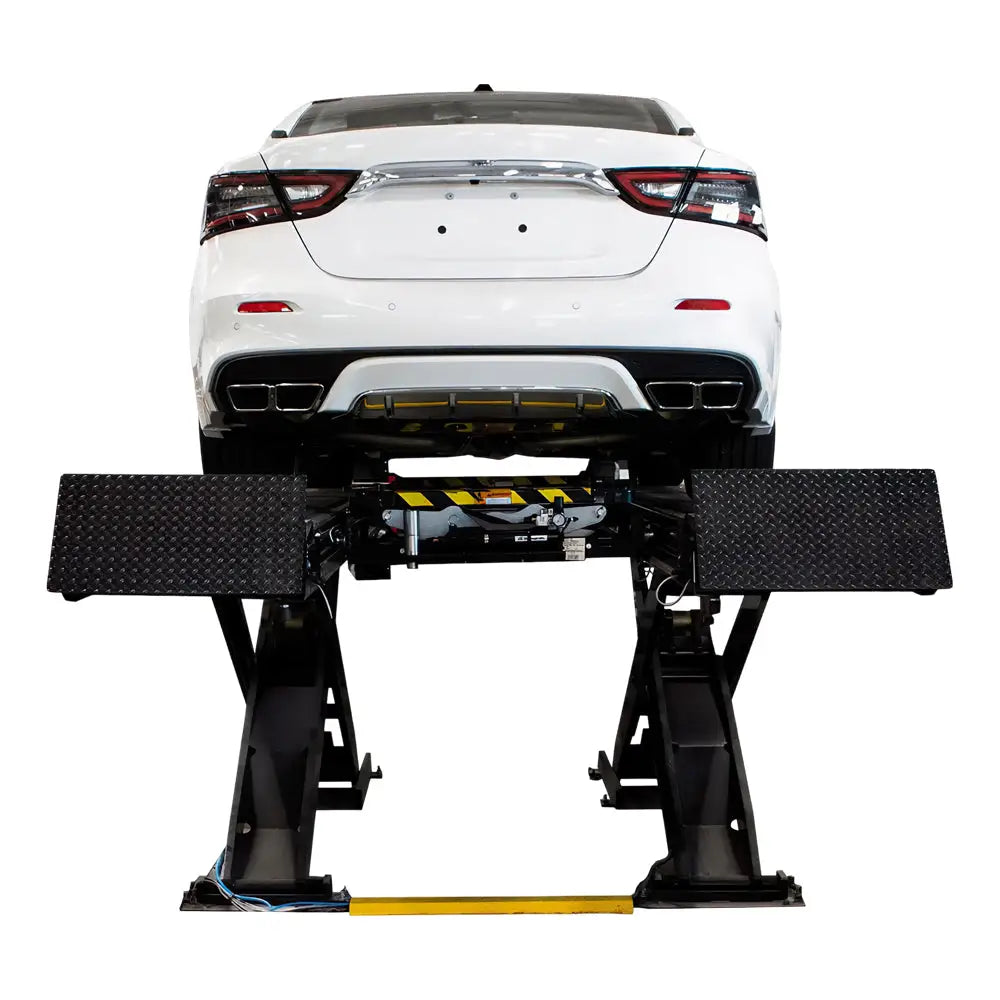

The Challenger SX14-ER 14K Scissor Alignment Lift is the perfect solution for automotive service centers that demand uncompromising performance. With a 14,000-pound capacity and an extended 283-inch length, this lift surpasses the standard SX14 by 18 inches for enhanced performance. Its single-scissor design and adjustable turn plates accommodate various vehicles for precise alignments. Automatic LED lighting and advanced photocell technology ensure seamless operation, whether surface-mounted or flush-mounted. This comprehensive package includes rolling jacks, turn plates, and an airline kit.
Features:
- Versatility: Includes rolling jacks, turn plates, and a dual jack operation kit.
- Extended Runway: Accommodates both single and dual rear-wheel vehicles with ease.
- Precision Sync: Advanced photocell technology ensures flawless alignment.
- Efficiency: Energy-efficient LED lighting illuminates the workspace.
- Low Maintenance: Rear slip plates with oversized bearings enhance durability.
- Smooth Operation: Twin hydraulic cylinders for efficient lifting.
- Noise Reduction: Approach ramps with end rollers minimize noise.
- User-Friendly: Single-point air lock release for effortless operation.
- Durability: Powder coat finish for long-lasting reliability.
- Mounting Options: Choose above-ground or flush mounting.
- Certified Quality: ALI certification guarantees product excellence.
Specs:
Model: Extended RampsLifting Capacity*: 14,000 lbs.
Rise Height: 77in
Overall Length: 283in
- Ramp Length: 80.75in
Overall Width: 91.25in
Width of Runways: 25.5in
Between Runways: 40in
Lowered Height: 10.5in
Maximum Wheelbase: 183in
Wheel Alignment (Max.): 176in
Wheel Alignment (Min.): 70.75in
Motor: 3 HP
Voltage (Single Phase Std.): 208-240v (23 FLA)
Speed of rise: 75 s
Air Required (filtered/lubricated): 90 - 120 psi (20CFM)
Min. Recommended Bay Size: 14ft x 28ft
ALI/ETL Certified: Yes
Color Available: Black
Site Requirement
Bay Height: (12ft min) Rise Height + Height of Vehicle
Bay Width: 14ft Recommended
Bay Depth: 28ft Recommended
Electrical Requirements
- Voltage: 208-230V
- Phase: 1PH
- Breaker: 30 Amp
Concrete Specs (Minimum)
- Thickness: 4in (Free from Cracks/Seams)
- Rated @: 3500+ psi
- Cured Time: Minimum 28 Days
Air Requirement: 90-120 psi
Ref No.
SX14-ER
SX14EXTENDED
Similar Product
SX14-SR (Standard Ramp)
SX14-FLUSH, SX14-FM (Flush Mount)
EELR789APKG (Hofmann)
6602 (Ravaglioli)
AULS14ALOR1T (Autel)
Ref Name
Surface Mount Scissor Alignment Lift
Scissor Alignment Lift System
Application:
Auto AlignmentGarage Work
Vehicle Maintenance
Wheel Alignments
For Vehicles
Cars/LT
Trucks
For Businesses
Repair Shops
Alignments Shops
Fleet Maintenance
Includes:
1 x SX14-ER Lift2 x 7K Rolling Jacks
2 x Stainless Steel Turn Plates
2 x Rear Slip Plates
1 x Dual Jack Airline Kit
