Forward Lift F10 10K Symmetric Two Post Lift

Forward Lift F10 10K Symmetric Two Post Lift, Blue

Rebates Available

End-User Rebates!

Rebate Amount: $350
Note: Standard Only
More Info

Order Between 02/14/2025 and 04/30/2025
Rebates must be claimed by 06/30/2025

Forward Lift F10 10K Symmetric Two Post Lift, Blue

SKU: FLT-F10B $5,095.00

Estimated Lead Time:15 Days

Part No: FLT-F10B

Delivery Options

I have a forklift to unload

Please drop off at freight terminal.

Standard

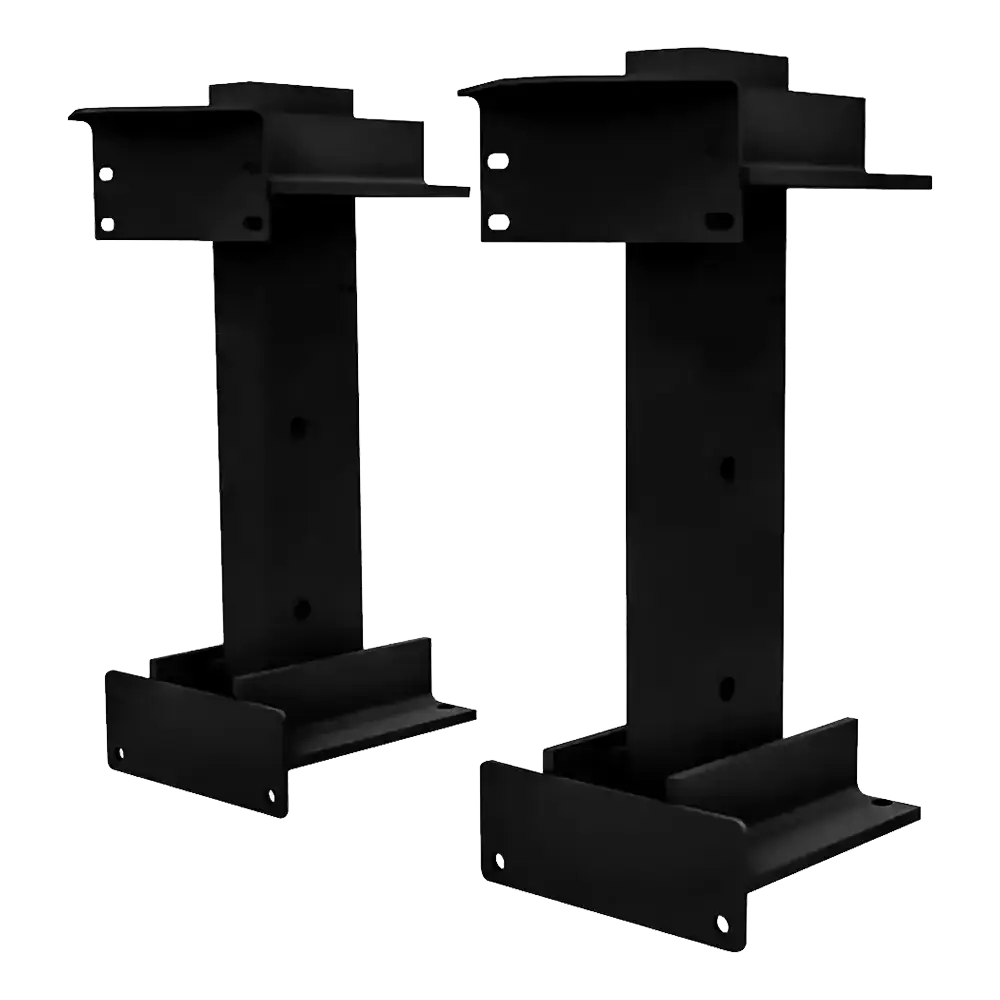

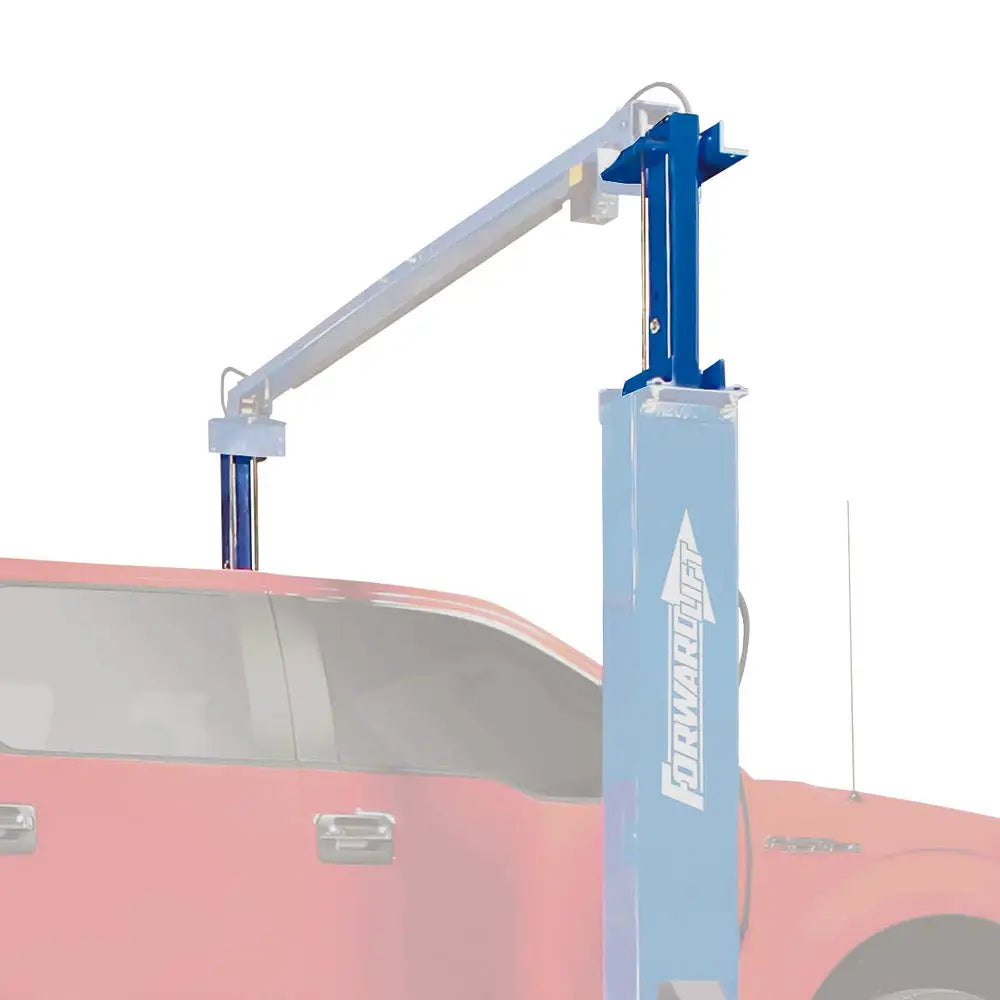

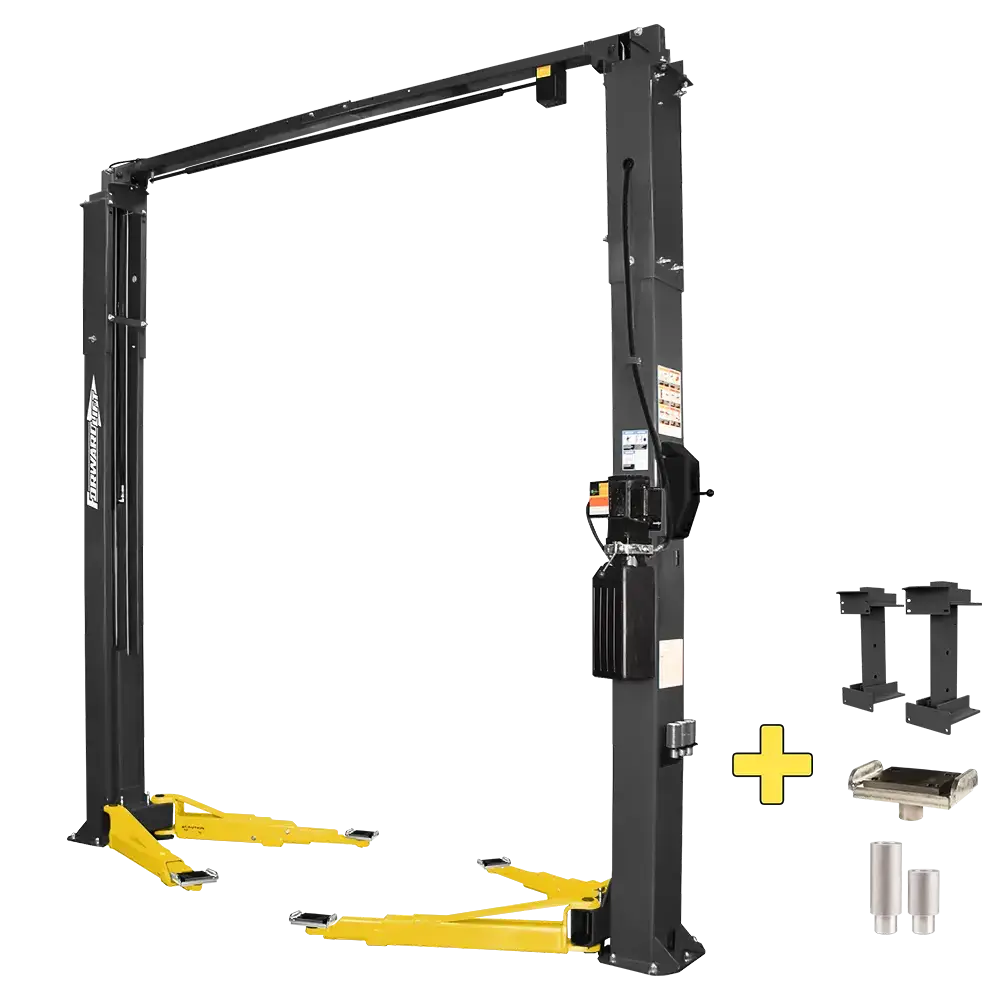

2ft Extended

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

ACCESSORIES

DOWNLOADS

Related Categories: ALI Certify Lifts Automotive Lift Deals Forward Lift Shop Equipment Two Post Lifts

PRODUCT INFO

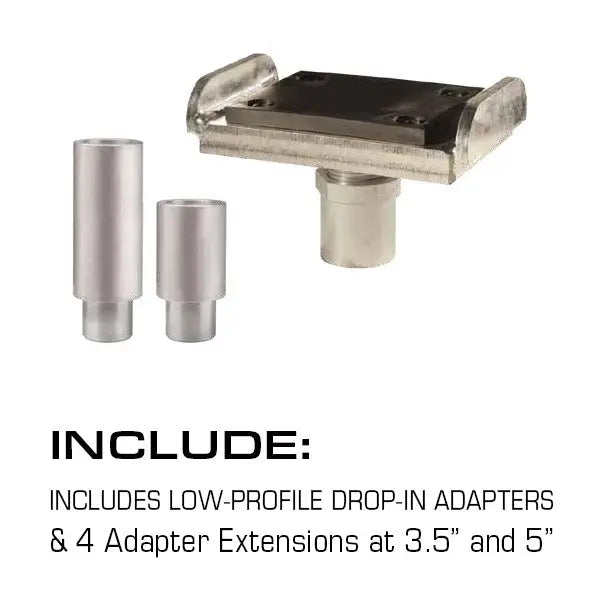

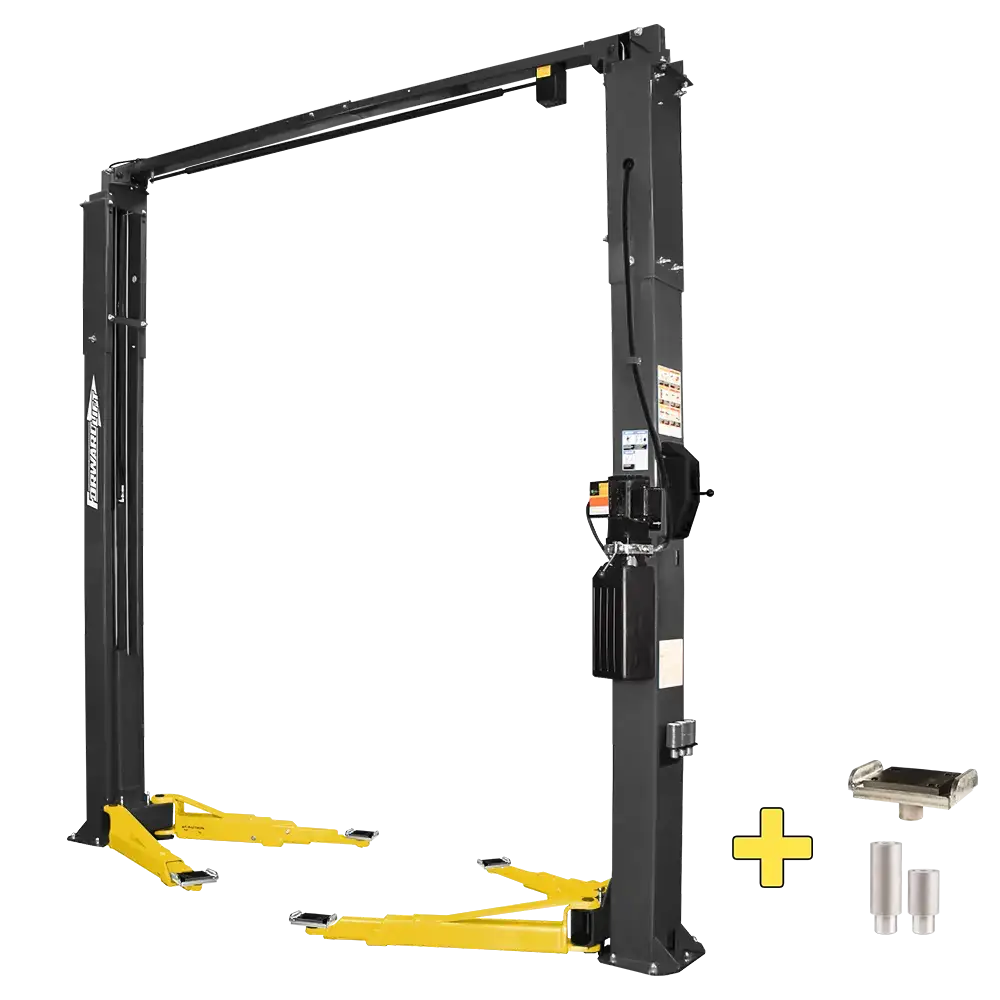

Forward F10 is a light-duty 10,000 lbs. capacity two-post lift. It is designed to perform and build to last. Featuring a Symmetrical column design and a frame engaging rubber padded truck adapters with multiple adapter extensions to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″.

Features:

10,000 lbs. capacity for raising most passenger cars, trucks, and vans.
Third-party tested by ETL and approved by ALI.
3-stage front and 2-stage rear arms
Adapter storage bracket kit
Hydraulic cylinders in each column: Direct pull lifting technology; Top mounted; Full stroke; Cylinder rod concealed inside carriage

Specs:

Capacity: 10,000lbs
Max. Rise w/5in extension: 76-1/4in (1937mm)
Overall Height: 143in (3632mm)
Overall Width: 131in or optional 137in (3327mm / 4380mm)
Drive through clearance: 99in or optional 105in (2515mm / 2667mm)
Overhead switch height: 137-5/8in (3496mm)
Front reach (Min/Max): 24-1/2in / 44-3/8in (621mm / 1127mm)
Rear reach (Min/Max): 36in / 58in (914mm / 1473mm)
Min/Max Adapter Height:
- 3-3/4in (95mm) no adapter extension
- 8-3/4in (222mm) w/5in adapter extension
Width Inside Column: 109in or optional 115in (2769mm / 2921mm)
Adapter Heights: 3-1/2in and 5in
Voltage/Amps: 208 / 230, 15 amps; 208/230, 16 amps
Motor: 1ph*/2HP/50Hz; 1ph*/2HP/60Hz
Ceiling height required: 144in (3658mm)
*3-phase available at additional cost
